Skwad

Year 2023
MSRP $2,299.99 *
Sizes

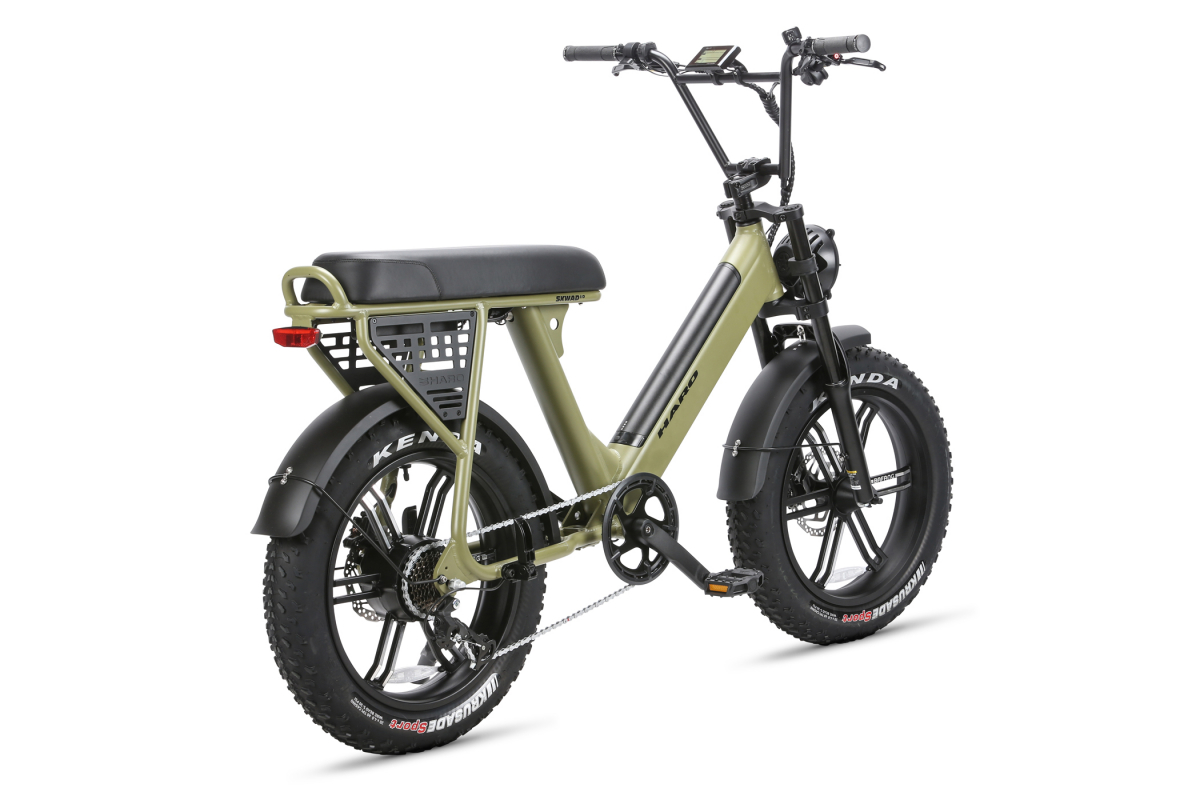

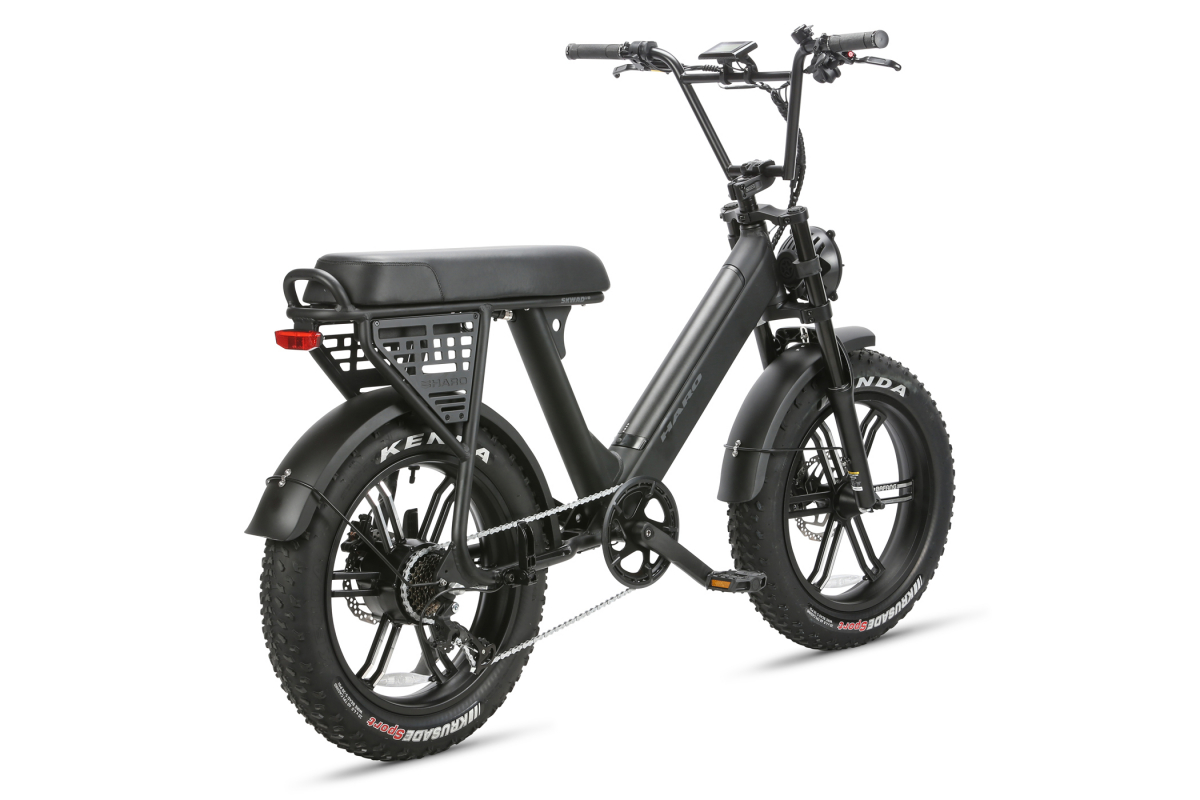

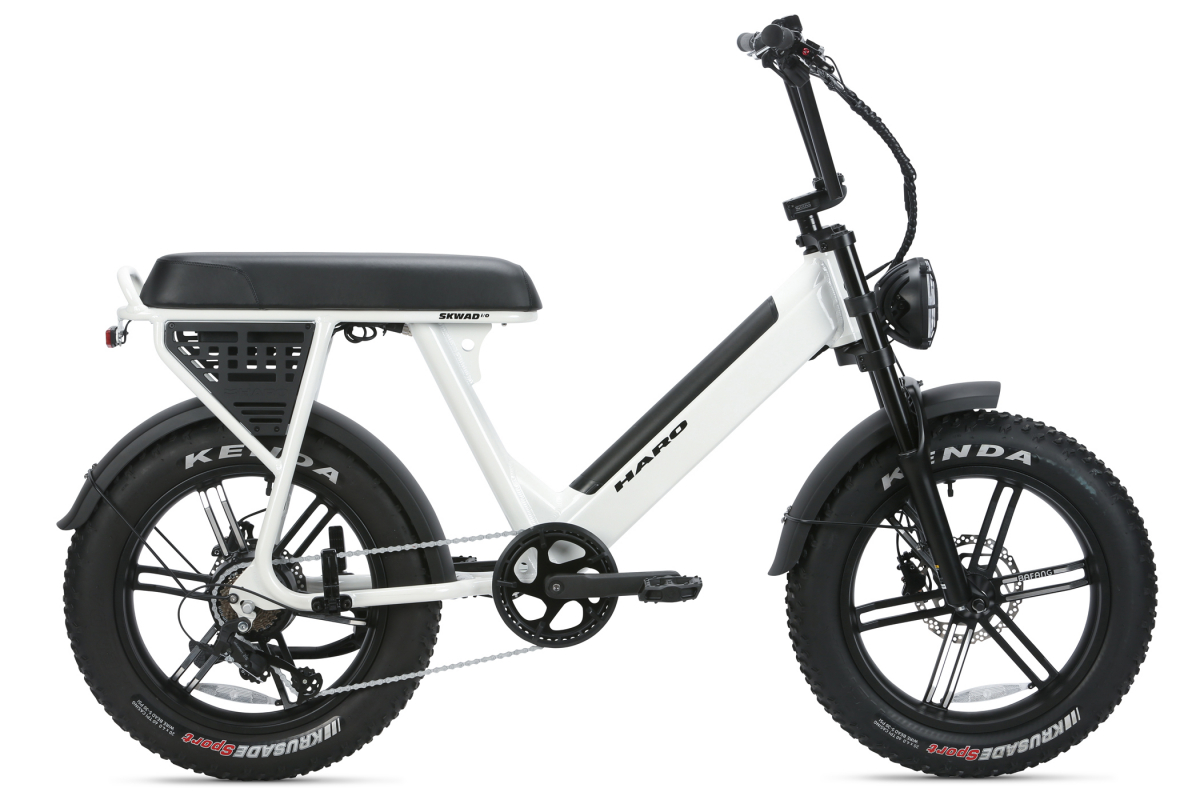

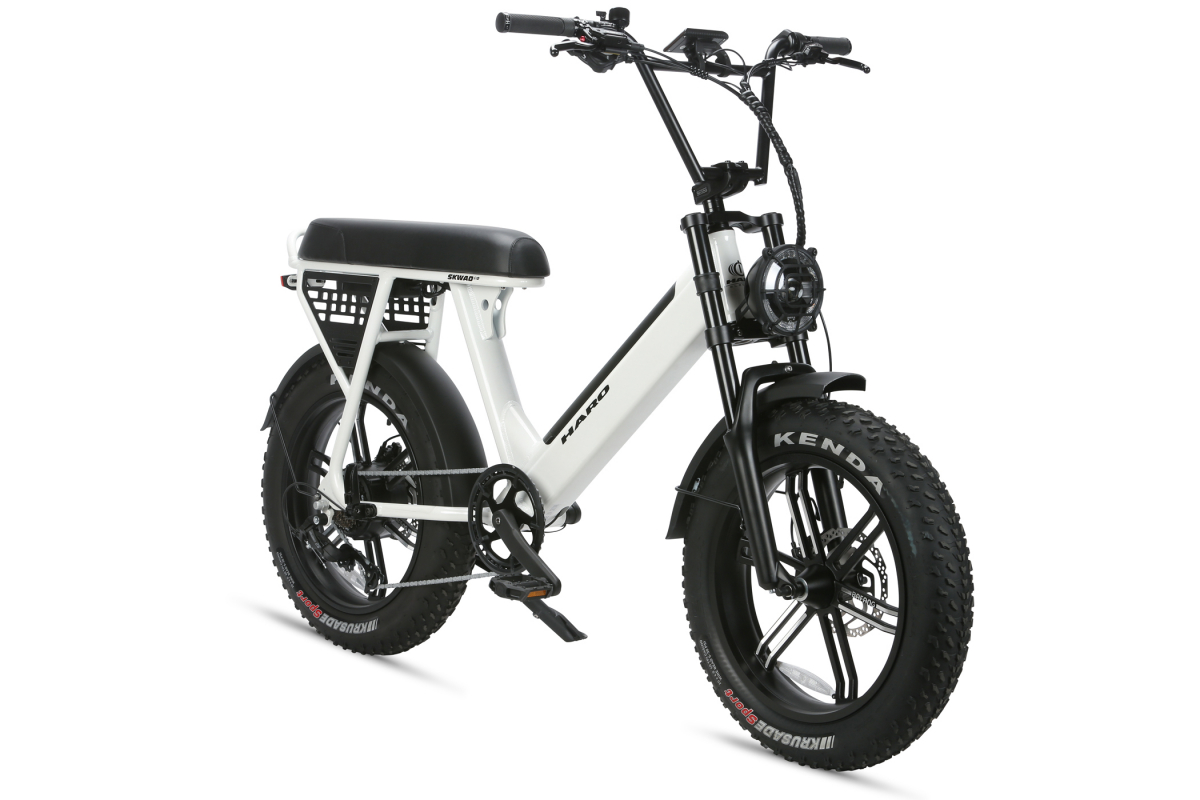

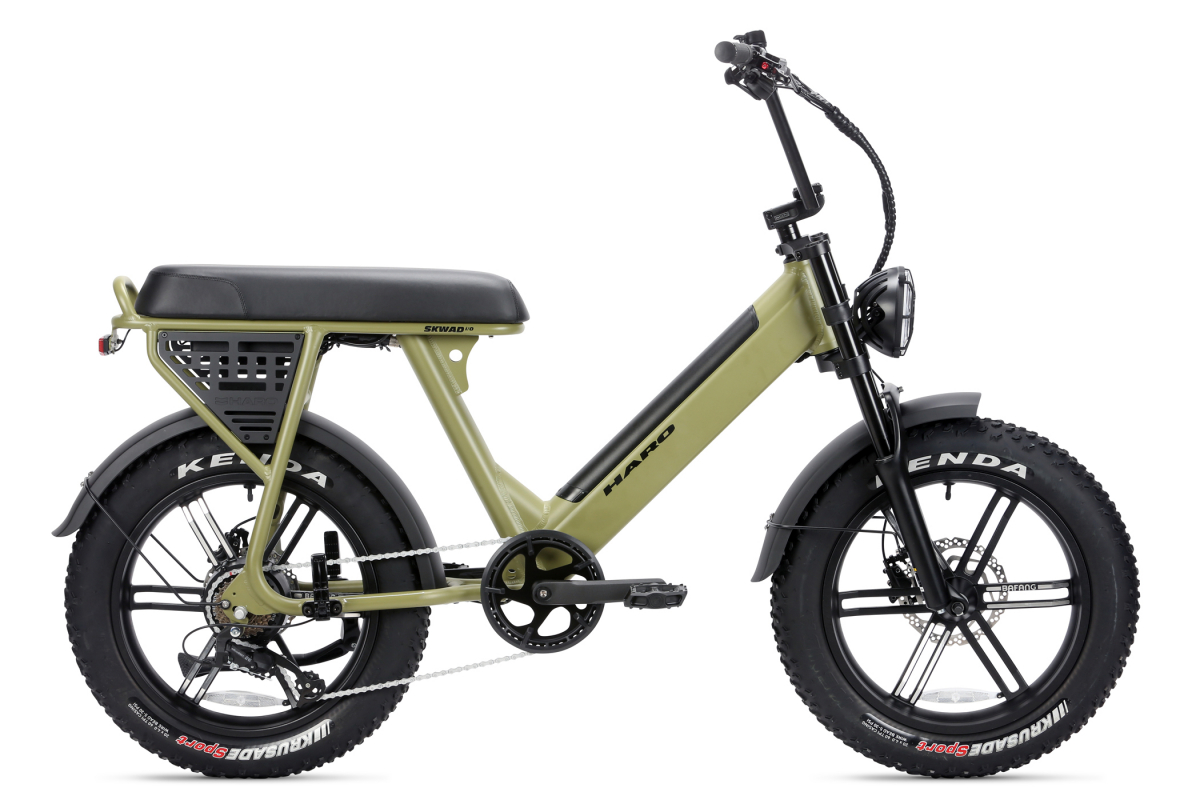

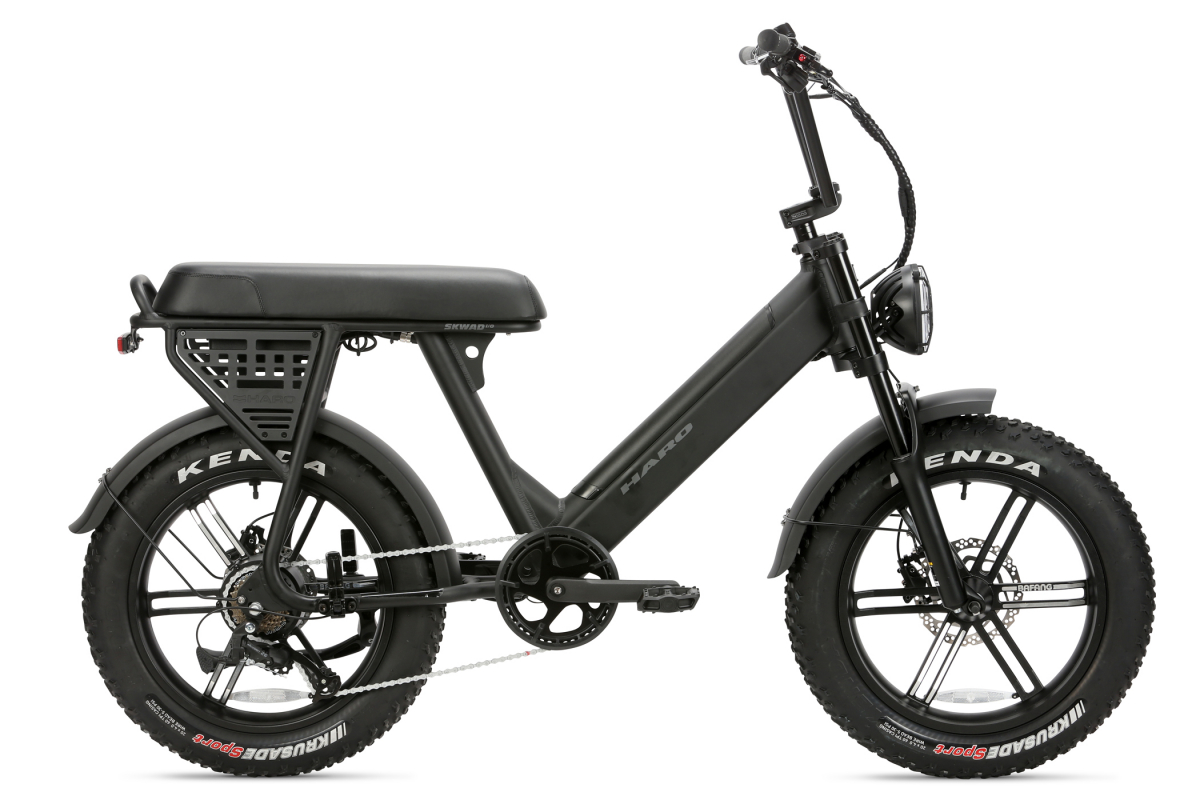

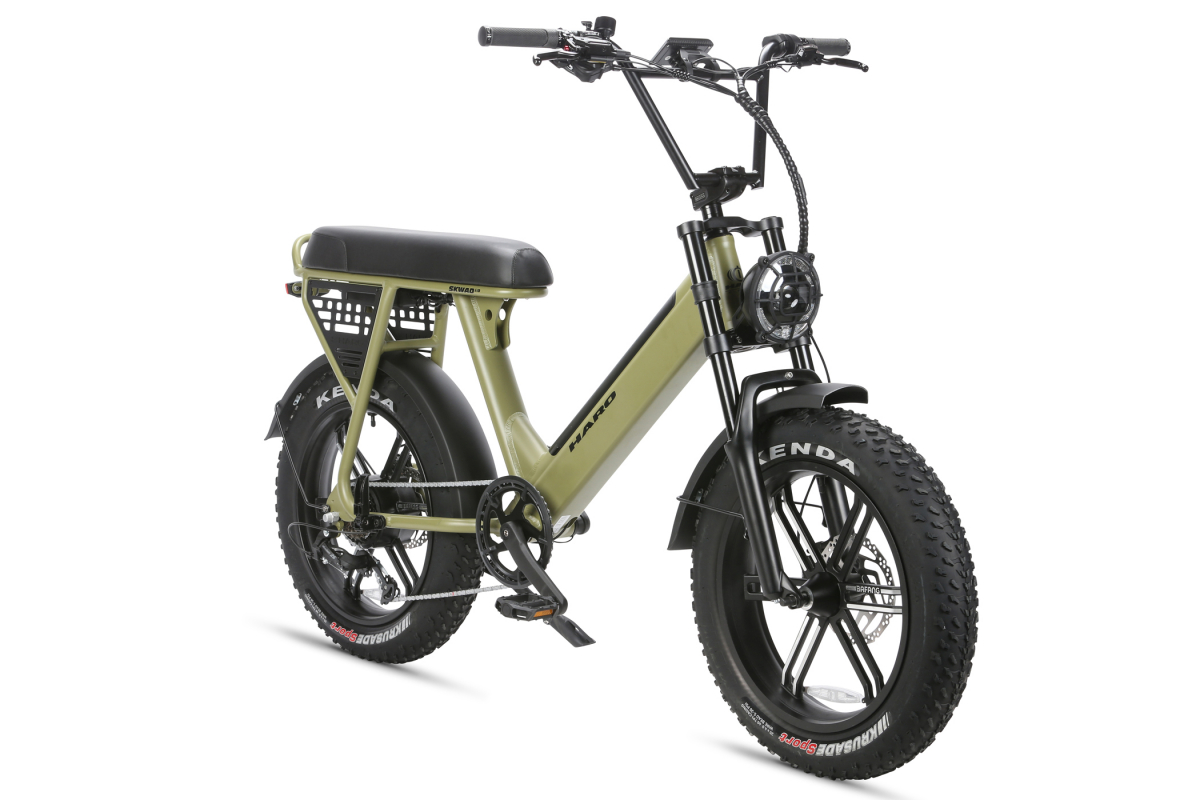

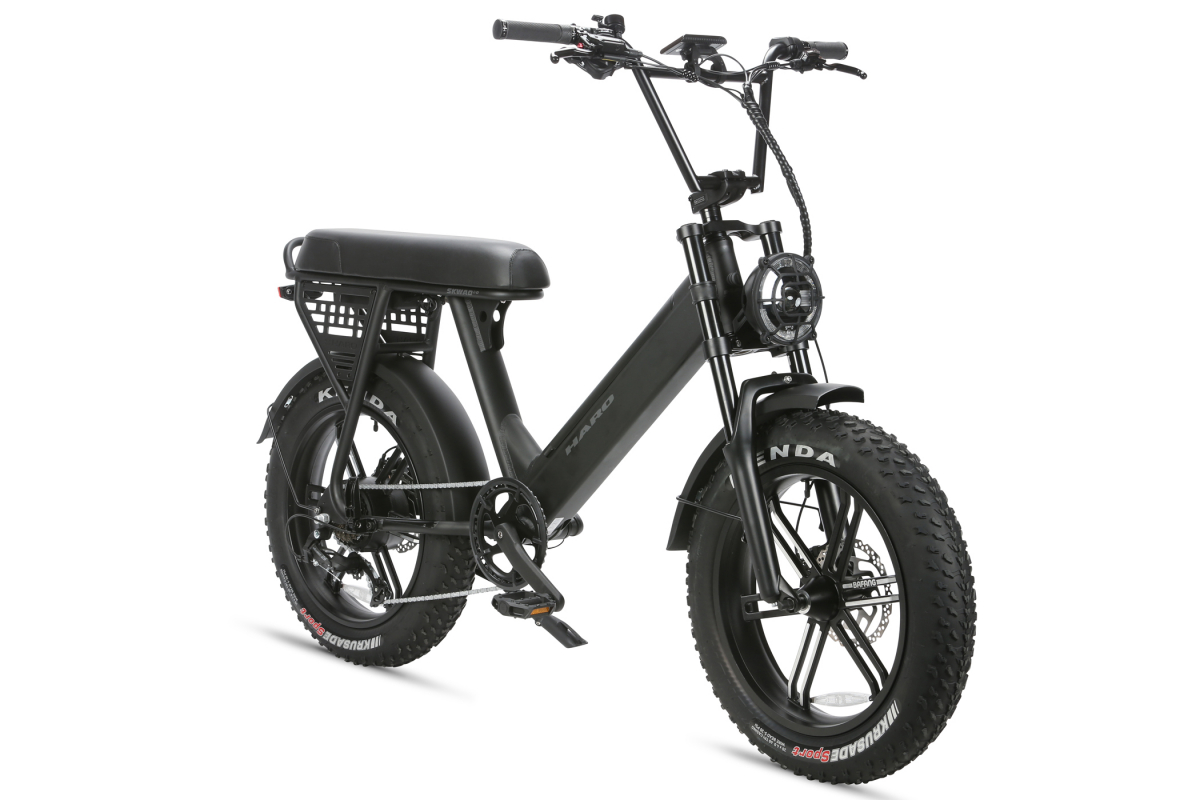

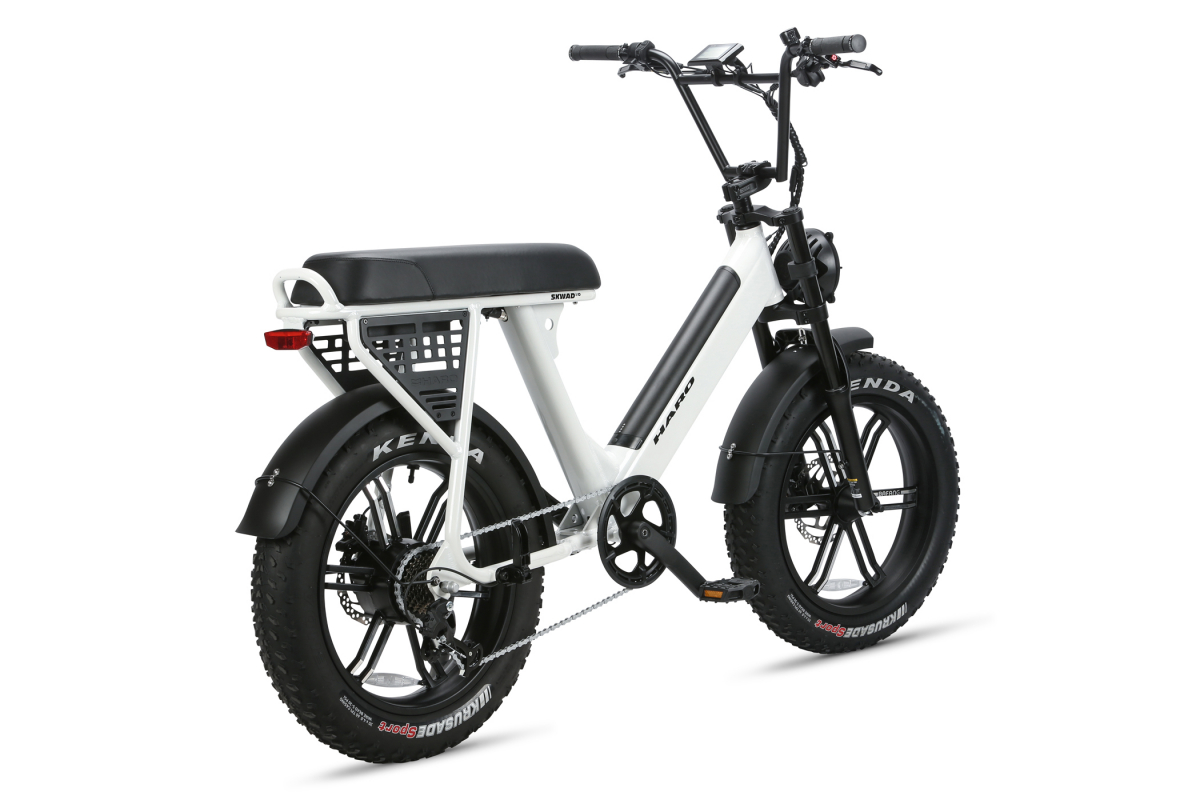

Colors Matte Black, Pearl White, Split Pea Green
Weight

Ready to rip through the neighborhood, run errands, or go off-road? the Skwad is the perfect bike to meet up with your crew and take it all on. With up to 40 miles of range, this is your true down-for-whatever ride. The Skwad has a retro look, but it's all modern with oversized tires that are at home on pavement and adventurous enough for shortcuts. With a comfy, cafe-style seat, Haro Baseline 9.5" BMX handlebars and folding foot pegs, you get unmatched comfort and room for a friend. Alloy side-plates under the seat give you options to strap down your gear. Quick, safe and stable, the Skwad is your ticket to freedom. Round up your squad and get after it!

FEATURES

  • 6061 T6 Aluminium, tapered head tube, internal downtube battery and Built in Grid mounting plate
  • Bafang 750W drive unit
  • 48v, 13.2AH internal downtube battery, UL certified
  • 40 Mile plus range
  • Dual piston hydraulic disc brake with 180mm rotors
  • MX Style front headlight and rear brake alert light
  • Left side thumb throttle
  • Alloy 6-spoke mag wheels with 20 x 4" Kenda tires
  • Ebike classification: Class 2, 750W/20MPH
SPECIFICATIONS
Frame Components
Frame 6061 T6 Aluminium; tapered head tube and internal battery; Built in Grid mounting plate
Fork 100mm travel I Triple crown I Aluminum 32mm stanchions
Headset 1-1/8" - 1-1/5" tappered internal headset
Drivetrain
Cranks Forged aluminum | 170MM
Sprocket 42T Alloy Chainring Alloy Guard
Bottom Bracket Square Tapper | 73mm | 148mm Spindle I Cadence Sensor
Chain KMC Z7 | 7SPD
Rear Deralleur Microshift RD-M26L
Derailleur Shifter Microshift TS39-7
Drive Unit Bafang 750W. Class 2, 750W/20MPH
Battery 48V | 13.2AH | 13S4P | 3300mAh | BAK | UL certified
Pedals 9/16" Cro-Mo Axle, Alloy Body
Wheels
Tires Kenda Krusade 20"X4"
Wheels/Rims Bafang Alloy 6 Spoke Mag Wheel
Freewheel/Cassette Shimano mf-TZ500-7SPD 14-28T
Braking System
Brakes Rush Dual Piston | Open System | 180mm Rotors | STD Mount
Brake Levers Radius 2.5 Finger | Sensor Control Cut Off | Reach Adjustment
Other Components
Grips Dual locking 135mm Velo Grips
Handle Bar Haro Baseline 9.5"
Stem Haro Baseline 48mm EXT.
Seat Haro Cafe
Extras Rear brake Light; Front MX style headlight; left thumb throttle
GEOMETRY
Size Head Angle Seat Angle Top Tube Seat Tube Chainstay BB Height Stand Over
20 71° ° 668mm (26.30") 460mm (18.1") 466mm (18.3") 304mm (12")

RESOURCES

Owner's manual: Bike Manual PDF

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
