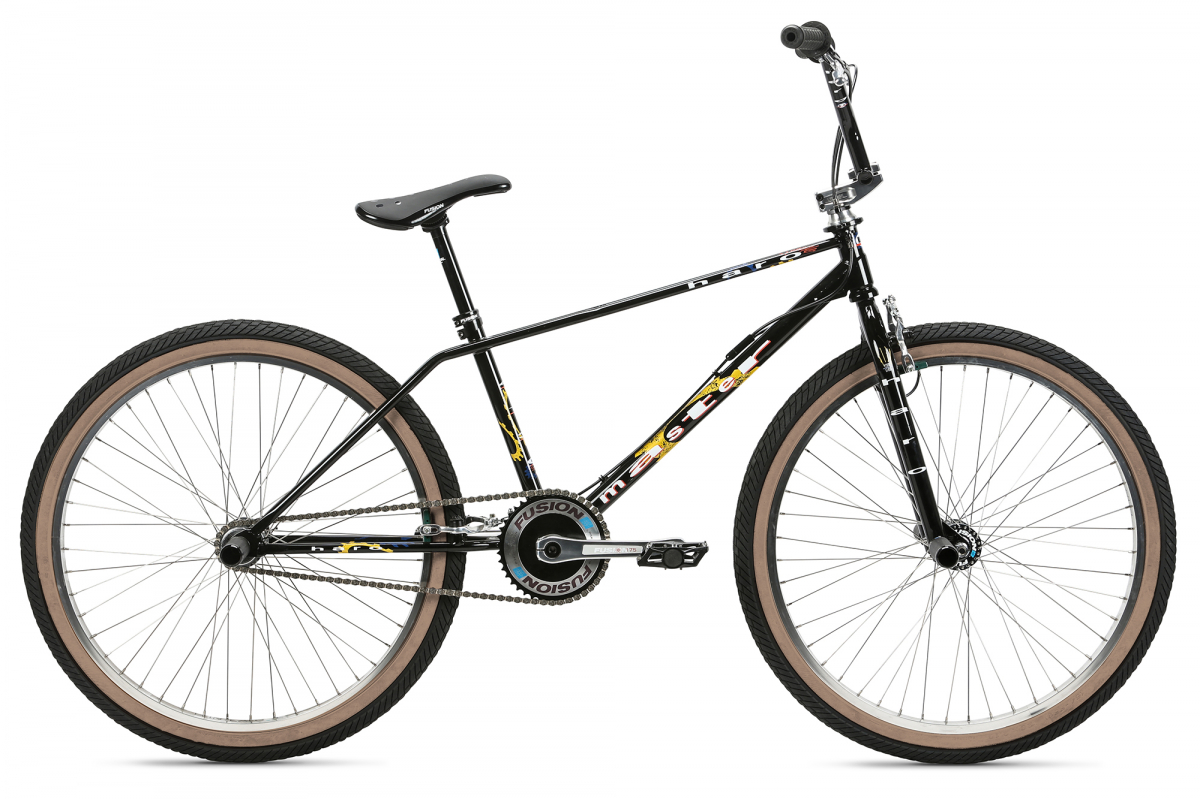

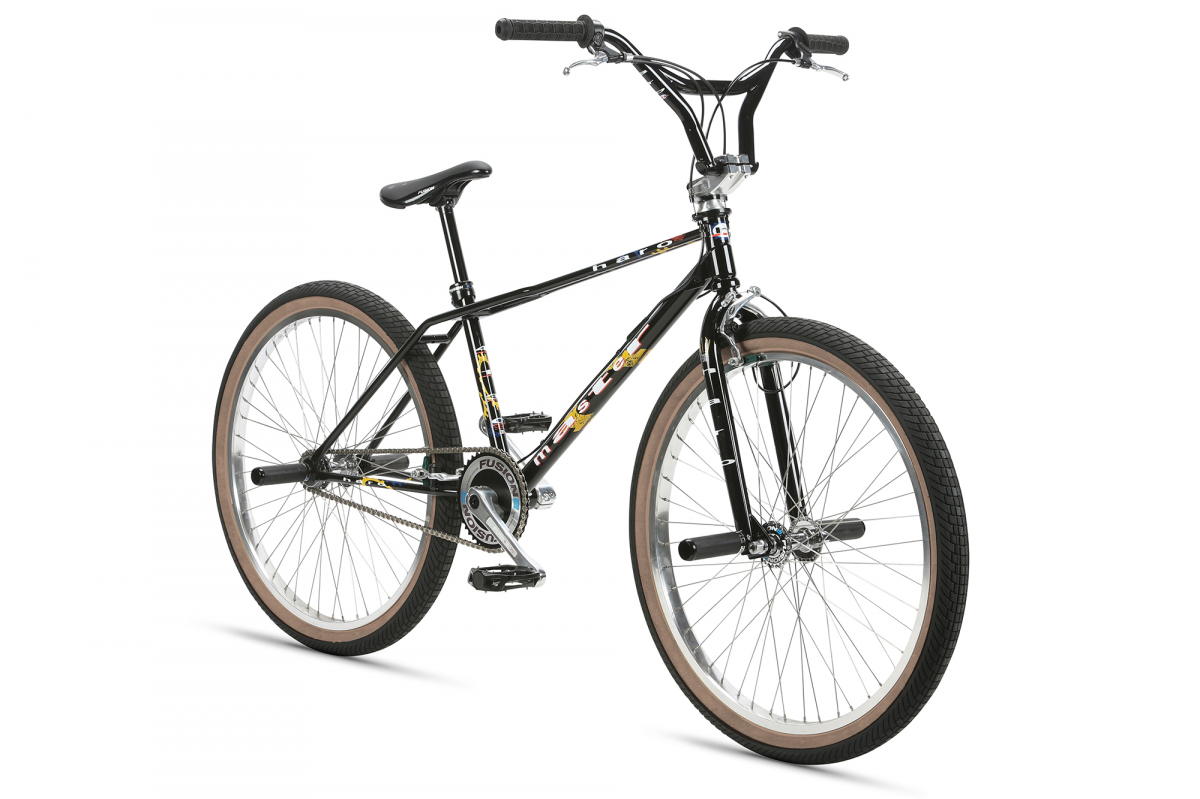

Lineage Ground Master 26
Year | 2023 |
---|---|
MSRP | $1,999.99 * |
Sizes | 22.5" |
Colors | Black |
Weight |
The Ground Master 26" is the big brother to the 20" version with a few changes to keep it tight and right on a larger scale. You get the 1992-inspired all chromoly twin top tube frame and heat treated chromoly fork, Kneesaver bars and Fusion parts throughout. Down below, we're rolling steady on double-wall alloy rims, laced to sealed high flange hubs, mounted with Kenda Kranium 26 X 2.25" tires. Smooth, larger diameter pegs are easy on your feet. Chainstay mounted rear brakes and internally routed front brakes keep the bike in control, even when you aren't. "Tricks are for kids" does not apply to the Ground Master 26".
FEATURES
- 100% chromoly Lineage Ground Master frame with twin top tubes, hour glass Mid BB shell, integrated head tube and Lineage dropouts. 22.5" top tube length
- 100% heat-treated chromoly Lineage fork with CNC 1-piece internal threaded steer tube, integrated bearing race, tapered legs, 15mm offset dropouts and 990 brake mounts with internal brake cable routing
- 100% heat-treated and butted chromoly Lineage Kneesaver 8.5" bars with Fusion Lineage CNC alloy top load stem
- Lineage Fusion alloy 175mm cranks with 22mm chromoly spindle. Haro Lineage Fusion Disc CNC alloy 41T sprocket. Sealed Mid BB
- 41/17 gearing
- Fully sealed 36-hole wheels with Lineage high flange hubs with freewheel rear. Double-wall 36H alloy rims.
- Kenda Kranium tires 26 x 2.1" front and rear
- Haro Lineage padded Pivotal stealth seat with alloy Lineage Pivotal post
- Haro Fusion pedals
- CNC alloy pegs
- CNC alloy gyro with Teflon bearing
- Dia-Compe Hombre FS996 (front) and AD996 (rear) brakes with Tech 77 levers.
- Haro Lineage alloy two-bolt seat post clamp
Frame Components | |
---|---|
Frame | Lineage Master Bashguard 26" frame - 22.5" full chromoly; internal h/t crmo - with removable rotor tab mounting holes; removable brake mounts. |
Fork | Haro Fork with 990 mounts and internal cable routing; 28mm offset; 3/8" axle; cr-mo steerer; tapered fluted legs |
Headset | Sealed Integrated, 1 1/8" |
Drivetrain | |
Cranks | Haro Lineage heat treated 3-piece alloy 175mm cranks (bolt drive interface) rsd and lsd; 22mm spindle |
Sprocket | Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 41t ; solid ring w/ machined teeth, included sprocket adapter |
Bottom Bracket | Sealed MID BB |
Gearing | 41/17 |
Chain | KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite |
Pedals | Haro Fusion; alloy pedal body; chromoly axle |
Wheels | |
Tires | Kinda Kranium tire; 26x2.25; 60 max psi |
Wheels/Rims | Haro Lineage 26x1.75"; 36H (double wall welded joint) |
Front Hub | 36H alloy hub body; 3/8" chromoly straight axle; 2 sealed bearings |
Rear Hub | Haro Lineage sealed bearings; 17t Freewheel; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts |
Spokes | 14 gauge stainless steel silver; 12mm alloy nipple; laced 3 cross |
Braking System | |
Rotor | Teflon bearing gyro - full cnc 6061 t6 included a-plate |
Brakes | Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts |
Brake Levers | Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever |
Other Components | |
Grips | Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft). |
Handle Bar | Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted |
Stem | Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 52mm |
Seat | Haro Fusion slim stealth pivotal seat |
Seat Post | Haro Fusion stealth pivotal seat post; 25.4 x 300mm |
Seat Clamp | Haro Fusion twintorc clamp; alloy 6061 |
Pegs | 6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs |
Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
---|---|---|---|---|---|---|---|
22.5 | 73° | 69° | 571.5mm (22.5") | 368mm (10.2") | 461mm (13.7") | 293mm (11.5") | 546mm (21.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
