Dana
| Year | 2023 |
|---|---|
| MSRP | $539.99 * |
| Sizes | 20.5" |
| Colors | Vivid Black/Black Fade, Vivid Purple |
| Weight |

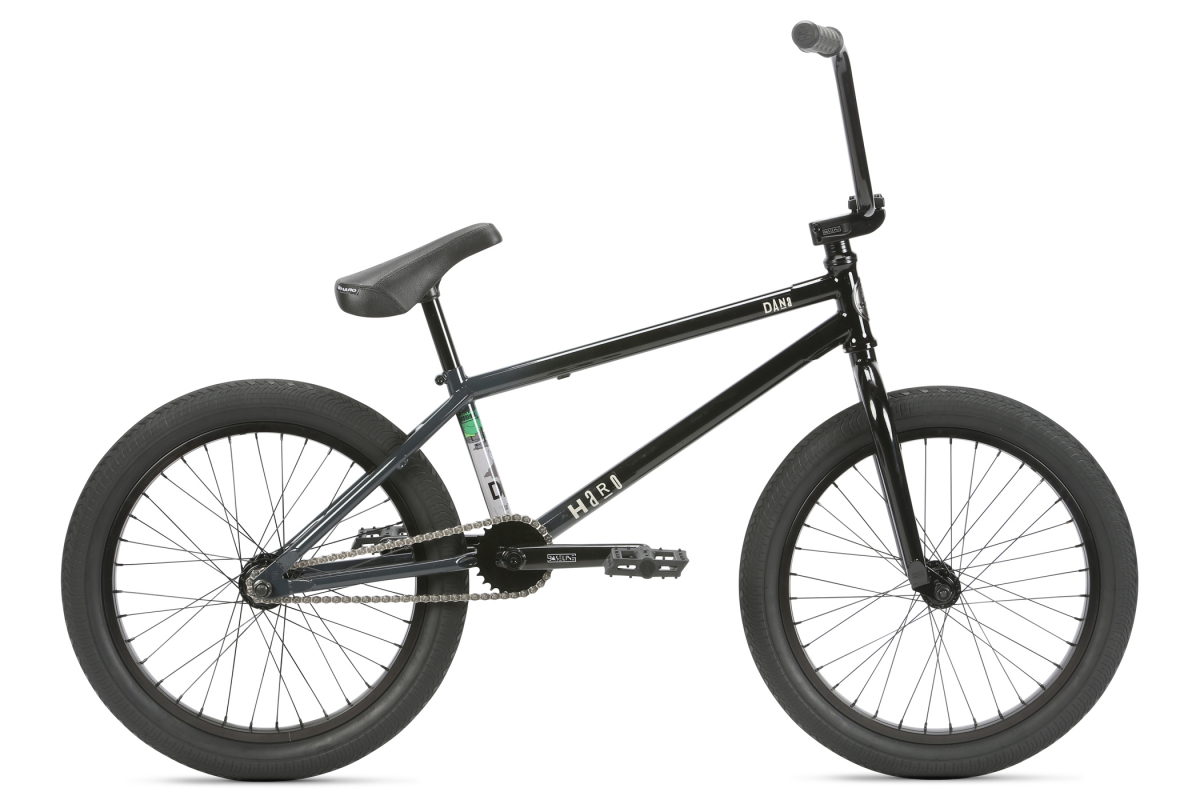

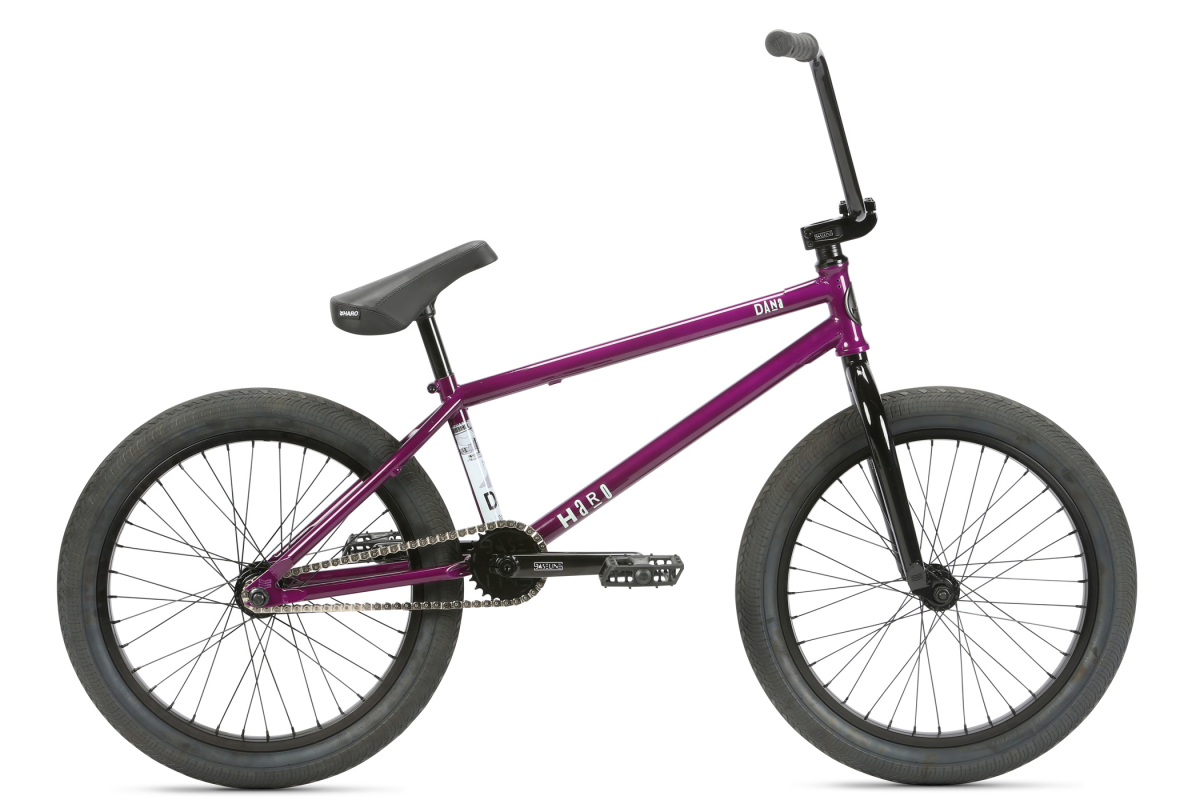

Named after one of San Diego's finest street spots, the Dana features an all chromoly frame with responsive geometry, a short 12.75" rear end and a 20.5" top tube to fit the mid-sized crew. Back that up with an all chromoly fork, 9" rise bars and 165mm cranks and you're rolling strong. Premium CK 2.4" tires mounted on double-wall rims with sealed front and cassette rear hubs, a half-link chain and a set of pegs included--ready to go.
FEATURES
- Full chromoly frame with removable brake mounts and mid BB shell; 20.5" top tube
- Full chromoly 2-piece steerer fork with tapered legs intenrally threaded steerer tube; 25mm offset
- Haro full chromoly 9" rise bars
- Haro Baseline stem
- Premium CK grips
- Haro Baseline chromoly 8-spline 19mm cranks; 165mm length
- Sealed front and cassette rear hub laced to 36H double wall rims
- 25/9 gear ratio
- Haro Baseline half-link chain
- Premium CK 2.4" Tires
| Frame Components | |
|---|---|
| Frame | Full Cro-Mo Frame w/ 1-1/8" Integrated Headtube, MID BB Shell, Removable 990 Brake Mounts & 14mm Axle Drop-outs, 12.75" CS, 75.5° HT |
| Fork | Full Cro-Mo 1-1/8" Thredless w/ Internally Threaded Steerer & Tapered Legs 25mm offset |
| Headset | Integrated 1-1/8" Threadless Sealed Bearing |
| Drivetrain | |
| Cranks | Haro Baseline 3-pc Cr-Mo 8 Spline 165mm - 25t Steel Chainring |
| Bottom Bracket | Sealed Bearing MID |
| Gearing | 25/9 |
| Chain | Haro Baseline chain |
| Pedals | Poly Platform, Cr-Mo 9/16" Axle |
| Wheels | |
| Tires | Haro La Mesa 20 x 2.4" |
| Wheels/Rims | 20" Alloy 36h, Double Wall |
| Front Hub | 36h Alloy Sealed |
| Rear Hub | Alloy 9t Sealed cassette |
| Freewheel/Cassette | 9t Driver |
| Spokes | 14g |
| Braking System | |
| Brakes | Radius Alloy 990 U-Brake |
| Brake Levers | Haro Baseline Two Finger |
| Other Components | |
| Grips | Haro Baseline 163mm flangeless |
| Handle Bar | Haro Cr-Mo Bar, 9" Rise |
| Stem | Haro Baseline 48mm Reach |
| Seat | Baseline 5° Seat/ Post Combo |
| Seat Post | Aluminium 25.4mm |
| Seat Clamp | Integrated |
| Pegs | 2 |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
