Master DMC 26
| Year | 2023 |
|---|---|
| MSRP | $719.99 * |
| Sizes | |
| Colors | |
| Weight |

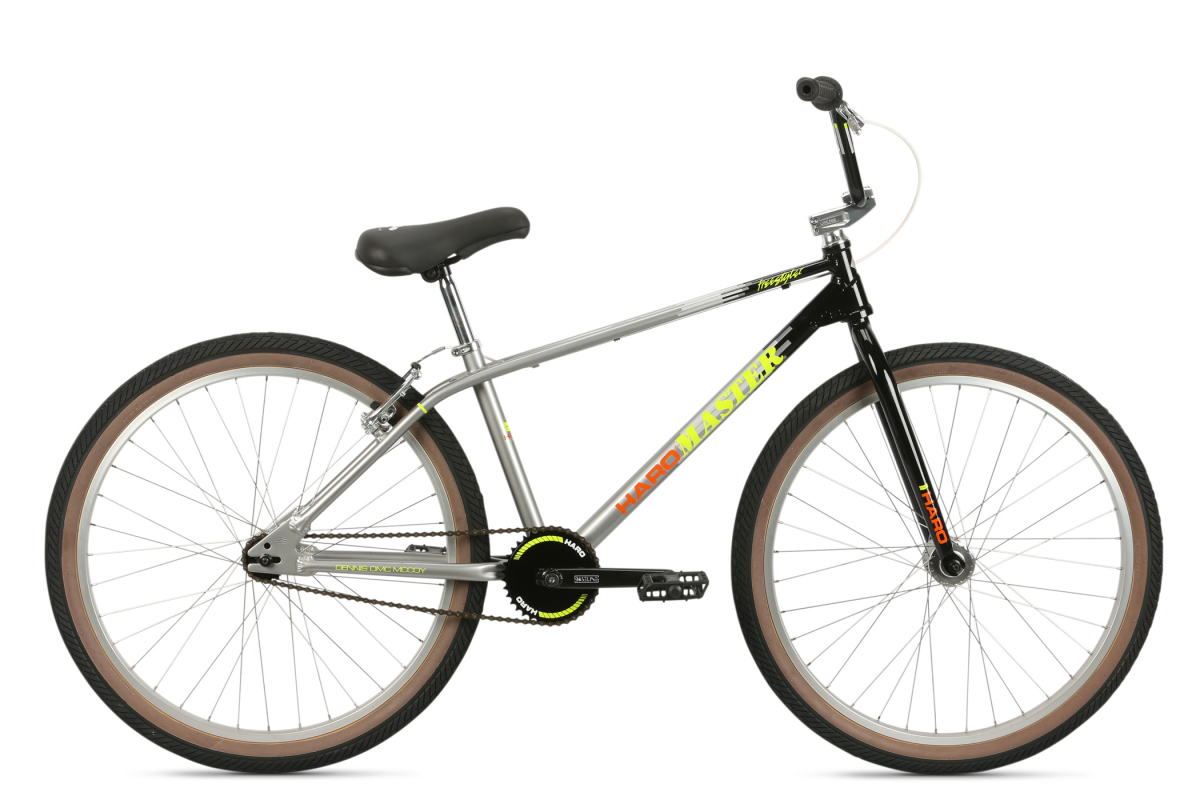

The Haro legacy rolls on. The DMC 26" is inspired by Dennis McCoy's unstoppable career in BMX and ready for duty. Twin top tube aluminum frame, chromoly forks and Freestyler bars, all sealed bearings, double wall alloy rims and V-brakes for those big boy abubacas--or maybe even a wheelie or two.
FEATURES
- 6061-T6 heat-treated aluminum frame w/integrated head tube, mid BB, V-brake mounts.
- 100% chromoly fork with internally threaded 1-piece CNC steer tube, tapered legs
- Haro Baseline 3-pc chromoly 175mm crank. 36T alloy chainring
- Poly Platform pedals, chromoly 9/16" Axle
- Haro Freestyler chromoly 7" rise bars
- 36 hole double wall alloy rims with high flange sealed hubs
- Haro DMC railed seat
- Haro Lineage CNC stem. 52mm reach
- Haro Team Grips
- ProMax V-brake and lever
| Frame Components | |
|---|---|
| Frame | 6061-T6 heat-treated, twin top tube frame. Integrated head tube w/wrap-around gusset, mid BB shell & V-brake mounts. |
| Fork | 1 1/8" Threadless full chromoly fork w/internally threaded steerer tube. Tapered legs. |
| Headset | Integrated 1-1/8" threadless. Sealed bearings. |
| Drivetrain | |
| Cranks | Haro Baseline 3-pc chromoly, 175mm, 8-spline, 19mm chromoly spindle. |
| Sprocket | 39T aluminum chainring. |
| Bottom Bracket | Mid, sealed bearing. |
| Gearing | 39/17 |
| Chain | Baseline chain |
| Pedals | Poly Platform, chromoly 9/16" axle |
| Wheels | |
| Tires | Kenda "Kranium" 24 x 2.1" |
| Wheels/Rims | 29" Alloy 36H, double wall. |
| Front Hub | 36h alloy, high-flange, sealed bearings. |
| Rear Hub | 36h alloy, high-flange, sealed bearings. |
| Freewheel/Cassette | 17T freewheel. |
| Spokes | 14 g |
| Braking System | |
| Brakes | Promax TX-117 alloy V-brake. |
| Brake Levers | Promax XL-378 alloy lever. |
| Other Components | |
| Grips | Haro Team grips. |
| Handle Bar | Full chromoly Freestyler, 7" rise |
| Stem | Haro Lineage CNC-alloy top load. 52mm reach. |
| Seat | Haro DMC. Railed, padded. |
| Seat Post | Alloy, 27.2mm |
| Seat Clamp | Alloy, 31.8 |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 26 | 72° | 70° | 593mm (23.4") | 433mm (17") | 455mm (17.9") | 315mm (12.4") | 788mm (31") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
