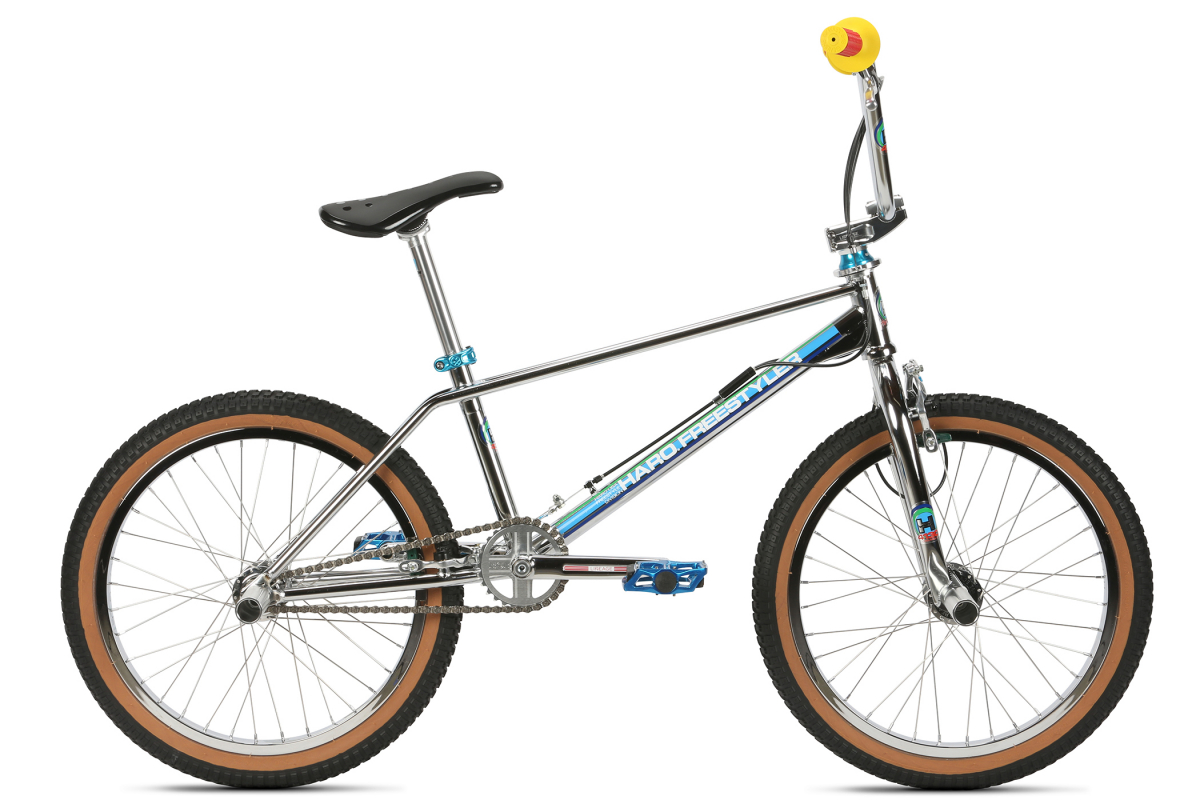

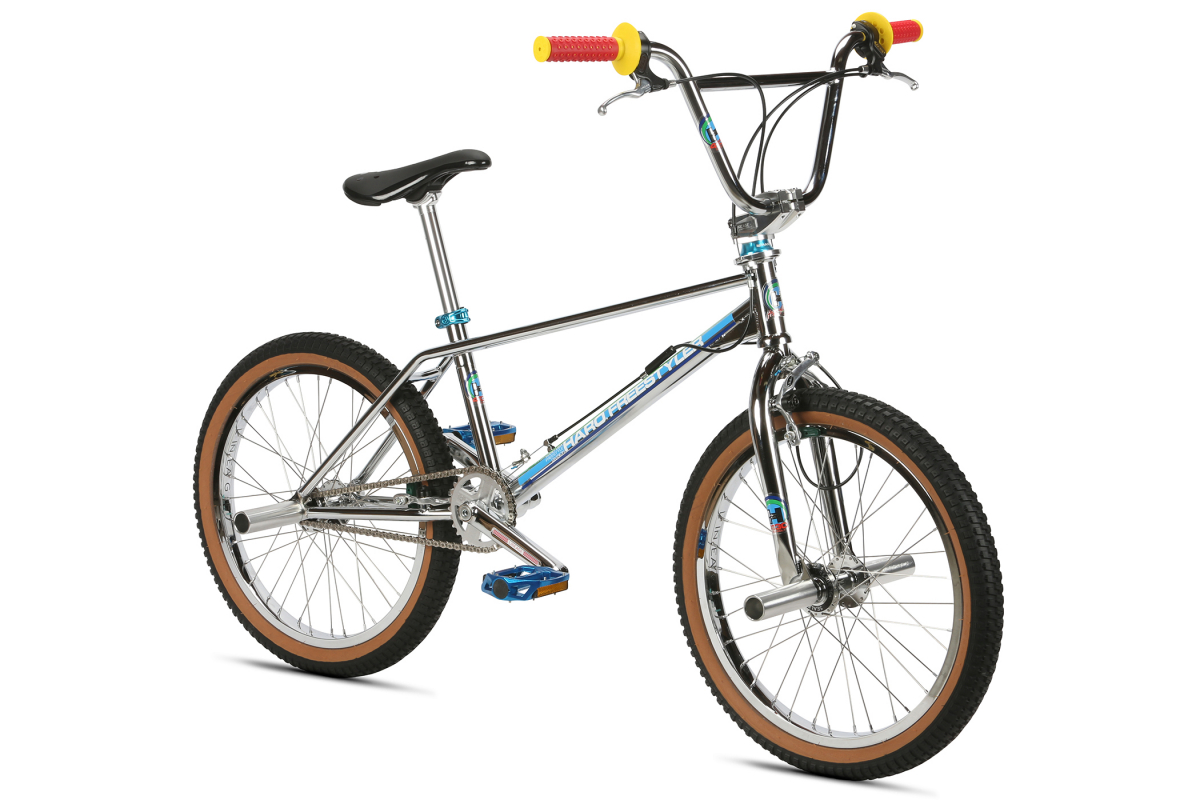

Bob Haro 40th Anniversary Freestyler

Year 2023
MSRP $1,999.99 *
Sizes 20.5"
Colors Chrome
Weight

Weaving DNA from the past with modern BMX technology, the 40th Anniversary Haro Freestyler is an early 80s dream living in the present. Masterfully created to retain its original look, with right now features like an hourglass mid BB and integrated head tube that maintains the classic cup look, but stays tight and spins smoothly. Forks are made of fully heat-treated and butted chromoly tubing, as are the lineage bars. Genuine Oakley B1-B grips sit next to Dia-Compe Tech 77 levers. The cranks take flight with 3-piece tubular chromoly construction with a 48 spline/19mm spindle. The BOB cross alloy sprocket looks the part and puts the Lineage wheels in motion. Front and rear Dia-Compe Hombre brakes keep it all under control. The legend rolls on...

FEATURES

  • 100% chromoly Lineage Freestyler frame with twin top tube, Mid BB shell, integrated head tube and Lineage cast dropouts with integrated chain tensioners
  • 100% heat treated chromoly Lineage fork with CNC threaded steer tube, investment cast drop-outs and 990 brake mounts with internal brake cable routing
  • 100% heat treated and butted chromoly Lineage bars 8.5" with Haro Lineage CNC alloy top load stem
  • Lineage heat treated 3-piece alloy 165mm cranks with Bob Haro Lineage 28T CNC alloy bolt drive sprocket and sealed Mid BB
  • Fully sealed 36H wheels with Lineage high flange hubs and double-wall hi polished alloy rims
  • Haro Snakebite tires 20 x 2.125" front and rear
  • Haro Lineage padded stealth Pivotal seat with alloy Lineage Pivotal fluted post
  • Oakley B1B Grips, just like Bob Haro rode in 1982
SPECIFICATIONS
Frame Components
Frame Haro Lineage Freestyler frame. Full chromoly construction. Twin top tubes. Gusseted down tube. 20.5" top tube length. Integrated head tube. Hourglass mid BB. Welded brake mounts.
Fork Haro Lineage Freestyler full chromoly fork with welded 990 mounts and internal cable routing. Tapered legs. Invest cast 3/8" dropouts. 33mm offset.
Headset Sealed Integrated, 1 1/8".
Drivetrain
Cranks Haro Fusion cranks (bolt drive interface). 165mm; 19mm 48-spline spindle; heat treated 4130 chromoly. RSD/LSD compatible.
Sprocket Haro BOB Lineage "cross" sprocket; CNC bolt drive sprocket; 5mm thick. 28T.
Bottom Bracket Sealed mid BB.
Gearing 28/9
Chain KMC K1SL Narrow Silver Super Lite 1/8" width.
Pedals Haro Fusion "DX" style. Alloy bodies. Steel pins. Chromoly axle.
Wheels
Tires Snakebite 20 x 2.125" front and rear. 60 max PSI.
Wheels/Rims Lineage 36h alloy rims. Double-wall. Welded seams.
Front Hub Lineage high flange 36h alloy hub body. Sealed bearings. 3/8" chromoly male axle. Chrome plated hardware.
Rear Hub Lineage high flange hub alloy hub body. Sealed 9T cassette driver. 14mm chromoly male axle. Chrome plated hardware.
Spokes 14 gauge stainless steel. 12mm alloy nipples. 3 cross lace pattern.
Braking System
Rotor Teflon bearing Gyro. CNC-machined 6061 aluminum.
Brakes Dia-Compe FS996 Hombre U-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts
Brake Levers Dia-Compe Tech-77 levers, right and left side. Cold-forged aluminum lever with hinged clamp.
Other Components
Grips Oakley B1B grip. 145mm length x 29mm diameter. 50mm OD flange.
Handle Bar Lineage bar. 8.5" rise. 100% heat treated, multi-butted chromoly.
Stem Haro Lineage top load stem; T6 alloy; cold forged with CNC detail. 45mm reach.
Seat Haro Lineage Slim stealth pivotal seat.
Seat Post Haro stealth pivotal seat post; 25.4 x 300mm.
Seat Clamp Dia-Compe MX hinged clamp. 6061 alloy.
Pegs 6061 alloy pegs. 34mm OD. 110mm length. Four (4) included.
GEOMETRY
Size Head Angle Seat Angle Top Tube Seat Tube Chainstay BB Height Stand Over
20.5 75° 70° 520mm (20.5") 260mm (10.2") 339mm (13.7") 293mm (11.5") 546mm (21.5")

RESOURCES

Owner's manual: Bike Manual PDF
