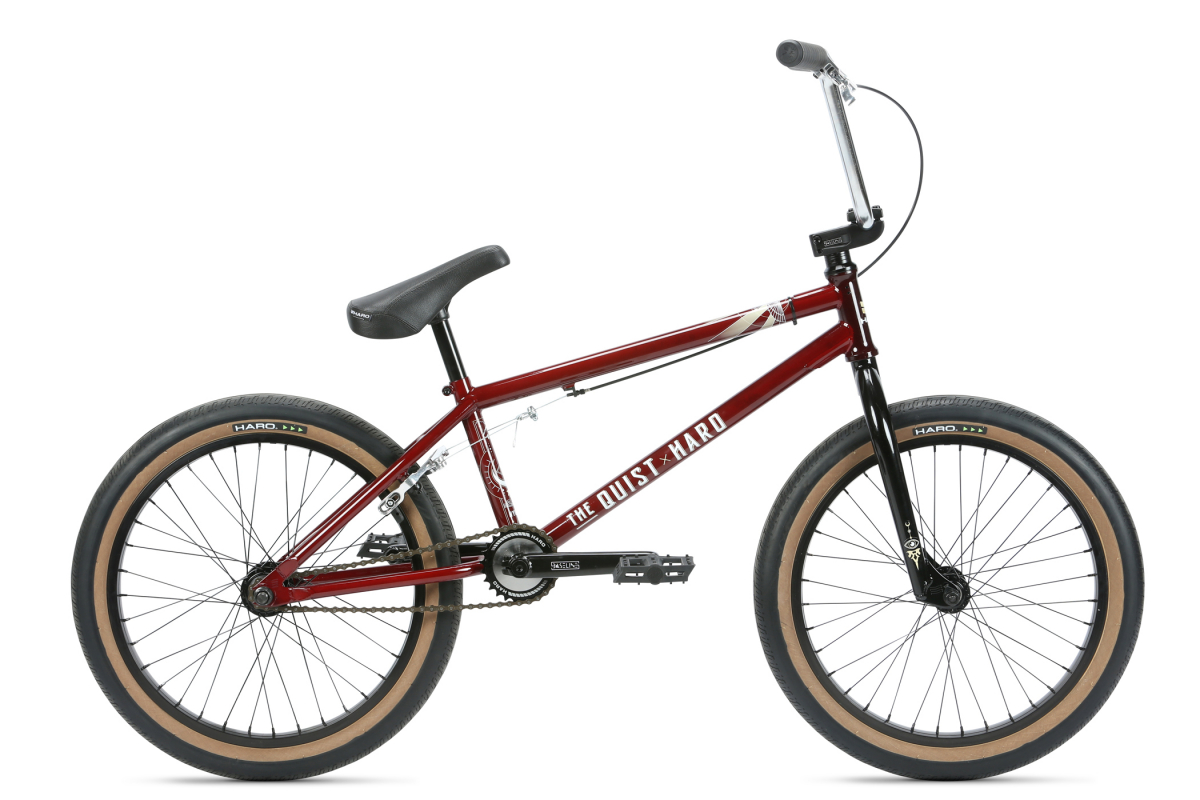

Quist
| Year | 2023 |
|---|---|
| MSRP | $629.99 * |
| Sizes | 20.5" |
| Colors | Vivid Red |
| Weight |
Ryan Nyquist is the longest standing member of the Haro Freestyle team and the Quist is a collaboration between Ryan, Haro and our product designers to create a totally custom complete. With Ryan's specific geometry to suit his park riding preferences, the Quist is a fine-tuned freestyle machine. Standard equipment includes a Gyro detangler for unlimited barspins. Ryan's personal touches are everywhere, from the Vivid Red paint and chrome bars to the custom graphics. The Quist is ready to go big, right out of the box.
FEATURES
- Full chromoly frame with integrated head tube and mid BB shell. 20.5" top tube.
- Full chromoly fork with 1-piece, internally threaded steerer tube & tapered legs. 32mm offset.
- Haro full chromoly 9" rise, 2-piece bars.
- Haro Baseline top load stem.
- Haro Baseline grips.
- Haro Baseline 170mm 3-piece chromoly cranks. 19mm spindle with sealed bearings.
- Sealed front and cassette rear hub laced to 36H double wall rims.
- Gyro detangler with 990-style brakes.
- Haro Baseline 2-piece seat with alloy post.
- Haro HPF tires 20x2.2" front & rear.
| Frame Components | |
|---|---|
| Frame | Full chromoly frame w/ 1-1/8" integrated head tube, mid BB Shell, removable brake mounts & 14mm dropouts. 20.5 TT, 13.20" CS, 75° HT |
| Fork | Full chromoly 1-1/8" threadless w/internally threaded steerer tube & tapered legs. 32mm offset |
| Headset | Integrated 1-1/8" threadless, sealed bearings |
| Drivetrain | |
| Cranks | Haro Baseline 3-piece chromoly 8-spline, 19mm spindle. 170mm |
| Sprocket | 25t steel |
| Bottom Bracket | Sealed bearing mid |
| Gearing | 25/9 |
| Chain | Baseline chain |
| Pedals | Poly platform, chromoly 9/16" spindle |
| Wheels | |
| Tires | Haro HPF 20X2.2 |
| Wheels/Rims | 20" Alloy 36h, double-wall |
| Front Hub | 36h alloy, sealed bearings, female 3/8" axle |
| Rear Hub | Alloy 9t sealed cassette, 14mm male axle |
| Freewheel/Cassette | 9t driver |
| Spokes | 14g |
| Braking System | |
| Brakes | Radius Alloy U-brake |
| Brake Levers | Haro Baseline two-finger |
| Other Components | |
| Grips | Haro Baseline 163mm flangeless |
| Handle Bar | Haro chromoly, 9" rise, 2-piece |
| Stem | Haro Baseline top load, 48mm reach |
| Seat | Baseline seat/post combo |
| Seat Post | Aluminium 25.4mm |
| Seat Clamp | Integrated |
| Extras | Gyro detangler |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 20.5 | 75° | 71° | 520mm (20.5") | 247mm (9") | 335mm (13.2") | 293mm (11.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
