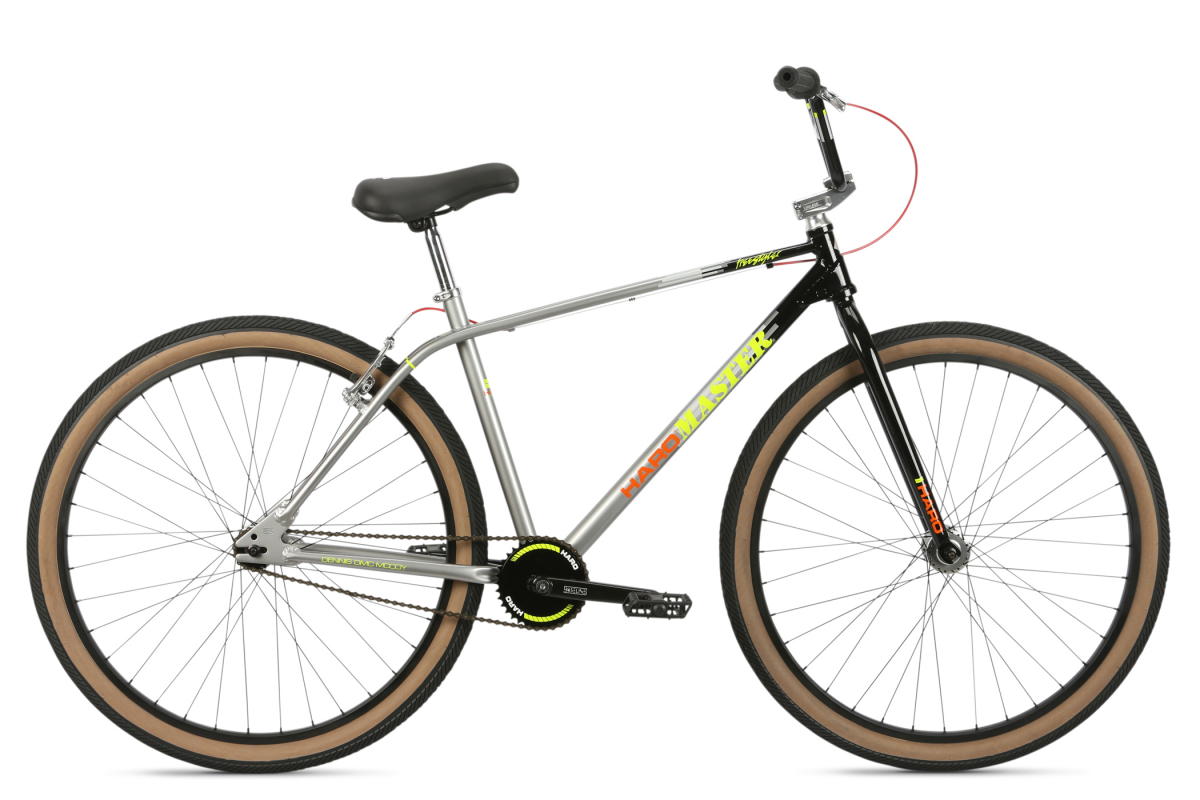

Master DMC 29
Year | 2023 |
---|---|
MSRP | $719.99 * |
Sizes | |
Colors | |
Weight |
Big wheel freestylin'. The DMC 29" takes its design cues from the early Haro timeline and the pure freestyle fortitude of Dennic "DMC" McCoy. Twin top tube Master frame configuration, constructed of heat-treated aluminum for the ultimate ratio of high strength, low weight. Chromoly fork, 7" rise chromoly Freestyler bars, high-flanged sealed bearing hubs, double-wall alloy rims and a custom DMC seat for cruising in comfort on one wheel or two...
FEATURES
- 6061-T6 heat-treated aluminum frame w/integrated head tube, mid BB, V-brake mounts.
- 100% chromoly fork with internally threaded 1-piece CNC steer tube, tapered legs
- Haro Baseline 3-pc chromoly 175mm crank. 36T alloy chainring
- Poly Platform pedals, chromoly 9/16" Axle
- Haro Freestyler chromoly 7" rise bars
- 36 hole double wall alloy rims with high flange sealed hubs
- Haro DMC railed seat
- Haro Lineage CNC stem. 52mm reach
- Haro Team Grips
- ProMax V-brake and lever
Frame Components | |
---|---|
Frame | 6061-T6 heat-treated, twin top tube frame. Integrated head tube w/wrap-around gusset, mid BB shell & V-brake mounts. |
Fork | 1 1/8" Threadless full chromoly fork w/internally threaded steerer tube. Tapered legs. |
Headset | Integrated 1-1/8" threadless. Sealed bearings. |
Drivetrain | |
Cranks | Haro Baseline 3-pc chromoly, 175mm, 8-spline, 19mm chromoly spindle. |
Sprocket | 36T aluminum chainring. |
Bottom Bracket | Mid, sealed bearing. |
Gearing | 36/17 |
Chain | Baseline chain |
Pedals | Poly Platform, chromoly 9/16" axle |
Wheels | |
Tires | Kenda "Kranium" 29 x 2.1" |
Wheels/Rims | 29" Alloy 36H, double wall. |
Front Hub | 36h alloy, high-flange, sealed bearings. |
Rear Hub | 36h alloy, high-flange, sealed bearings. |
Freewheel/Cassette | 17T freewheel. |
Spokes | 14 g |
Braking System | |
Brakes | Promax TX-117 alloy V-brake. |
Brake Levers | Promax XL-378 alloy lever. |
Other Components | |
Grips | Haro Team grips. |
Handle Bar | Full chromoly Freestyler, 7" rise |
Stem | Haro Lineage CNC-alloy top load. 52mm reach. |
Seat | Haro DMC. Railed, padded. |
Seat Post | Alloy, 27.2mm |
Seat Clamp | Alloy, 31.8 |
Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
---|---|---|---|---|---|---|---|
29 | 72° | 70° | 593mm (23.4") | 433mm (17") | 455mm (17.9") | 315mm (12.4") | 788mm (31") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
