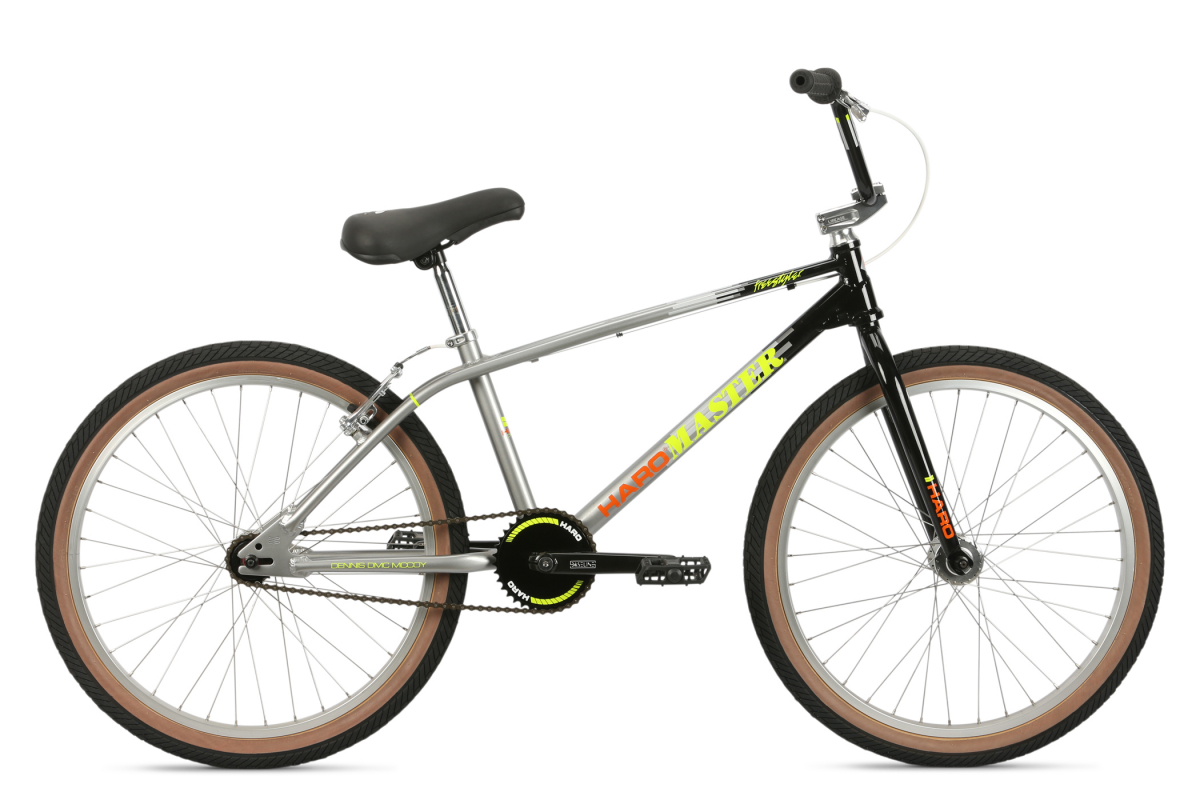

Master DMC 24
| Year | 2023 |
|---|---|
| MSRP | $719.99 * |
| Sizes | |
| Colors | |
| Weight |
Get a little more with a 24. The DMC 24" celebrates the life and BMX times of Dennis McCoy with an upsized aluminum twin-tube Master frame and 24" wheels. Built out with a chromoly fork and Freestyler bars, all sealed bearings and classy details like high-flange hubs, a Lineage top load stem and a custom DMC padded seat. Big enough for cruising in comfort, small enough for EZ action at the skatepark, pump track or dirt jumps.
FEATURES
- 6061-T6 heat-treated aluminum frame w/integrated head tube, mid BB, V-brake mounts.
- 100% chromoly fork with internally threaded 1-piece CNC steer tube, tapered legs
- Haro Baseline 3-pc chromoly 175mm crank. 39T alloy chainring
- Poly Platform pedals, chromoly 9/16" Axle
- Haro Freestyler chromoly 7" rise bars
- 36 hole double wall alloy rims with high flange sealed hubs
- Haro DMC railed seat
- Haro Lineage CNC stem. 52mm reach
- Haro Team Grips
- ProMax V-brake and lever
| Frame Components | |
|---|---|
| Frame | 6061-T6 heat-treated, twin top tube frame. Integrated head tube w/wrap-around gusset, mid BB shell & V-brake mounts. |
| Fork | 1 1/8" Threadless full chromoly fork w/internally threaded steerer tube. Tapered legs. |
| Headset | Integrated 1-1/8" threadless. Sealed bearings. |
| Drivetrain | |
| Cranks | Haro Baseline 3-pc chromoly, 175mm, 8-spline, 19mm chromoly spindle. |
| Sprocket | 39T aluminum chainring. |
| Bottom Bracket | Mid, sealed bearing. |
| Gearing | 39/17 |
| Chain | Baseline chain |
| Pedals | Poly Platform, chromoly 9/16" axle |
| Wheels | |
| Tires | Kenda "Kranium" 24 x 2.1" |
| Wheels/Rims | 29" Alloy 36H, double wall. |
| Front Hub | 36h alloy, high-flange, sealed bearings. |
| Rear Hub | 36h alloy, high-flange, sealed bearings. |
| Freewheel/Cassette | 17T freewheel. |
| Spokes | 14 g |
| Braking System | |
| Brakes | Promax TX-117 alloy V-brake. |
| Brake Levers | Promax XL-378 alloy lever. |
| Other Components | |
| Grips | Haro Team grips. |
| Handle Bar | Full chromoly Freestyler, 7" rise |
| Stem | Haro Lineage CNC-alloy top load. 52mm reach. |
| Seat | Haro DMC. Railed, padded. |
| Seat Post | Alloy, 27.2mm |
| Seat Clamp | Alloy, 27.2mm |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 24 | 73° | 70° | 558mm (21.9") | 340mm (13.4") | 404mm (15.9") | 310mm (12.2") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
