Downtown 16

Year 2023
MSRP $419.99 *
Sizes
Colors
Weight

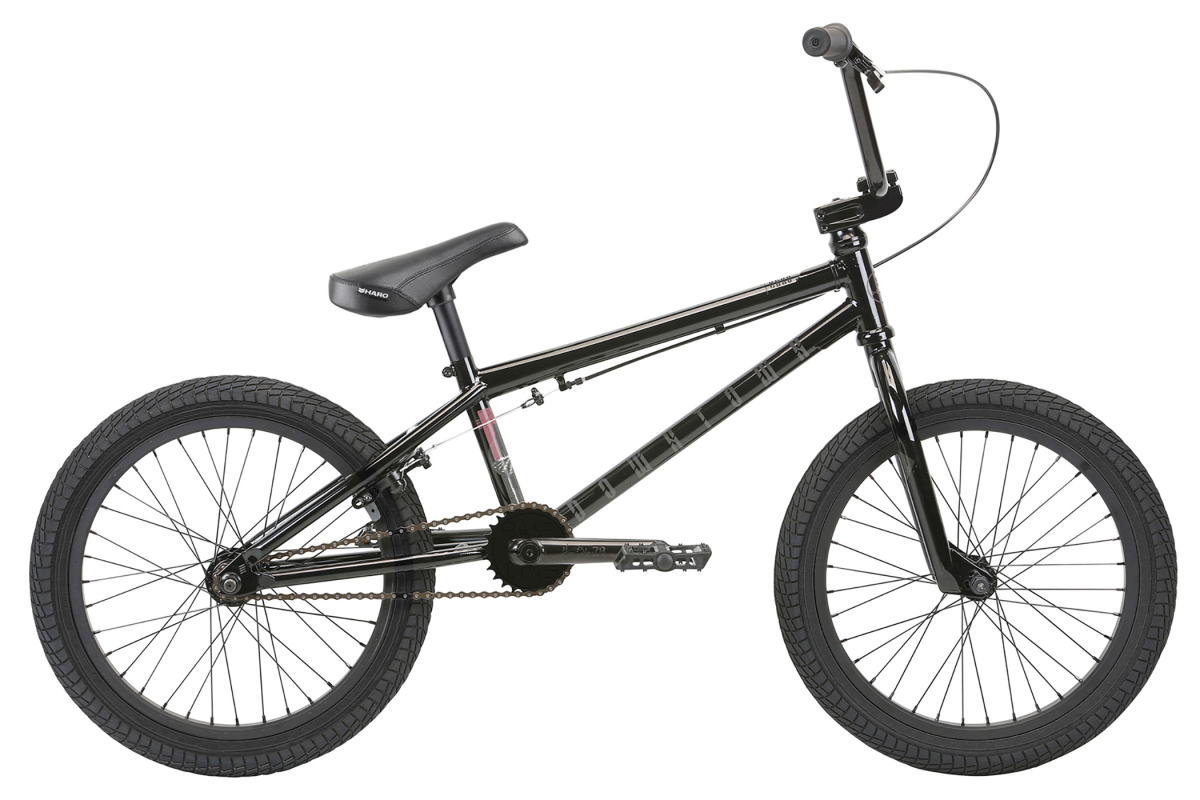

Downtown 16" is just the right bike to get you started at the park. Our new model comes well equipped to take you anywhere you wish to ride. Fully Sealed internal headset and Mid BB, just like the Pro's ride, you will be amazed what you can do on the Downtown.

FEATURES

  • Full hi-ten frame with integrated head tube, and Mid BB shell
  • Full hi-ten fork with tapered legs
  • Haro Baseline stem
  • Haro Baseline grips
  • Haro Baseline Cro-Mo 8 spline 19mm cranks
  • Sealed front and rear hubs
  • 25/9 gear ratio
  • Haro Baseline 2-piece seat with alloy post
  • Haro La Mesa tires 16x2.3" front/rear
SPECIFICATIONS
Frame Components
Frame Steel Frame w/ 1-1/8" Integrated Headtube, MID BB Shell, 990 Brake Mounts & 14mm Axle Drop-outs
Fork Steel 1-1/8" Thredless w/ Tapered Legs 32mm offset
Headset Integrated 1-1/8" Threadless Sealed Bearing
Drivetrain
Cranks Haro Baseline 3-pc Cr-Mo 8 Spline 135mm - 25t Steel Baseline Chainring
Sprocket 25t Steel Baseline Chainring
Bottom Bracket Sealed Bearing MID
Gearing 25/9
Chain Baseline Chain
Pedals Poly Platform, Cr-Mo 9/16" Axle
Wheels
Tires Kenda "Kontact" 16 x 2.25"
Wheels/Rims 16" Alloy 36h, Single Wall
Front Hub 36h Alloy Sealed Front w/ Alloy 9t Sealed
Rear Hub Cassette Rear
Spokes 14g
Braking System
Brakes Radius Alloy 990 U-Brake
Brake Levers Haro Baseline Two Finger
Other Components
Grips Haro Baseline 163mm flangeless
Handle Bar Haro Steel Bar, 7" Rise
Stem Baseline 48mm reach
Seat Baseline 2° Seat/ Post Combo
Seat Post Aluminium 25.4mm
Seat Clamp Integrated
GEOMETRY
Size Head Angle Seat Angle Top Tube Seat Tube Chainstay BB Height Stand Over
16 73° 70° 416.56mm (16.4") 250mm (9.8") 335mm (13.2") 293mm (11.5") 546mm (21.5")

RESOURCES

Owner's manual: Bike Manual PDF

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
