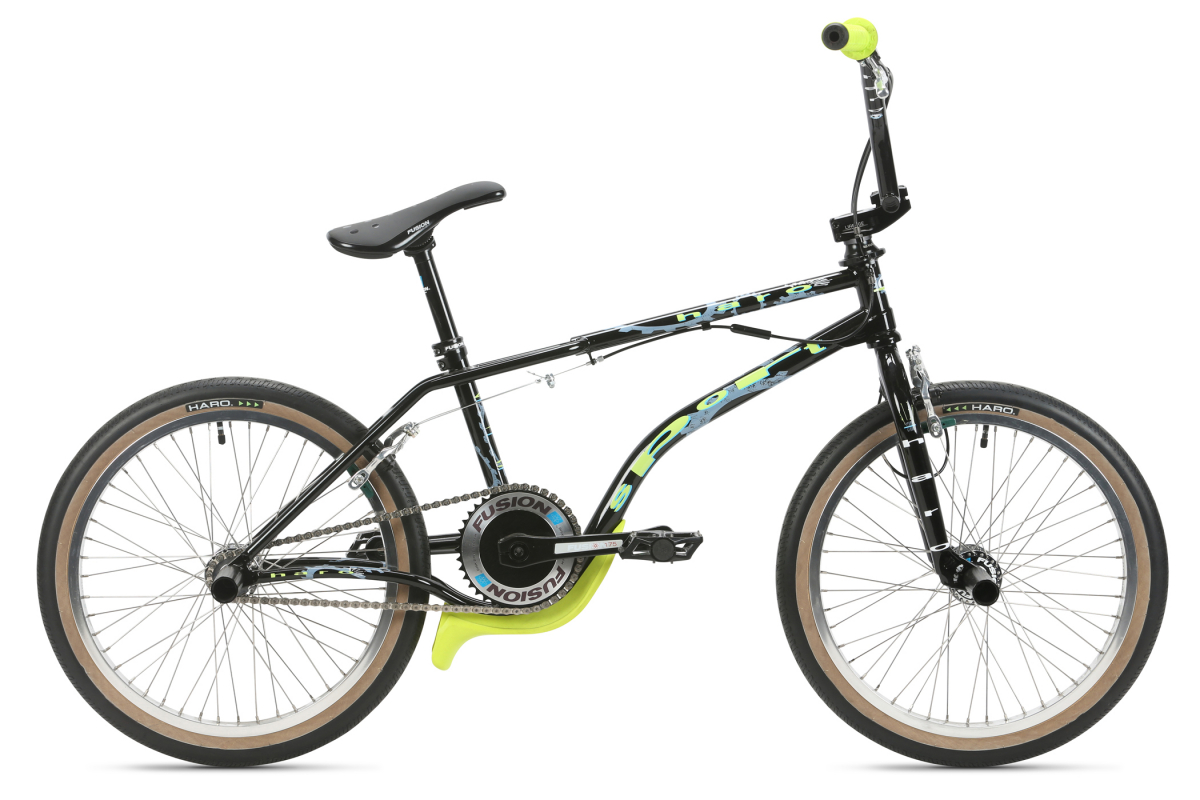

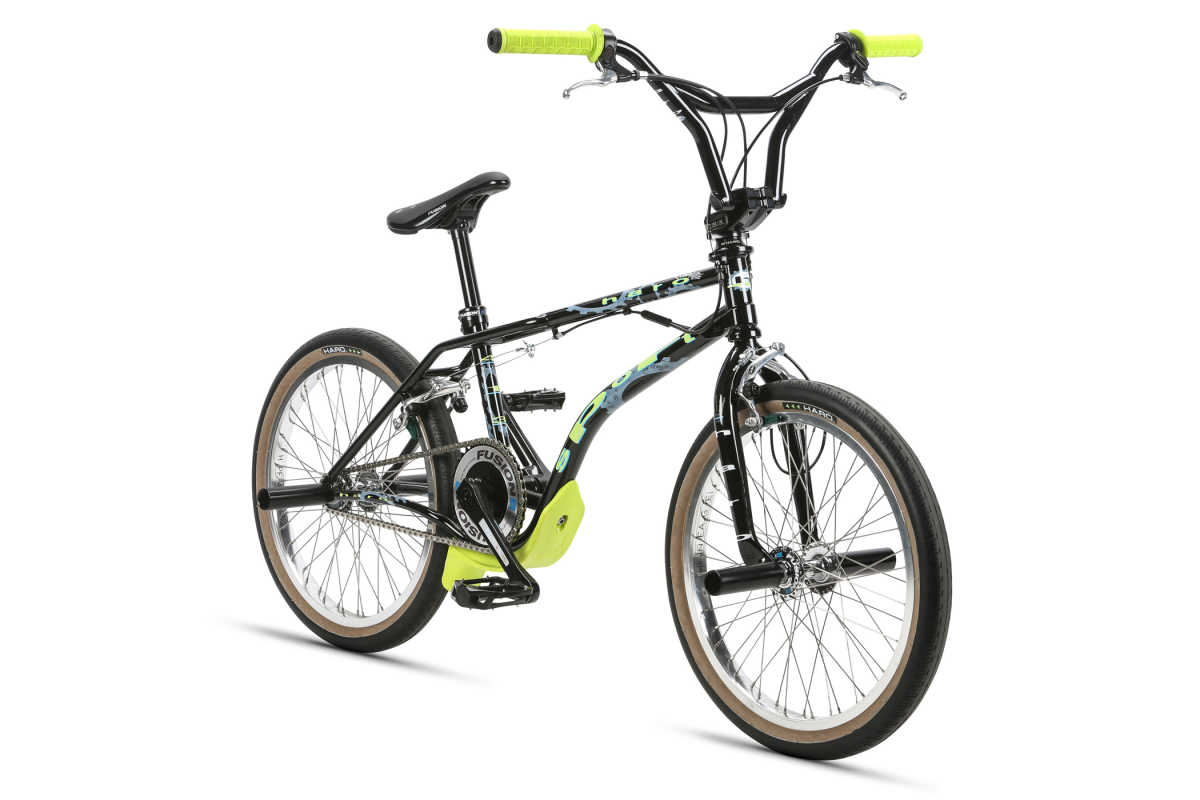

Lineage Sport Bashguard

Year 2023
MSRP $1,999.99 *
Sizes 21"
Colors Black
Weight

"Bash guard BMX subculture" is a thing and the seeds for the Lineage Sport Bashguard were planted in 1992. In the here and now, this bike is designed to do everything it could then (and a lot of things it couldn't). All chromoly construction with a durable, replaceable nylon bash guard. A roomy 21" top tube length, hourglass mid BB shell, seatstay brake mounts and heat-treated chromoly forks are all ready for big riders to go big. The wheel set is era-correct and ready for action: Double wall rims, high flange hubs and 100PSI Haro HPF tires roll fast and stay tight. Bolt on Kneesaver bars, knurled alloy pegs and a collection of our Fusion parts line for a timeless BMX dream machine.

FEATURES

  • 100% chromoly Lineage Sport frame with platform and bash guard, Mid BB shell, integrated head tube and Lineage cast dropouts with integrated chain tensioners. 21" top tube length
  • 100% heat-treated chromoly Lineage fork with CNC 1-piece internal threaded steer tube, integrated bearing race, tapered legs, investment cast dropouts and 990 brake mounts with internal brake cable routing
  • 100% heat-treated and butted chromoly Lineage Kneesaver bars 8.5" with Haro Lineage CNC alloy top load stem
  • Lineage Fusion alloy 175mm cranks with 22mm chromoly spindle. Haro Lineage Fusion Disc 39T CNC alloy bolt drive sprocket and sealed Mid BB
  • 39/14 gearing
  • Fully sealed 36-hole wheels with Lineage high flange hubs, 14T cassette rear. Double-wall alloy rims
  • Haro HPF 100 psi tires 20 x 2.2" front and rear
  • Haro Lineage padded Pivotal stealth Fusion seat with alloy Lineage Pivotal fluted post
  • Haro Fusion alloy pedals
  • CNC alloy pegs
  • CNC alloy gyro with Teflon bearing
  • Haro Team grips
  • KMC K710SL super light chain
  • Dia-Compe Hombre FS996 (front) and AD996 (rear) brakes with Tech 77 levers
  • Haro Lineage two-bolt alloy seat post clamp
SPECIFICATIONS
Frame Components
Frame Lineage Sport Bashguard frame - 21" full chromoly with integrated head tube - with removable Gyro tab mounting holes; welded brake mounts.
Fork Haro Lineage fork with 990 mounts and internal cable routing; 33mm offset; 3/8" axle; fluted one piece cnc cr-mo steerer; tapered fluted legs with Investment cast dropouts
Headset Sealed Integrated, 1 1/8"
Drivetrain
Cranks Haro Lineage heat treated 3-piece alloy 175mm cranks (bolt drive interface) rsd and lsd; 22mm spindle
Sprocket Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 39t ; solid ring w/ machined teeth, included sprocket adapter
Bottom Bracket Sealed MID 22mm BB
Gearing 39/14
Chain KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite
Pedals Haro Fusion; alloy pedal body; crmo axle
Wheels
Tires Haro HPF tire; 20x2.20; 100 max psi
Wheels/Rims Fusion by Odyssey model litehouse 20x1.75"; 36H with double wall welded joint
Front Hub 36h alloy hub body; 3/8" chromoly axle; 2 sealed bearings
Rear Hub Cassette hub (male bolt); sealed bearings; 14t driver; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts
Spokes 14 gauge stainless steel silver; 12mm alloy nipple; laced 3 cross
Braking System
Rotor Teflon bearing gyro - full cnc 6061 t6 included a-plate
Brakes Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts
Brake Levers Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever
Other Components
Grips Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft).
Handle Bar Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted
Stem Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 52mm
Seat Haro Fusion slim stealth pivotal seat
Seat Post Haro Fusion stealth pivotal seat post; 25.4 x 300mm
Seat Clamp Haro Fusion twintorc clamp; alloy 6061
Pegs 6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs
GEOMETRY
Size Head Angle Seat Angle Top Tube Seat Tube Chainstay BB Height Stand Over
21 75° 71.5° 533mm (21") 260mm (10.2") 349mm (13.7") 293mm (11.5") 546mm (21.5")

RESOURCES

Owner's manual: Bike Manual PDF

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
