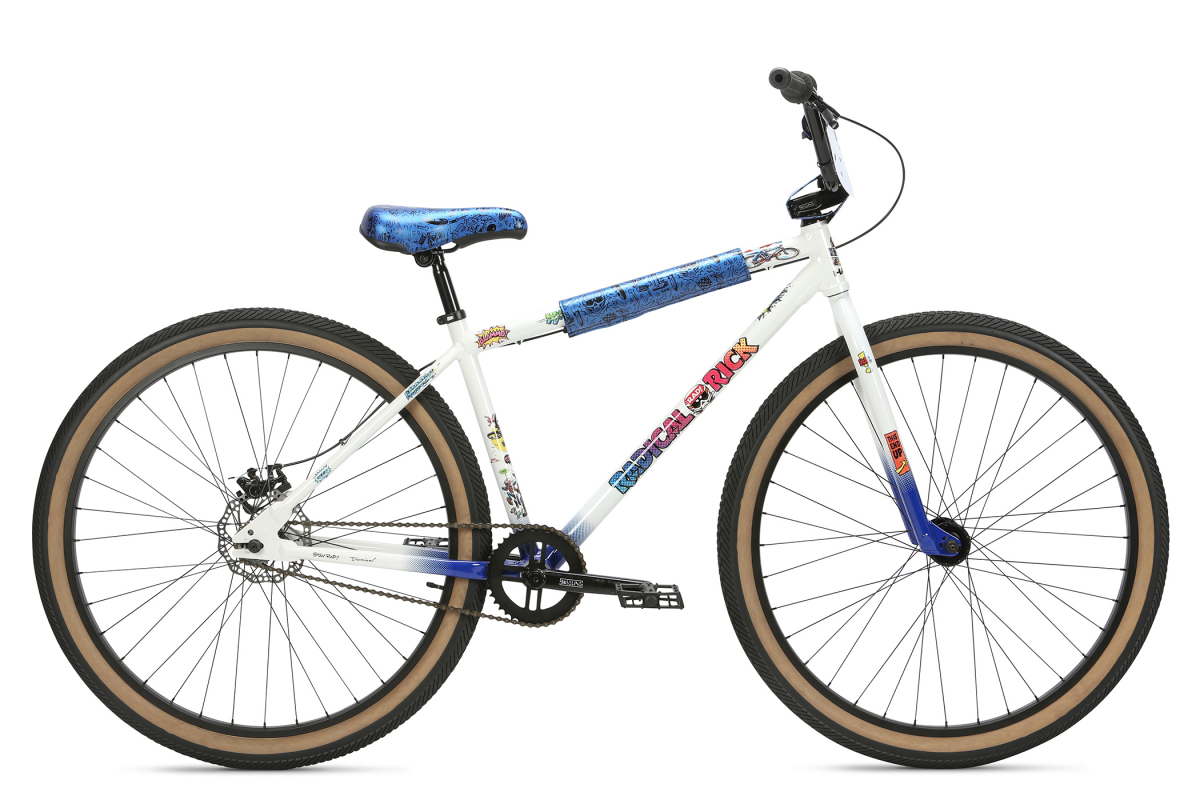

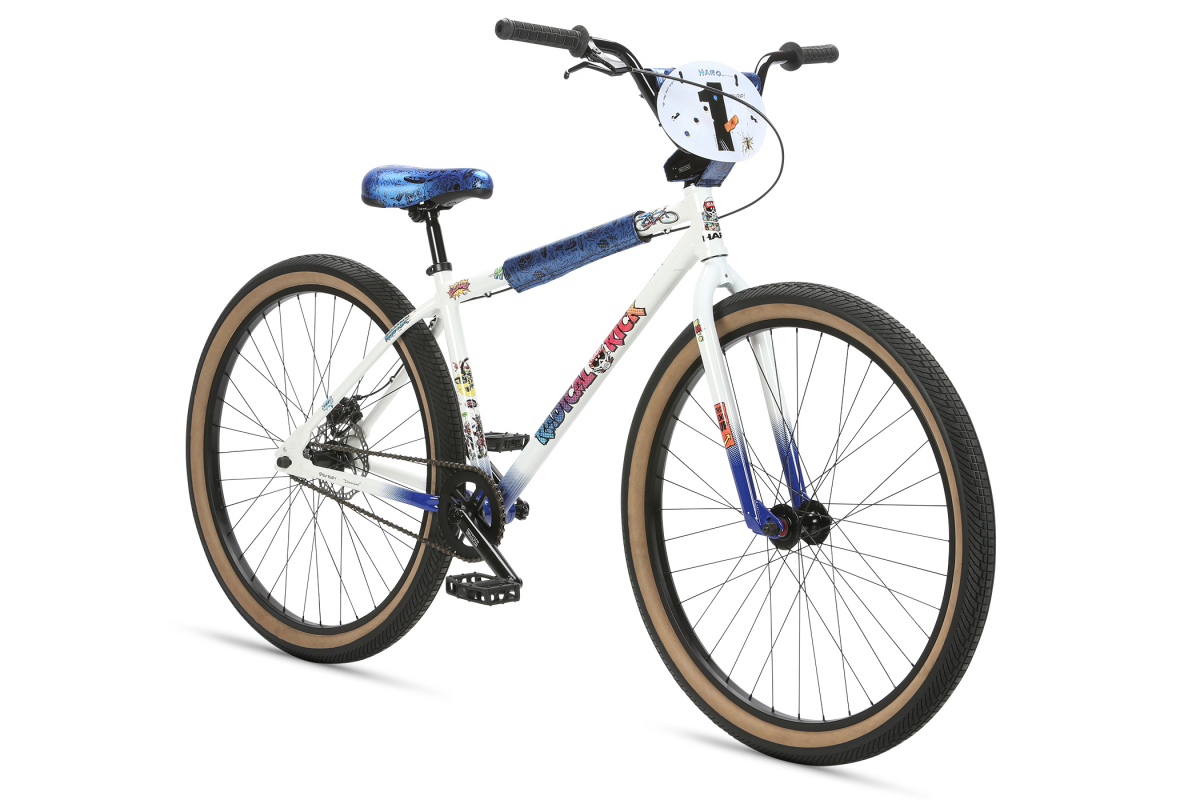

Radical Rick 29
| Year | 2023 |
|---|---|
| MSRP | $799.99 * |
| Sizes | |
| Colors | White / Blue |
| Weight |
Radical Rick! The coolest comic character in BMX history--In collaboration with renowned BMX comic artist Damian Fulton, the Radical Rick big bike collection features exclusive hand-drawn Radical Rick graphics, along with a custom RR pad set and number plate. All this art on a heat treated aluminum frame, chromoly fork and cranks, with sealed bearings, a rear disc brake for wheelie control, and a padded, railed Radical Rick seat. Everything you need to take on MX Mug. Available in 24, 26 and 29-inch wheel sizes.
FEATURES
- 6061-T6 heat-treated alloy frame. Integrated head tube w/gusset. Mid BB shell. Disc brake mounts.
- 1 1/8" threadless full chromoly fork w/internally threaded steerer tube & tapered legs.
- Haro Baseline 3-piece chromoly cranks. 8-spline spindle. 175mm.
- Haro alloy sprocket. 39T.
- Radius mechanical disc brake w/160mm rotor
- Alloy double-wall rims, 36 hole.
- Haro Radical Rick railed seat.
- Haro Baseline top load stem
- Radical Rick pad set and number plate included.
| Frame Components | |
|---|---|
| Frame | 6061-T6 Heat Treated Alloy Frame, Integrated Headtube w/ Gusset, MID BB Shell & Disc Brake Mounts |
| Fork | 1 1/8" Threadless Full Cr-Mo Fork w/ Internally Threaded Steerer Tube & Tapered Legs |
| Headset | Integrated 1-1/8" Threadless Sealed Bearing |
| Drivetrain | |
| Cranks | Haro Baseline 3-pc Cr-Mo 8 Spline 175mm |
| Sprocket | 39t Alloy Chainring |
| Bottom Bracket | Sealed Bearing MID |
| Gearing | 39/17 |
| Chain | Baseline chain |
| Pedals | Poly Platform, Cr-Mo 9/16" Axle |
| Wheels | |
| Tires | Kenda "Kranium" 29 x 2.4" |
| Wheels/Rims | 29" Alloy 36h, Double Wall |
| Front Hub | 36h Alloy High Flange Sealed Bearing |
| Rear Hub | 36h Alloy High Flange Sealed Bearing |
| Freewheel/Cassette | 17t Freewheel |
| Spokes | 14g |
| Braking System | |
| Brakes | Radius Mechanical Disc Brake w/ 160mm Rotor |
| Brake Levers | Radius 2.5 Finger Alloy |
| Other Components | |
| Grips | Haro Team Grip |
| Handle Bar | Haro 2PC 7" Rise Legends Bars |
| Stem | Haro Baseline 48mm Reach |
| Seat | Haro Adjustable Padded |
| Seat Post | Alloy, 27.2mm |
| Seat Clamp | Alloy, 31.8 |
| Extras | Padset/ Number plate |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 29 | 73° | 72° | 593.8mm (23.4") | 433mm (17") | 455mm (17.9") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
