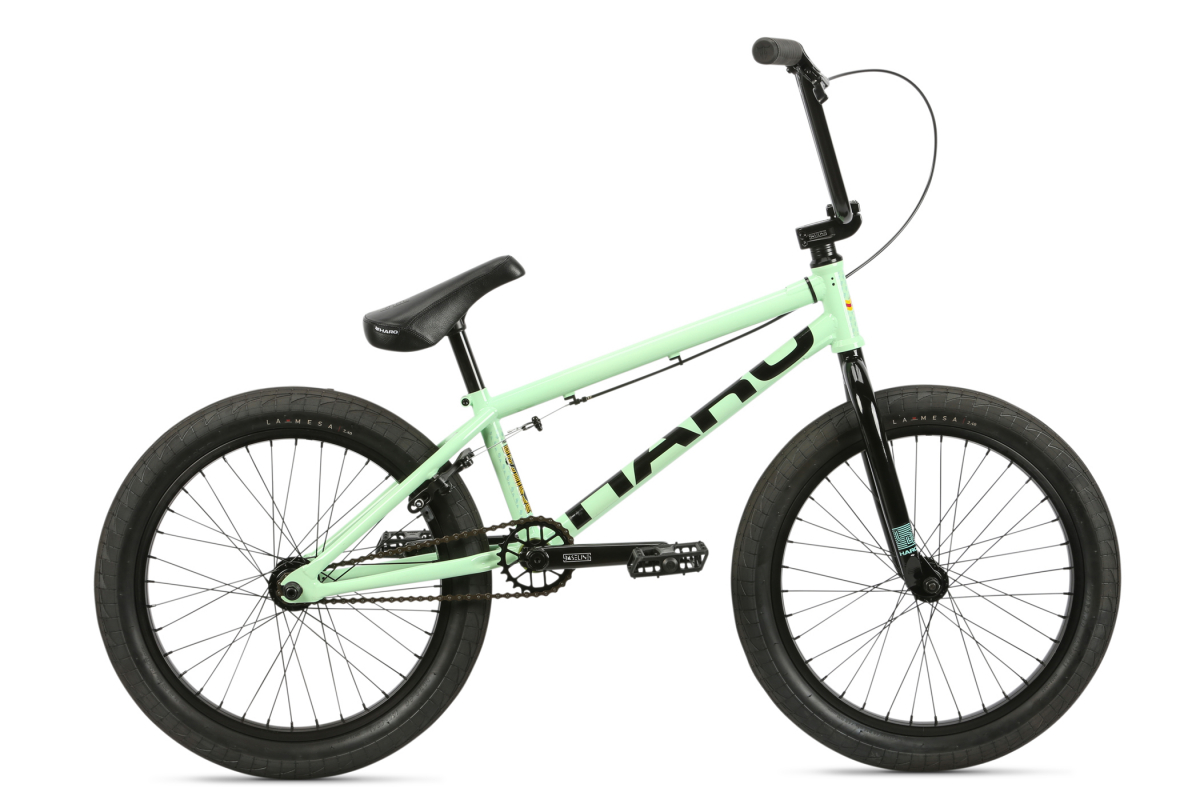

La Bastille Freecoaster
| Year | 2023 |
|---|---|
| MSRP | $649.99 * |
| Sizes | 19.5" |
| Colors | Sea Foam |
| Weight |
Designed and built for pure freestyle performance, the La Bastille is quite literally the bike that can do it all. Designed by flatland world champion, Matthias Dandois, this bike is at home with the most technical flatland riding imaginable as it is in the streets, on ramps or at the trails. A shorter 19.5" top tube frame is perfect for mid-sized riders and is the go-to frame for younger riders on the Haro crew. The La Bastille Freecoaster edition is ready to roll free in any direction.
FEATURES
- Full chromoly frame with 1-1/8" steerer tube and mid BB shell; 19.5" top Tube
- Full chromoly with tapered legs & internally threaded 1-piece steerer tube. 15mm offset
- Haro full chromoly 9" rise 2-piece
- Haro Baseline stem
- Haro Baseline grips
- Haro Baseline chromoly 8 spline 19mm cranks; 165mm length
- Sealed front hub and sealed rear freecoaster hub, 36H double wall alloy rims
- 25/9 gear ratio
- Haro Base line half link chain
- Haro La Mesa tires 20x2.4" front/rear
- Flatland specific geometry featuring 19.5" top tube, 75.5° head tube, 71° seat tube, 12.75" chain stays
| Frame Components | |
|---|---|
| Frame | Full chromoly frame w/ 1-1/8" integrated headtube, mid BB shell, removable brakes mounts & 14mm dropouts. 12.75"CS, 75.5°HT |
| Fork | Full chromoly 1 1/8" threadless internally threaded steerer tube & tapered legs. 15mm offset |
| Headset | Integrated 1-1/8" threadless sealed bearings |
| Drivetrain | |
| Cranks | Haro Baseline 3-pc chromoly 8 Spline 165mm |
| Sprocket | 25t Steel Chainring |
| Bottom Bracket | Sealed bearing mid |
| Gearing | 25/9 |
| Chain | Baseline chain |
| Pedals | Poly platform. Chromoly 9/16" Axle |
| Wheels | |
| Tires | Haro La Mesa 20 x 2.4" |
| Wheels/Rims | 20" alloy double-wall rims. 36 holes. |
| Front Hub | 36h alloy sealed, female axle |
| Rear Hub | Alloy 9t sealed freecoaster rear. 14mm male axle |
| Axle | 36h alloy sealed, female axle |
| Spokes | 14 g |
| Braking System | |
| Brakes | Alloy 990 U-Brake |
| Brake Levers | Haro Baseline two-finger |
| Other Components | |
| Grips | Haro Baseline 163mm flangeless |
| Handle Bar | Haro chromoly, 9" rise 2-piece |
| Stem | Haro Baseline 48mm reach |
| Seat | Baseline 5° seat/post combo |
| Seat Post | Aluminium 25.4mm |
| Seat Clamp | Integrated |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 19.5 | 75.5° | 71° | 495.5mm (19.5") | 230mm (9") | 322mm (12.75") | 293mm (11.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
