CK AM
| Year | 2023 |
|---|---|
| MSRP | $799.99 * |
| Sizes | 20.75" |
| Colors | Brown |
| Weight |

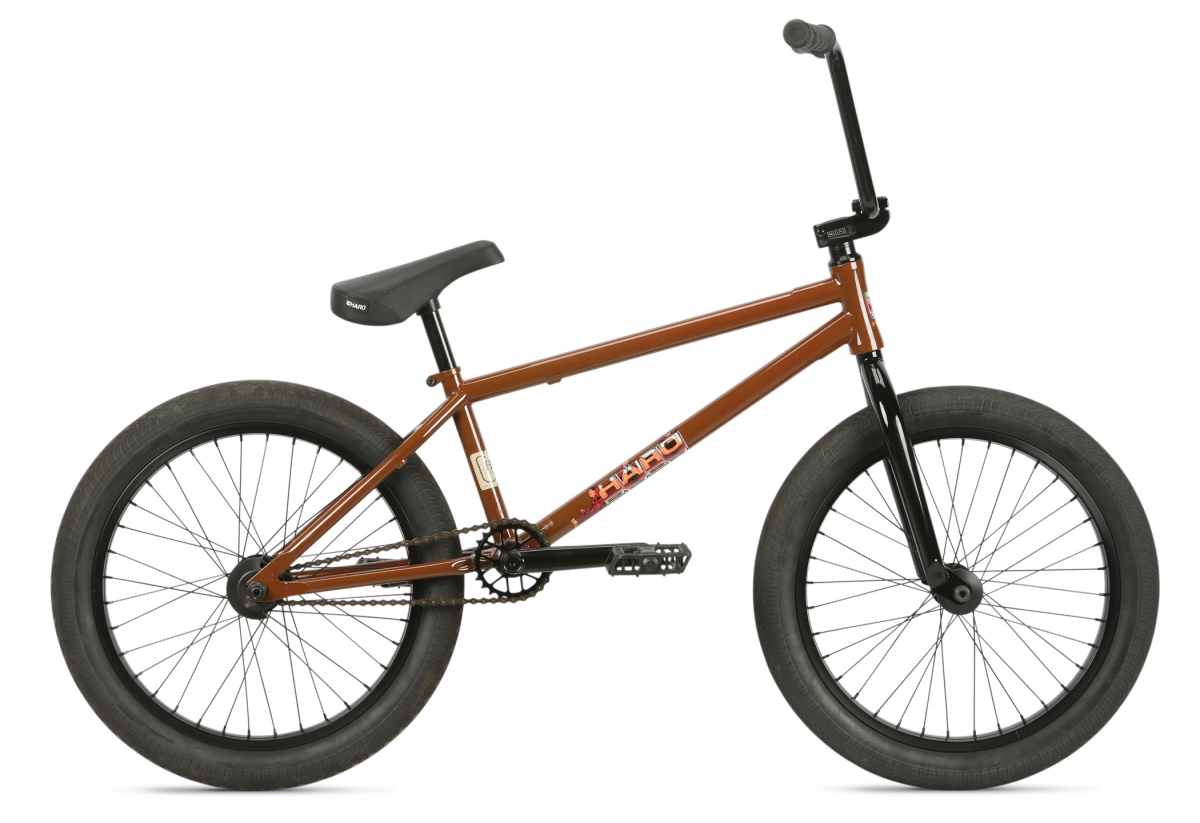

Hit the streets like Chad Kerley on his new signature Haro complete. A bike designed to encompass Chad's riding style and lifestyle, custom-tuned with his specific geometry and vibe. Chad's got the swag to pull this signature bike off and you won't find another frame with these characteristics. Keeping it clean yet fun with custom decals highlighting Chad's personality.
FEATURES
- Full chromoly frame with 1-1/8" steerer tube and mid BB shell; 20.75" top tube
- Full chromoly 1-1/8" threadless w/internally threaded steerer tube & tapered legs. 25mm offset
- Haro chromoly 9" rise 2-piece bars
- Haro Baseline stem
- Premium CK grips
- Haro Baseline chromoly 48 spline 19mm cranks; 165mm length
- Sealed front hub and sealed rear freescoaster hub, laced to 36H double wall rims
- 25/9 gear ratio
- Haro Base line half link chain
- Premium CK 2.4" Tires
- Note: Pictured hub guards are not included.
| Frame Components | |
|---|---|
| Frame | Full chromoly frame w/ 1-1/8" integrated head tube, mid BB shell, removable brake mounts & 14mm dropouts. 13"CS, 75.5° HT |
| Fork | Full chromoly 1-1/8" threadless w/internally threaded, CNC-machined steerer tube & tapered legs. 32mm offset |
| Headset | Integrated 1-1/8" threadless with sealed bearings. |
| Drivetrain | |
| Cranks | 3-PC tubular chromoly 165mm arms. 48T 19MM splined chromoly spindle; 31.8MM Square tapered arm |
| Sprocket | Baseline 25T aluminum sprocket |
| Bottom Bracket | Mid. Sealed bearing. |
| Gearing | 25/9 |
| Chain | Baseline chain |
| Pedals | Poly platform, chromoly 9/16" Axle |
| Wheels | |
| Tires | Haro La Mesa 20 x 2.4" |
| Wheels/Rims | 20" Haro Sata alloy double wall, 36 hole |
| Front Hub | 36h alloy, sealed bearings, female 3/8" axle (hub guards not included) |
| Rear Hub | Alloy 9t Sealed freecoaster rear. 14mm male axle (hub guards not included) |
| Freewheel/Cassette | 9t driver |
| Braking System | |
| Brakes | Radius alloy U-Brake |
| Brake Levers | Haro Baseline two-finger |
| Other Components | |
| Grips | Haro Baseline 163mm flangeless |
| Handle Bar | Haro chromoly bar, 9.5" rise, 2-piece |
| Stem | Haro Baseline CNC top-load, 48mm reach |
| Seat | Baseline 5° seat/post combo |
| Seat Post | Aluminium 25.4mm |
| Seat Clamp | Integrated |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 20.75 | 75.5° | 71.5° | 527mm (20.75") | 260mm (9"") | 330mm (13") | 293mm (11.5") | 546mm (21.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
