SD AM
| Year | 2023 |
|---|---|
| MSRP | $799.99 * |
| Sizes | 21" |
| Colors | Moss Green |
| Weight |

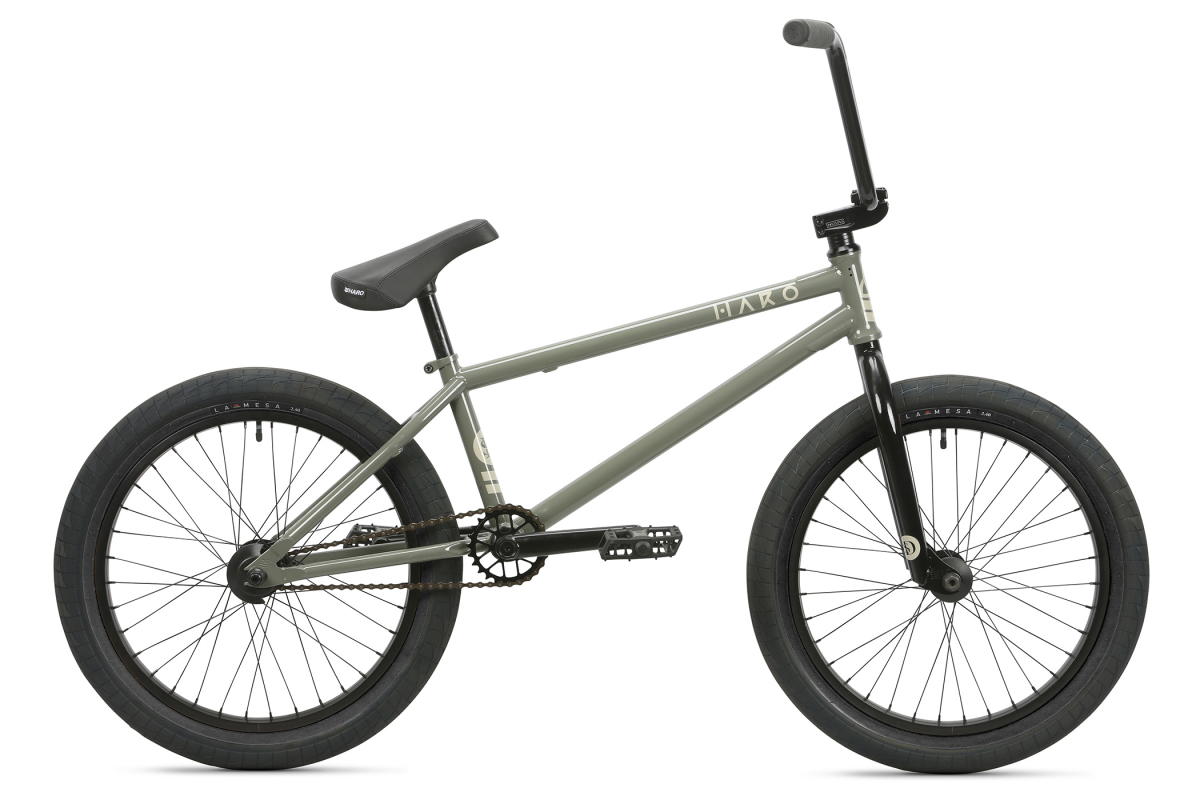

When Dennis is in the saddle you know it's going to be a fun time! Step into his world with this signature Haro build. Dennis went with his signature moss green frame that he accented with classic black components. He then added new custom Haro decals to give it that touch of modern personality. Full chromoly frame, fork, cranks, & bars. Outfitted with Haro baseline parts and laced with a freecoaster rear hub wrapped in La mesa tires, this bike has got all the works. It even includes a set of pegs. Ride the Dennis Enarson SD AM today.
FEATURES
- Full chromoly frame with 1-1/8" steerer tube and mid BB shell; 21" top Tube
- Full chromoly 1 piece steerer fork with tapered legs internally threaded steerer tube; 32mm offset
- Haro full chromoly 9.25" Rise 2-piece Bars
- Haro Baseline stem
- Haro Baseline grips
- Haro Baseline Cro-Mo 48 spline 19mm cranks; 170mm Length
- Sealed front hub and sealed rear Freescoaster hub, laced to 36H double wall rims
- 25/9 gear ratio
- Haro Baseline 2-piece seat with alloy post
- Haro La Mesa tires 20x2.4" front/rear
- steel pegs (2)
| Frame Components | |
|---|---|
| Frame | Full chromoly Frame w/ 1-1/8" integrated headtube, mid BB shell, removable 990 brake mounts & 14mm axle dropouts 13.25"CS, 75° HT |
| Fork | Full chromoly 1 1/8" threadless w/ one-piece CNC internally threaded steerer tube & tapered legs 32mm offset |
| Headset | Integrated 1-1/8" threadless sealed bearing |
| Drivetrain | |
| Cranks | 3-piece tubular chromoly 170MM - Tubular crank arm; 48T 19MM splined spindle; 31.8MM square tapered arm |
| Sprocket | Baseline 25T alloy sprocket |
| Bottom Bracket | Sealed bearing mid |
| Gearing | 25/9 |
| Chain | Baseline chain |
| Pedals | Poly platform, chromoly 9/16" Axle |
| Wheels | |
| Tires | Haro La Mesa 20 x 2.4" |
| Wheels/Rims | 20" Haro Sata alloy 36h, double wall |
| Front Hub | 36h alloy sealed front w/hub guard |
| Rear Hub | Alloy 9t sealed freecoaster rear w/hub guard |
| Freewheel/Cassette | 9t driver |
| Braking System | |
| Brakes | Radius alloy 990 U-Brake |
| Brake Levers | Haro Baseline two-finger |
| Other Components | |
| Grips | Haro Baseline 163mm flangeless |
| Handle Bar | Haro chromoly bar, 9.5" rise |
| Stem | Haro Baseline CNC top-load, 48mm reach |
| Seat | Baseline 5° seat/post combo |
| Seat Post | Aluminium 25.4mm |
| Seat Clamp | Integrated |
| Pegs | 2 steel pegs |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 21 | 75° | 71.5° | 533mm (21") | 260mm (10.2") | 349mm (13.25") | 293mm (11.5") | 546mm (21.5") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
