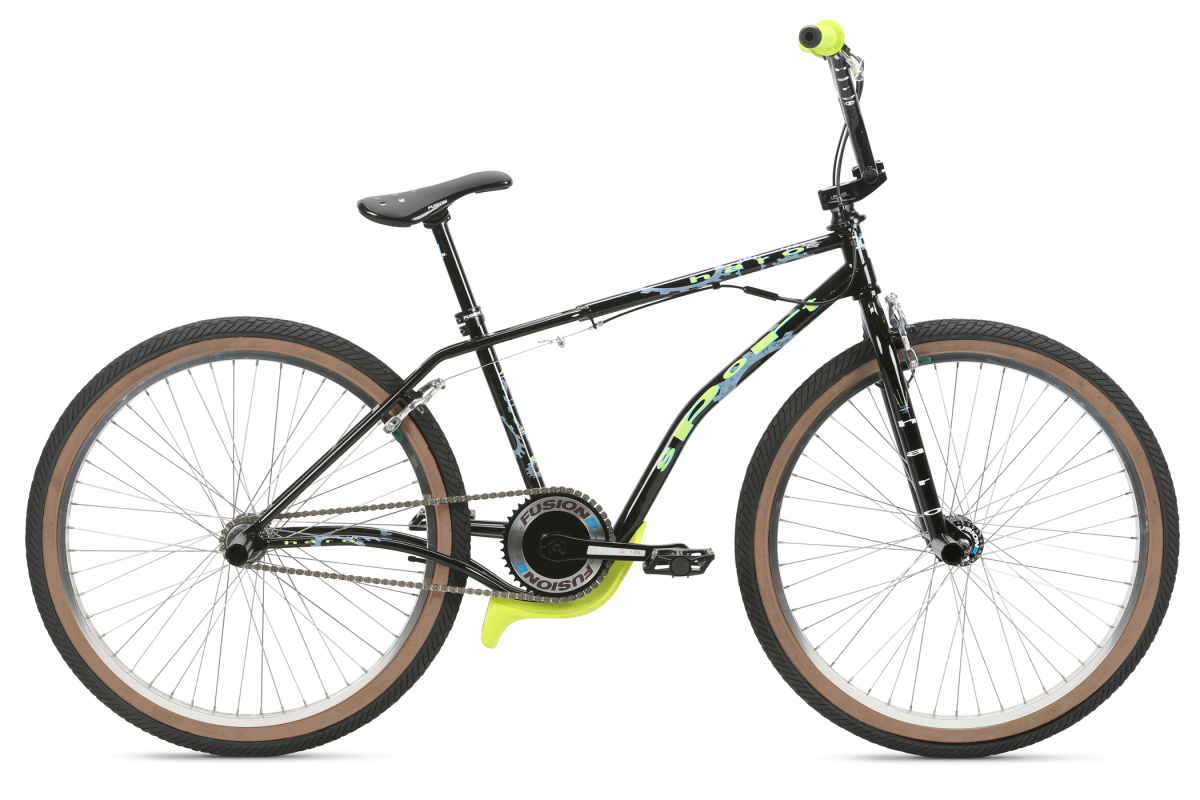

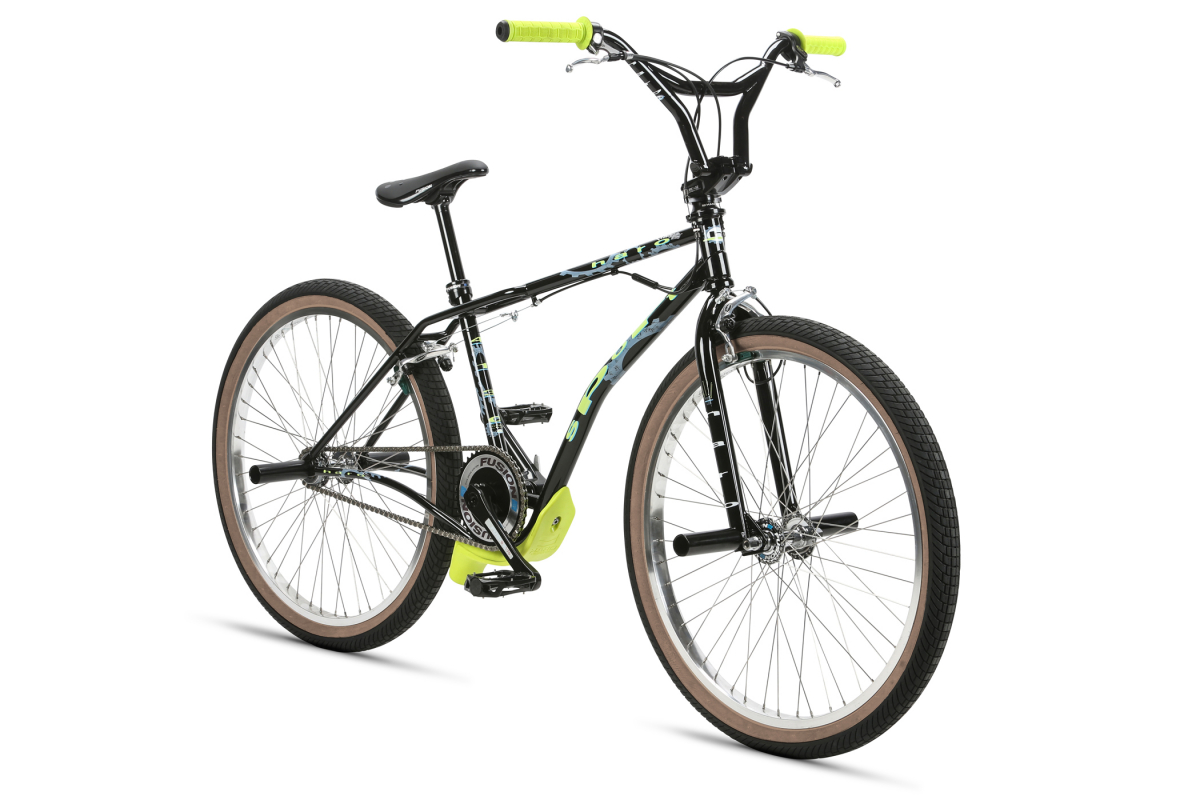

Lineage Sport Bashguard 26 2023

Year 2023
MSRP $1,999.99 *
Sizes 22.5"
Colors Black
Weight

Welcome to the big and tall bash guard department. The Lineage Sport Bashguard 26" is the bike your teenaged self couldn't have imagined. Ready to monster-truck over anything in it's path, with a 90's inspired all chromoly frame, fitted with a replaceable nylon bash guard and chromoly forks with peg bosses for the included smooth alloy pegs. Satin finish double-wall alloy rims, sealed high flange hubs and Kenda Kranium tires to put the power to the ground. Add to that Haro Kneesaver bars, mated with our Lineage and Fusion parts and you get an upsized BMX bike that rides the line between your past and future self.

FEATURES

  • 100% chromoly Lineage Sport 26" frame with platform and bash guard, Mid BB shell, integrated head tube and invest-cast drop outs with integrated chain tensioners. 22.5" top tube length.
  • 100% chromoly 26" fork with internal threaded steer tube, tapered legs, 1989 style peg bosses, 990 brake mounts with internal brake cable routing routing
  • 100% heat-treated and butted chromoly Lineage Kneesaver bars 8.5" with Haro Lineage CNC alloy top load stem
  • Lineage Fusion alloy 175mm cranks with 22mm chromoly spindle. Lineage Fusion Disc 41T CNC alloy bolt drive sprocket and sealed Mid BB
  • 41/17 gearing
  • Fully sealed 36 spoke wheels with Lineage high flange hubs and double-wall alloy rims
  • Kenda Kranium tires 26 x 2.1" front and rear
  • Haro Lineage padded Pivotal stealth Fusion seat with alloy Lineage Pivotal fluted post
  • Haro Fusion alloy pedals
  • CNC alloy pegs
  • CNC alloy gyro with Teflon bearing
  • Haro Team grips
  • KMC K710SL super light chain
  • Dia-Compe Hombre FS996 (front) and AD996 (rear) brakes with Tech 77 levers
  • Haro Lineage two-bolt alloy seat post clamp
SPECIFICATIONS
Frame Components
Frame Lineage Sport Bashguard 26" frame - 22.5" full chromoly - with removable Gyro tab mounting holes; removable brake mounts.
Fork Haro Fork with 990 mounts and internal cable routing; 28mm offset; 3/8" axle; cr-mo steerer; tapered fluted legs
Headset Sealed Integrated, 1 1/8"
Drivetrain
Cranks Haro Lineage heat treated 3-piece alloy 175mm cranks (bolt drive interface) rsd and lsd; 22mm spindle
Sprocket Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 41t ; solid ring w/ machined teeth, included sprocket adapter
Bottom Bracket Sealed MID 22mm BB
Gearing 25/9
Chain KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite
Pedals Haro Fusion; alloy pedal body; crmo axle
Wheels
Tires Kinda Kranium tire; 26x2.25; 60 max psi
Wheels/Rims Haro Lineage 26x1.75"; 46h, double wall welded joint
Front Hub 36h alloy hub body; 3/8" chromoly straight axle; 2 sealed bearings
Rear Hub Haro Lineage sealed bearings; 17t Freewheel; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts
Spokes 14 gauge stainless steel silver; 12mm alloy nipple; laced 3 cross
Braking System
Rotor Teflon bearing gyro - full cnc 6061 t6 included a-plate
Brakes Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts
Brake Levers Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever
Other Components
Grips Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft).
Handle Bar Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted
Stem Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 52mm
Seat Haro Fusion slim stealth pivotal seat
Seat Post Haro Fusion stealth pivotal seat post; 25.4 x 300mm
Seat Clamp Haro Fusion twintorc clamp; alloy 6061
Pegs 6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs
GEOMETRY
Size Head Angle Seat Angle Top Tube Seat Tube Chainstay BB Height Stand Over
22.5 73° 69° 571.5mm (22.5") 368mm (10.2") 461mm (13.7") 293mm (11.5") 546mm (21.5")

RESOURCES

Owner's manual: Bike Manual PDF
