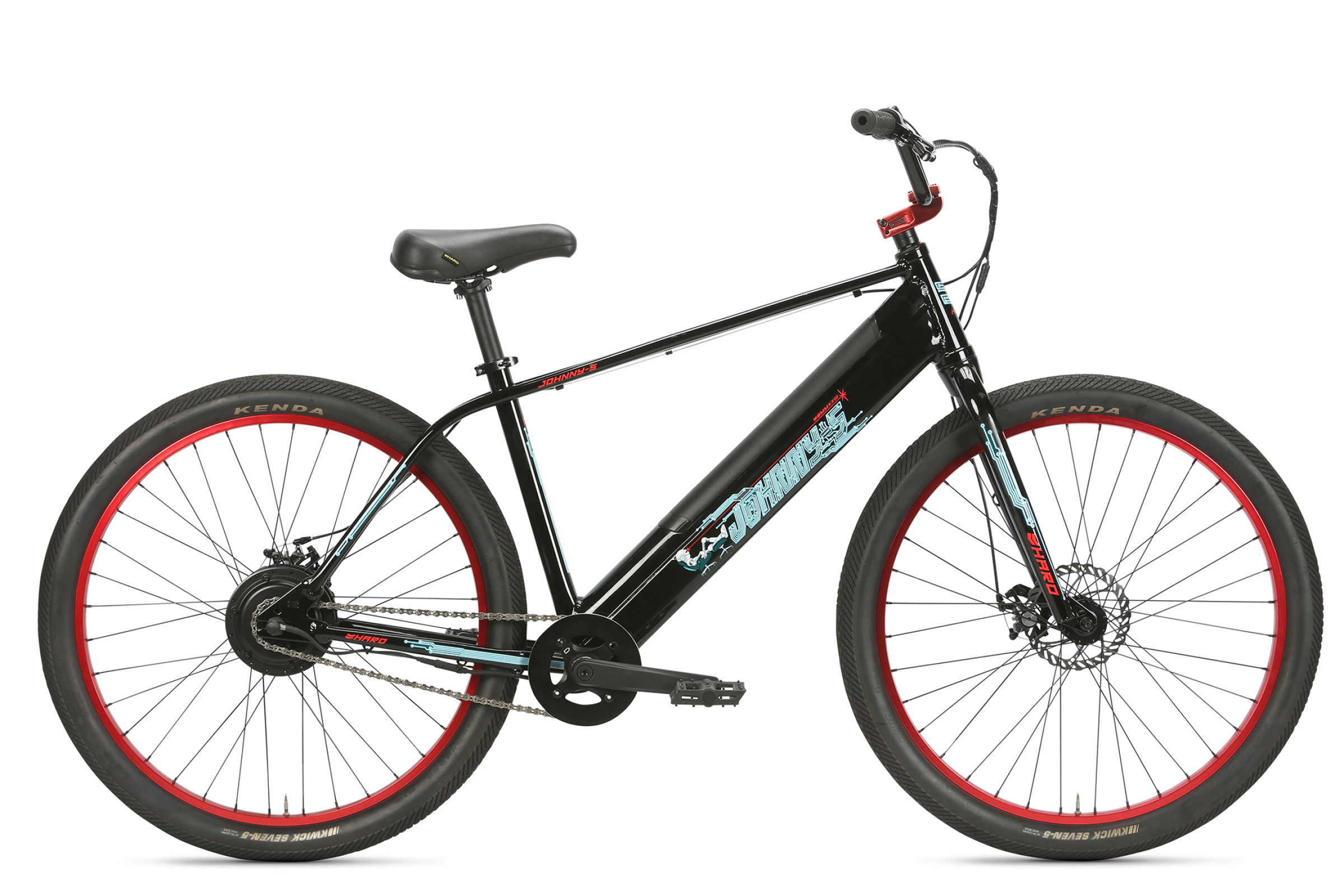

Johnny 5 Electric
| Year | 2023 |
|---|---|
| MSRP | $0.00 * |
| Sizes | 25.3" |
| Colors | Black |
| Weight |
100% BMX inspired, the Johnny 5 Electric has all the big bike creature comforts with all the power to take you there. Twin top-tube aluminum frame, chromoly fork, 500W rear hub matched to a 672WH Samsung battery. 28 mile range. Hit the throttle and let the good times roll!
FEATURES
- Full 6061 Aluminum frame with twin top tube, tapered 1-1/8" - 1-1/5" headtube, 25.4" top tube, 17.25" chain stay, 61.9° seat tube, and 67° head tube.
- Full chromoly 1-1/8" - 1-1/5" tapered, internally threaded steerer tube fork, M25 Alloy compression cap, 3/8" dropouts, and 28mm offset.
- Bafang 48V, 500W 36H, rear hub
- 672WH (48v, 14AH), 50 cell, Samsung internal down tube battery
- 28 Mile Range +/- (tested on level 2 on rolling roads)
- Five power levels, left side display
- Right side thumb throttle
- Full pedal assist
| Frame Components | |
|---|---|
| Frame | 6061-T6 Heat treated aluminium twin top tube frame. |
| Fork | Full chromoly 1-1/8" - 1-1/5" tapered fork with 3/8" dropouts |
| Headset | FSA 1 1/8" X 1.5" Sealed Bearing |
| Drivetrain | |
| Cranks | 3-pc Hollow forged aluminium with tapered square spindle - 170mm |
| Sprocket | 36t Alloy Chainring with aluminium chain guard |
| Bottom Bracket | Euro square tapered pedal assist |
| Gearing | 34/15 |
| Chain | KMC 410 Z chain |
| Drive Unit | Bafang 500w |
| Battery | Internal 50 cell, 48V, 672WH |
| Pedals | FPD PC 9/16" |
| Wheels | |
| Tires | Kenda "Kwick Seven" 27.5" x 2.4" |
| Wheels/Rims | 27.5" Alloy 36h, Double Wall |
| Front Hub | Sealed bearing, High flange, 36H female axle front hub |
| Freewheel/Cassette | 16t Cassette |
| Spokes | 13g |
| Braking System | |
| Brakes | Promax Mechanical Disc Brake, 160mm Rotor |
| Brake Levers | Promax 2.5 finger |
| Other Components | |
| Grips | Baseline Flangeless |
| Handle Bar | Haro 5" Legends 2-piece bar |
| Stem | Baseline forged 48mm reach |
| Seat | Haro Johnny 5 saddle |
| Seat Post | Alloy, 30.9 x 350mm |
| Seat Clamp | QR Alloy, 31.8mm |
| Extras | Bafang LCD Display, 5 power settings; Thumb Throttle |
| Size | Head Angle | Seat Angle | Top Tube | Seat Tube | Chainstay | BB Height | Stand Over |
|---|---|---|---|---|---|---|---|
| 27.5 | 67° | 73° | 645mm (25.3") | 457mm (17.9") | 440mm (17.25") | 730mm (28.75") |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
