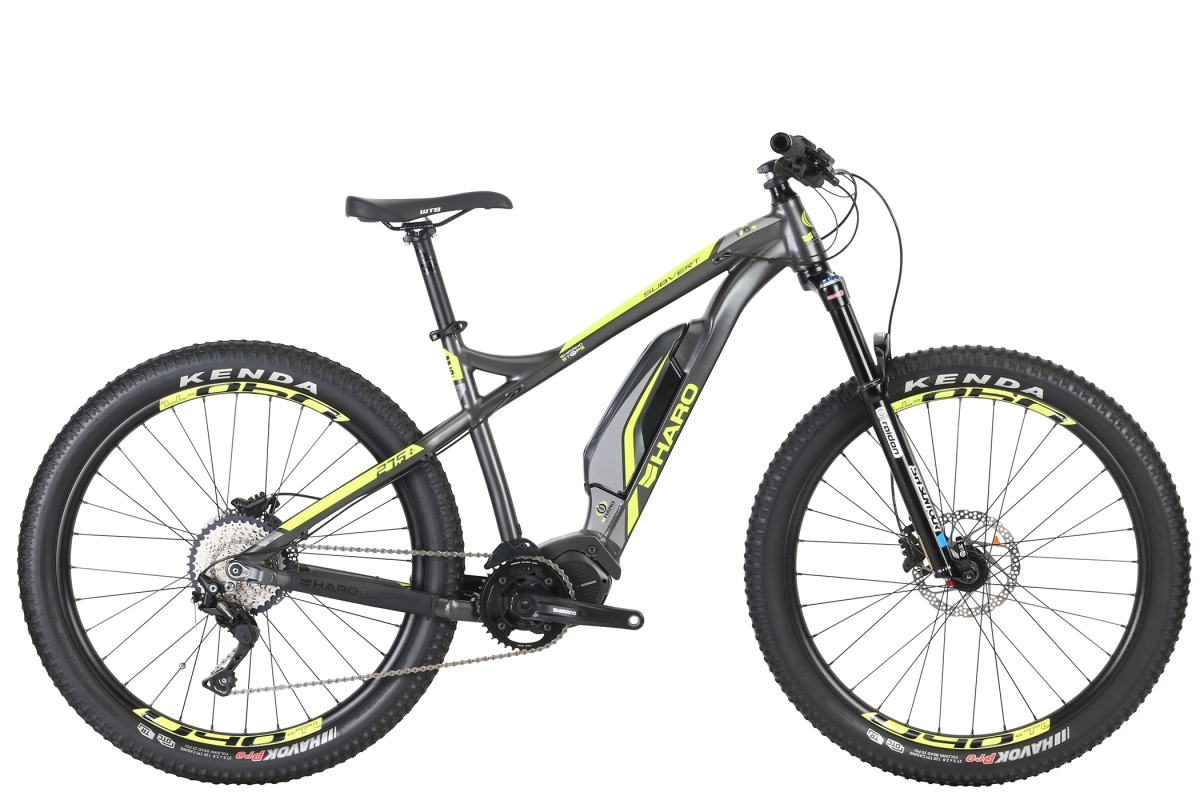

Subvert i/O Electric equipped bikes partner with your own pedaling efforts in order to amplify the output beyond that of a conventional Subvert courtesy of its battery powered drive unit. Subvert i/O 5 is a Plus specific bike designed to master rocky terrains, offer confidence diving into turns, and be a fully capable off-road adventure companion in all weather conditions. Add to that the power of i/O Electric, and the Subvert i/O HT5 is a force to be reckoned with. Features include a proprietary X6 alloy 27.5" Plus geometry frame with a tapered head tube. Its ultra cushy ride comes courtesy of its Suntour Raidon Boost Plus fork with 120mm of travel with tapered steerer and a thru-axle, combined with U-40 27.5" Plus rims, finished with Kenda Havoc Pro 27.5 x 2.8" 120tpi folding bead tires. Effortless shifting comes courtesy of a Shimano Deore 6000 1X10 Shadow Plus rear derailleur and shifter partnering with its Shimano e8000 38t crankset. Shimano MTB specific e8000 drive unit with 250 watts of power, 70 Nm of torque, and 504 watt battery with a 4 hour recharge from flat form the power plant that allows you glide uphill to do more of what you love, go back down it again.
FEATURES
- Subvert i/O X6 Aluminum frame for Shimano STePS E8000 motor, Tapered head tube
- Suntour Raidon 34mm, Boost LOR-DS 27.5" Plus fork, 120mm travel, 15mm thru-axle, w/ hydraulic lockout
- Shimano STePS E8000 drive unit / 250 Watts / 70Nm Torque, 504 w/h STePS & E8000 battery
- Shimano Deore RD-6000, 10-spd, Shadow Plus rear derailleur, Deore 10-spd, 11-42T Cassette
- Shimano E8000 crankarms, forged, 38T chainring
- Shimano M395 hydraulic disc brakes, 180mm rotors
| Frame Components | |
|---|---|
| Frame | Subvert I/O X6 Aluminum frame for Shimano STePS E8000, Tapered head tube |
| Fork | SR Suntour Raidon 34mm, Boost LOR-DS 27.5" Plus, 120mm travel, 15mm Thru-Axle, w/ Hydraulic Lockout |
| Headset | FPD Dozer 1-1/8"-1.5", w/ Bottom AC Bearing |
| Drivetrain | |
| Cranks | Shimano E8000, forged, 38T Chainring |
| Bottom Bracket | N/A |
| Chain | KMC X10-E |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Deore, RD-M6000, 10-spd, Shadow Plus |
| Derailleur Shifter | Shimano Deore RapidFire+ 10-spd |
| Drive Unit | Shimano STePS E8000, 250 W, 70Nm Torque |
| Battery | Shimano STePS E8010, 500Wh |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda HAVOC 27.5x2.8", 120tpi, Aramid beads, Tubeless Compatible |
| Wheels/Rims | Weinmann U-40 TL, Tubeless Ready, 27.5"x40mm, Double Wall |
| Hubs | Pivit Alloy disc Boost, 32h cassette, Sealed Bearings, w/ Front & Rear Thru-Axle |
| Freewheel/Cassette | Shimano Deore HG-500, 10-spd, 11-42T |
| Braking System | |
| Brakes | Shimano M395 Hydraulic Disc, 180mm Rotors |
| Brake Levers | Shimano M396 Hydraulic |
| Other Components | |
| Grips | WTB Ace Dual Clamps |
| Handle Bar | Pivit X6 Alloy riser bar, 750mm / 785 wide; 15mm rise |
| Stem | Pivit 3D Forged X6 alloy |
| Seat | WTB Rocket Sport |
| Seat Post | Pivit X6 Alloy 2-Bolt 31.6 x 350mm |
| Extras | Shimano Chain Guide, Tubeless Valves, Dropper post routings, Battery charger, Battery Lock |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS / 14.5 | 67.5° | 75 / 71.5° | 565mm (22.2") | 368mm (14.5") | 465mm (18.3") | 56mm (2.2") | 1126mm (44.3") | 748mm (29.4") | 631mm (24.8") | 371mm (14.6") | 546mm (21.5") | 51mm (2") | 60mm | 760mm | 170mm |
| S / 16 | 68° | 75 / 71.5° | 585mm (23") | 406mm (16") | 465mm (18.3") | 56mm (2.2") | 1140mm (44.9") | 750mm (29.5") | 634mm (25") | 390mm (15.4") | 546mm (21.5") | 51mm (2") | 60mm | 760mm | 170mm |
| M / 18 | 68° | 75 / 72.2° | 615mm (24.2") | 457mm (18") | 465mm (18.3") | 56mm (2.2") | 1177mm (46.3") | 752mm (29.6") | 643mm (25.3") | 423mm (16.7") | 546mm (21.5") | 51mm (2") | 60mm | 760mm | 175mm |
| L / 20.5 | 68° | 75 / 72.8° | 630mm (24.8") | 520mm (20.5") | 465mm (18.3") | 56mm (2.2") | 1193mm (47") | 770mm (30.3") | 652mm (25.7") | 435mm (17.1") | 546mm (21.5") | 51mm (2") | 60mm | 760mm | 175mm |
| XL / 22 | 68° | 75 / 72.8° | 640mm (25.2") | 559mm (22") | 465mm (18.3") | 56mm (2.2") | 1209mm (47.6") | 799mm (31.5") | 662mm (26.1") | 447mm (17.6") | 546mm (21.5") | 51mm (2") | 60mm | 760mm | 175mm |
