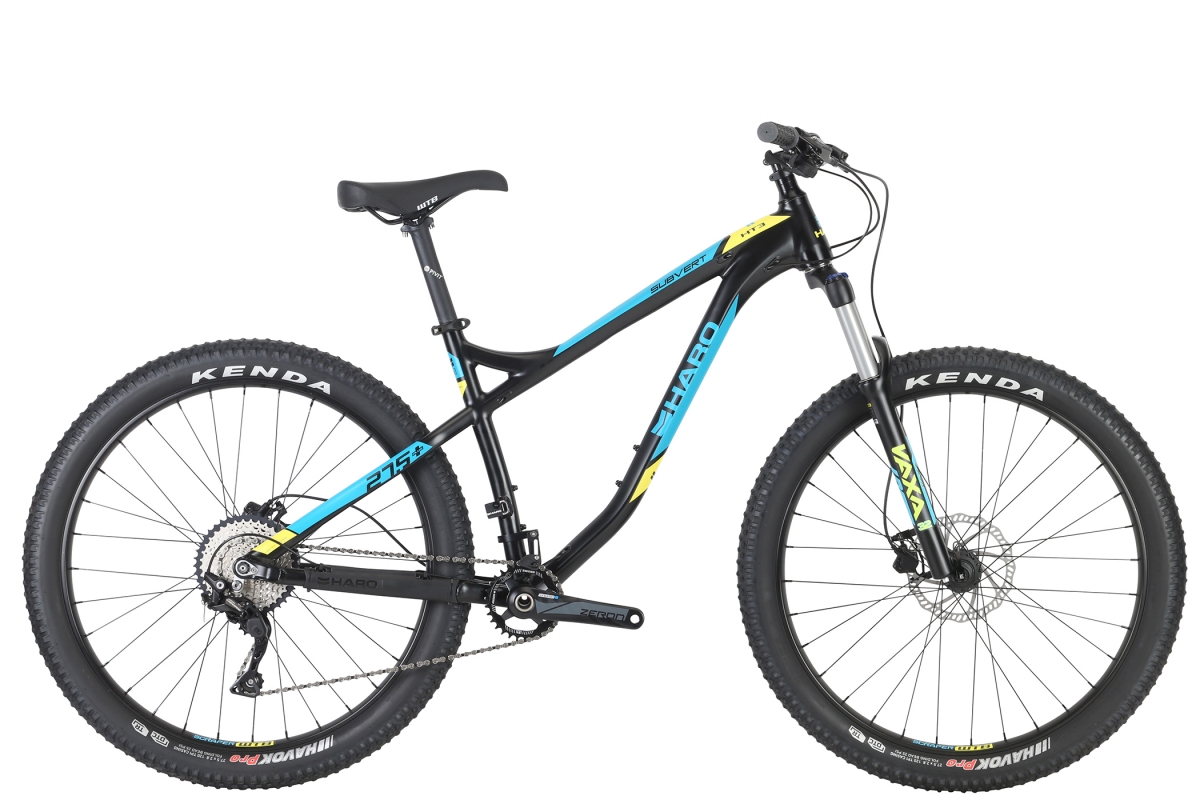

Subvert is a Plus specific series designed to master rocky terrains, offer confidence diving into turns, and be a fully capable off-road adventure companion in all weather conditions. Subvert HT3 features a 6000 series alloy 27.5" Plus geometry frame with a tapered head tube. Its ultra cushy ride comes courtesy of its Vaxa 120mm travel Boost fork with tapered steerer and a thru-axle, combined with WTB Scraper 27.5: Plus i35 rims w/TCS tape and are tubeless ready, and iced with Kenda Havoc 27.5 x 2.8" 120tpi tires. Effortless shifting comes courtesy of semi complete Shimano Deore 6000 1X10 Shadow Plus drive train partnering with a Suntour Zeron 1X Boost crankset with a 30t chain ring.
FEATURES
- 6061-T6 alloy Hardtail frame, 27.5" Plus geometry, tapered head tube, Boost thru-axle dropouts
- HL 868 Vaxa fork, 120mm travel, tapered steerer, Boost thru-axle w/ lockout
- New Pivit X6 alloy Trail handlebar & stem
- Suntour Zeron 1x Boost crankset, 30T chainring
- New Shimano Deore 6000 1x10 Shadow Plus rear derailleur & shifter
- New Shimano Deore 6000 10-spd 11-42T cassette
- WTB Scraper 27.5" Plus i35 rims w/ TCS tape, Tubeless ready
- Kenda Havoc 27.5x2.8" tires, TCS, Aramid beads, 120 tpi
- Pivit Boost sealed bearing disc hubs, 32h w/ thru-axles
| Frame Components | |
|---|---|
| Frame | 6061-T6 series alloy Hardtail, 27.5" Plus / 29" geometry, tapered 1.5" head tube, 73mm BB shell, 12x148mm Boost thru-axle dropouts |
| Fork | HL Vaxa 868 HL/O 27.5" Plus, Tapered Steerer 1-1/8"-1.5", 110mm hub width, 120mm Travel, w/ hydraulic Lock Out, Post Mount, 15mm Thru-axle |
| Headset | FPD Dozer-1048 w/ 1.5" ACB bottom for 44/56mm Head Tube (28.6/41-39.8/56mm) |
| Drivetrain | |
| Cranks | 2018 Suntour Zeron 1X AX-S-BT-30, Boost, 30T Steel Zig-Zag Chainring |
| Bottom Bracket | Suntour BB-BKA008-C, 73mm, sealed cartridge |
| Chain | KMC X10-1 NP/GY, 1/2" x 11/128", 1x10 specific w/ Missing Link |
| Front Derailleur | N/A, w/ Mr. Control alloy direct mount plate cover & CH-CM4 Chain Guide |
| Rear Deralleur | 2018 Shimano Deore RD-M6000, 10-spd, Top Normal, Shadow Plus design |
| Derailleur Shifter | Shimano Deore M6000, Right only, 1x10-spd, w/ optical gear display |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Havoc 27.5x2.8" tires, TCS, Aramid Bead 120 tpi |
| Wheels/Rims | WTB Scraper i35 27.5", 40mm width, alloy double wall rims w/ TCS i35 rim tape |
| Hubs | Pivit Boost Disc alloy 32h, 15x110mm Frt & 12x148mm Rear Thru-Axles |
| Freewheel/Cassette | Shimano CS-HG500-10 11-42T, 10-Speed |
| Braking System | |
| Brakes | Tektro Auriga hydraulic HD-M285, 180/160mm rotors |
| Brake Levers | Tektro Auriga |
| Other Components | |
| Grips | WTB Weirwolf |
| Handle Bar | New Pivit X6, 15mm rise, 750 / 785mm wide; 9 Deg. sweep |
| Stem | New Pivit X6 alloy Trail, 3D Forged, 0 Deg., 4 bolts, ext.: 60/80mm |
| Seat | WTB Pure Sport |
| Seat Post | Pivit alloy micro adjust 31.6mm |
| Seat Clamp | Pivit alloy 34.9mm quick release |
| Extras | TCS Brass Tubeless Valves |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS / 14.5 | 68.5° | 75 / 70.5° | 565mm (22.2") | 368mm (14.5") | 445mm (17.5") | 54mm (2.1") | 1097mm (43.2") | 740mm (29.1") | 628mm (24.7") | 382mm (15") | 530mm (20.9") | 46mm (1.8") | 60mm | 760mm | 170mm |
| S / 16 | 68.5° | 75 / 71.5° | 585mm (23") | 406mm (16") | 445mm (17.5") | 54mm (2.1") | 1117mm (44") | 745mm (29.3") | 628mm (24.7") | 402mm (15.8") | 530mm (20.9") | 46mm (1.8") | 60mm | 760mm | 170mm |
| M / 18 | 68.5° | 75 / 72.2° | 615mm (24.2") | 457mm (18") | 445mm (17.5") | 54mm (2.1") | 1153mm (45.4") | 750mm (29.5") | 637mm (25.1") | 435mm (17.1") | 530mm (20.9") | 46mm (1.8") | 60mm | 760mm | 175mm |
| L / 20.5 | 68.5° | 75 / 72.8° | 630mm (24.8") | 520mm (20.5") | 445mm (17.5") | 54mm (2.1") | 1174mm (46.2") | 778mm (30.6") | 647mm (25.5") | 451mm (17.8") | 530mm (20.9") | 46mm (1.8") | 80mm | 760mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
