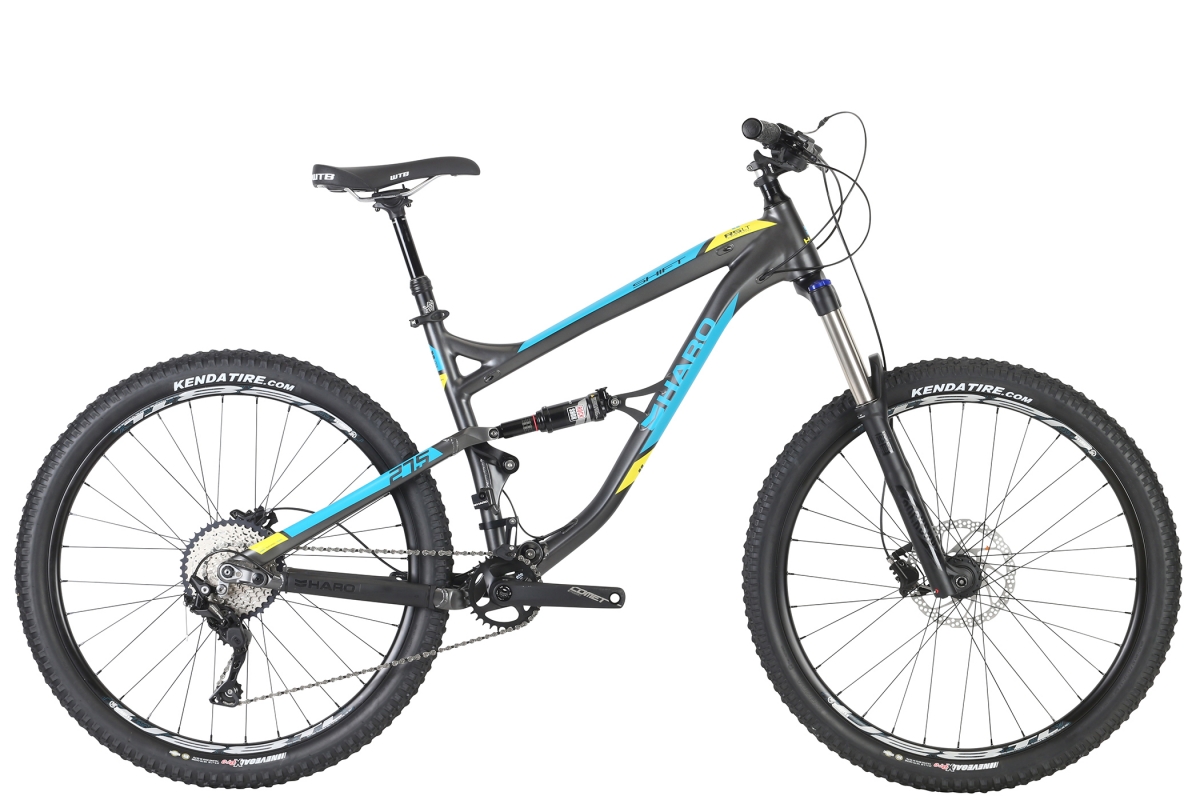

The Shift R5 LT is a longer travel version of our four-bar linkage design with 140mm of pure All Mountain suspension. Like its Trail cousin, the R5 LT is constructed with materials drawn from 6000 series alloy and features an internal tapered head tube. The frame design includes a progressive rear suspension with a central linkage and chainstay pivots to optimize shock performance. It also provides rigidity between the front and rear triangle and isolates the rear shock from braking forces while keeping the suspension active when needed. The R5 LT uses RockShox' s new Recon Silver RS Boost suspension fork with 150mm of travel. Its Deore drive train is paired with an FSA Comet Modular Boost crankset and its 30t Crmo chainring. The Shift R5 LT uses U28 TL tubeless compatible double wall rims paired with Kenda Nevegal 27.5 x 2.35" tires and features a new Pivit internal dropper post for quick adjustments on the fly.
FEATURES
- Shift R LT 6061-T6 alloy 4-Bar Linkage frame, 140mm rear travel, tapered head tube, 73mm BB shell, Boost thru-axle dropouts
- RockShox Monarch R rear shock w/ rebound adjuster
- New Rockshox Recon Silver RS 27.5" Boost, 150mm travel
- FSA Comet Modular Boost crankset w/ 30T Crmo chainring
- New Shimano Deore 6000 1x10 Shadow Plus rear derailleur
- New Shimano Deore 1x10 shifter & 11-42T cassette
- New Pivit Internal Dropper Post, 31.6x100mm
- Weinmann U28 TL Tubeless compatible rims
- New Pivit X6 alloy handlebar & stem
| Frame Components | |
|---|---|
| Frame | 2018 6061-T6 series alloy dual suspended 4-Bar linkage frame, 140mm rear travel, tapered 1.5" head tube, 73mm BB shell, Enduro bearings, Boost 12mm thru-axle dropouts |
| Fork | 2018 RockShox Recon RL 27.5, 1-1/8"-1.5" tapered alloy steerer, Solo Air; 150mm travel, Boost w/ 15mm Maxle thru-axle included |
| Headset | Ritchey Comp Logic Zero PF 1-1/8" / 1.5", Semi-Cartridge bearings, for 44/56mm head tube (28.6/41-39.8/56mm) |
| Frame Shock | RockShox Monarch R Solo Air 200X57 w/ rebound adjuster, LL tune |
| Drivetrain | |
| Cranks | FSA Comet Modular w/ 30T Megatooth Crmo Chainring |
| Bottom Bracket | FSA MegaExo sealed cartridge |
| Chain | KMC X10-1 NP/GY, 1/2" x 11/128", 1x10 specific w/ Missing Link |
| Front Derailleur | N/A, w/ Mr. Control alloy direct mount plate cover & upper chain guide |
| Rear Deralleur | 2018 Shimano Deore RD-M6000, 10-spd, Top Normal, Shadow Plus design |
| Derailleur Shifter | Shimano Deore M6000, Right only, 1x10-spd, w/ optical gear display |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Nevegal X, 27.5*2.35, 60tpi, wire beads |
| Wheels/Rims | Weinmann U-28TL Disc 27.5" x 32h alloy double wall rims, Tubeless Compatible |
| Hubs | Pivit alloy Boost sealed bearing disc, 15mm front & 12mm Rear thru-axles, 10-spd |
| Freewheel/Cassette | Shimano CS-HG500-10 11-42T, 10-Speed |
| Braking System | |
| Brakes | Shimano BR-M395 hydraulic, 180/160mm rotors |
| Brake Levers | Shimano BL-M396 |
| Other Components | |
| Grips | WTB Ace Dual Clamps, 135mm |
| Handle Bar | New Pivit X6, 30mm rise, 750 / 785mm wide; 9 Deg. sweep |
| Stem | New Pivit X6 alloy Trail, 3D Forged, 0 Deg., 4 bolts, ext.: 60/80mm |
| Seat | WTB Rocket Sport |
| Seat Post | Pivit Internal Dropper post w/ remote, 31.6x100x380mm, |
| Seat Clamp | Pivit alloy 35mm quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS / 14.5 | 67° | 75 / 70.5° | 565mm (22.2") | 368mm (14.5") | 435mm (17.1") | 20mm (0.8") | 1109mm (43.7") | 756mm (29.8") | 595mm (23.4") | 385mm (15.2") | 540mm (21.3") | 42mm (1.7") | 60mm | 760mm | 170mm |
| S / 16 | 68° | 75 / 71.5° | 585mm (23") | 406mm (16") | 435mm (17.1") | 20mm (0.8") | 1125mm (44.3") | 758mm (29.8") | 610mm (24") | 407mm (16") | 540mm (21.3") | 42mm (1.7") | 60mm | 760mm | 170mm |
| M / 18 | 68° | 75 / 72.2° | 615mm (24.2") | 457mm (18") | 435mm (17.1") | 20mm (0.8") | 1162mm (45.7") | 766mm (30.2") | 619mm (24.4") | 440mm (17.3") | 540mm (21.3") | 42mm (1.7") | 60mm | 760mm | 175mm |
| L / 20.5 | 68° | 75 / 72.8° | 630mm (24.8") | 520mm (20.5") | 435mm (17.1") | 20mm (0.8") | 1182mm (46.5") | 785mm (30.9") | 628mm (24.7") | 457mm (18") | 540mm (21.3") | 42mm (1.7") | 80 / 70mm | 760mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
