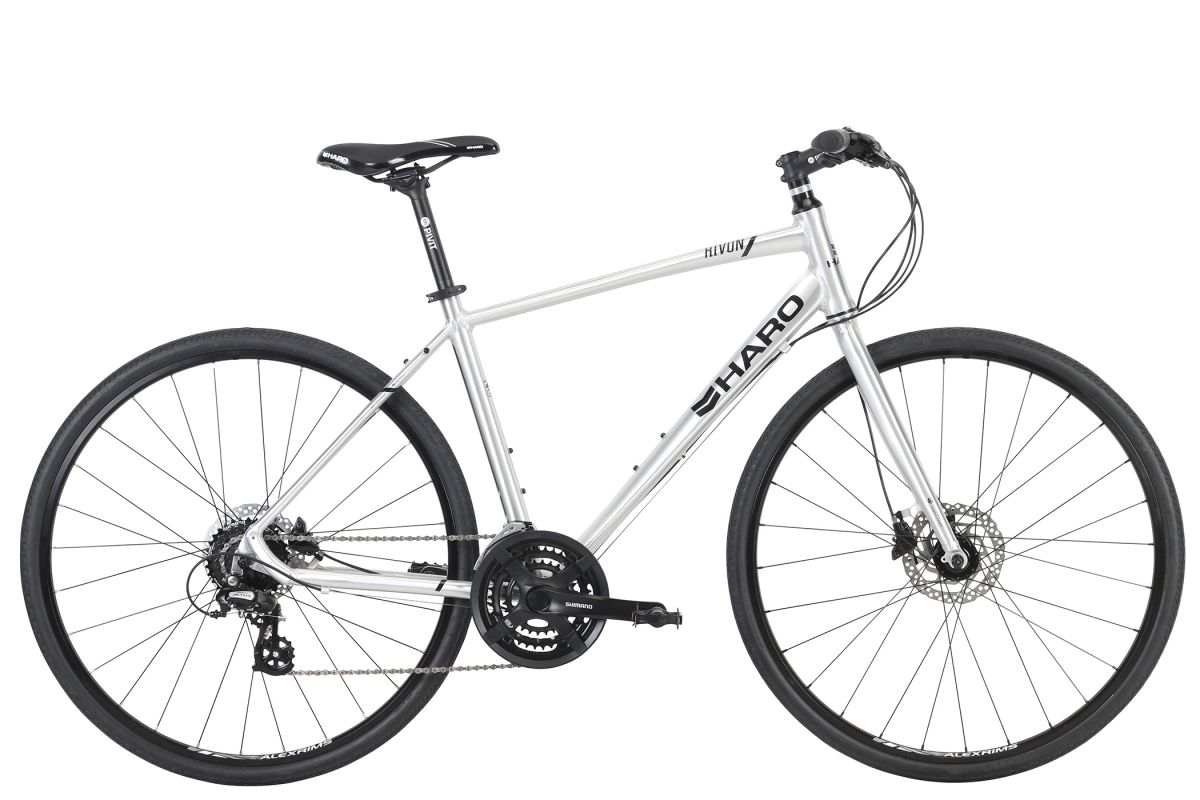

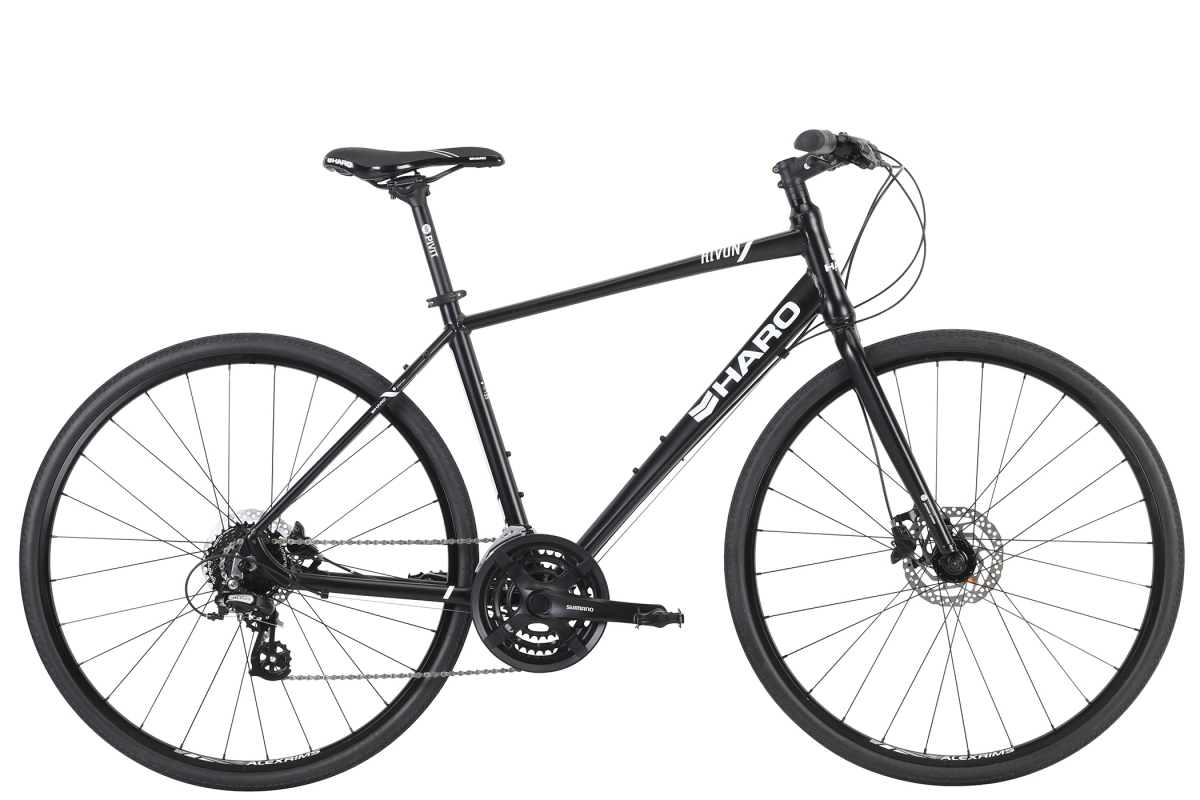

Rivon
- Year: 2018
- MSRP: $599.99 *
- Sizes: 15.5", 17.5", 19", 21", 23"
- Colors: Brush Polished, Black / Iris
- Weight: 26.60 lbs
- NO LONGER AVAILABLE
Rivon is the top of the food chain when it comes to the Ventus Series. It starts with a Ventus Series hybrid frame that features Rider Optimized Geometry specifically designed to assure a proper and comfortable fit. All Ventus Series models are ideally suited to a wide range of uses including commuting, fitness riding, recreational riding and Rivon does double duty as a very capable flat bar road bike. Unlike its Solum Series counterparts, Rivon uses a rigid Crmo steel fork with disc mounts to increase pedal efficiency by preventing energy loss associated with excess fork movement. Rivon comes complete with a Shimano 24 speed drive train that includes EZ Fire shifters. Its wheelset is made from Pivit alloy 28h disc hubs laced to DC-26 700c alloy double wall rims and stopping is made simple and reliable courtesy of a pair of Shimano M315 hydraulic disc brakes.
FEATURES
- Haro Ventus Hybrid frame, Rider Optimized Geometry, hydroformed alloy tubing, chainstay disc brake mount
- Haro Ventus alloy fork, Crmo steerer tube, post-mount disc brake
- Shimano TY-501 48/38/28t crankset, sealed cartridge BB
- Shimano Tourney TY-710 Dual Pull front derailleur
- Shimano Altus 8-spd rear derailleur
- New Shimano ST-EF510 3x8-spd shifters w/ hydraulic levers set
- Shimano M315 hydraulic disc brakeset
- Wide-ratio Shimano HG-200 12-32t 8-spd cassette
- Pivit alloy 9 deg. backsweep flat-top bar & forged stem
- Kenda Bitumen 700 x 32c tires
- Pivit alloy disc 28h hubs w/ Alex DC-26 700c alloy DW rims
Frame Components | |
---|---|
Frame | Haro Ventus 6061 Alloy w/ Rider-Tuned Geometry |
Fork | Haro Ventus alloy w/ post disc mount |
Headset | 10-Pcs, 1-1/8" Threadless for 50mm OD headtube, Internal |
Drivetrain | |
Cranks | Shimano TY-501 48/38/28t |
Bottom Bracket | Shimano sealed cartridge |
Chain | KMC Z7 8-spd |
Front Derailleur | Shimano Tourney TY710,Top-Swing, Duall Pull |
Rear Deralleur | Shimano Altus M310 |
Derailleur Shifter | New 2018 Shimano ST-EF505 3x8-spd set w/ levers |
Pedals | VP nylon body w/ steel cages |
Wheels | |
Tires | Kenda Kwick Bitumen 700x32c |
Wheels/Rims | Alex DC-26 700c alloy double wall 28h |
Hubs | Pivit alloy disc cassette |
Freewheel/Cassette | Shimano HG-200-8 8-spd 12-32T |
Braking System | |
Brakes | Shimano M315 hydraulic |
Brake Levers | New Shimano ST-EF505 hydraulic, Set w/ shifters |
Other Components | |
Grips | Haro Dual Sport |
Handle Bar | Pivit alloy Flat Top 31.8mm 9 degree backsweep |
Stem | Pivit melt forged |
Seat | Haro Dual Sport |
Seat Post | Pivit alloy micro adjust 27.2mm, 2 Bolts |
Seat Clamp | Alloy quick Release, 31.8mm |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
15.5 | 70.5° | 73.5° | 555mm (21.9") | 394mm (15.5") | 445mm (17.5") | 60mm (2.4") | 1053mm (41.5") | 696mm (27.4") | 537mm (21.1") | 396mm (15.6") | 401mm (15.8") | 45mm (1.8") | 70mm | 620mm | 170mm |
17.5 | 70.5° | 73.5° | 570mm (22.4") | 445mm (17.5") | 445mm (17.5") | 60mm (2.4") | 1069mm (42.1") | 739mm (29.1") | 555mm (21.9") | 405mm (15.9") | 401mm (15.8") | 45mm (1.8") | 90mm | 620mm | 170mm |
19 | 71° | 73.5° | 580mm (22.8") | 483mm (19") | 445mm (17.5") | 60mm (2.4") | 1075mm (42.3") | 772mm (30.4") | 576mm (22.7") | 409mm (16.1") | 401mm (15.8") | 45mm (1.8") | 90mm | 640mm | 175mm |
21 | 71.5° | 73° | 600mm (23.6") | 533mm (21") | 445mm (17.5") | 60mm (2.4") | 1085mm (42.7") | 810mm (31.9") | 607mm (23.9") | 414mm (16.3") | 401mm (15.8") | 45mm (1.8") | 100mm | 640mm | 175mm |
23 | 71.5° | 73° | 620mm (24.4") | 584mm (23") | 445mm (17.5") | 60mm (2.4") | 1106mm (43.5") | 843mm (33.2") | 635mm (25") | 425mm (16.7") | 401mm (15.8") | 45mm (1.8") | 100mm | 640mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
