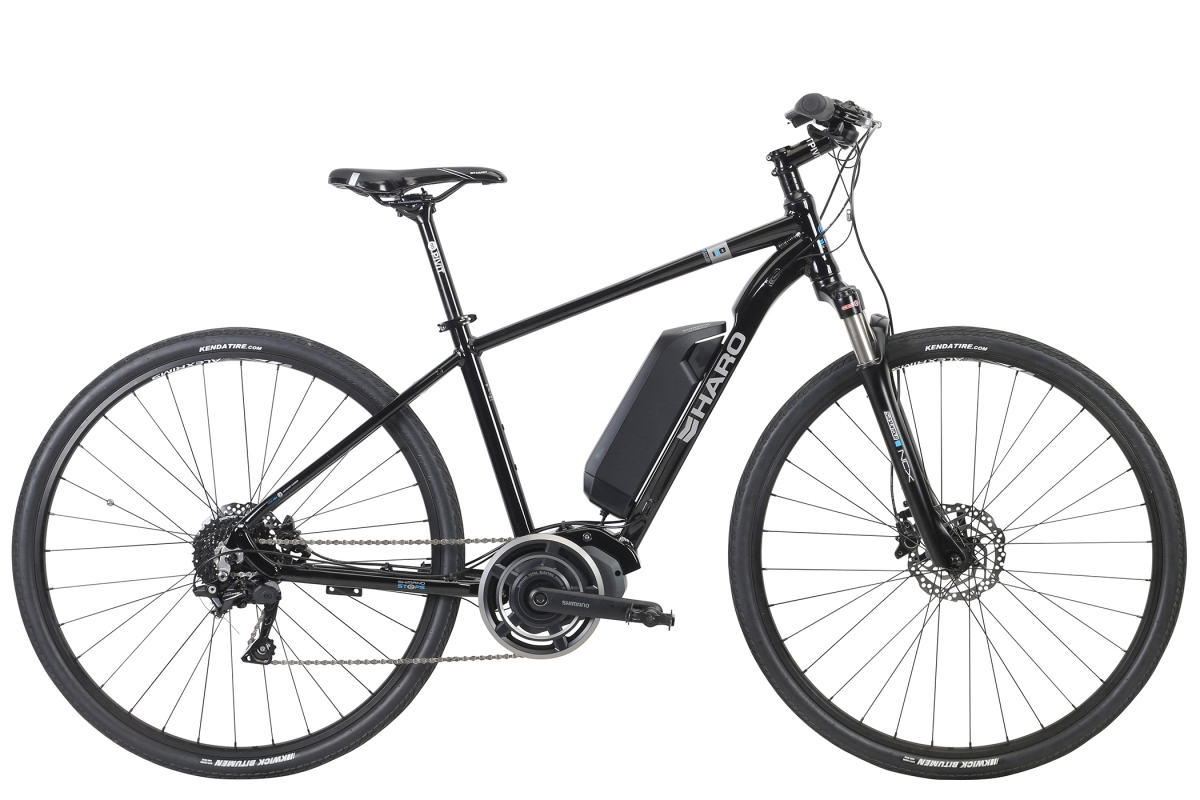

Brand new for 2018, the Solum i/O brings Haro's vaunted Rider Tuned Geometry to the pedelec category. Designed from the ground up to be the ultimate sporty eBike, the Solum i/O is equally at home crushing your commute, unpaved lake roads, or that rails to trails route on the weekend. Shimano's STePS center-drive motor system provides assistance up to 20 miles per hour, and its 418 WH battery provides you with up to a 60 mile range depending on mode selected. Shimano's 1x10 drivetrain is simple and efficient and allows you to get from here to there without even breaking a sweat. Solum i/O has full rack and fender mounts, Haro commuter saddle with a micro adjust seat post, and Shimano M315 hydraulic brakes provide reliable stops in all weather conditions.
FEATURES
- Lightweight 6061 aluminum frame with Haro's proven Rider Tuned Geometry
- SR Suntour NCX D-LO fork w/63mm travel & lock out
- 418wH Shimano STePS battery for up to 60 mile range
- Shimano 10-speed Deore drivetrain
- Lightwight Pivit alloy riser bars & 3D forged stem
- Custom Haro Commuter saddle with alloy microadjust seatpost
- Fast-rolling Kenda Kwick Bitumen 700c X 38mm all-purpose tires
- Powerful Shimano M315 hydraulic disc brakes ensure all-condition stopping power
| Frame Components | |
|---|---|
| Frame | Haro Solum 6061 Alloy for Shimano STePS w/ Rider-Tuned Geometry |
| Fork | SR Suntour NCX-D LS 63mm travel w/lockout |
| Headset | FSA Orbit No. 10 |
| Drivetrain | |
| Cranks | Shimano STePS |
| Bottom Bracket | N/A |
| Chain | KMC X10-E |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Deore, RD-6000, 10-spd, Shadow Plus |
| Derailleur Shifter | Shimano Deore RapidFire+ 10-spd |
| Drive Unit | Shimano STePS E6050 |
| Battery | Shimano STePS 418wH |
| Pedals | VP steel cage, 9/16" Crmo axle |
| Wheels | |
| Tires | Kenda Kwick Bitumen 700 x 38c |
| Wheels/Rims | Alex DC-26 700c alloy DW |
| Hubs | Shimano M3050 CenterLock |
| Freewheel/Cassette | Shimano Deore HG-500, 10-spd, 11-42T |
| Braking System | |
| Brakes | Shimano M315 hydraulic disc, 160mm Rotors |
| Brake Levers | Shimano M315 hydraulic |
| Other Components | |
| Grips | Haro Dual Sport |
| Handle Bar | Pivit alloy 25mm rise |
| Stem | Pivit 3D Forged 31.8 |
| Seat | Haro Dual Sport |
| Seat Post | Pivit alloy 27.2mm |
| Extras | Rear-Mount Kickstand plate, Battery charger, Battery Lock |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 70.5° | 73° | 575mm (22.6") | 394mm (15.5") | 475mm (18.7") | 60mm (2.4") | 1097mm (43.2") | 743mm (29.3") | 594mm (23.4") | 393mm (15.5") | 468mm (18.4") | 42mm (1.7") | 70mm | 620mm | 170mm |
| 17.5 | 70.5° | 73° | 585mm (23") | 445mm (17.5") | 475mm (18.7") | 60mm (2.4") | 1108mm (43.6") | 768mm (30.2") | 603mm (23.7") | 400mm (15.7") | 468mm (18.4") | 42mm (1.7") | 90mm | 620mm | 170mm |
| 19 | 70.5° | 73° | 600mm (23.6") | 483mm (19") | 475mm (18.7") | 60mm (2.4") | 1123mm (44.2") | 788mm (31") | 613mm (24.1") | 412mm (16.2") | 468mm (18.4") | 42mm (1.7") | 90mm | 640mm | 175mm |
| 21 | 70.5° | 73° | 615mm (24.2") | 533mm (21") | 475mm (18.7") | 60mm (2.4") | 1139mm (44.8") | 815mm (32.1") | 622mm (24.5") | 424mm (16.7") | 468mm (18.4") | 42mm (1.7") | 100mm | 640mm | 175mm |
| 23 | 70.5° | 73° | 625mm (24.6") | 584mm (23") | 475mm (18.7") | 60mm (2.4") | 1149mm (45.2") | 847mm (33.3") | 636mm (25") | 430mm (16.9") | 468mm (18.4") | 42mm (1.7") | 100mm | 640mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
