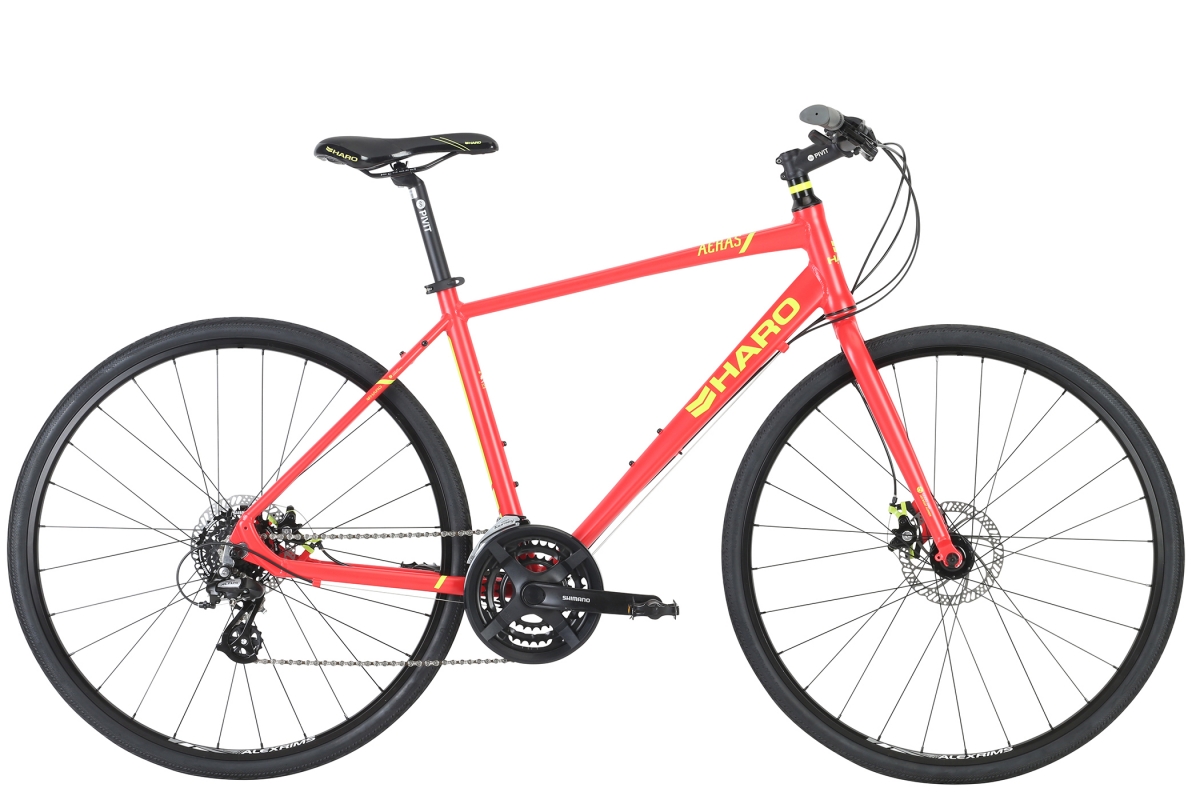

Aeras starts with a Ventus Series hybrid frame that features Rider Optimized Geometry specifically designed to assure a proper and comfortable fit. All Ventus Series models are ideally suited to a wide range of uses including commuting, fitness riding, recreational riding and good old fashioned errand running. Unlike its Solum Series counterparts, Aeras uses a rigid steel fork with disc mounts to increase pedal efficiency by preventing energy loss associated with excess fork movement. Aeras comes complete with a Shimano 21 speed drive train that includes EZ Fire shifters. Its wheelset is made from Pivit alloy 28h disc hubs laced to DC-27 700c alloy double wall rims and all weather stopping is made possible thanks to a pair of Tektro Aries mechanical disc brakes.
FEATURES
- Haro Ventus Hybrid frame, Rider Optimized Geometry, hydroformed alloy tubing, chainstay disc brake mount
- Haro Ventus steel fork w/ disc brake mounts
- Shimano TY-301 crankset, 48/38/28t, sealed cartridge BB
- Shimano Altus M310-L rear derailleur
- Shimano Tourney ST-EF-500 7-spd EZ Fire shifters
- Shimano FD-TY510 Dual Pull front derailleur
- Pivit alloy disc 28h hubs w/ Alex DC-26 700c alloy DW rims
- Pivit alloy 9 deg. sweep flat-top bar & forged stem
- Tektro Aries mechanical disc brakes
| Frame Components | |
|---|---|
| Frame | Haro Ventus 6061 Alloy w/ Rider-Tuned Geometry |
| Fork | Haro Ventus Hi-Ten steel w/ disc mount |
| Headset | 10-Pcs, 1-1/8" Threadless for 50mm OD headtube, Internal |
| Drivetrain | |
| Cranks | Shimano TY-301 48/38/28t |
| Bottom Bracket | Shimano Sealed Cartridge |
| Chain | KMC Z51 |
| Front Derailleur | Shimano Tourney FD-TY510 Dual Pull |
| Rear Deralleur | Shimano Altus RD-M310-L |
| Derailleur Shifter | Shimano ST-EF-500 3x7-spd |
| Pedals | VP nylon body w/ steel cages |
| Wheels | |
| Tires | H-5113 700 x 32c |
| Wheels/Rims | Alex DC-26 700c alloy double wall 28h |
| Hubs | Pivit alloy disc cassette |
| Freewheel/Cassette | Shimano HG-200 7-spd Cassette 12-32t |
| Braking System | |
| Brakes | Tektro Aries MD-M280 mechanical disc, 160mm rotors |
| Brake Levers | Shimano ST-EF-500 |
| Other Components | |
| Grips | Haro Dual Sport |
| Handle Bar | Pivit alloy Flat Top 31.8mm 9 degree backsweep, 620 / 640mm wide |
| Stem | Pivit melt forged |
| Seat | Haro Dual Sport |
| Seat Post | Men's: Pivit alloy micro adjust 27.2mm |
| Seat Clamp | Alloy quick Release, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 70.5° | 73.5° | 555mm (21.9") | 394mm (15.5") | 445mm (17.5") | 60mm (2.4") | 1053mm (41.5") | 696mm (27.4") | 537mm (21.1") | 396mm (15.6") | 401mm (15.8") | 45mm (1.8") | 70mm | 620mm | 170mm |
| 17.5 | 70.5° | 73.5° | 570mm (22.4") | 445mm (17.5") | 445mm (17.5") | 60mm (2.4") | 1069mm (42.1") | 739mm (29.1") | 555mm (21.9") | 405mm (15.9") | 401mm (15.8") | 45mm (1.8") | 90mm | 620mm | 170mm |
| 19 | 71° | 73.5° | 580mm (22.8") | 483mm (19") | 445mm (17.5") | 60mm (2.4") | 1075mm (42.3") | 772mm (30.4") | 576mm (22.7") | 409mm (16.1") | 401mm (15.8") | 45mm (1.8") | 90mm | 640mm | 175mm |
| 21 | 71.5° | 73° | 600mm (23.6") | 533mm (21") | 445mm (17.5") | 60mm (2.4") | 1085mm (42.7") | 810mm (31.9") | 607mm (23.9") | 414mm (16.3") | 401mm (15.8") | 45mm (1.8") | 100mm | 640mm | 175mm |
| 23 | 71.5° | 73° | 620mm (24.4") | 584mm (23") | 445mm (17.5") | 60mm (2.4") | 1106mm (43.5") | 843mm (33.2") | 635mm (25") | 425mm (16.7") | 401mm (15.8") | 45mm (1.8") | 100mm | 640mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
