Steel Reserve 1.3
- Year: 2018
- MSRP: $1,579.99 *
- Sizes: 22.3", 22.6"
- Colors: Blue Chrome
- Weight: 28.80 lbs
- NO LONGER AVAILABLE

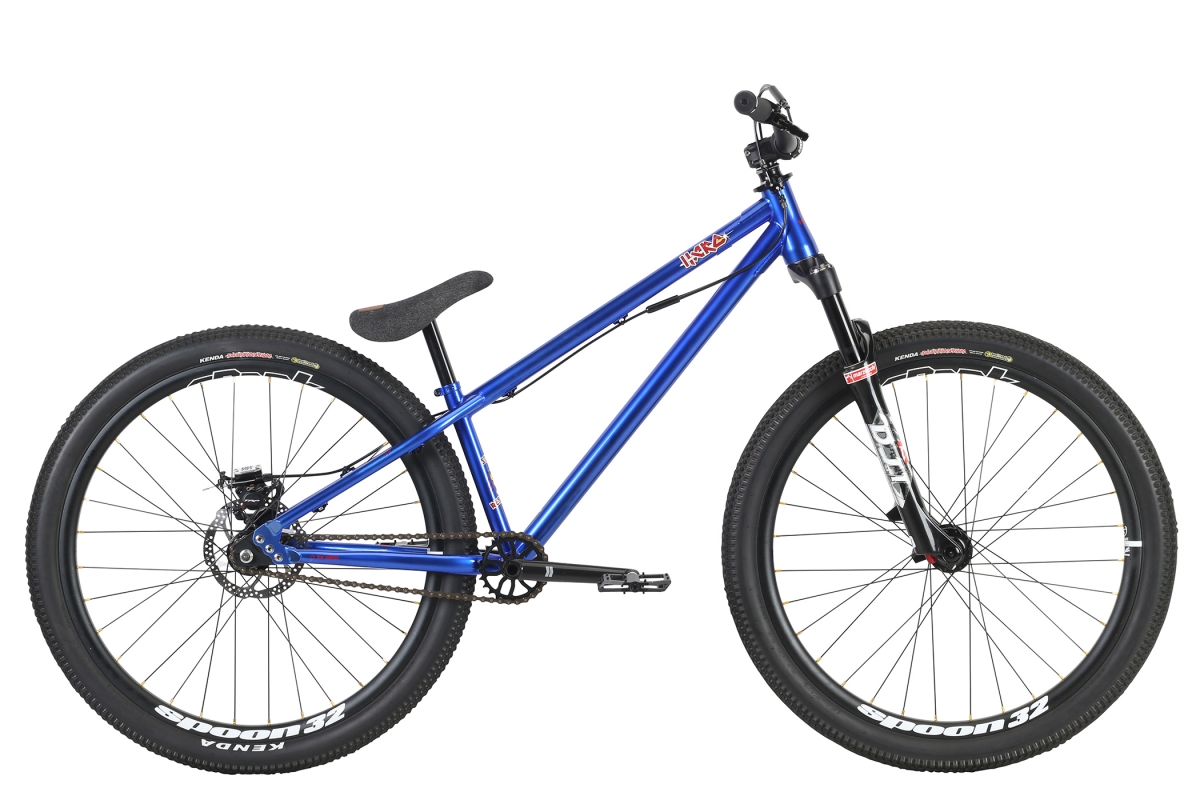

Steel Reserve 1.3 is competition ready with a full crmo SR frame with tapered head tube and rotor tabs. Its "Six Shooter" dropouts are interchangeable which allows you to convert it from a single speed to a multi speed derailleur set up should you choose. A Haro OS rotor comes standard on SR 1.3's tapered head tube, all mounted to a Marzocchi DJ1 100mm fork complete with thru-axle. It features a Spoon 1 1/8" stem and Spoon 762 40mm rise bar from Spank Industries. Haro's slim padded saddle is mounted to a TriPod post to keep things light. Stopping is consistent and reliable thanks to a new unique hybrid mechanical/hydraulic disc brake from TRP. 1.3 rolls as fast as it flies on its 26" lightweight wheel set that combines Kenda's Small Block Eight tires (2.35" wide on the front and 2.1" wide on the rear) with Spank Industries Spoon alloy double wall rims.
FEATURES
- Haro Full Crmo Steel Reserve frame w/ tapered head tube & interchangeable dropouts
- New Haro OS rotor for tapered 1-1/8"-1.5" head tube
- 21.8" TT (Short) & 22.5" TT (Long) sizes
- Marzocchi DJ1 100mm travel fork w/ 20mm thru-axle
- Haro Crmo 8 Spline 2-pc crankset, 25t sprocket
- Spank Ind. Spoon 762, 40mm rise bar
- Velo Lock On grips
- Spank Ind. Spoon 1-1/8" stem
- Haro slim padded saddle w/ TriPod post
- Spank Ind. Spoon alloy DW 36h rims,
- Pivit alloy disc cassette w/ 12t Crmo cog
- Kenda Small Block Eight 2.35"/2.10" tires
- New TRP HY/RD-C mechanical / hydraulic rear disc brake
Frame Components | |
---|---|
Frame | Haro Full Crmo Steel Reserve frame w/ tapered head tube, holes for removable rotor tabs, Euro BB shell & interchangeable dropouts |
Fork | Marzocchi DJ1, 100mm travel, tapered steerer tube w/ 20mm thru-axle |
Headset | VP 1-1/8" Alloy, 45°X45° Semi-Cartridge Bearings |
Drivetrain | |
Cranks | Haro Crmo 8 Spline 2-pc 25t |
Bottom Bracket | 4 x Sealed bearing |
Chain | KMC Z510X 1/2" X 1/8" |
Front Derailleur | N/A |
Rear Deralleur | N/A |
Derailleur Shifter | N/A |
Pedals | Haro Slim w/ sealed bearings & replaceable pins |
Wheels | |
Tires | Kenda Small Block 8 26x2.35" front & 26x2.1" rear |
Wheels/Rims | Spank Ind. Spoon alloy doublewall |
Hubs | Pivit sealed bearing alloy disc, singlespeed cassette w/ 20mm front thru axle, 36h |
Freewheel/Cassette | 12T Crmo Cog |
Braking System | |
Brakes | TRP HY/RD-C 160, Cable / Hydraulic Disc Brake for IS Rear Mount, 160mm disc |
Brake Levers | Odyssey Trigger for Single Gyro upper cable |
Other Components | |
Grips | Velo Lock On |
Handle Bar | Spank Ind. Spoon 762, 40mm Rise |
Stem | Spank Ind. Spoon 1-1/8" |
Seat | Haro slim padded TriPod |
Seat Post | TriPod Post 25.4mm |
Seat Clamp | Pivit alloy 28.6mm |
Extras | 2018 Haro Teflon Bearing Rotor w/ Upper & Lower rotor cables |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Short | 69.5° | 71.5° | 556mm (21.9") | 290mm (11.4") | 389mm (15.3") | 25mm (1") | 1016mm (40") | 684mm (26.9") | 566mm (22.3") | 374mm (14.7") | 477.5mm (18.8") | 48mm (1.9") | 40mm | 785mm | 175mm |
Long | 69.5° | 71.5° | 573mm (22.6") | 290mm (11.4") | 389mm (15.3") | 25mm (1") | 1035mm (40.7") | 675mm (26.6") | 569mm (22.4") | 394mm (15.5") | 477.5mm (18.8") | 48mm (1.9") | 40mm | 785mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
