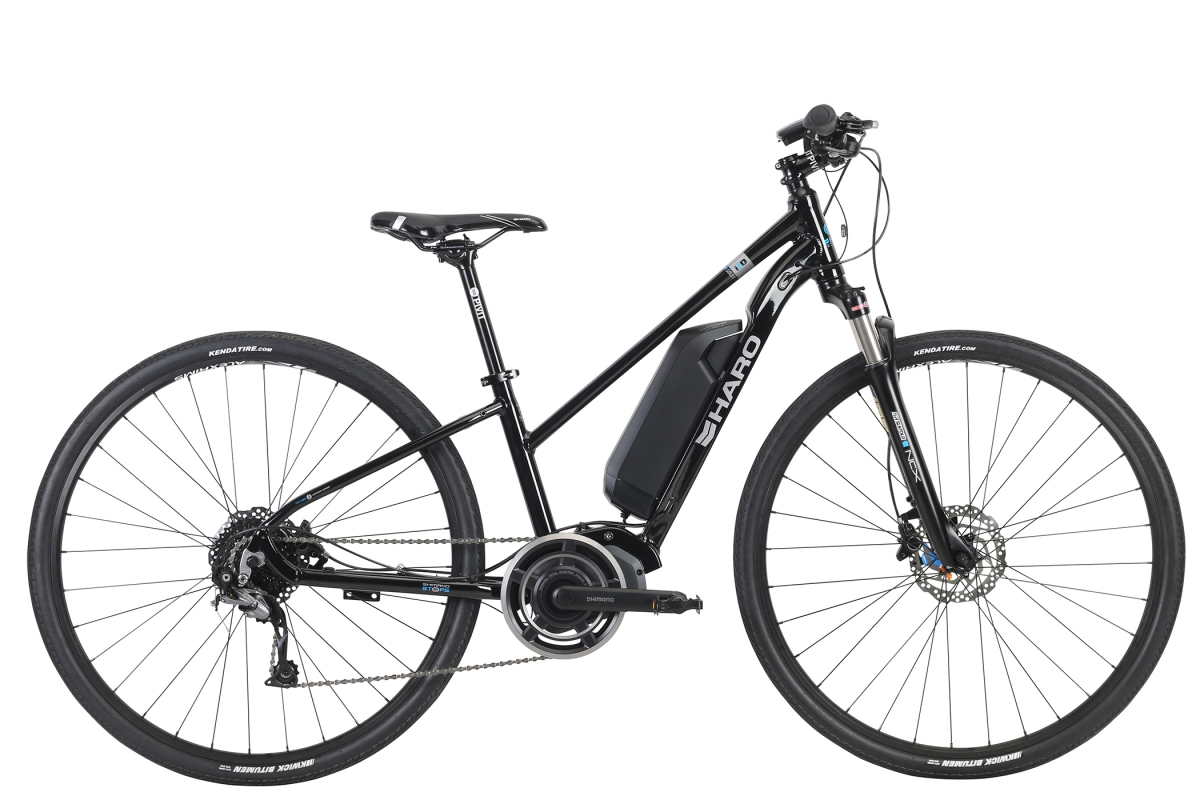

Brand new for 2018, the Solum i/O ST brings Haro's vaunted Rider Tuned Geometry to the pedelec category in a gender neutral step thru option that allows an easy dismount alternative when sweeping your leg around he back isn't desired or possible. Regardless of conventional or step thru, each is designed from the ground up to be the ultimate sporty eBike, the Solum i/O ST is equally at home crushing your commute, unpaved lake roads, or that rails to trails route on the weekend. Shimano's STePS center-drive motor system provides assistance up to 20 miles per hour, and its 418 WH battery provides you with up to a 60 mile range depending on mode selected. Shimano's 1x10 drivetrain is simple and efficient and allows you to get from here to there without even breaking a sweat. Solum i/O ST has full rack and fender mounts, Haro commuter saddle with a micro adjust seat post, and Shimano M315 hydraulic brakes that provide reliable stops in all weather conditions.
FEATURES
- Lightweight 6061 aluminum frame with Haro's proven Rider Tuned Geometry
- SR Suntour NCX D-LO fork w/63mm travel & lock out
- 418wH Shimano STePS battery for up to 60 mile range
- Shimano 10-speed Deore drivetrain
- Lightwight Pivit alloy riser bars & 3D forged stem
- Custom Haro Commuter saddle with alloy microadjust seatpost
- Fast-rolling Kenda Kwick Bitumen 700c X 38mm all-purpose tires
- Powerful Shimano M315 hydraulic disc brakes ensure all-condition stopping power
| Frame Components | |
|---|---|
| Frame | Haro Solum 6061 Alloy for Shimano STePS w/ Rider-Tuned Geometry |
| Fork | SR Suntour NCX-D LS 63mm travel w/lockout |
| Headset | FSA Orbit No. 10 |
| Drivetrain | |
| Cranks | Shimano STePS |
| Bottom Bracket | N/A |
| Chain | KMC X10-E |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Deore, RD-6000, 10-spd, Shadow Plus |
| Derailleur Shifter | Shimano Deore RapidFire+ 10-spd |
| Drive Unit | Shimano STePS E6050 |
| Battery | Shimano STePS 418wH |
| Pedals | VP steel cage, 9/16" Crmo axle |
| Wheels | |
| Tires | Kenda Kwick Bitumen 700 x 38c |
| Wheels/Rims | Alex DC-26 700c alloy DW |
| Hubs | Shimano M3050 CenterLock |
| Freewheel/Cassette | Shimano Deore HG-500, 10-spd, 11-42T |
| Braking System | |
| Brakes | Shimano M315 hydraulic disc, 160mm Rotors |
| Brake Levers | Shimano M315 hydraulic |
| Other Components | |
| Grips | Haro Dual Sport |
| Handle Bar | Pivit alloy 25mm rise |
| Stem | Pivit 3D Forged 31.8 |
| Seat | Haro Dual Sport |
| Seat Post | Pivit alloy 27.2mm |
| Extras | Rear-Mount Kickstand plate, Battery charger, Battery Lock |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 ST | 70° | 74° | 550mm (21.7") | 355mm (14") | 475mm (18.7") | 60mm (2.4") | 1090mm (42.9") | 640mm (25.2") | 610mm (24") | 375mm (14.8") | 468mm (18.4") | 42mm (1.7") | 70mm | 620mm | 170mm |
| 16 ST | 70° | 74° | 572mm (22.5") | 406mm (16") | 475mm (18.7") | 60mm (2.4") | 1112mm (43.8") | 642mm (25.3") | 610mm (24") | 396mm (15.6") | 468mm (18.4") | 42mm (1.7") | 90mm | 620mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
