Aire
| Year | 2018 |
|---|---|
| MSRP | $489.99 * |
| Sizes | 15", 17" |

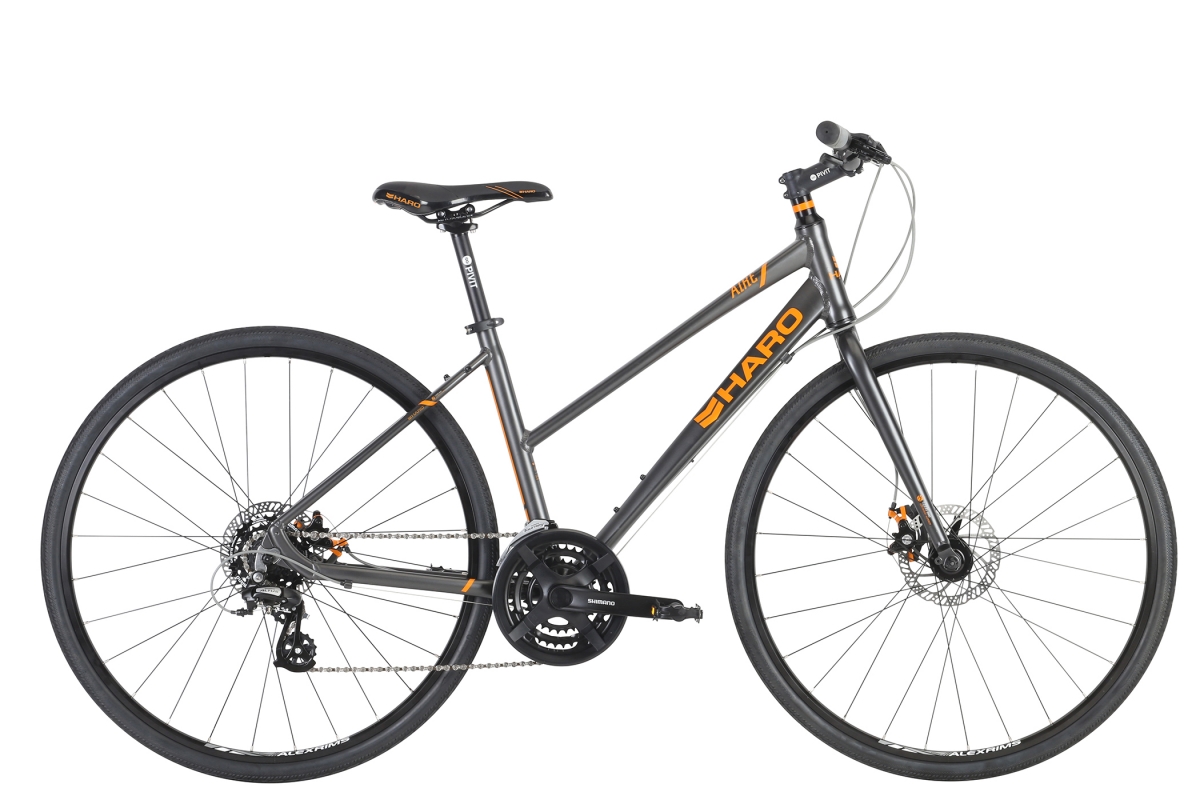

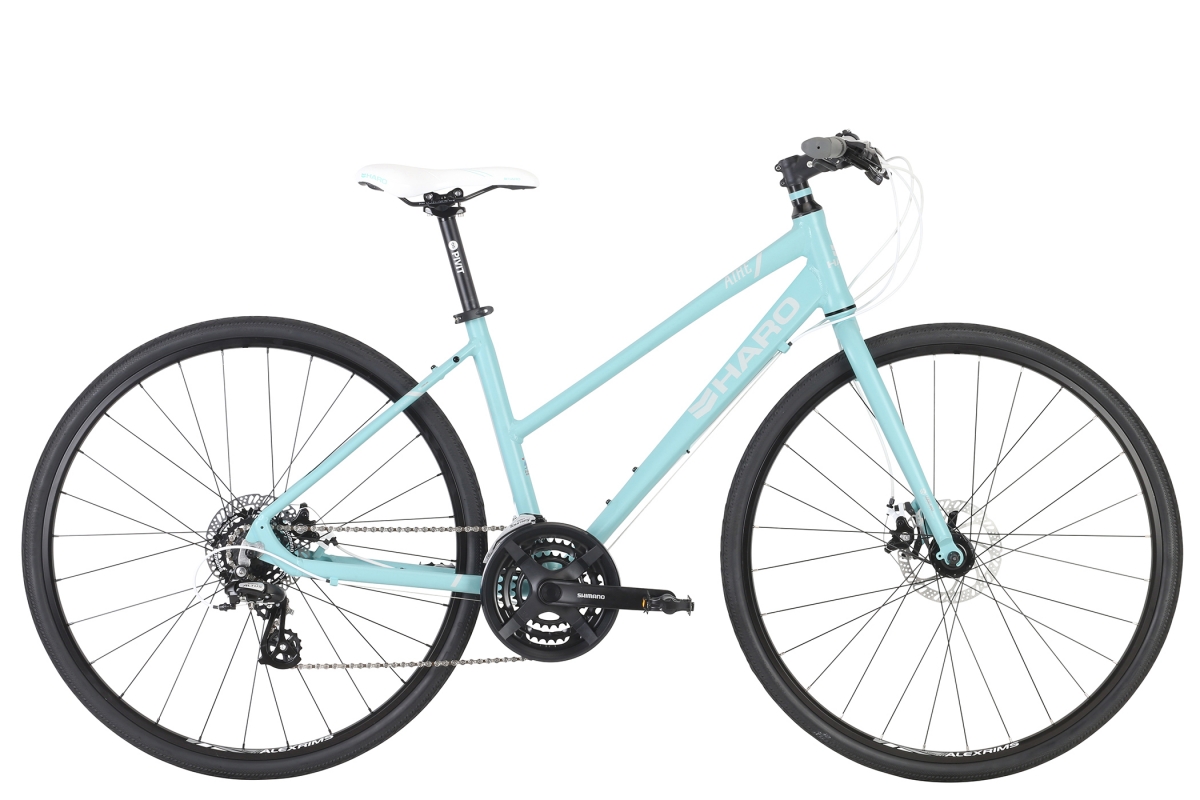

| Colors | Charcoal / Orange, Limpet / White |
| Weight | 27.80 lbs |
Aire starts with a Ventus Series hybrid frame that features Rider Optimized Geometry specifically designed to assure a proper and comfortable fit. Most importantly, Aire features a gender neutral step-thru designed frame that makes it easier to dismount when swinging a leg around the rear wheel is not desired or not possible. All Ventus Series models are ideally suited to a wide range of uses including commuting, fitness riding, recreational riding and good old fashioned errand running. Unlike its Solum Series counterparts, Aire uses a rigid steel fork with disc mounts to increase pedal efficiency by preventing energy loss associated with excess fork movement. Aire comes complete with a Shimano 21 speed drive train that includes EZ Fire shifters. Its wheelset is made from Pivit alloy 28h disc hubs laced to DC-27 700c alloy double wall rims and all weather stopping is made possible thanks to a pair of Tektro Aries mechanical disc brakes.
FEATURES
- Haro Ventus Hybrid Step-Thru frame, Rider Optimized Geometry, hydroformed alloy tubing, chainstay disc brake mount
- Haro Ventus steel fork with disc brake mount
- Shimano TY-301 crankset, 48/38/28t, sealed cartridge BB
- Shimano TY-510 Dual Pull front derailleur
- Shimano Altus RD-M310-L rear derailleur
- Shimano Tourney ST-EF-500 7-spd EZ Fire shifters
- Pivit alloy disc 28h hubs w/ Alex DC-26 700c alloy DW rims
- Pivit alloy 9 deg. sweep flat-bar & forged stem
- Tektro Aries mechanical disc brakes
- Pivit 2-Bolt seat post w/ zero offset
| Frame Components | |
|---|---|
| Frame | Haro Ventus 6061 Alloy w/ Rider-Tuned Geometry |
| Fork | Haro Ventus Hi-Ten steel w/ disc mount |
| Headset | 10-Pcs, 1-1/8" Threadless for 50mm OD headtube, Internal |
| Drivetrain | |
| Cranks | Shimano TY-301 48/38/28t |
| Bottom Bracket | Shimano Sealed Cartridge |
| Chain | KMC Z51 |
| Front Derailleur | Shimano Tourney FD-TY510 Dual Pull |
| Rear Deralleur | Shimano Altus RD-M310-L |
| Derailleur Shifter | Shimano ST-EF-500 3x7-spd |
| Pedals | VP nylon body w/ steel cages |
| Wheels | |
| Tires | H-5113 700 x 32c |
| Wheels/Rims | Alex DC-26 700c alloy double wall 28h |
| Hubs | Pivit alloy disc cassette |
| Freewheel/Cassette | Shimano HG-200 7-spd Cassette 12-32t |
| Braking System | |
| Brakes | Tektro Aries MD-M280 mechanical disc, 160mm rotors |
| Brake Levers | Shimano ST-EF-500 |
| Other Components | |
| Grips | Haro Dual Sport |
| Handle Bar | Pivit alloy Flat Top 31.8mm 9 degree backsweep, 620 / 640mm wide |
| Stem | Pivit melt forged |
| Seat | Haro Dual Sport |
| Seat Post | Pivit alloy micro adjust 27.2mm, zero offset, 2 bolts |
| Seat Clamp | Alloy quick Release, 31.8mm |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 ST | 69.5° | 74° | 535mm (21.1") | 381mm (15") | 445mm (17.5") | 60mm (2.4") | 1048mm (41.3") | 618mm (24.3") | 542mm (21.3") | 379mm (14.9") | 401mm (15.8") | 45mm (1.8") | 70mm | 620mm | 170mm |
| 17 ST | 70.5° | 74° | 545mm (21.5") | 432mm (17") | 445mm (17.5") | 60mm (2.4") | 1050mm (41.3") | 648mm (25.5") | 565mm (22.2") | 382mm (15") | 401mm (15.8") | 45mm (1.8") | 90mm | 620mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
