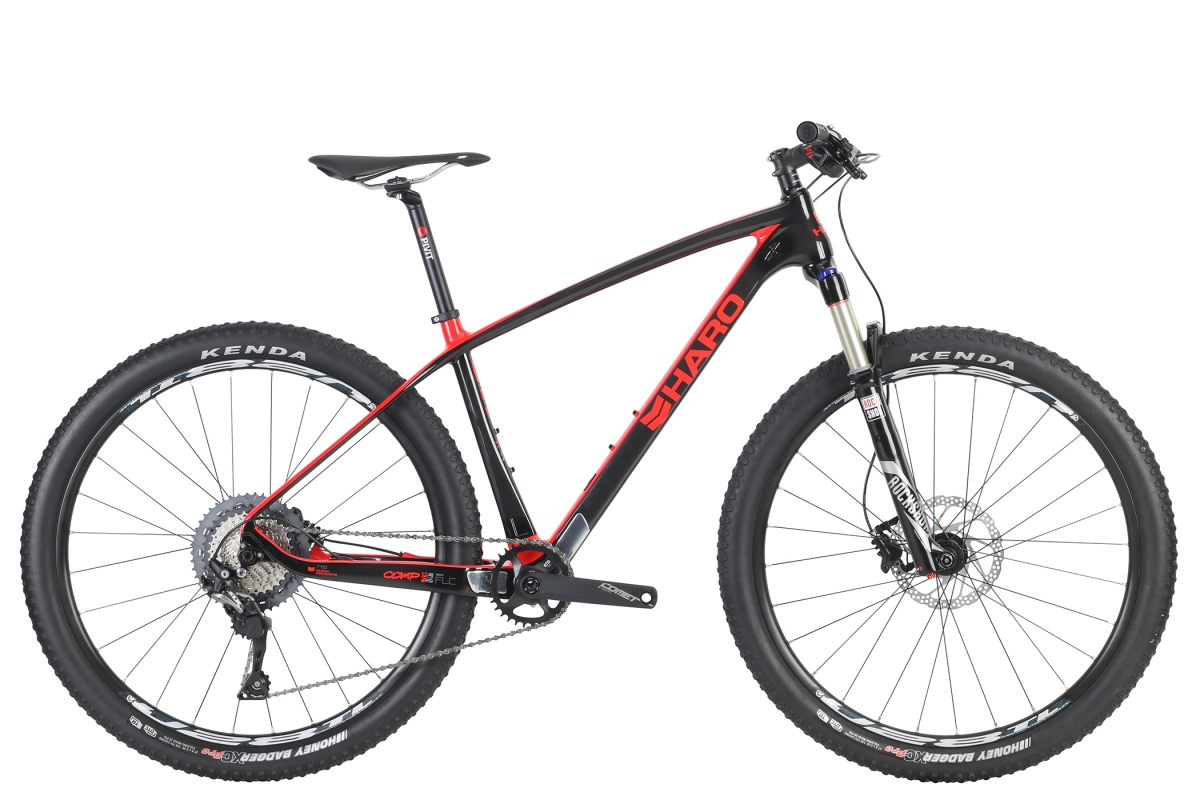

FLC, carbon hard tails that are so light they almost disappear beneath you. The FLC Comp starts it off by utilizing Haro's exclusive M2X frame design platform, an innovative approach that combines oversized tapered head tube, massive downtube, and wider bb92 bottom bracket delivering a high level of torsional stiffness to optimize power transfer and utilizes super stiff unidirectional high modulus carbon fiber to get it done. Packed with a bike full of features including a RockShox Recon Gold RL 100mm travel fork with thru axle, semi complete Shimano SLX 1X drive train along side an FSA Comet Modular crankset with 32t chainring. Fast rolling thanks to its U-28 TL tubeless compatible disc rims and Kenda Honey Badger 60tpi tires. Also available in 29" (see FLC 29 Comp)
FEATURES
- Haro FL Carbon Series, tapered head tube, BB92 shell, thru-axle
- New RockShox Recon Gold RL taper fork, 100mm travel, thru-axle
- FSA Comet Modular crankset, 32T Crmo chainring
- Shimano SLX 7000 Shadow Plus rear derailleur & shifter
- Shimano SLX 7000 11-spd 11-46T cassette
- Pivit alloy Light handlebar & stem
- Ritchey MTN Trail Lock-On grips
- Kenda Honey Badger XC 27.5" x 2.2" 60 tpi tires
- Weinmann U-28 TL Disc rims, Tubeless compatible
- Shimano BR-395 / BL-396 disc brakeset
| Frame Components | |
|---|---|
| Frame | Haro FL Carbon 27.5 series w/ tapered headtube, BB92, 12mm rear thru-axle, direct front derailleur mount |
| Fork | 2018 RockShox Recon Gold RL 27.5in tapered, 100mm travel, 15mm thru-axle |
| Headset | Ritchey Comp Logic Zero Drop-In, tapered 1-1/8" / 1.5", w/ ACB sealed bearings |
| Drivetrain | |
| Cranks | FSA Comet Modular 32T Megatooth Crmo chainring |
| Bottom Bracket | FSA BB-CFM92/CZ Press Fit BB92 |
| Chain | KMC X11-1 NP/GY, 1/2" x 11/128", 1x11 Specific |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano SLX RD-M7000 GS Shadow Plus 11-spd |
| Derailleur Shifter | Shimano SLX SL-M7000 11-spd |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Honey Badger XC 27.5*2.20" 60tpi |
| Wheels/Rims | Weinmann U-28TL Disc rims, Tubeless Compatible, alloy double wall |
| Hubs | Pivit alloy disc 28h cassette, Frt 15mm & Shimano Rr 12mm Thru-Axles |
| Freewheel/Cassette | Shimano SLX M-7000 11-46T, 11-spd |
| Braking System | |
| Brakes | Shimano BR-395 |
| Brake Levers | Shimano BL-396 |
| Other Components | |
| Grips | Ritchey WCS Trail Lock On |
| Handle Bar | Pivit Light Flat 5 Deg. Backsweep, 31.8mm, 700mm wide |
| Stem | Pivit Light 3D forged 6 Deg., 70 to 90mm |
| Seat | Ritchey Comp Streem V3 |
| Seat Post | Pivit Light alloy, 2-bolt design, micro adjust 27.2mm |
| Seat Clamp | Alloy for Carbon post, 31.8mm O.D. |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 15 | 70.3° | 73.5° | 567mm (22.3") | 380mm (15") | 427mm (16.8") | 45mm (1.8") | 1059mm (41.7") | 766mm (30.2") | 580mm (22.8") | 395mm (15.6") | 485mm (19.1") | 45mm (1.8") | 80 / 90mm | 700 / 710mm | 170mm |
| M / 17 | 71° | 73° | 587mm (23.1") | 430mm (16.9") | 427mm (16.8") | 45mm (1.8") | 1066mm (42") | 793mm (31.2") | 590mm (23.2") | 406mm (16") | 485mm (19.1") | 45mm (1.8") | 90 / 100mm | 700 / 710mm | 175mm |
| L / 19 | 71° | 73° | 602mm (23.7") | 480mm (18.9") | 427mm (16.8") | 45mm (1.8") | 1081mm (42.6") | 820mm (32.3") | 598mm (23.5") | 419mm (16.5") | 485mm (19.1") | 45mm (1.8") | 100 / 110mm | 700 / 710mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
