Aeras 24
- Year: 2018
- MSRP: $439.99 *
- Sizes: 24"
- Colors: Blue / White, Black / Rorange
- Weight: 22.40 lbs
- NO LONGER AVAILABLE

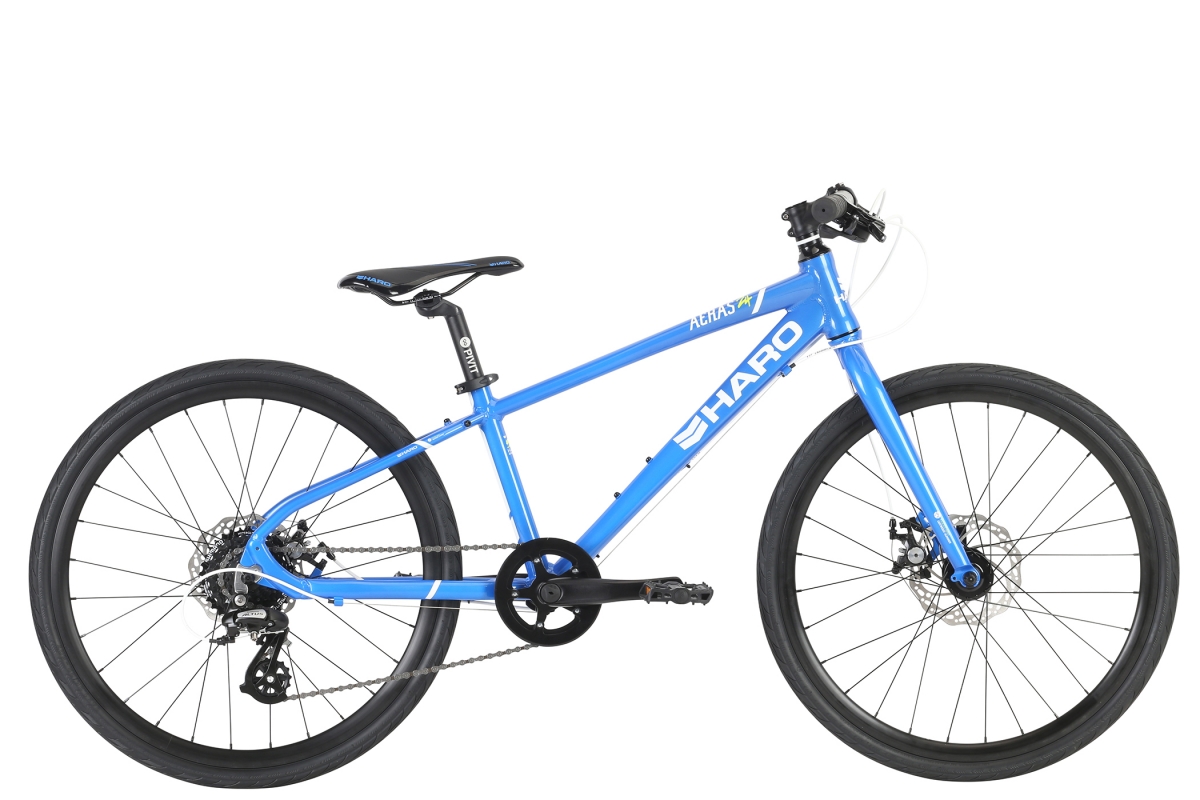

Aeras 24 starts with a Ventus Series hybrid frame that features Rider Optimized Geometry specifically designed to assure a proper and comfortable fit for smaller riders and adapted to fit a 24" wheel. All Ventus Series models are ideally suited to a wide range of uses but for kids it comes down to fun, fitness, school, and good old "just hanging" around the neighborhood. Aeras 24 uses a rigid steel fork with disc mounts to increase pedal efficiency by preventing energy loss associated with excess fork movement. Aeras 24 comes complete with a 1x8 speed drive train to keep things simple and light while still remaining versatile. Its wheelset is made from Pivit alloy disc hubs laced to durable 24" alloy double wall rims and all weather stopping is made possible thanks to a pair of Promax mechanical disc brakes.
FEATURES
- 2018 Haro Ventus 24" 6061 alloy frame, Rider-Tuned Geometry, hydroformed alloy tubing, chainstay disc brake mount
- Haro Ventus 24" alloy fork w/ Crmo steerer, IS disc brake mount
- Alloy 3-pc 32t crankset, sealed cartridge BB
- Shimano Altus M310-L rear derailleur
- Shimano Altus SL-M310, 8-spd RapidFire right shifter
- Shimano HG-200 8-spd 12-32t cassette
- Pivit alloy disc hubs w/ 24" alloy DW rims
- 24x1.25" 30 tpi tires
- Promax XL-378, Linear Pull, 2-Fingers brake levers
- Promax DK-300 mechanical disc brakeset
- Lightweight Jr. seat
- FPD nylon body pedals
Frame Components | |
---|---|
Frame | New 2018 Haro Ventus 24" 6061 Alloy w/ Rider-Tuned Geometry |
Fork | Haro Ventus 24" Alloy legs w/ Crmo steerer & IS disc mount |
Headset | 10-Pcs, 1-1/8" Threadless for 50mm OD headtube, Internal |
Drivetrain | |
Cranks | Alloy crankarms, 32T chainring, 160mm, Plastic chainguard, 8-spd compatible |
Bottom Bracket | Sealed Cartridge |
Chain | KMC Z7 8-spd |
Front Derailleur | N/A |
Rear Deralleur | Shimano Altus RD-M310-L |
Derailleur Shifter | Shimano Altus SL-M310, 8-spd right side only |
Pedals | Nylon body w/ 9/16" Crmo axles |
Wheels | |
Tires | H-481 24x1.25", 30 TPI |
Wheels/Rims | 24x1.5" alloy double wall 28h |
Hubs | Pivit alloy disc cassette hubs |
Freewheel/Cassette | Shimano HG-200 8-spd Cassette 12-32t |
Braking System | |
Brakes | Promax DSK-300 mechanical disc, 160mm rotors, IS mounts front & rear |
Brake Levers | Promax XL-378, Linear Pull, 2-Fingers |
Other Components | |
Grips | Haro Dual Density 100mm |
Handle Bar | Pivit alloy Flat Top 31.8mm 9 degree sweep, 580mm wide |
Stem | Pivit melt forged, 60mm ext. x 7 deg. rise |
Seat | New Haro Dual Sport 24" |
Seat Post | Pivit alloy micro adjust 27.2mm |
Seat Clamp | Alloy quick Release, 31.8mm |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
24 | 69.5° | 72° | 520mm (20.5") | 300mm (11.8") | 400mm (15.7") | 20mm (0.8") | 976mm (38.4") | 594mm (23.4") | 452mm (17.8") | 373mm (14.7") | 365mm (14.4") | 40mm (1.6") | 60mm | 580mm | 160mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
