Steel Reserve 1.8
| Year | 2012 |
|---|---|
| MSRP | $1,525.00 * |
| Sizes | 21.8", 22.3" |
| Colors | SG Midnight Blue |
| Weight |
It never fails; the best sets of trails are usually a hike, and more times than not, that hike usually involves some hills. Enter our 1.8. This is the Dr. Jekyll to our 1.3's Mr. Hide. Able to handle anything its single-speed brother can, the 1.8 with its 8-speed rear cassette gets you up and over those rollers without killing you in the process. And just like our 1.3, with its Six-Shooter convertible dropouts, you can convert this into a single-speed bike in no time flat. No more having to choose between a single speed and a geared bike; with the 1.8 you can have them both.
FEATURES
- Full 4130 chromoly frame w/ internal head tube, Euro BB shell, removable cable guides, and our "Six-Shooter" interchangeable dropout system
- Available in two sizes: Short (21.8" TT) and Long (22.3" TT)

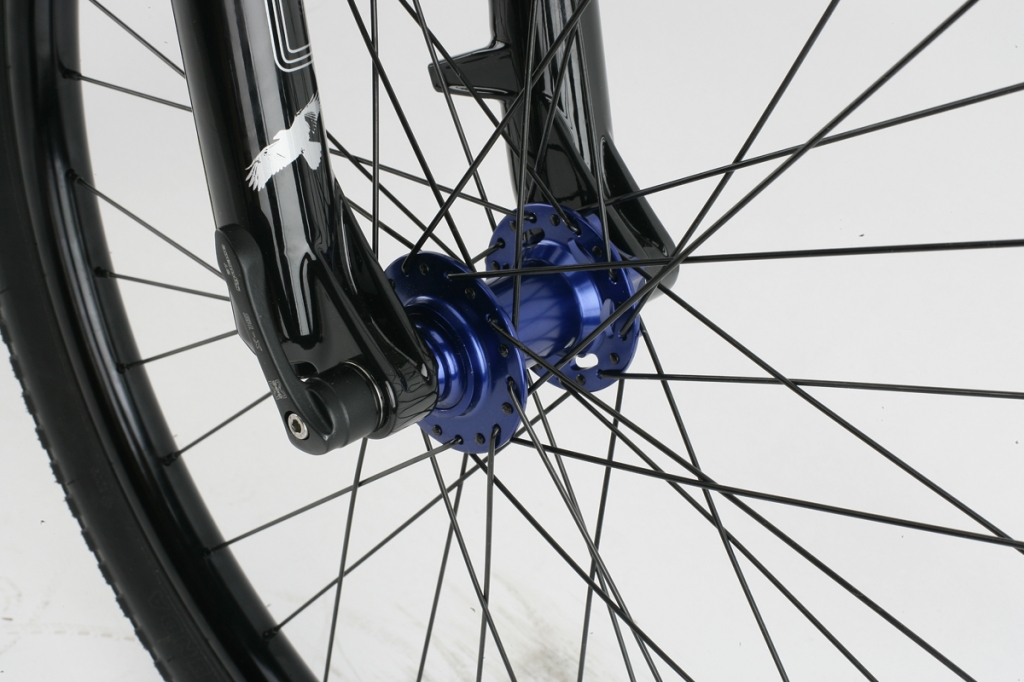

- X Fusion Velvet R 80mm travel suspension fork with X-15 tool-less 15mm thru axle

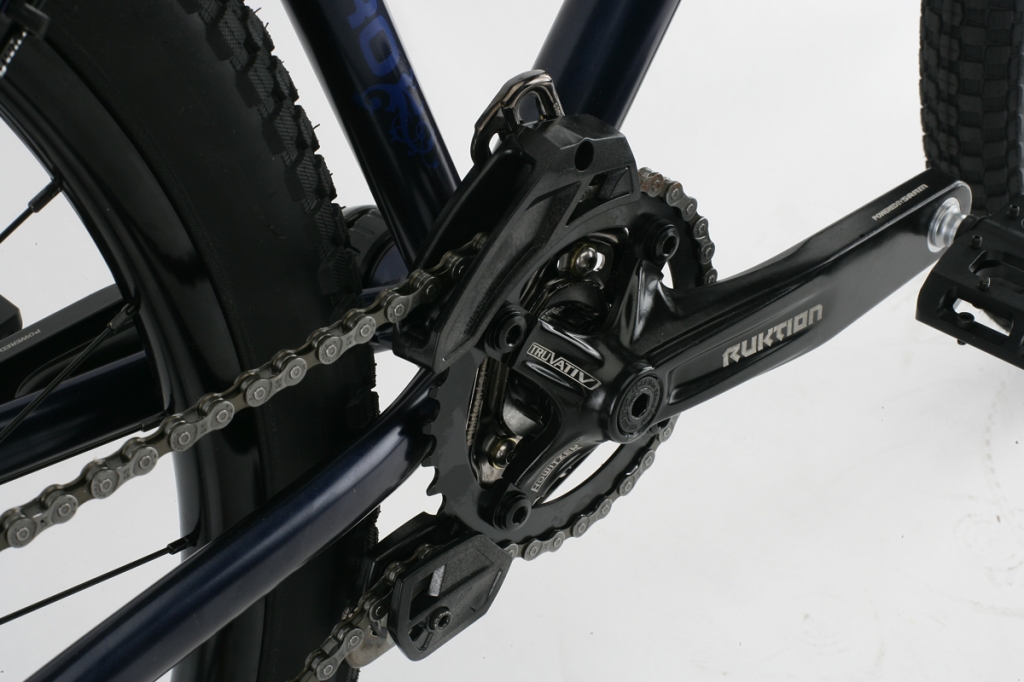

- Truvativ Ruktion 1.0 crank with The Hive E*Thirteen LS1 chain guide system

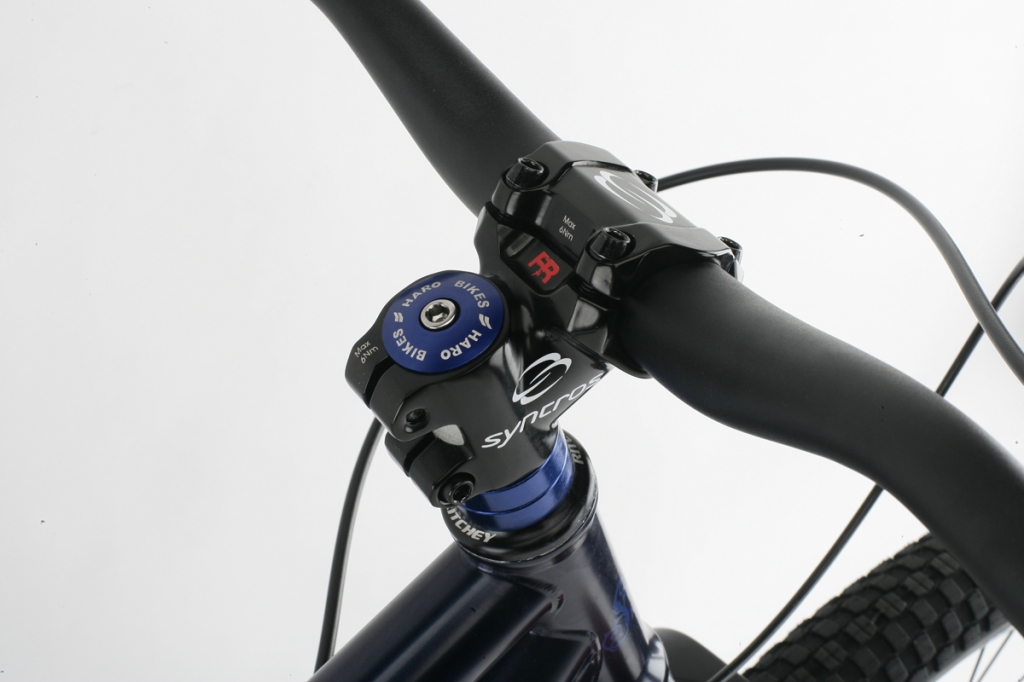

- Syncros FR38 OS double-butted alloy riser bar and FR50 V2 OS alloy stem

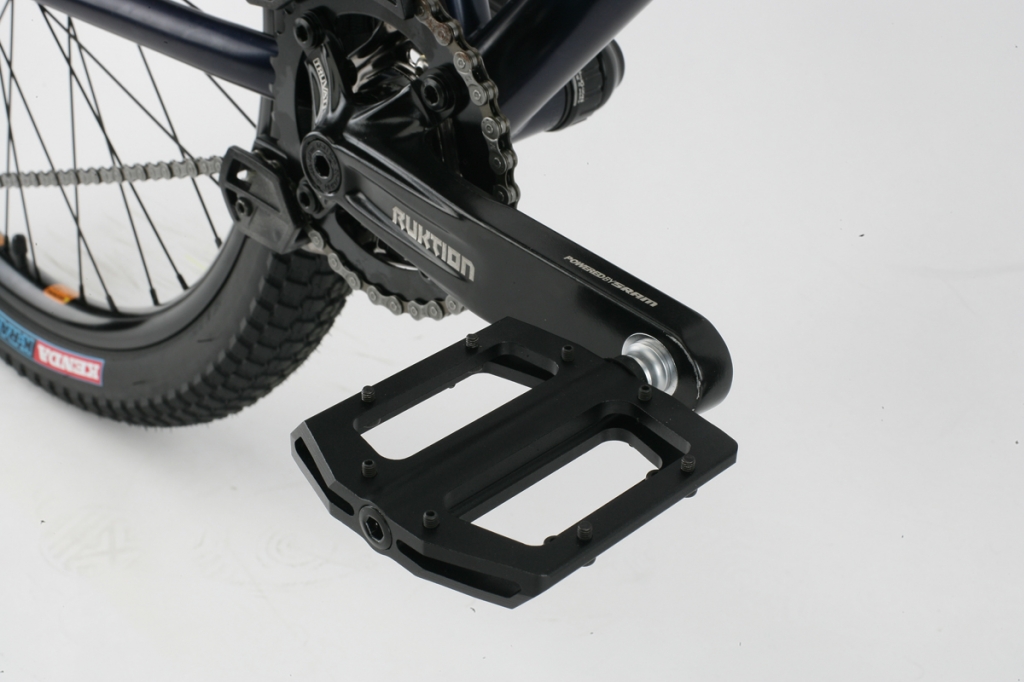

- 6000 series alloy CNC'd Thin Pedal w/removable pins and sealed bearings
- Alienation Skylark double-wall rims

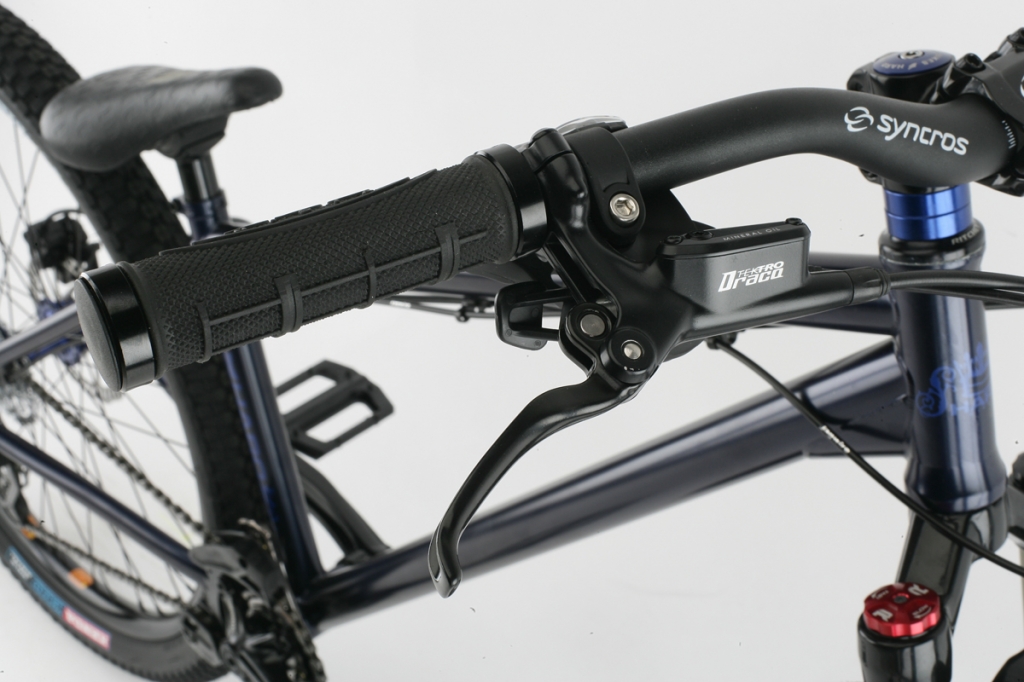

- Tektro Draco hydraulic rear brake with 160mm wave rotor

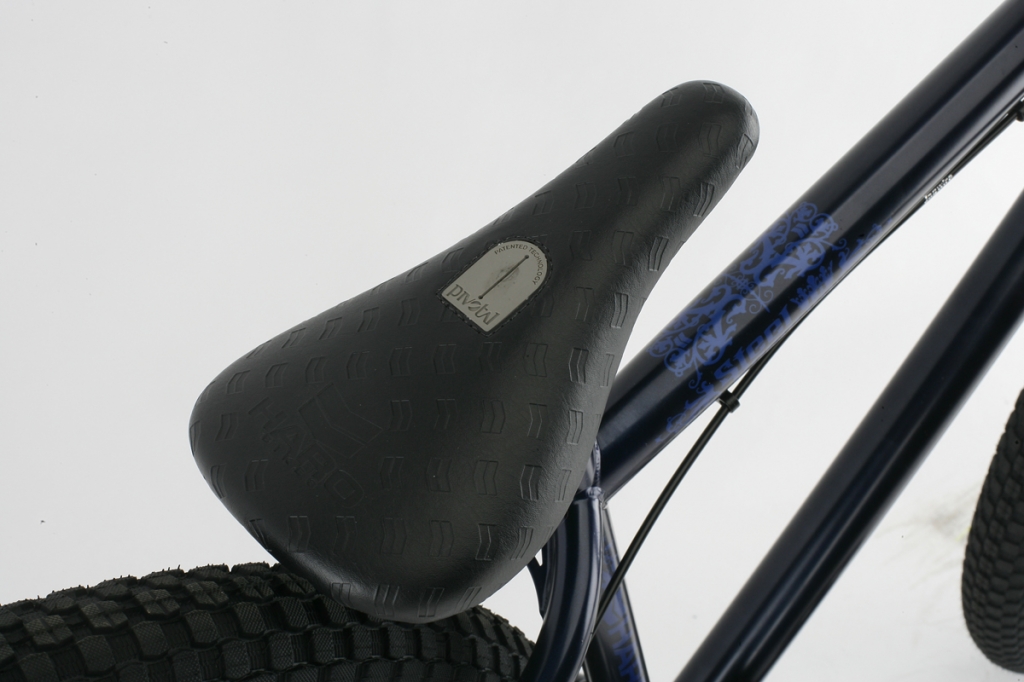

- Pivotal seat and post
- Ritchey Logic Zero Comp internal headset

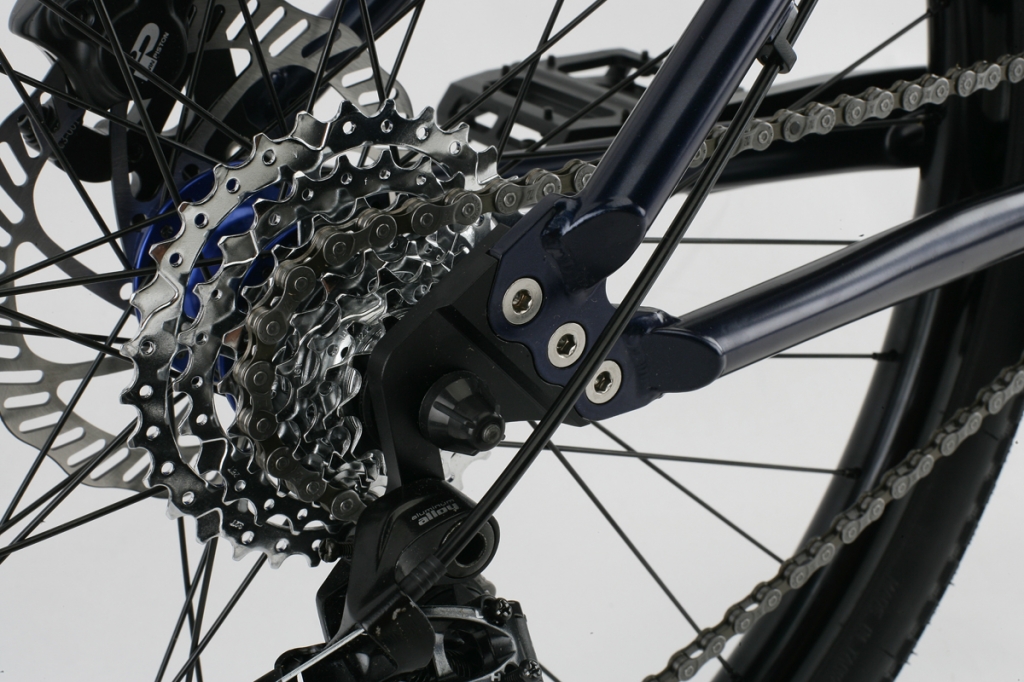

- SRAM X-4 rear derailleur with 11/32 8-speed chrome plated rear cog
| Frame Components | |
|---|---|
| Frame | 4130 full Crmo w/ double butted DT; integrated HT and interchangeable dropouts |
| Fork | X Fusion Velvet R fork; 80mm travel w/ 15mm "Tool-less" thru axle |
| Headset | Ritchey Logic Comp drop in internal |
| Drivetrain | |
| Cranks | Truvativ Ruktion 1.0; 34T chain ring |
| Bottom Bracket | Truvativ BB-07; European sealed bearing external cartridge |
| Chain | KMC Z72 |
| Front Derailleur | E*Thirteen The Hive LS1 chain guide system |
| Rear Deralleur | SRAM X4 |
| Derailleur Shifter | SRAM X4 8 speed tirgger shifter |
| Pedals | CNC alloy Slim pedals w/ sealed bearings and replaceable pins |
| Wheels | |
| Tires | Kenda K-Rad 26"x2.3" |
| Wheels/Rims | Alienation Skylark 36H rims, 36H alloy shell sealed bearing disc hubs; single speed cassette rear; 15mm thru axle front |
| Hubs | 36H alloy shell sealed bearing disc hubs; 8 speed cassette rear; 15mm thru axle front |
| Freewheel/Cassette | SRAM PG-850 MTB Cassette; 11-32 8 speed |
| Braking System | |
| Brakes | Tektro Draco hydraulic w/ 6" wave rotor (rear only) |
| Brake Levers | Tektro Draco hydraulic |
| Other Components | |
| Grips | SDG Lock On |
| Handle Bar | Syncros FR 38 riser bar, 38mm rise, 700mm width, 31.8mm clamp |
| Stem | Syncros FR 50 V2 OS; 50mm extension; 31.8 bar clamp |
| Seat | Haro slim padded Pivotal |
| Seat Post | Pivotal 25.4 |
| Seat Clamp | Welded integrated clamp on frame |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
