Flightline 20
- Year: 2012
- MSRP: $315.00 *
- Sizes: 10", 10", 10"
- Colors: SG Black, White / Acid Green, White / Pedal Pink
- Weight:
- NO LONGER AVAILABLE
If you're looking to create the offroad champions of tomorrow, you'll need to start them off with the right bike today; our Flightline 20". All Flightlines come with 6000 series lightweight alloy frames and front suspension forks. In addition, the Flighline 20 is equipped with Shimano Revo Twist shifters, which help keep all fingers securely on the grip while shifting.
FEATURES
- Low profile 6061 aluminum 10" frame size
- Haro 410E 30mm travel suspension fork

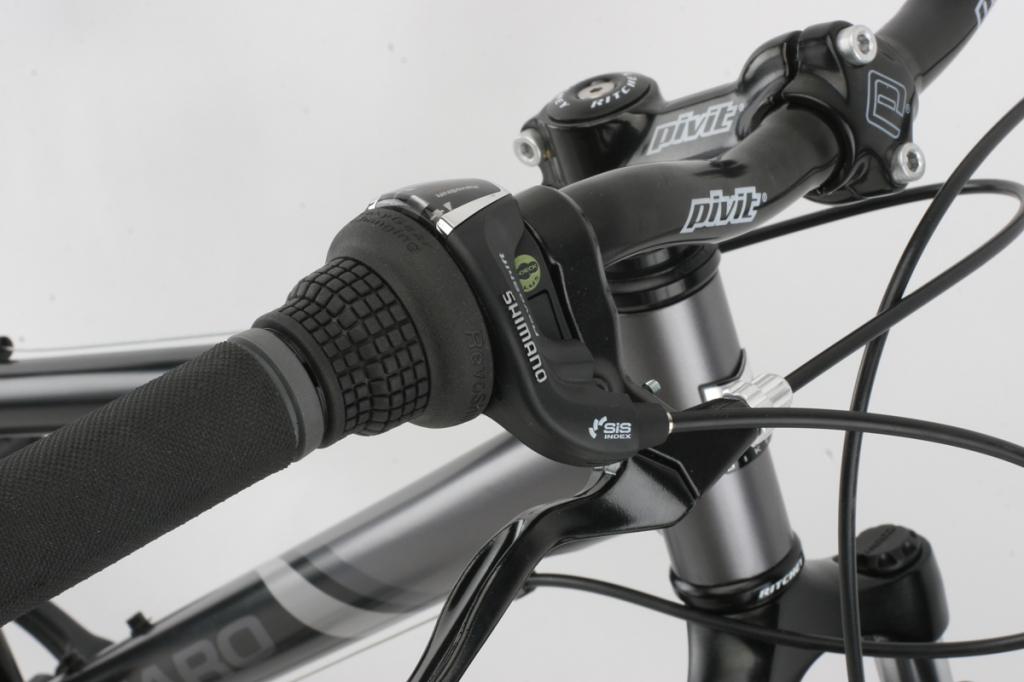

- Shimano TZ-50 rear derailleur powered by Shimano Revo 6-speed twist shifters

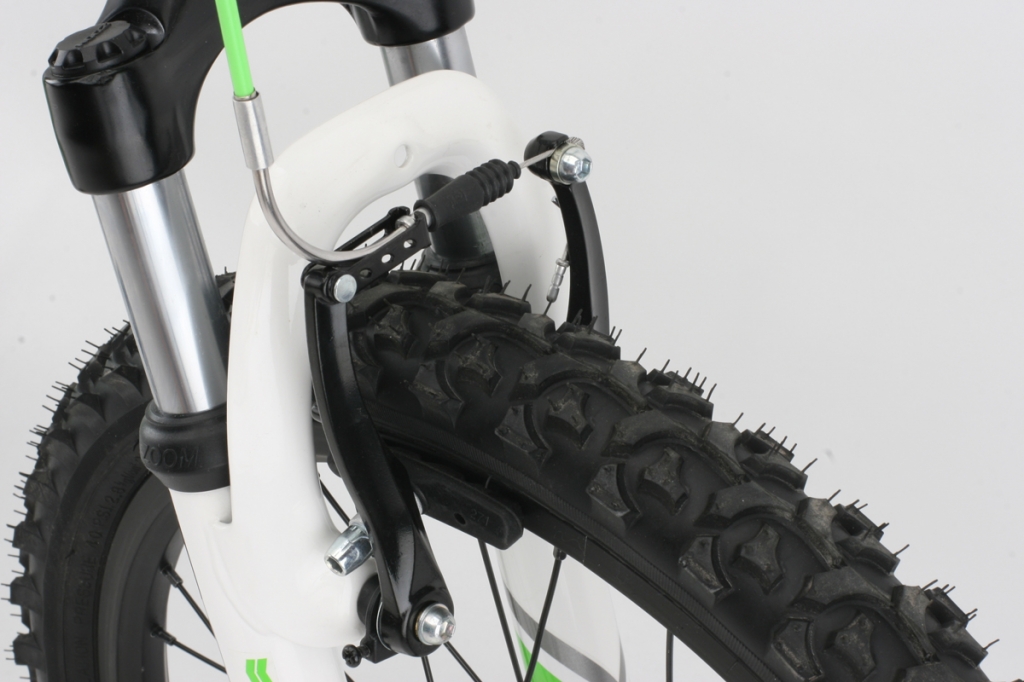

- Promax forged alloy direct-pull brakes with linear spring
- Lightweight 20" aluminum wheelset with Kenda 831A 2.1 tires
Frame Components | |
---|---|
Frame | Flightline 6061 T6 aluminum |
Fork | Haro 410-E, 30mm travel |
Headset | Ritchey Logic LB |
Drivetrain | |
Cranks | Forged alloy w/ 40t chainring and double guard |
Bottom Bracket | Sealed cartridge |
Chain | KMC Z33 |
Front Derailleur | N/A |

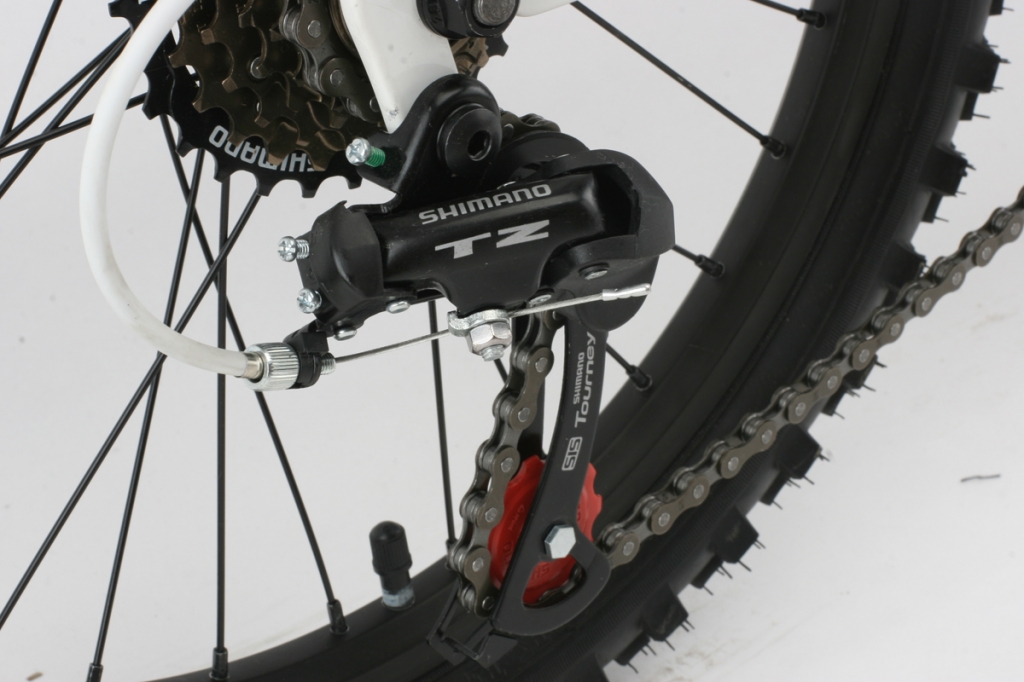

Rear Deralleur | Shimano TZ-50 |

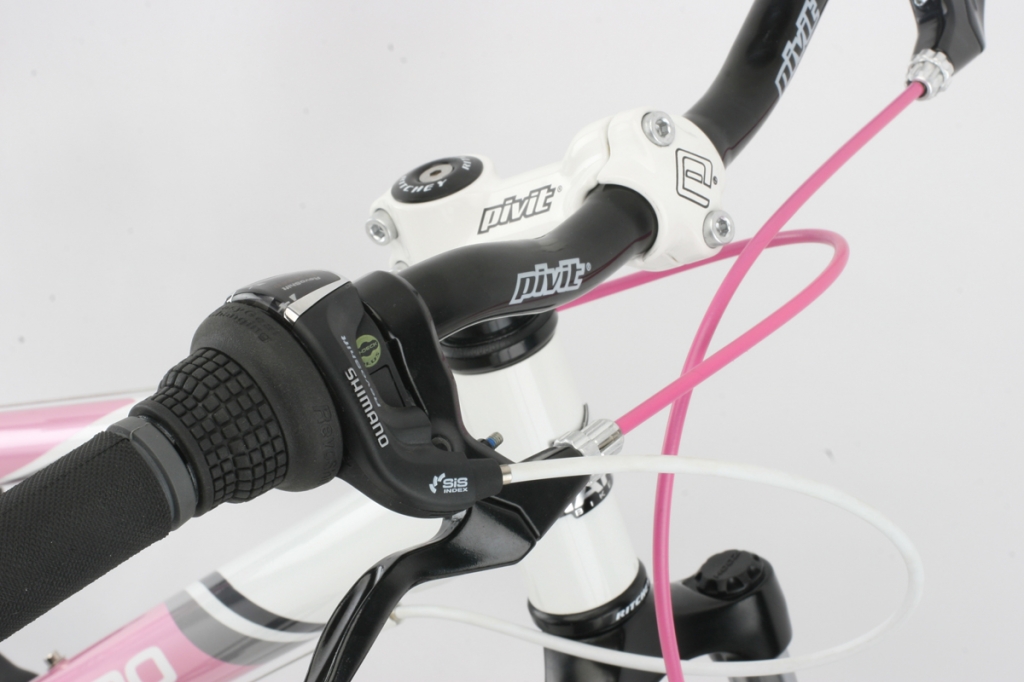

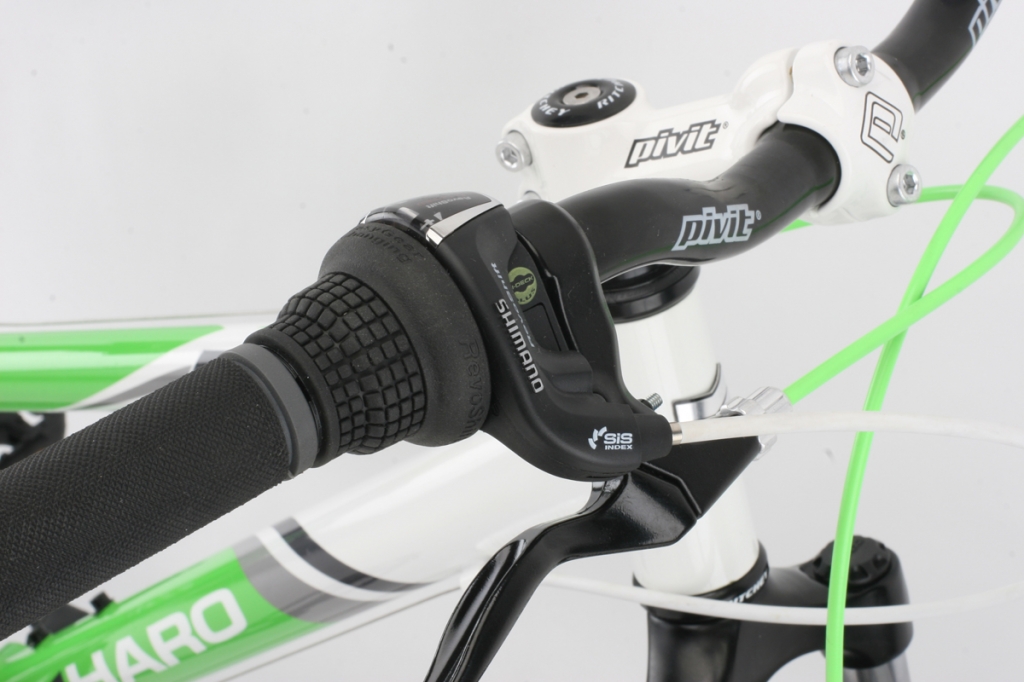

Derailleur Shifter | Shimano Revo, 6 speed |
Pedals | Nylon ATB |
Wheels | |
Tires | Kenda 850, 20 x 2.0" |
Wheels/Rims | DH-18 doublewall, 32h |
Hubs | Pivit steel nutted |
Freewheel/Cassette | Shimano TZ-20, 6 speed freewheel, 14-28 |
Braking System | |
Brakes | Alloy direct pull w/ linear spring |
Brake Levers | Promax BL-42G |
Other Components | |
Grips | Dual density |
Handle Bar | Pivit riser bar, 30mm rise, 560mm width |

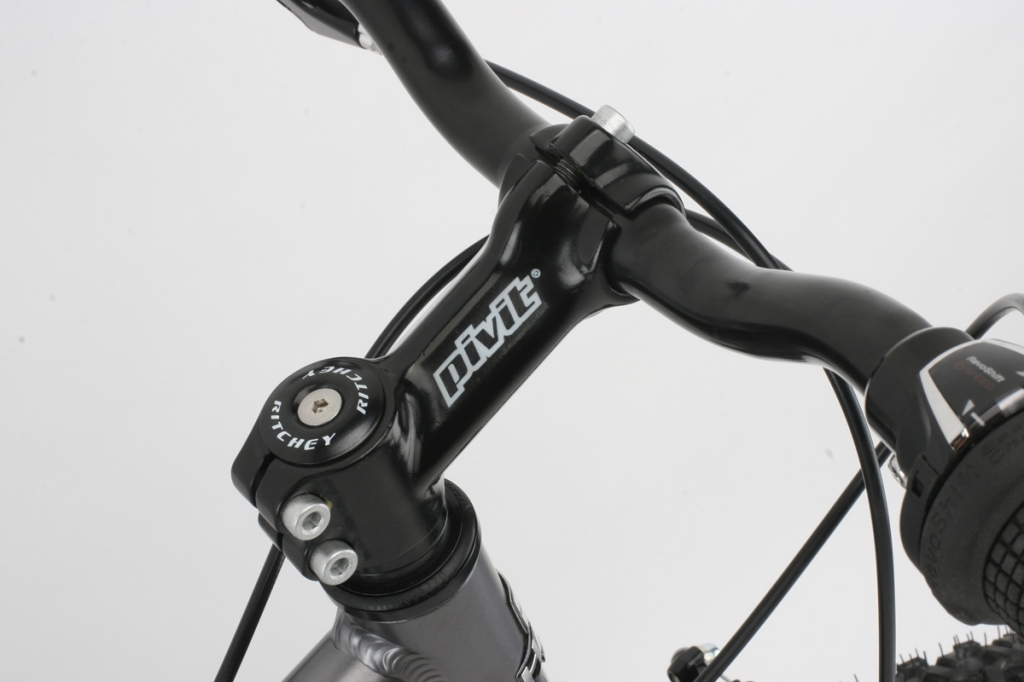

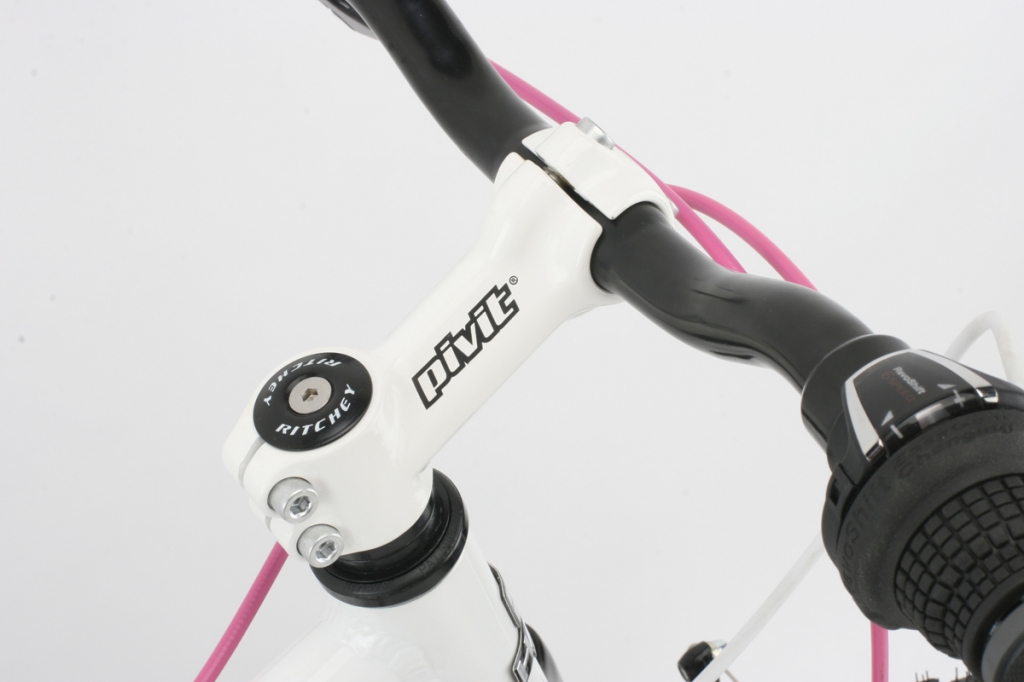

Stem | Pivit alloy, 15 degree rise |

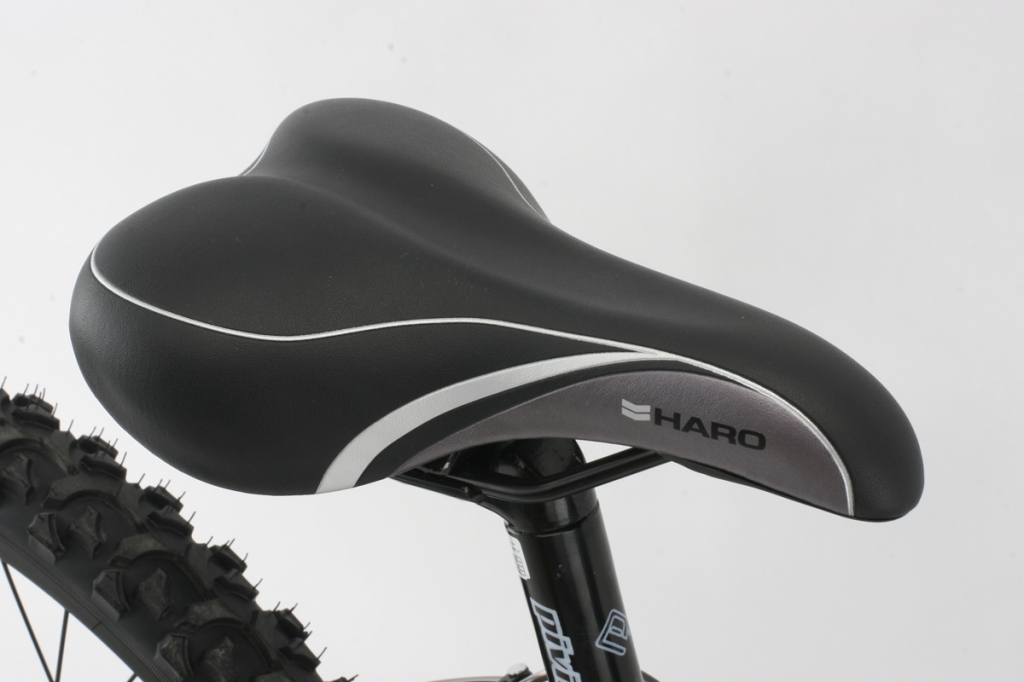

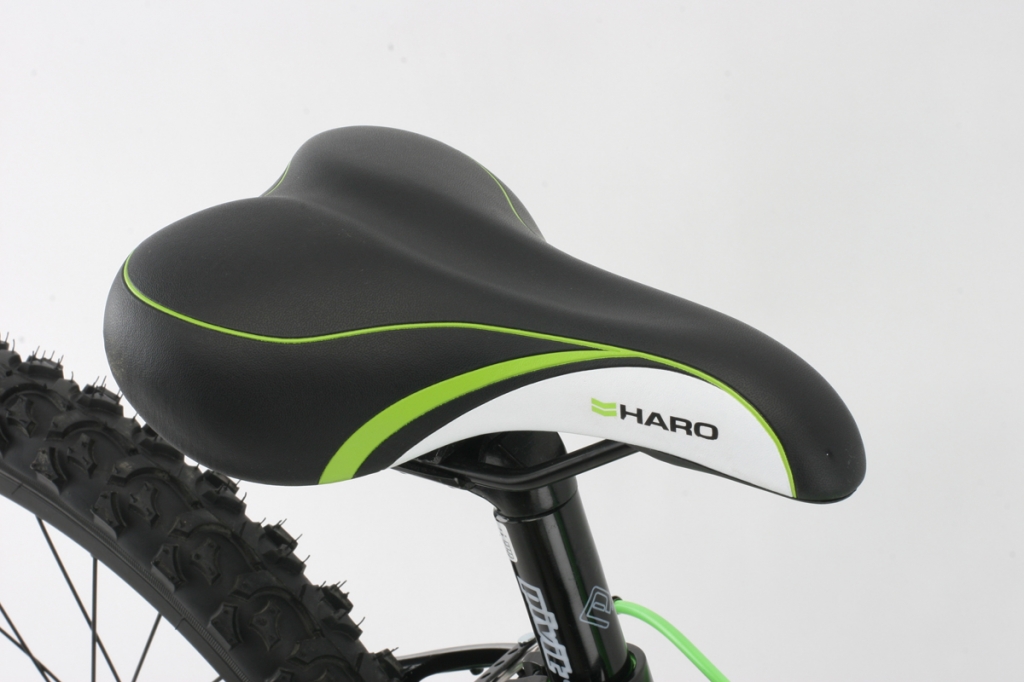

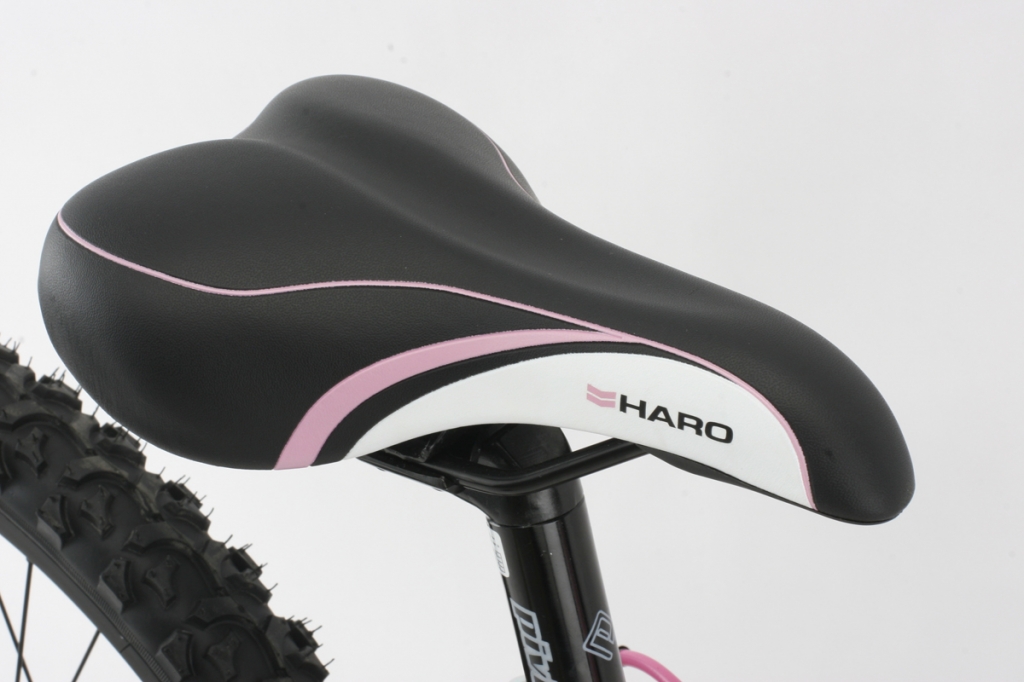

Seat | Haro Junior |
Seat Post | Pivit alloy micro adjust, 27.2mm |
Seat Clamp | Pivit alloy quick release |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
