FEATURES
- 6061 aluminum Flightline 29 frame w/ lightweight oversized tubing, integrated headtube and smooth welds
- NEW RockShox XC32 80mm travel fork w/ PopLoc
- SRAM 2x10 39/26 crankset and X-7 rear derailleur
- Avid Elixer 3 hydraulic disc brakes
| Frame Components | |
|---|---|
| Frame | Flightline 29" 6061 T6 oversized aluminum w/ integrated headset and smooth welding |

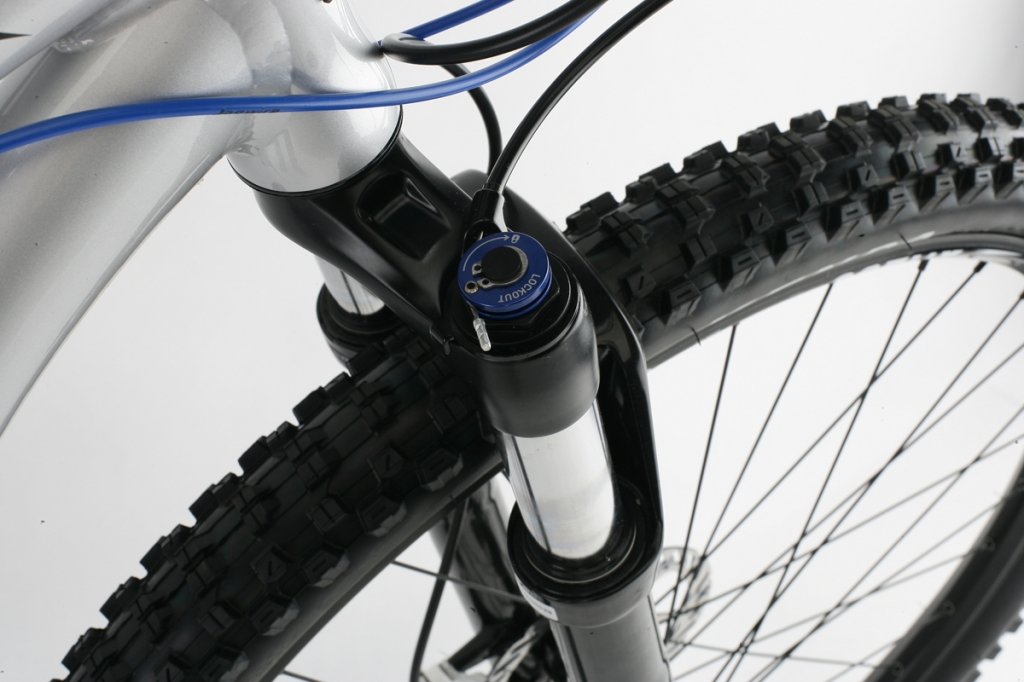

| Fork | RockShox XC 32 29"; 80mm travel w/ PopLoc |
| Headset | Ritchey Zero Press Fit |
| Drivetrain | |
| Cranks | SRAM S1000, 24/38 |
| Bottom Bracket | SRAM GXP |
| Chain | SRAM PC-1031 |
| Front Derailleur | SRAM X5 |
| Rear Deralleur | SRAM X7 |
| Derailleur Shifter | SRAM X5, 10 speed |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Nevegal, 29 x 2.2" |
| Wheels/Rims | Weinmann XM-280 doublewall, 32h |
| Hubs | Pivit disc alloy cassette w/ quick release |
| Freewheel/Cassette | SRAM PG-1030, 9 speed cassette, 11-36 |
| Braking System | |

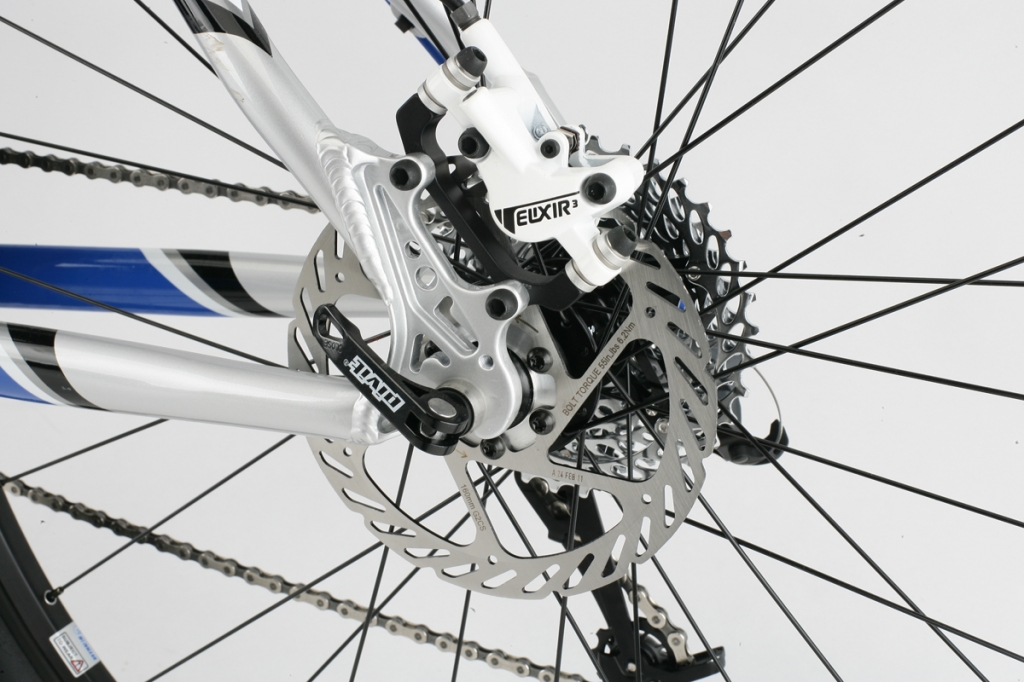

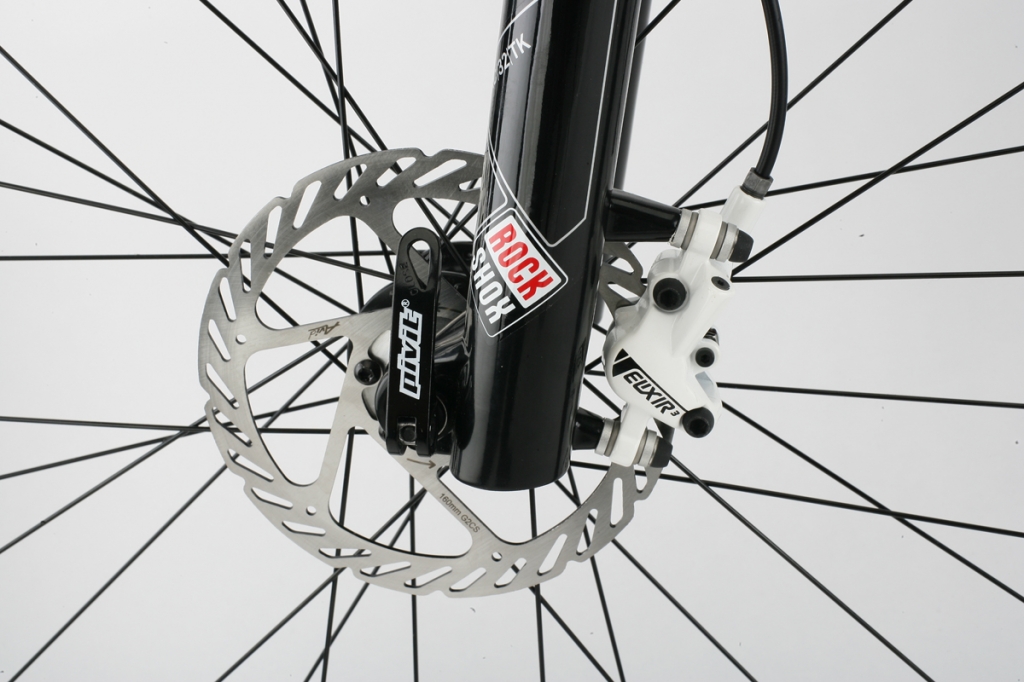

| Brakes | Avid Elixir 3 hydraulic disc w/ 6" rotors |

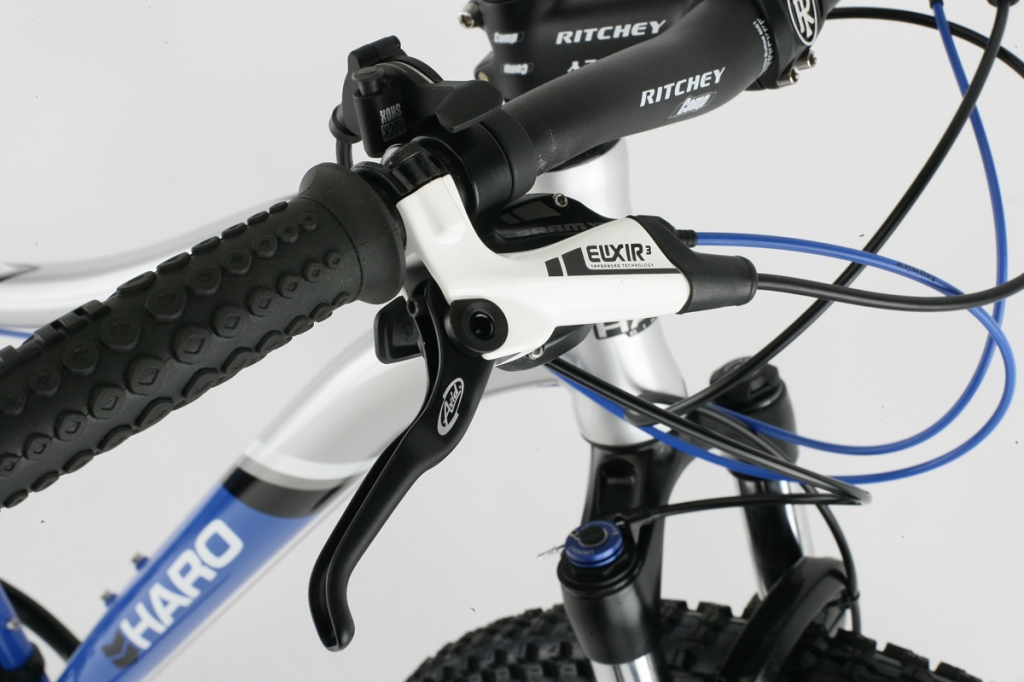

| Brake Levers | Avid Elixir 3 |
| Other Components | |
| Grips | WTB Moto |
| Handle Bar | Ritchey Mountain Comp Rizer bar |
| Stem | Ritchey Comp 4-Axis |
| Seat | WTB Rocket V Comp |
| Seat Post | Ritchey Comp 2 bolt, 30.9mm |
| Seat Clamp | Pivit alloy quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
