Flightline Trail

Year 2012
MSRP $680.00 *
Sizes 15", 17", 19"
Colors SG Euro Blue / SG Black
Weight

FEATURES

  • Lightweight oversized 6061 aluminum frame w/ integrated headtube
  • Suntour XCR-LO 100mm travel fork w/ preload adjust and lockout
  • Shimano 9 speed shifting package
  • Tektro Draco hydraulic disc brakes
SPECIFICATIONS
Frame Components
Frame Flightline 6061 T6 oversized aluminum w/ integrated headset
Fork SR Suntour XCR, 100mm travel w/ mechanical lock out
Headset Ritchey Zero Press Fit
Drivetrain
Cranks Shimano Acera, 22/32/44
Bottom Bracket Sealed cartridge
Chain KMC HG-53

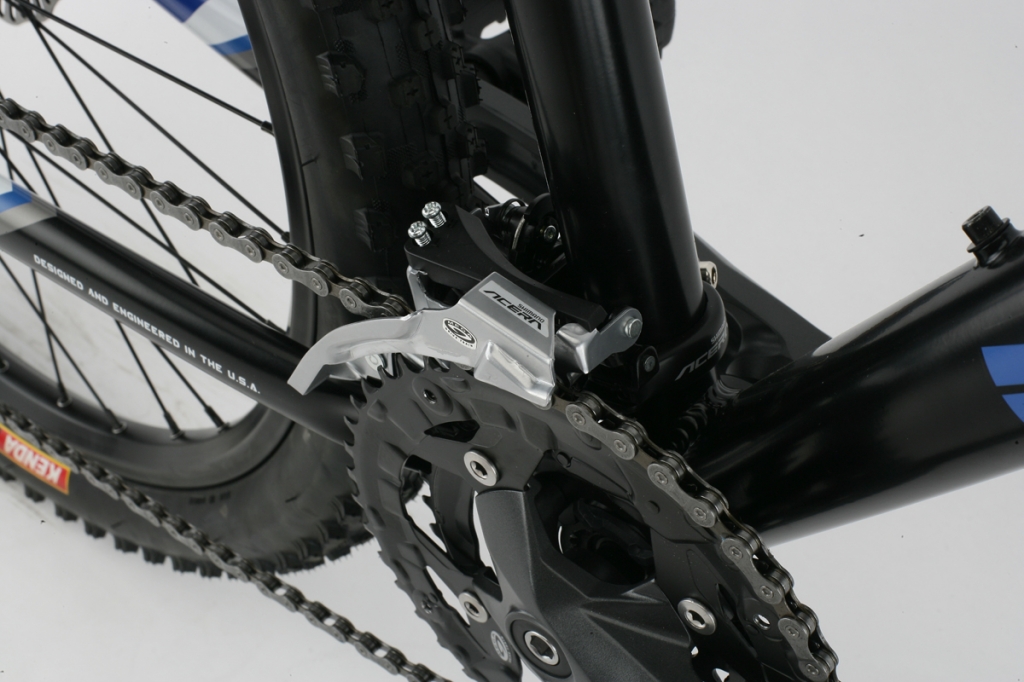

Front Derailleur Shimano Acera

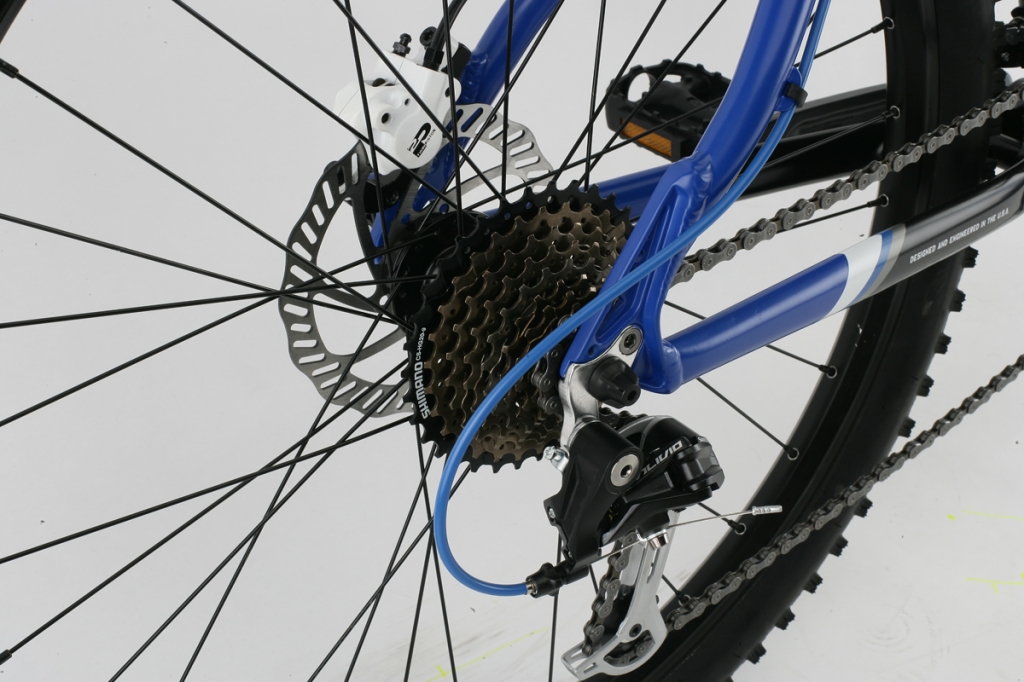

Rear Deralleur Shimano Alivio
Derailleur Shifter Shimano Acera, 9 speed
Pedals Nylon ATB
Wheels
Tires Kenda Karma, 26 x 2.0"
Wheels/Rims Weinmann XM-280 doublewall, 32h
Hubs Pivit disc alloy cassette w/ quick release
Freewheel/Cassette Shimano HG-20, 9 speed cassette, 11-34
Braking System

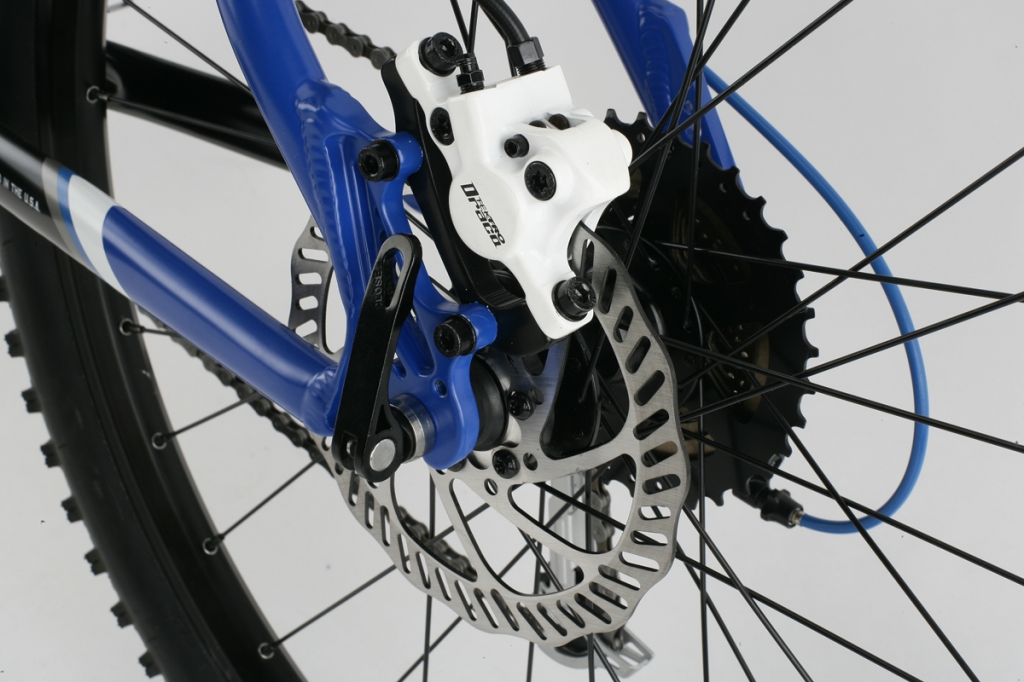

Brakes Tektro Draco hydraulic disc w/ 6" rotors
Brake Levers Tektro Draco
Other Components
Grips WTB Moto
Handle Bar Pivit riser bar, 30mm rise, 680mm width, 31.8mm clamp
Stem Pivit alloy, 10 degree rise

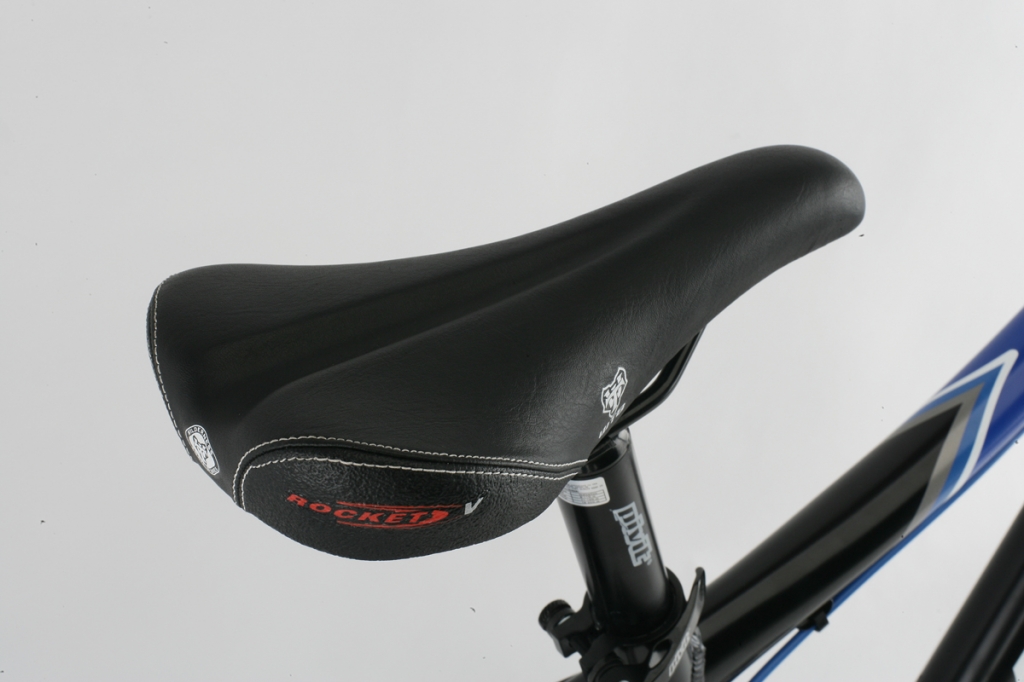

Seat WTB Rocket V Comp
Seat Post Pivit alloy micro adjust, 30.9mm
Seat Clamp Pivit alloy quick release
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length

RESOURCES

Owner's manual: Bike Manual PDF

*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
