Flightline 24
| Year | 2012 |
|---|---|
| MSRP | $325.00 * |
| Sizes | 12", 12", 12" |
| Colors | SG Charcoal / SG Black, White / Race Red, White / Bluebell |
| Weight |

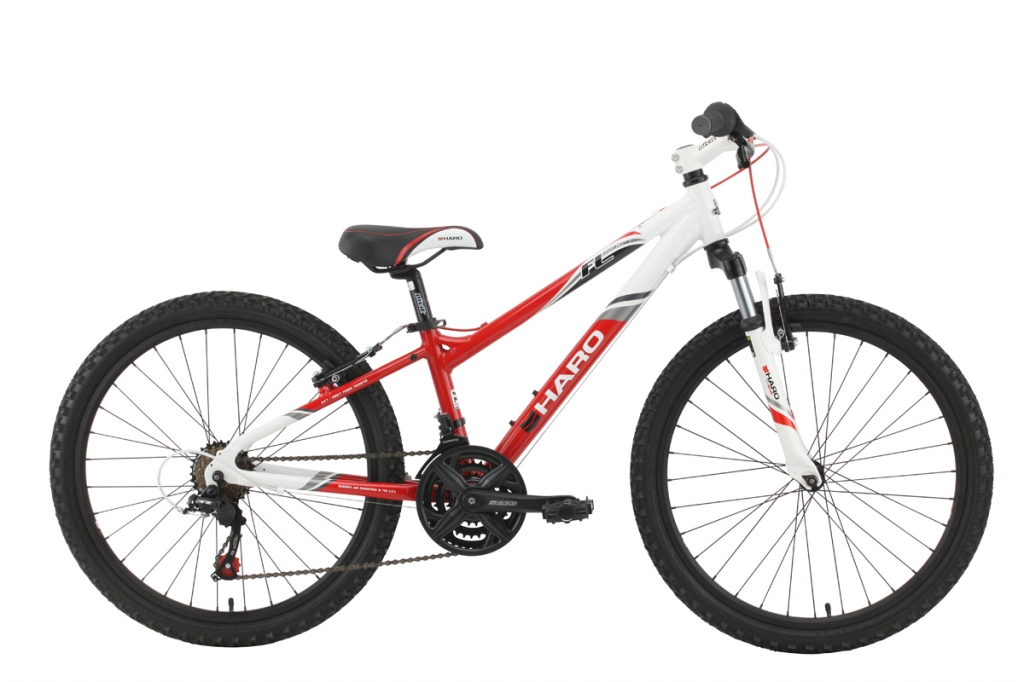

The Flighline 24 comes with all the same great features found on the FL20 but has 24" wheels for a taller child. It also comes standard with 18 speeds providing a wider gear range for advanced terrai
FEATURES
- Low profile 6061 aluminum 12" frame size
- Haro 410E 40mm travel suspension fork
- Shimano TZ-50 rear derailleur powered by Shimano Revo 6-speed twist shifters
- Promax forged alloy direct-pull brakes with linear spring
- Lightweight 24" aluminum wheelset with Kenda 831A 2.1 tires
| Frame Components | |
|---|---|
| Frame | Flightline 6061 T6 aluminum |
| Fork | Haro 410-E, 40mm travel |
| Headset | Ritchey Logic LB |
| Drivetrain | |
| Cranks | SR Suntour XR 172, 22/32/42 |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC Z33 |
| Front Derailleur | Shimano TZ-30 |

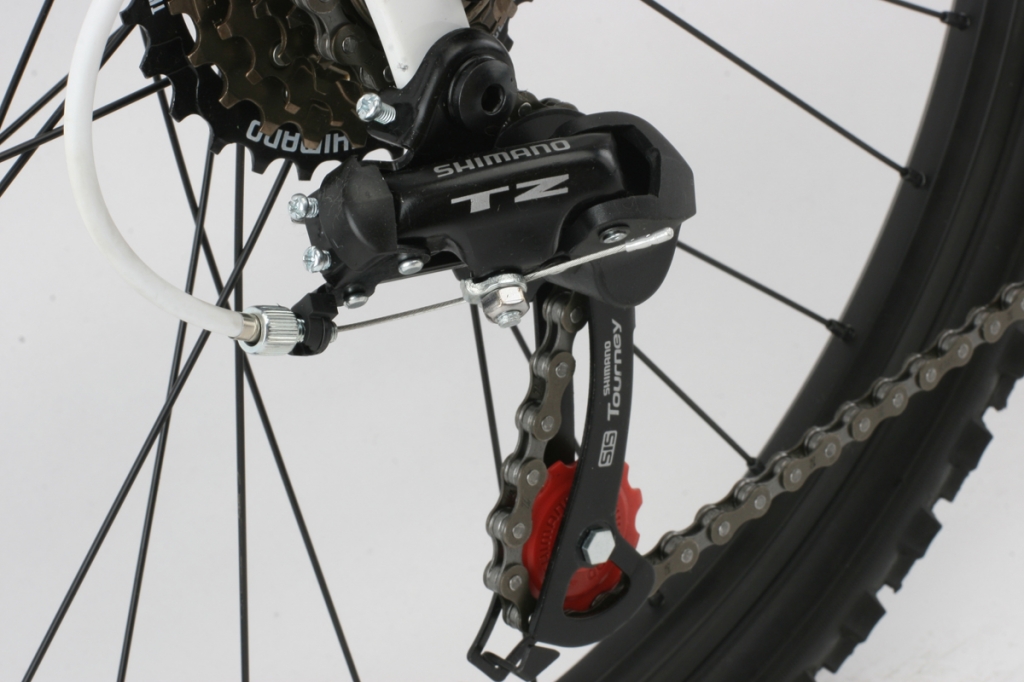

| Rear Deralleur | Shimano TZ-50 |

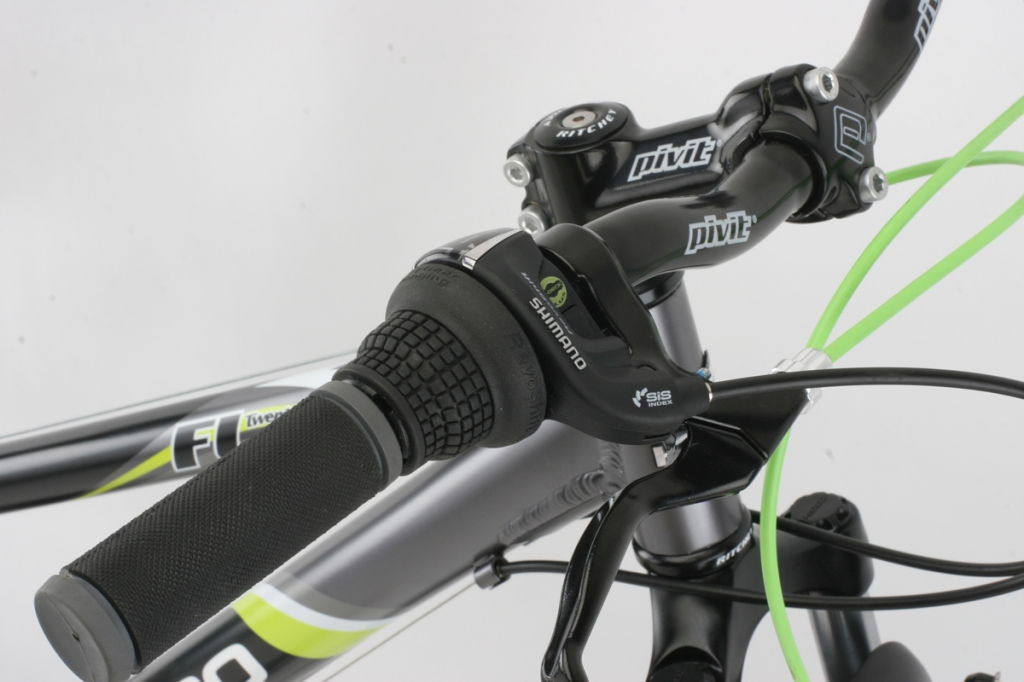

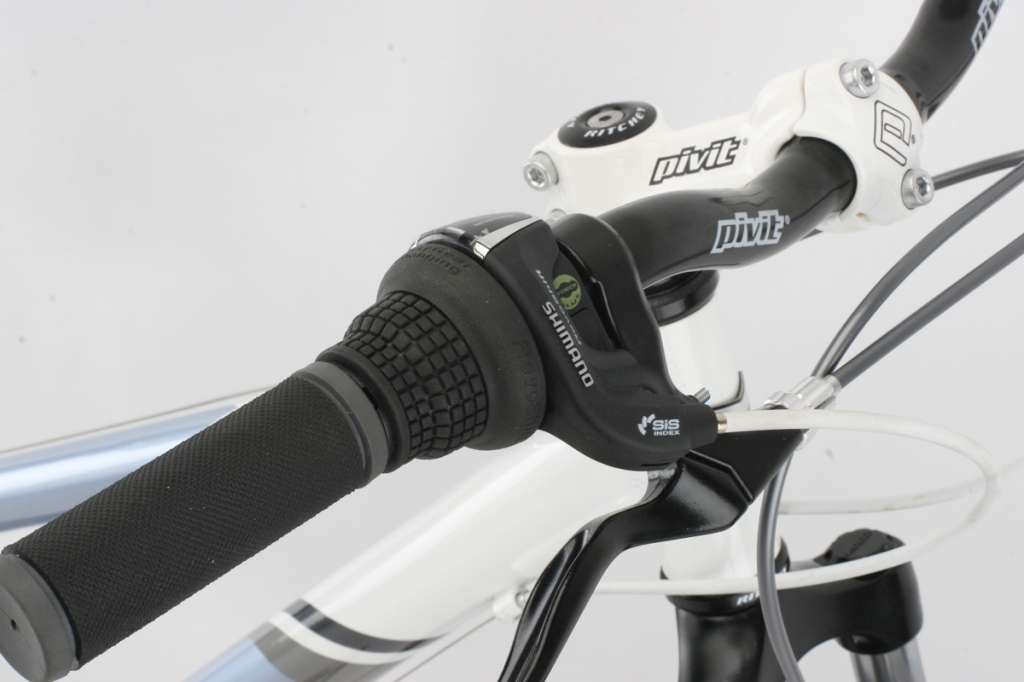

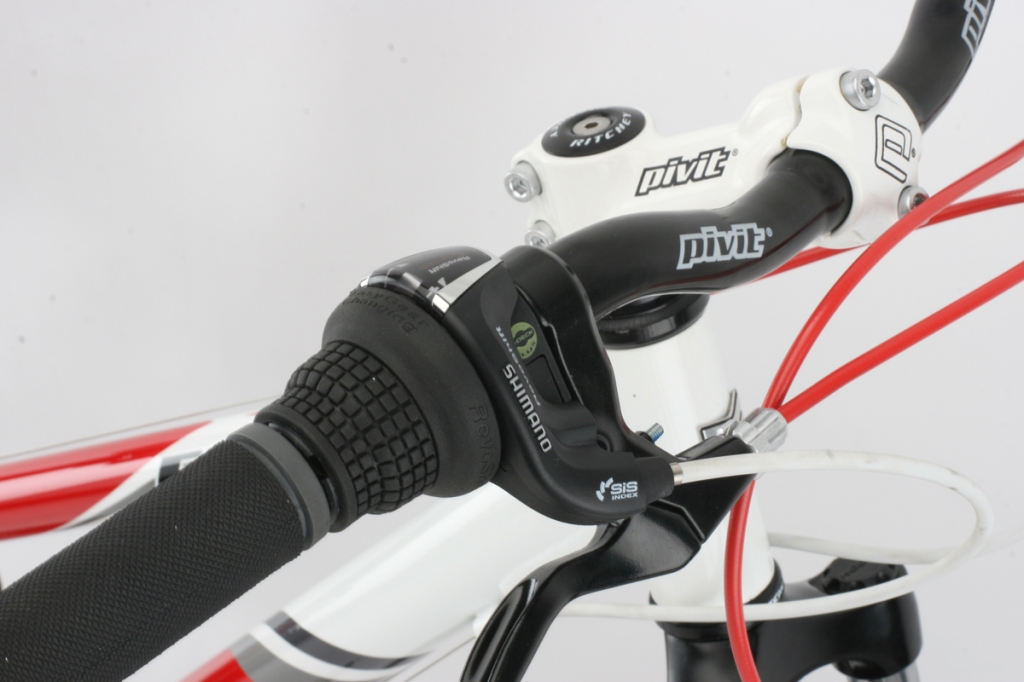

| Derailleur Shifter | Shimano Revo, 6 speed |
| Pedals | Nylon ATB |
| Wheels | |
| Tires | Kenda 831A, 24 x 2.1" |
| Wheels/Rims | DH-18 doublewall, 32h |
| Hubs | Pivit steel nutted |
| Freewheel/Cassette | Shimano TZ-20, 6 speed freewheel, 14-28 |
| Braking System | |

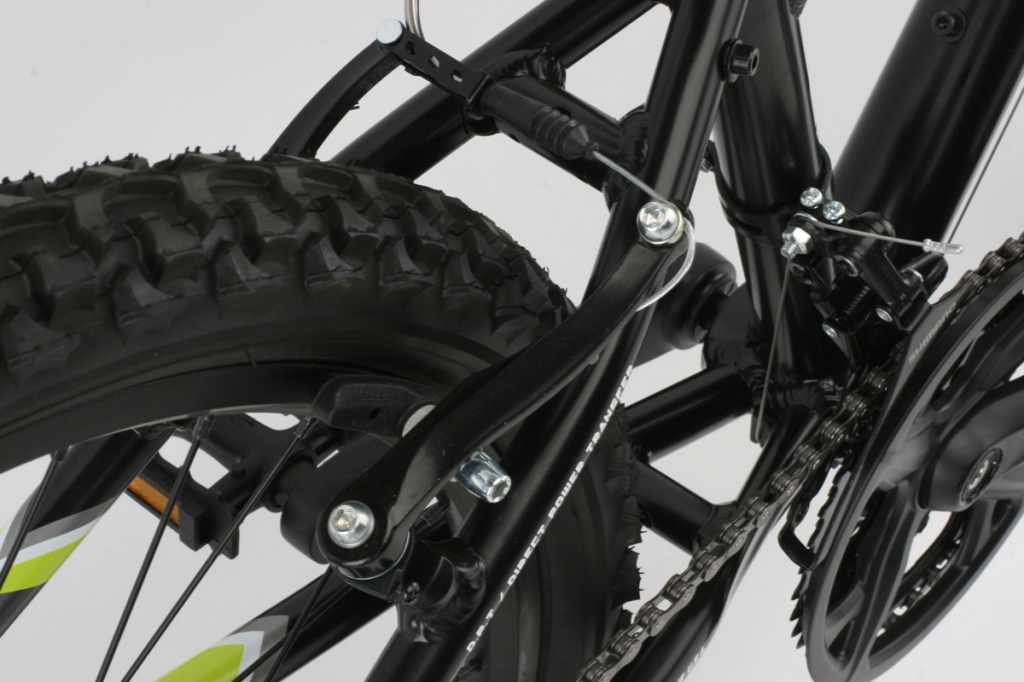

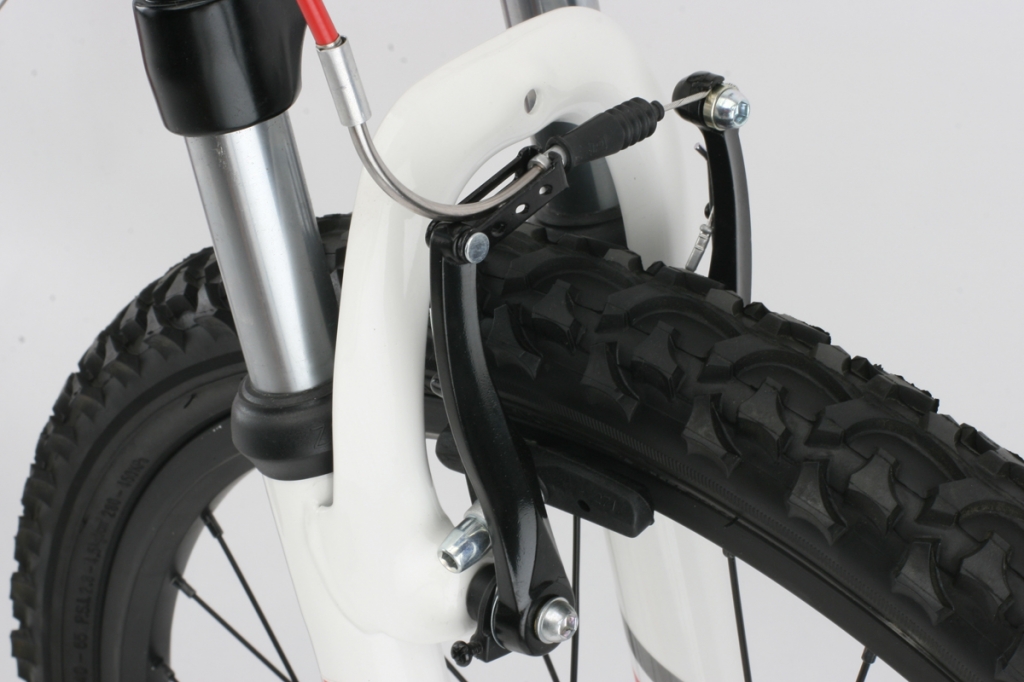

| Brakes | Alloy direct pull w/ linear spring |
| Brake Levers | Promax BL-42G |
| Other Components | |
| Grips | Dual density |
| Handle Bar | Pivit riser bar, 30mm rise, 560mm width |
| Stem | Pivit alloy, 15 degree rise |

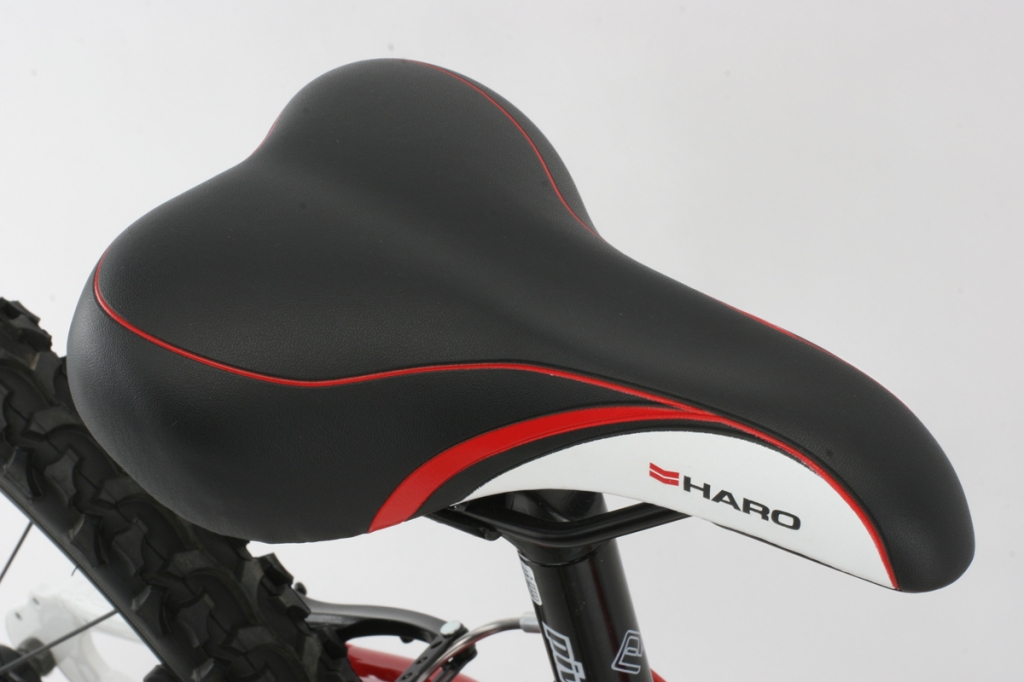

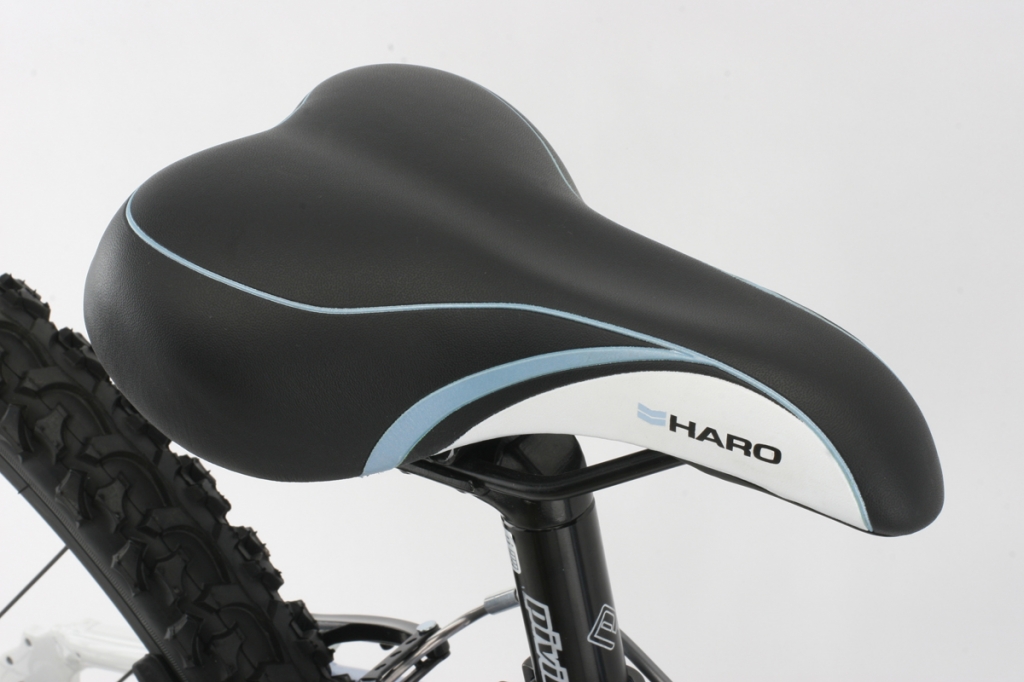

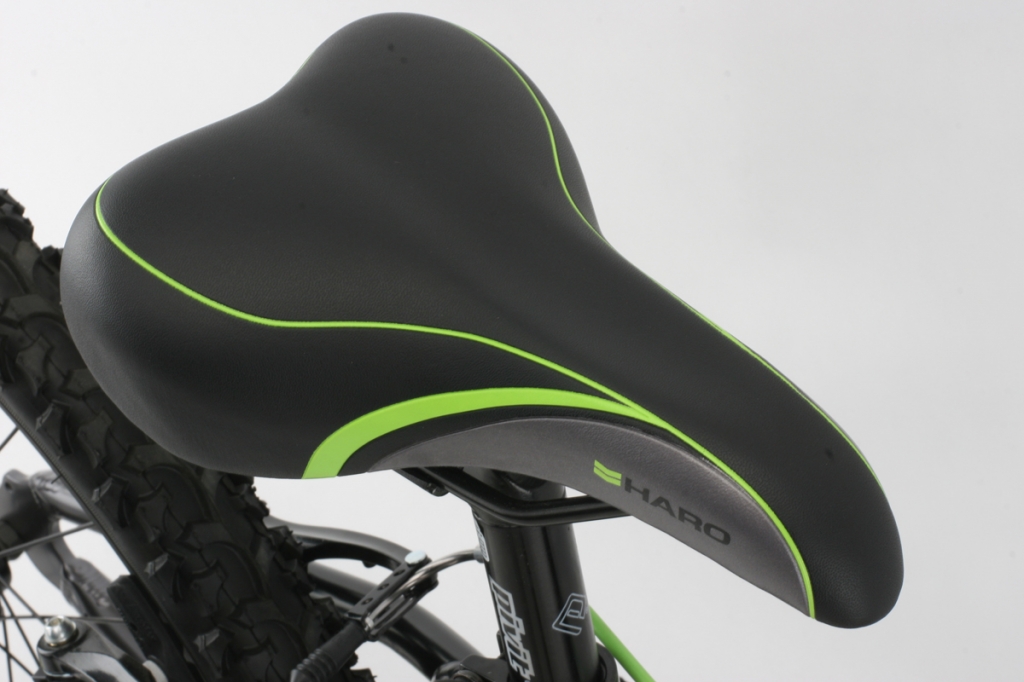

| Seat | Haro Junior |
| Seat Post | Pivit alloy micro adjust, 27.2mm |
| Seat Clamp | Pivit alloy quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
