Projekt

  • Year: 2012
  • MSRP: $380.00 *
  • Sizes: 49cm, 53cm, 57cm
  • Colors: Matte Black, Gloss Bright Pink
  • Weight:
  • NO LONGER AVAILABLE

FEATURES

  • Haro fixed gear frame featuring classic steel construction
  • Weinmann double wall rims laced to flip flop alloy hubs
  • 3 pc. forged alloy w/ 44t chainring
  • Steel 30mm riser bars
SPECIFICATIONS
Frame Components
Frame 700c fixed gear w/ horizontal dropouts
Fork 700c full crmo, designed to accommodate bigger tires
Headset 1 1/8" threadless loose ball
Drivetrain
Cranks 3 pc. forged alloy w/ 44t chainring
Bottom Bracket European sealed cartridge
Chain KMC Z410
Front Derailleur N/A
Rear Deralleur N/A
Derailleur Shifter N/A
Pedals Nylon body w/ alloy cage; toe clip and straps included
Wheels
Tires Kenda Kwest 700 x 28c
Wheels/Rims 32H Weinmann LP18 alloy double wall rims, 32H alloy shell hubs

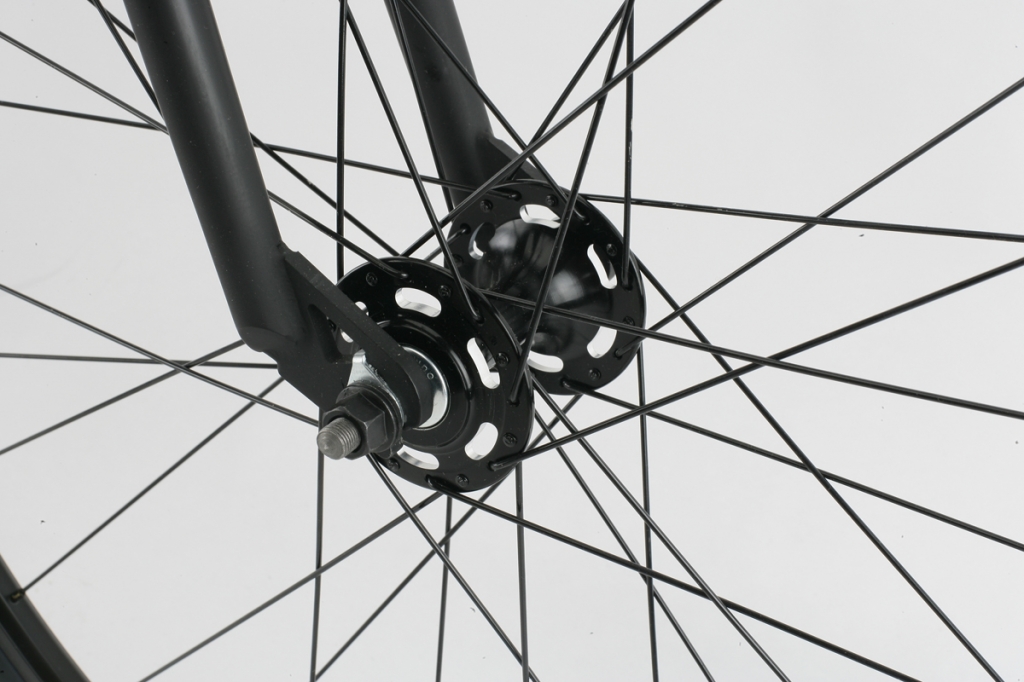

Hubs 32H alloy shell high flange nutted loose ball; flip-flop rear

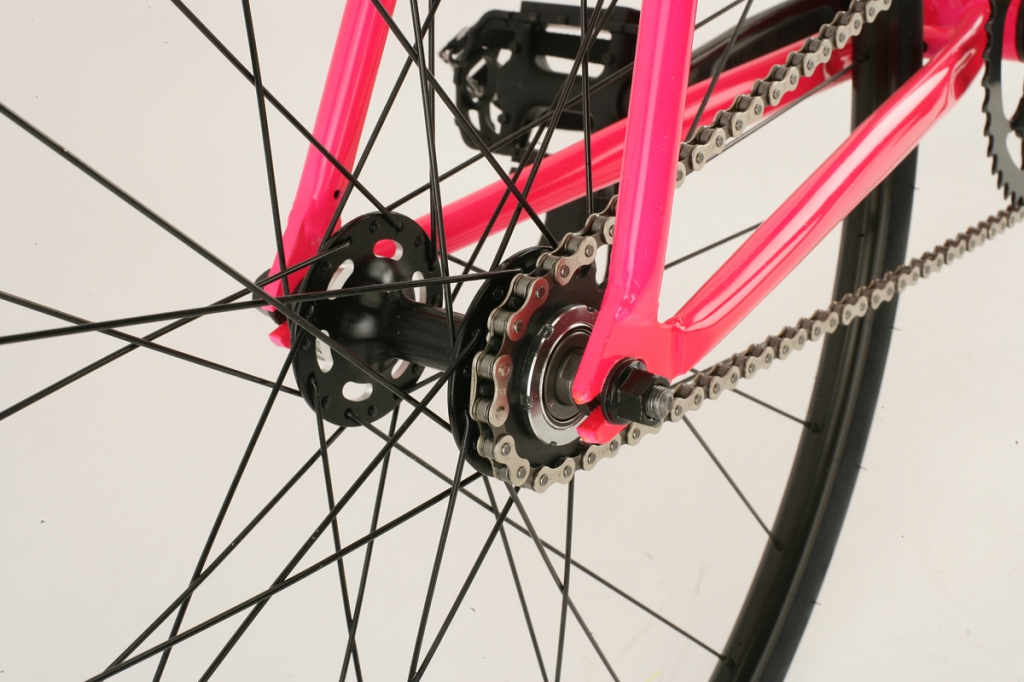

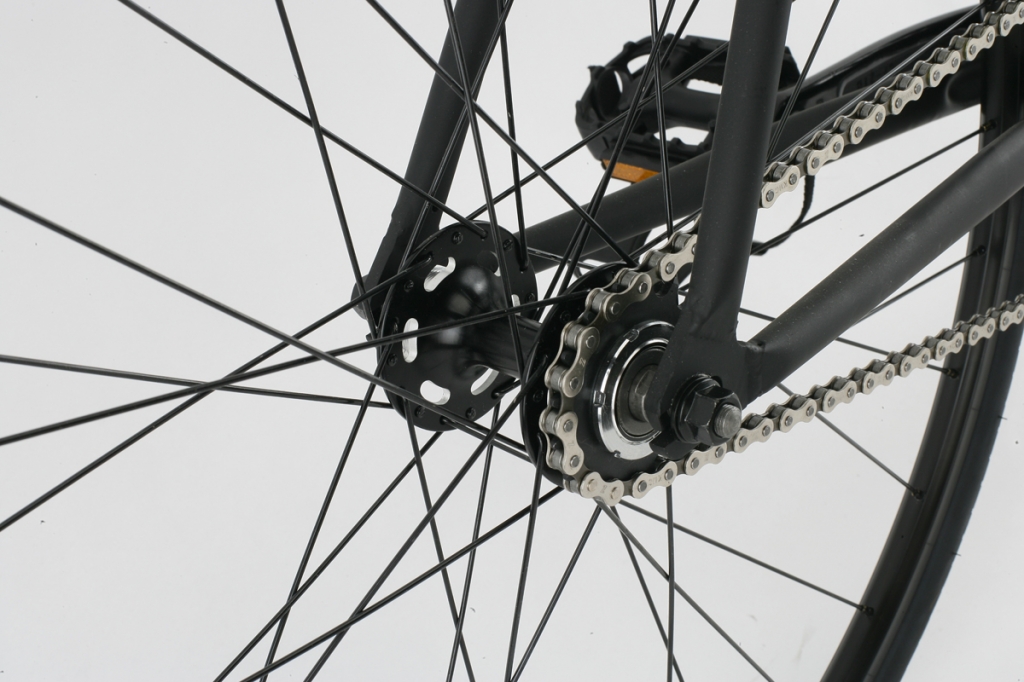

Freewheel/Cassette 16t cog w/ lock ring
Braking System
Brakes Tektro Dual Pivot Caliper
Brake Levers Tektro alloy
Other Components
Grips Counterfeit BMX w/ flange; 147mm

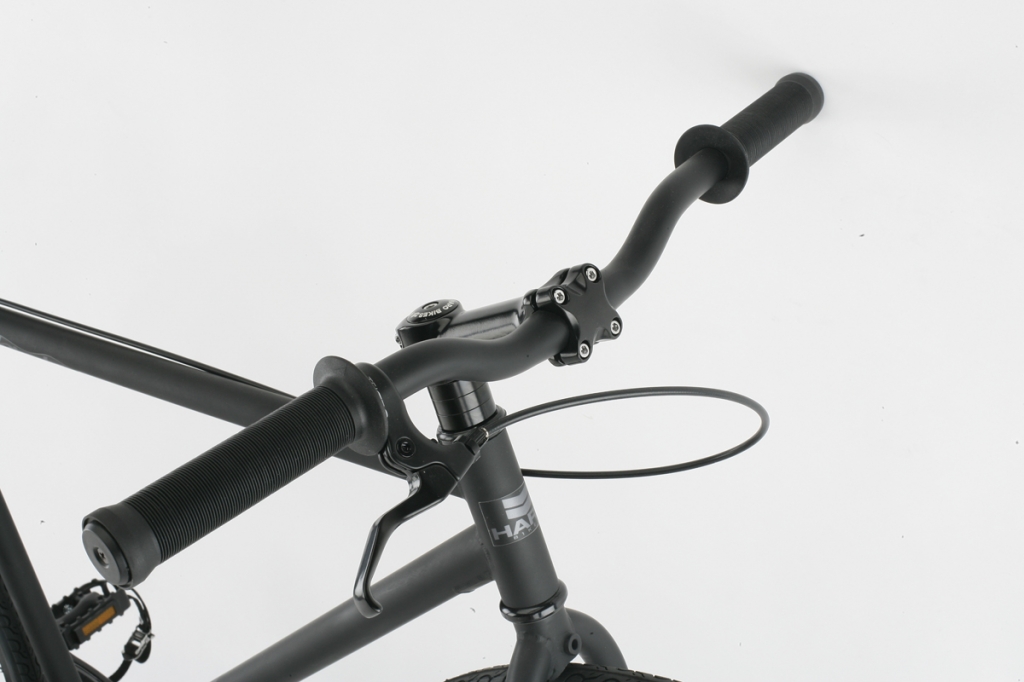

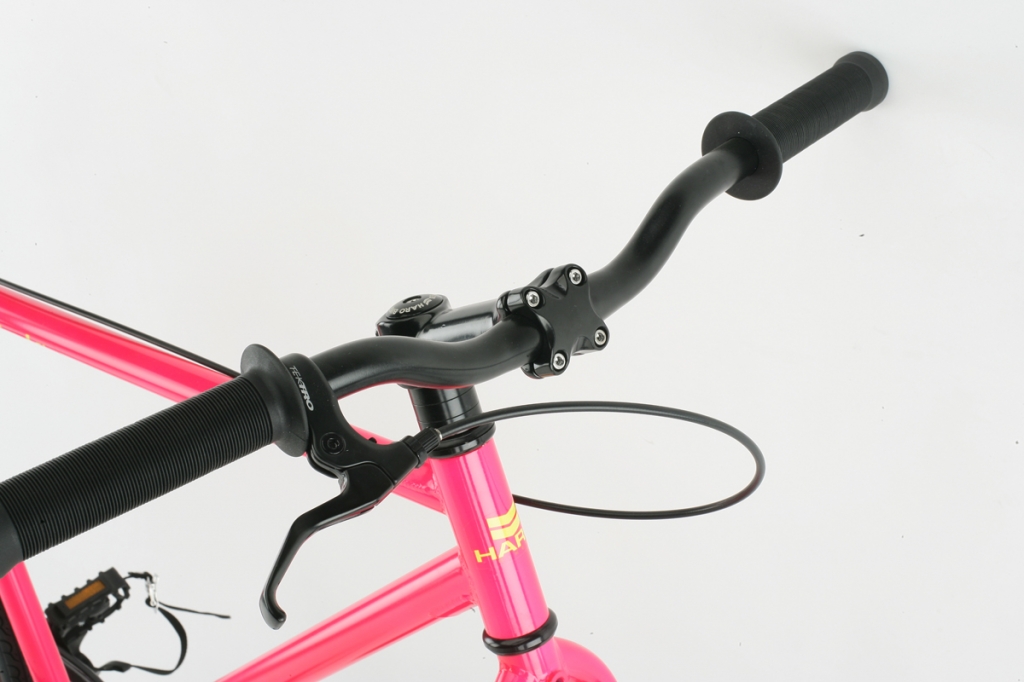

Handle Bar Steel riser bar; 30mm rise; 600mm width; 25.4 clamp
Stem Alloy clamp on, 10 degree rise, 25.4 clamp

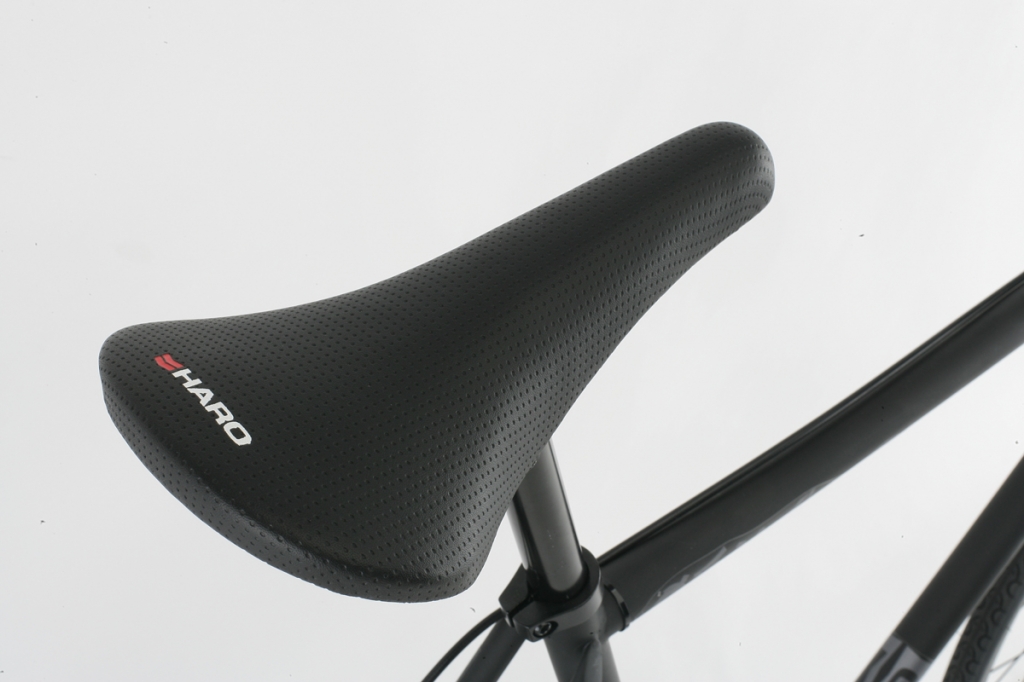

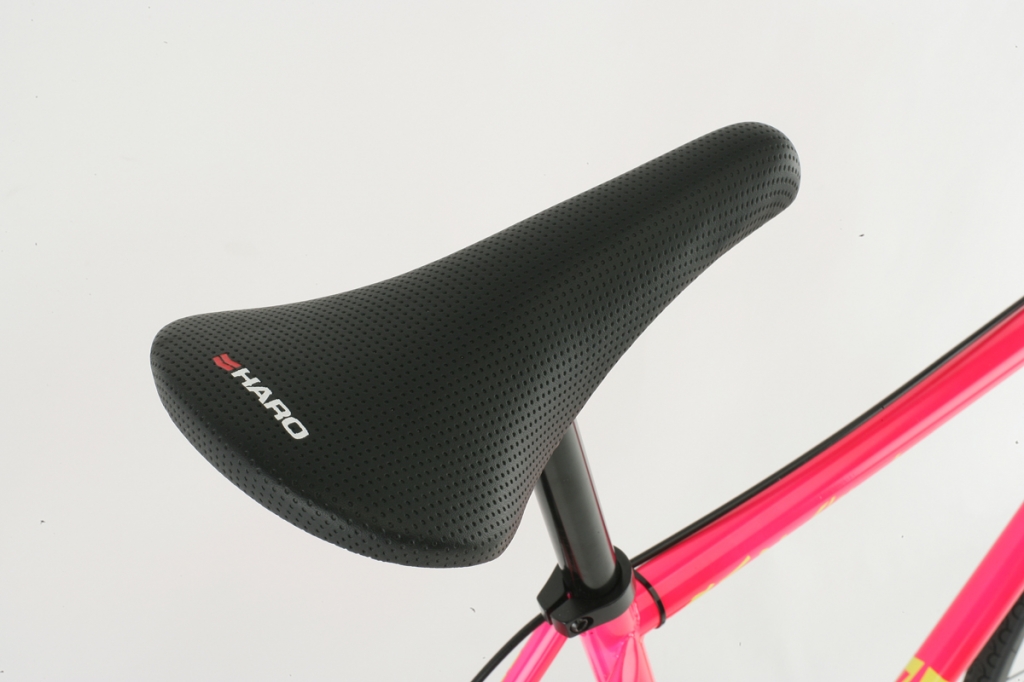

Seat Haro slim padded w/ embossed cover
Seat Post Steel 25.4mm
Seat Clamp Alloy 28.6
GEOMETRY
Size Head Angle Seat Angle Top Tube (Effective) Seat Tube (C-T) Chainstay Length BB Drop Wheel Base Stand Over Stack Height Reach Fork Height Fork Offset Stem Length Bar Width Crank Length
