If you're going to buy a 26" dirt jump/park machine, you might want to get it from the brand that invented the kind of riding you're into. Encompassing over 30 years worth of BMX knowledge, our 1.1 is equally adept at destroying trails or killing it at parks. Full 4130 chromoly frame (with an integrated internal head tube), chromoly forks and chromoly cranks give you a perfect start to creating your own dream machine.
FEATURES
- Full 4130 chromoly frame w/ internal head tube, Euro BB shell, and horizontal dropouts
- Full 4130 chromoly fork with 31.8mm legs, suspension corrected
- Available in two sizes: Short (21.8" TT) and Long (22.3" TT)
- Three-piece chromoly 175mm 8-spline cranks w/ 25t sprocket
- Weinmann ZAC 19 double-wall rims
- Tektro IO mechanical disc brake with 6" rotor
- Kenda K-Rad 2.3" tires
| Frame Components | |
|---|---|
| Frame | 4130 full Crmo w/ double butted DT; BMX inspired horizontal dropouts and integrated HT |
| Fork | Suspension corrected 4130 crmo rigid fork |
| Headset | 1 1/8" threadless internal |
| Drivetrain | |
| Cranks | 4130 3 pc. tubular crmo w/ Haro steel 25T sprocket |
| Bottom Bracket | European sealed cartridge |
| Chain | KMC Z410 |
| Front Derailleur | N/A |
| Rear Deralleur | N/A |
| Derailleur Shifter | N/A |

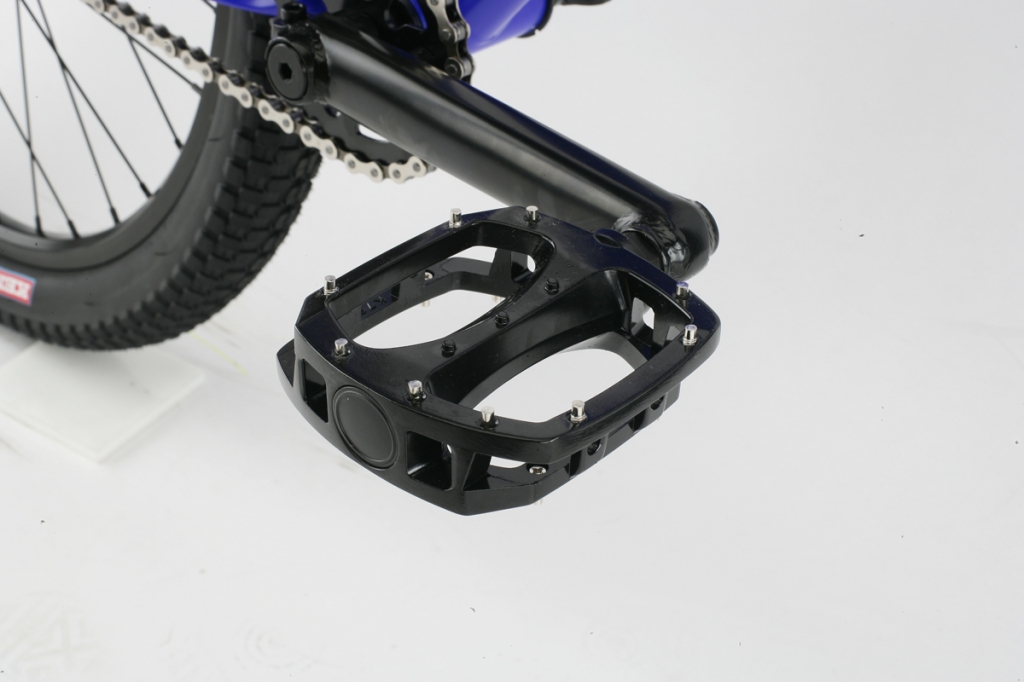

| Pedals | Alloy platform w/ replaceable pins |
| Wheels | |
| Tires | Kenda K-Rad 26"x2.3" |
| Wheels/Rims | 36H Weinmann Zac-19 alloy double wall rims, 36H alloy shell hubs - sealed bearing cassette single speed rear |

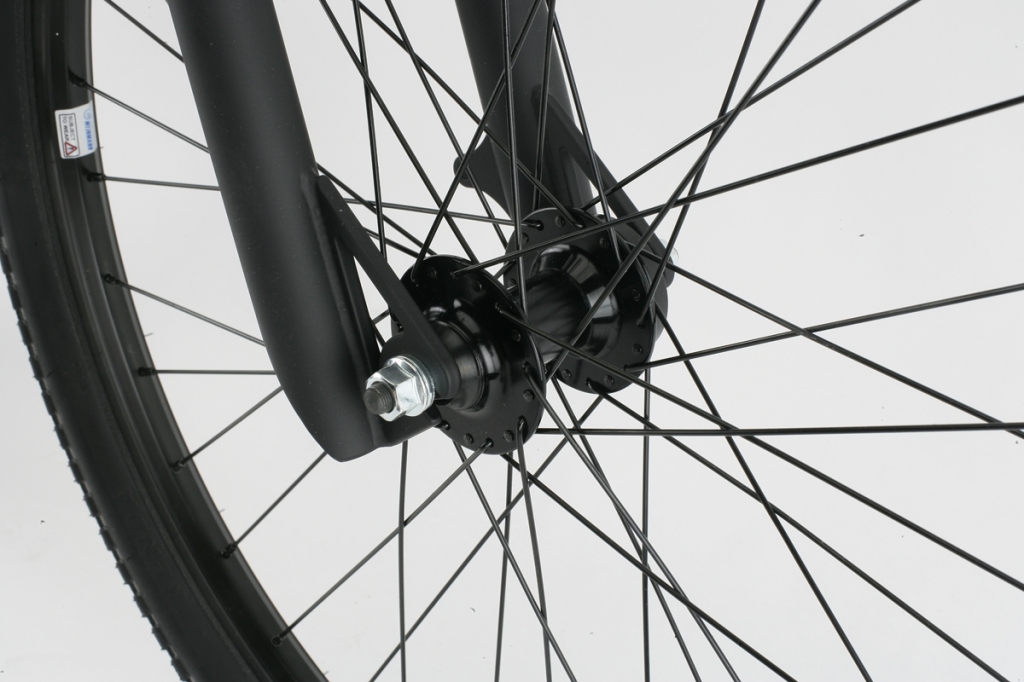

| Hubs | 36H alloy shell disc nutted; single speed sealed bearing cassette rear |
| Freewheel/Cassette | 12t cog |
| Braking System | |

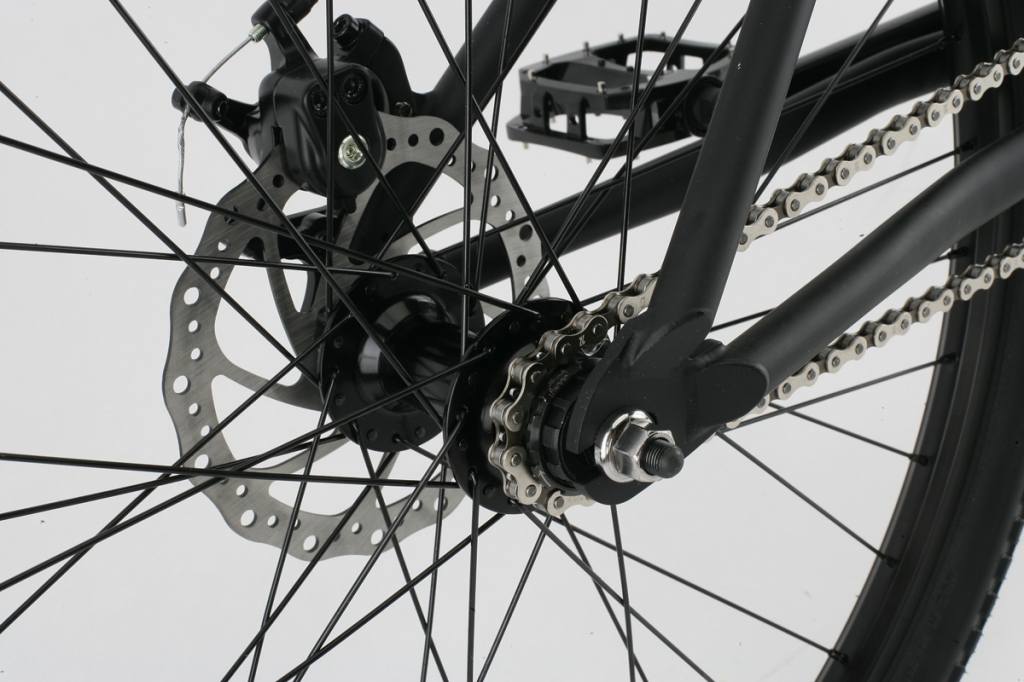

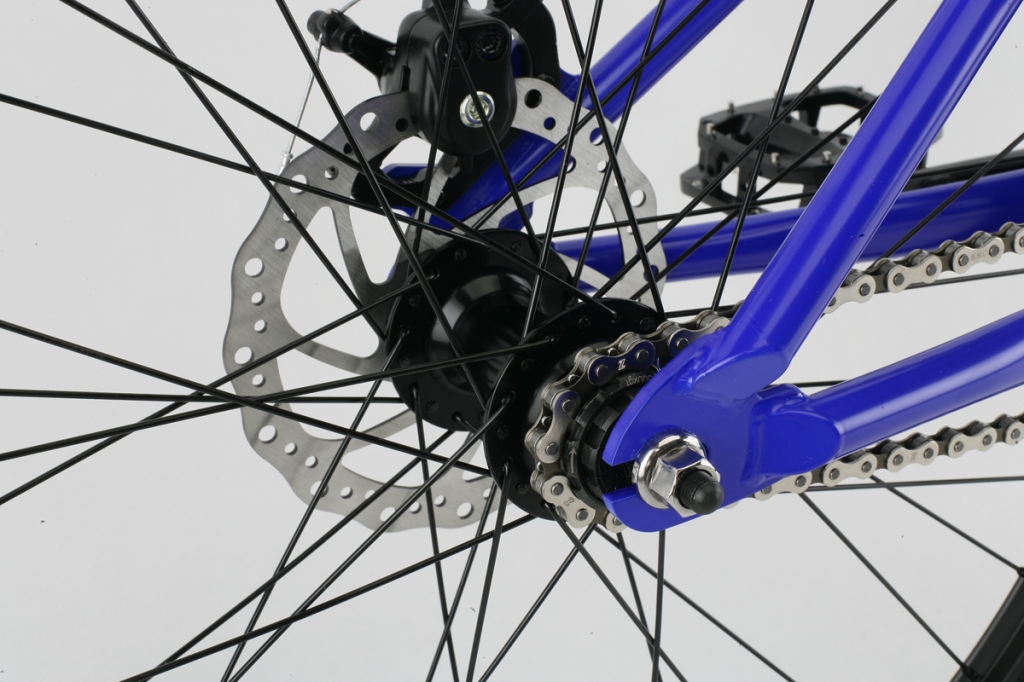

| Brakes | Tektro IO Mechanical disc w/ 6" Rotor (rear only) |
| Brake Levers | Tektro alloy |
| Other Components | |
| Grips | Counterfeit BMX w/ flange; 147mm |
| Handle Bar | Steel riser bar; 30mm rise; 680mm width; 31.8mm clamp |

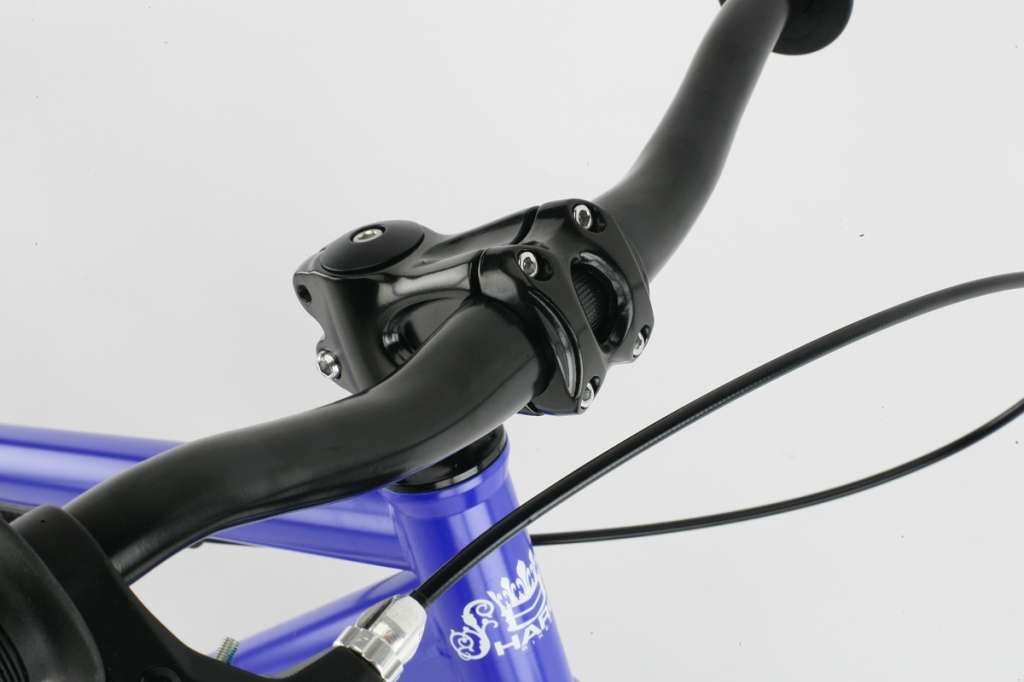

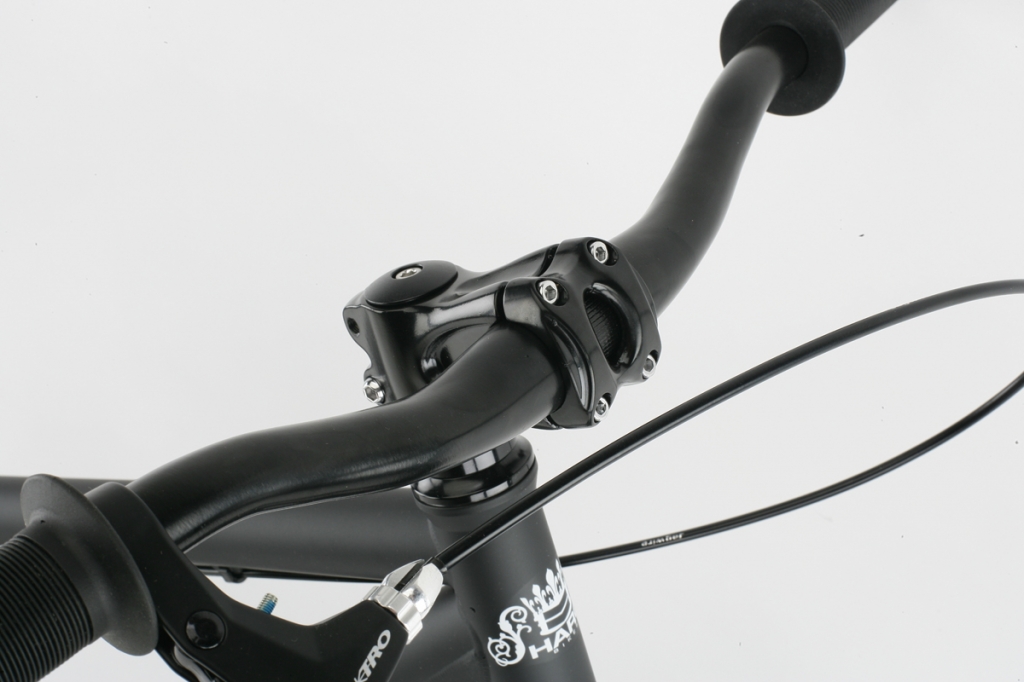

| Stem | Alloy clamp on, 60mm extension; 10 degree rise; 31.8 bar clamp |

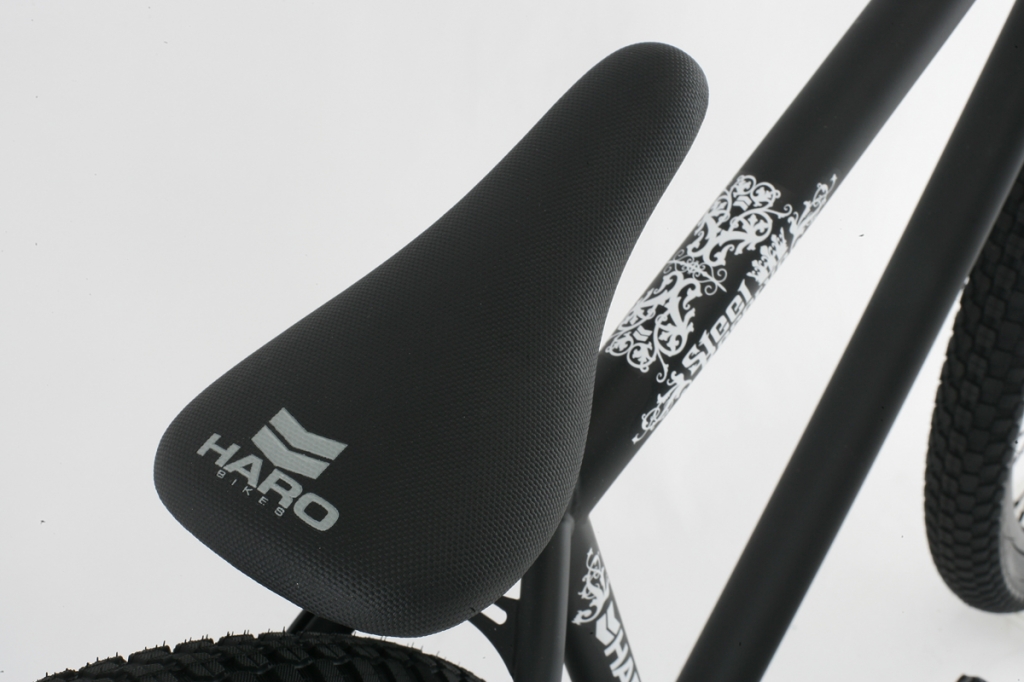

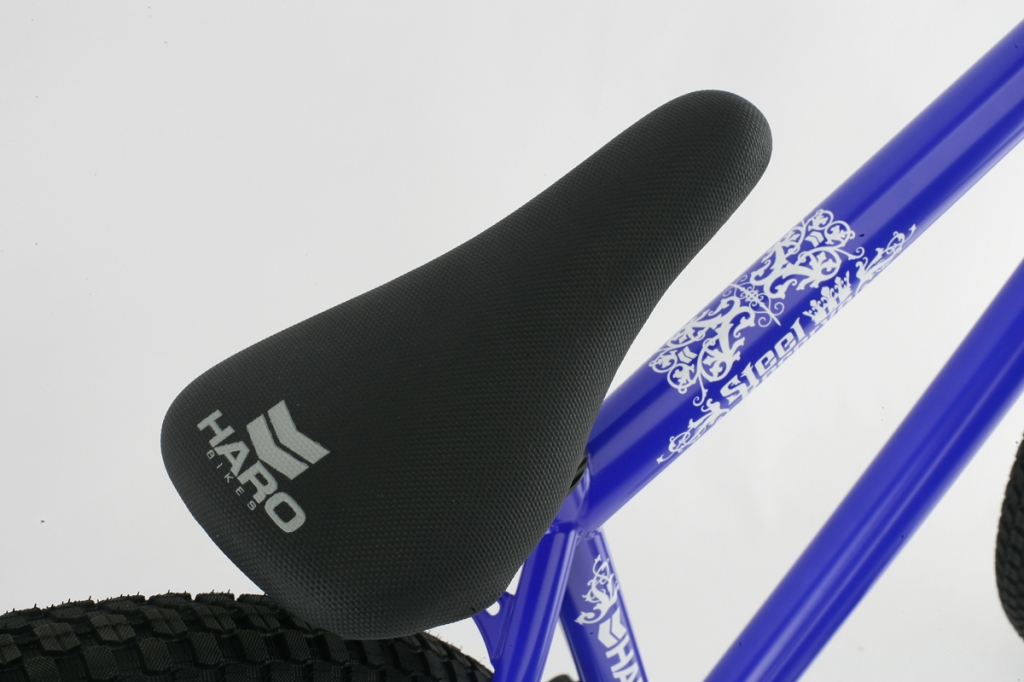

| Seat | Haro slim padded one piece seat/post |
| Seat Post | 25.4mm post included with seat |
| Seat Clamp | Alloy 28.6 |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
