FEATURES
- 6061 aluminum Flightline 29 frame w/ lightweight oversized tubing, integrated headtube and smooth welds
- NEW RockShox XC28 100mm travel fork w/ PopLoc
- SRAM X-5 10 speed
- Ritchey handlebar, stem and seatpost
| Frame Components | |
|---|---|
| Frame | Flightline 6061 T6 oversized aluminum w/ integrated headset and smooth welding |
| Fork | RockShox XC 28; 100mm travel w/ PopLoc |
| Headset | Ritchey Zero Press Fit |
| Drivetrain | |
| Cranks | SRAM S1000, 22/33/44 |
| Bottom Bracket | SRAM GXP |
| Chain | SRAM PC-1031 |
| Front Derailleur | SRAM X5 |

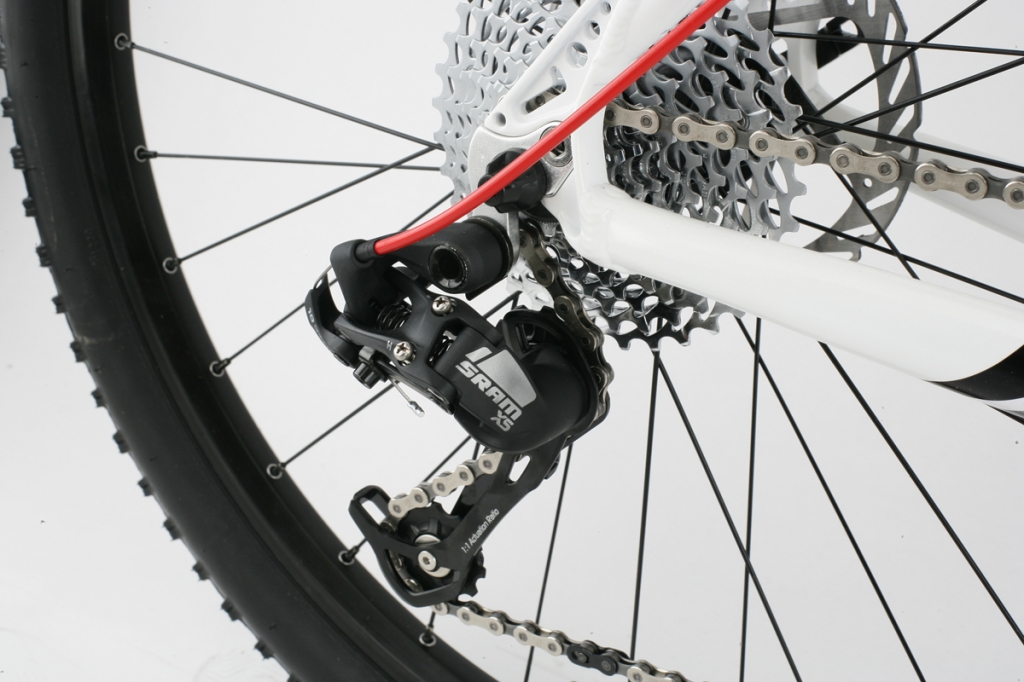

| Rear Deralleur | SRAM X5 |
| Derailleur Shifter | SRAM X5, 10 speed |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda Karma, 26 x 2.0" |
| Wheels/Rims | Weinmann XM-280 doublewall, 32h |
| Hubs | Pivit disc alloy cassette w/ quick release |
| Freewheel/Cassette | SRAM PG-1030, 9 speed cassette, 11-36 |
| Braking System | |

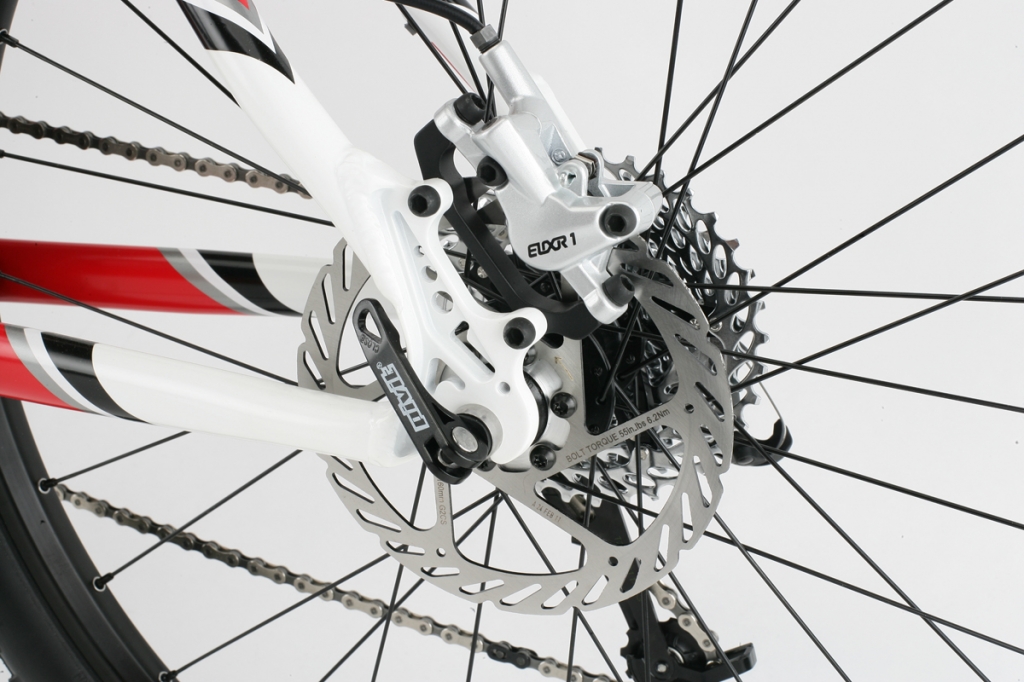

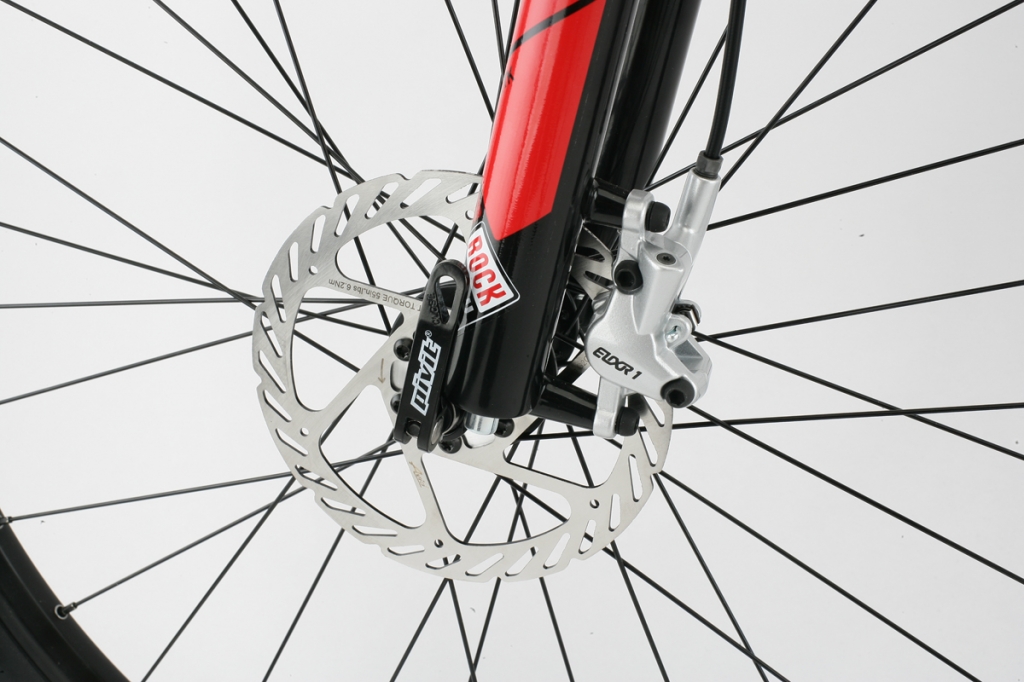

| Brakes | Avid Elixir 1 hydraulic disc w/ 6" rotors |
| Brake Levers | Avid Elixir 1 |
| Other Components | |
| Grips | WTB Moto |
| Handle Bar | Ritchey Mountain Rizer bar |
| Stem | Ritchey 6061 |

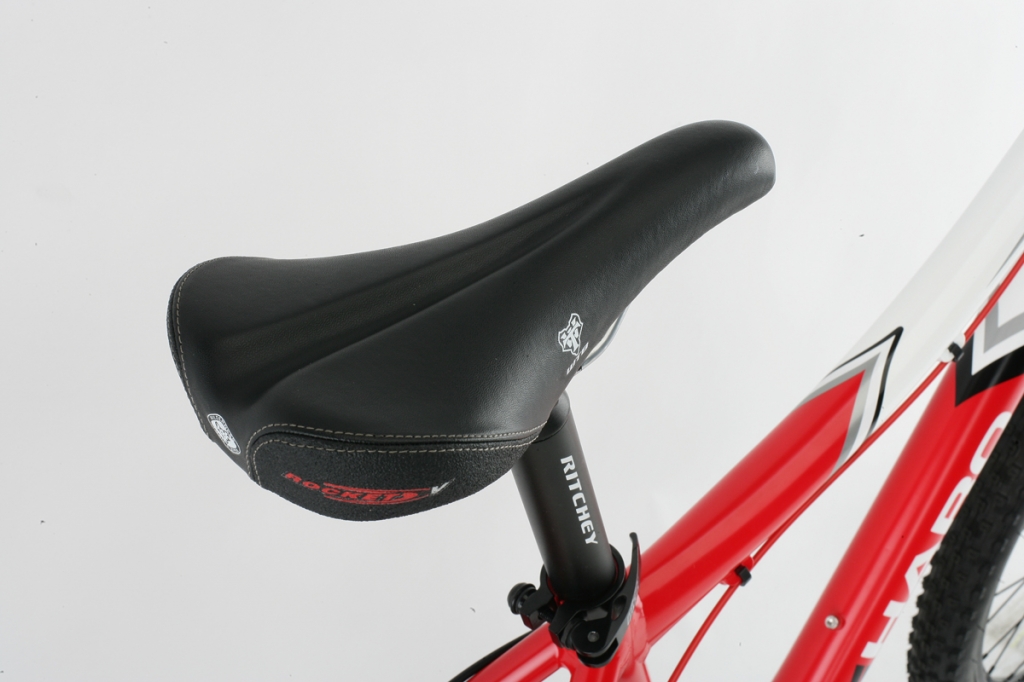

| Seat | WTB Rocket V Comp |
| Seat Post | Ritchey 6061 2 bolt, 30.9mm |
| Seat Clamp | Pivit alloy quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
