FEATURES
- Lightweight oversized 6061 aluminum frame w/ integrated headtube
- SR Suntour XCT-MLO 100mm travel fork with preload adjust and lockout

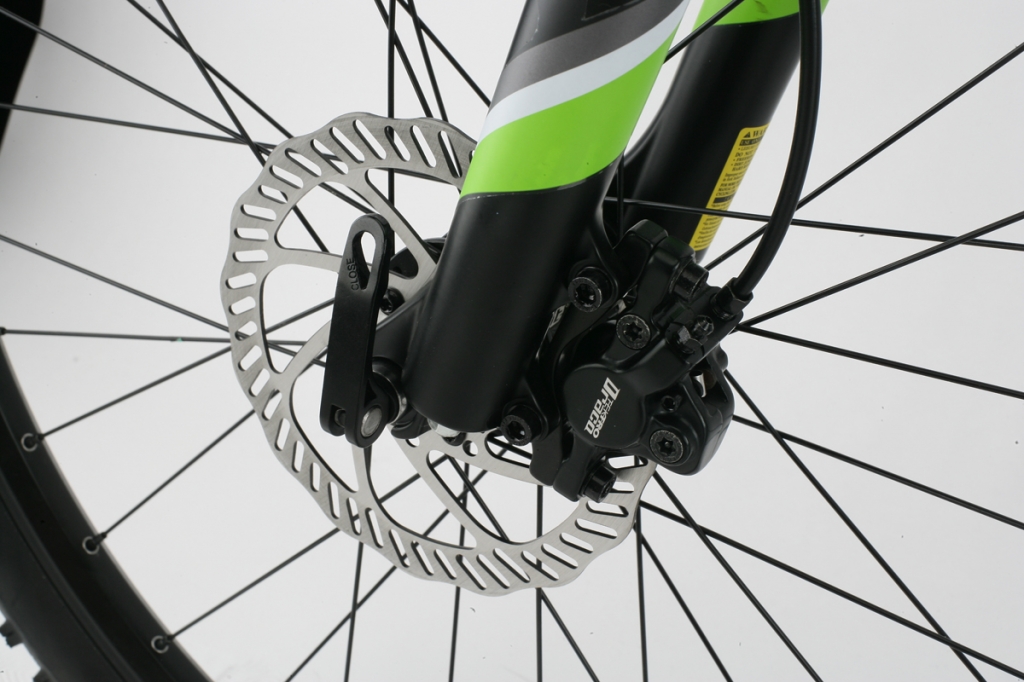

- Tektro Draco hydraulic disc brakes
| Frame Components | |
|---|---|
| Frame | Flightline 6061 T6 oversized aluminum w/ integrated headset |
| Fork | SR Suntour XCT, 100mm travel w/ mechanical lock out |
| Headset | Ritchey Zero Press Fit |
| Drivetrain | |
| Cranks | SR Suntour XCT, 22/32/42 |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC HG-50 |

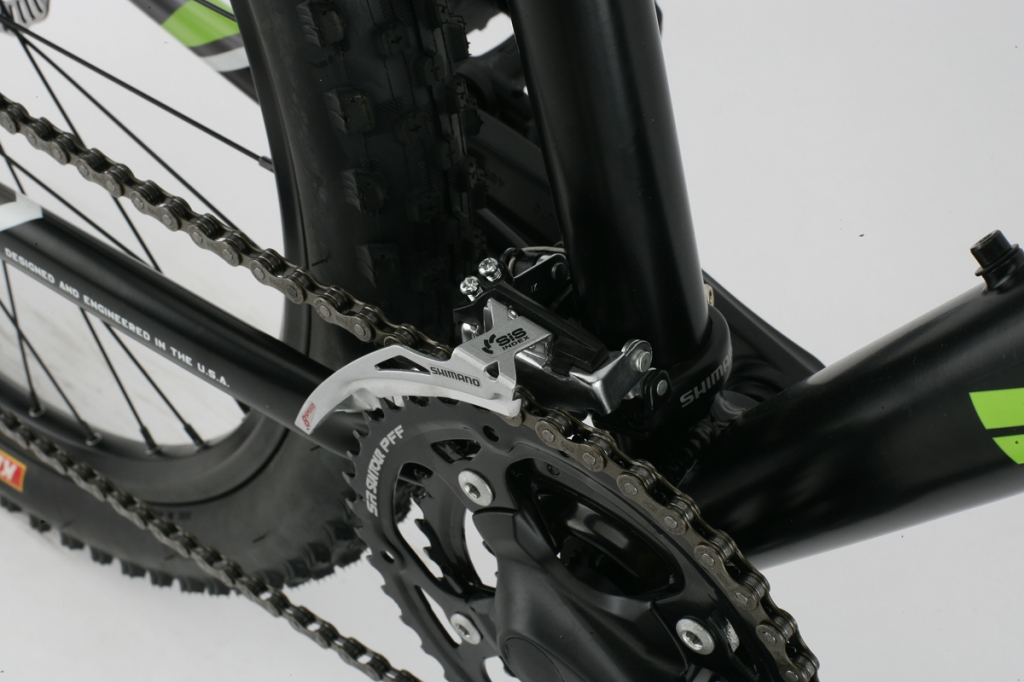

| Front Derailleur | Shimano Altus |
| Rear Deralleur | Shimano Acera |
| Derailleur Shifter | Shimano Altus, 8 speed |
| Pedals | Nylon ATB |
| Wheels | |
| Tires | Kenda Karma, 26 x 2.0" |
| Wheels/Rims | Weinmann XM-280 doublewall, 32h |
| Hubs | Pivit disc alloy cassette w/ quick release |
| Freewheel/Cassette | Shimano HG-41, 8 speed cassette, 11-32 |
| Braking System | |
| Brakes | Tektro Draco hydraulic disc w/ 6" rotors |
| Brake Levers | Tektro Draco |
| Other Components | |
| Grips | WTB Moto |
| Handle Bar | Pivit riser bar, 30mm rise, 680mm width, 31.8mm clamp |
| Stem | Pivit alloy, 10 degree rise |
| Seat | WTB Rocket V Comp |
| Seat Post | Pivit alloy micro adjust, 30.9mm |
| Seat Clamp | Pivit alloy quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
