Steel Reserve 1.3
- Year: 2012
- MSRP: $1,305.00 *
- Sizes: 21.8", 22.3"
- Colors: Matte Black
- Weight:
- NO LONGER AVAILABLE
The 1.3 is in a class by itself. The frame uses the same double-butted chromoly as our 1.8, but comes with horizontal slotted interchangeable dropouts making this one of the only fully convertible frames out there. Want to run it with gears? No worries. Change the dropout, add a rear wheel with a cassette, throw on a shifter, cable, and a rear derailleur and you're pretty much set. With the X Fusion Velvet R forks, aftermarket-level 3 piece chromoly cranks, sealed Thin pedals, and Alienation Skylark double-wall rims front and rear, you've got a pro-level machine that holds its own against any custom build out there.
FEATURES
- Full 4130 chromoly frame w/ internal head tube, Euro BB shell, removable cable guides, and our "Six-Shooter" interchangeable dropout system
- Available in two sizes: Short (21.8" TT) and Long (22.3" TT)
- X Fusion Velvet R 80mm travel suspension fork with X-15 tool-less 15mm thru axle
- Three-piece chromoly 175mm 8-spline cranks w/ 6000-series alloy 25t sprocket
- Syncros FR38 OS double-butted alloy riser bar and FR50 V2 OS alloy stem
- 6000 series alloy CNC'd Thin Pedal w/removable pins and sealed bearings
- Alienation Skylark double-wall rims
- Tektro Draco hydraulic rear brake with 160mm wave rotor
- Pivotal seat and post
- Ritchey Logic Zero Comp internal headset
Frame Components | |
---|---|
Frame | 4130 full Crmo w/ double butted DT; integrated HT and interchangeable dropouts |
Fork | X Fusion Velvet R fork; 80mm travel w/ 15mm "Tool-less" thru axle |
Headset | Ritchey Logic Comp drop in internal |
Drivetrain | |
Cranks | 4130 3 pc. tubular crmo w/ Haro alloy 25T sprocket |
Bottom Bracket | European sealed bearing cartridge |
Chain | KMC Z410 |
Front Derailleur | N/A |
Rear Deralleur | N/A |
Derailleur Shifter | N/A |

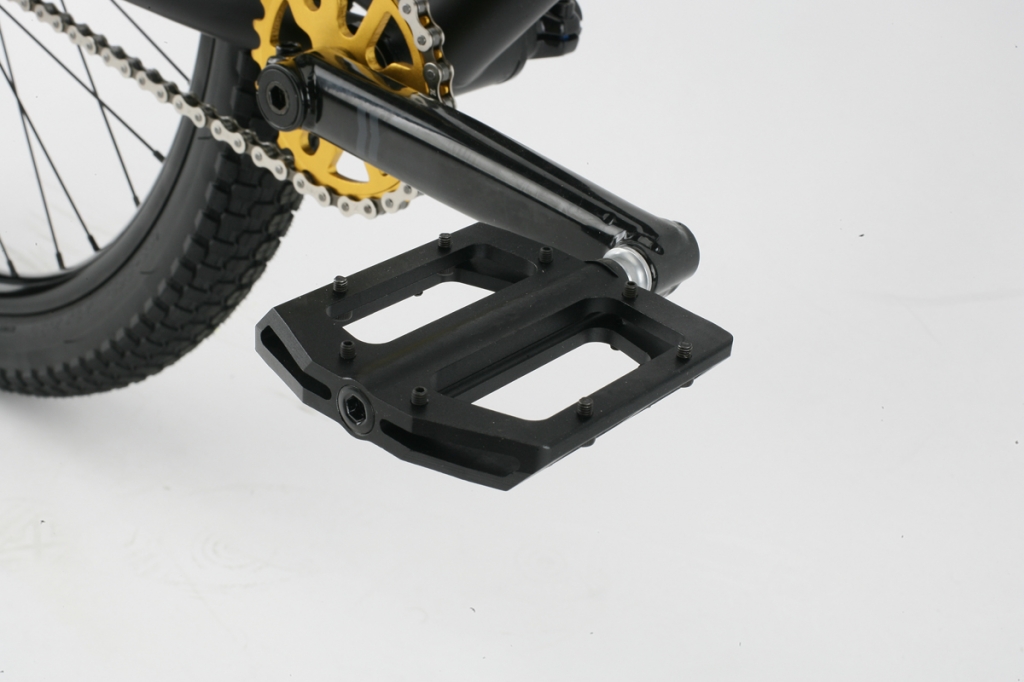

Pedals | CNC alloy Slim pedals w/ sealed bearings and replaceable pins |
Wheels | |
Tires | Kenda K-Rad 26"x2.3" |
Wheels/Rims | Alienation Skylark 36H rims, 36H alloy shell sealed bearing disc hubs; single speed cassette rear; 15mm thru axle front |

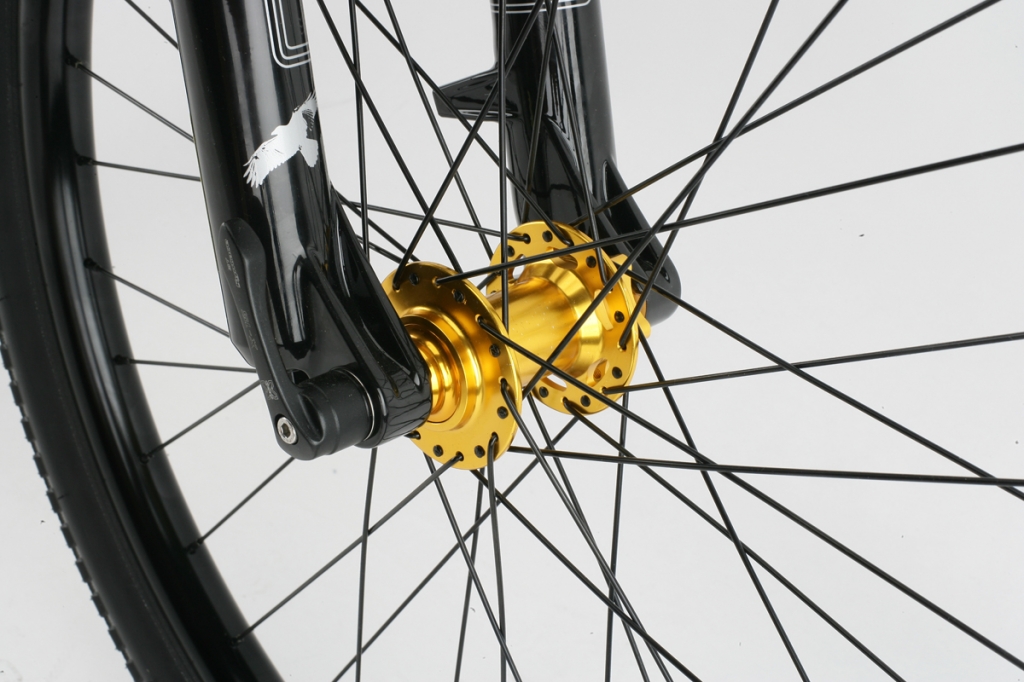

Hubs | 36H alloy shell sealed bearing disc hubs; single speed cassette rear; 15mm thru axle front |
Freewheel/Cassette | 12t cog |
Braking System | |

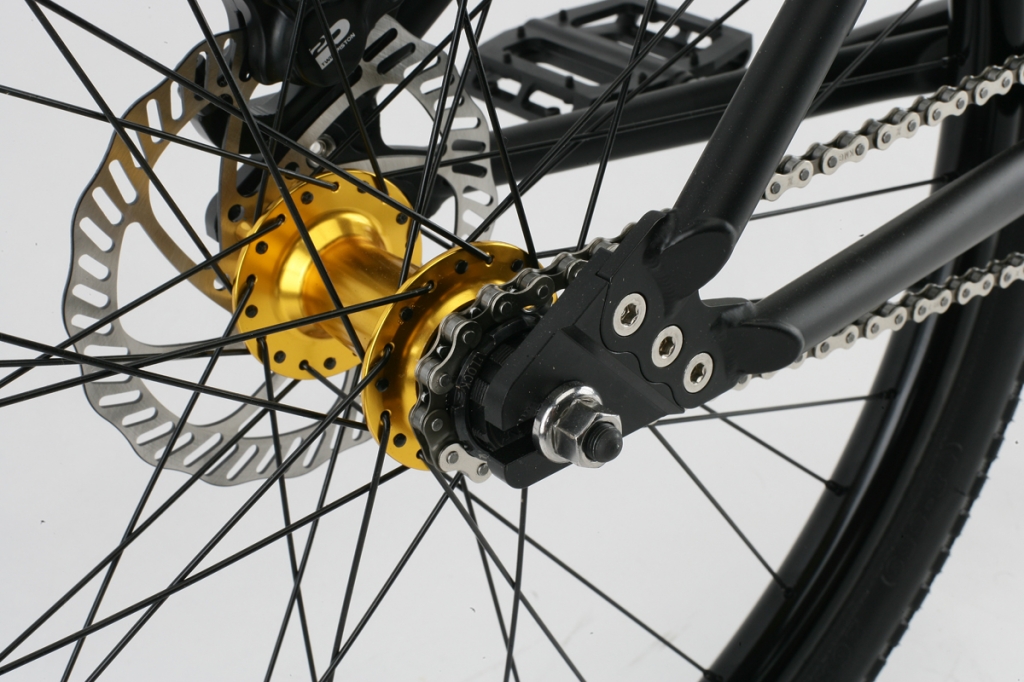

Brakes | Tektro Draco hydraulic w/ 6" wave rotor (rear only) |
Brake Levers | Tektro Draco hydraulic |
Other Components | |
Grips | SDG Lock On |

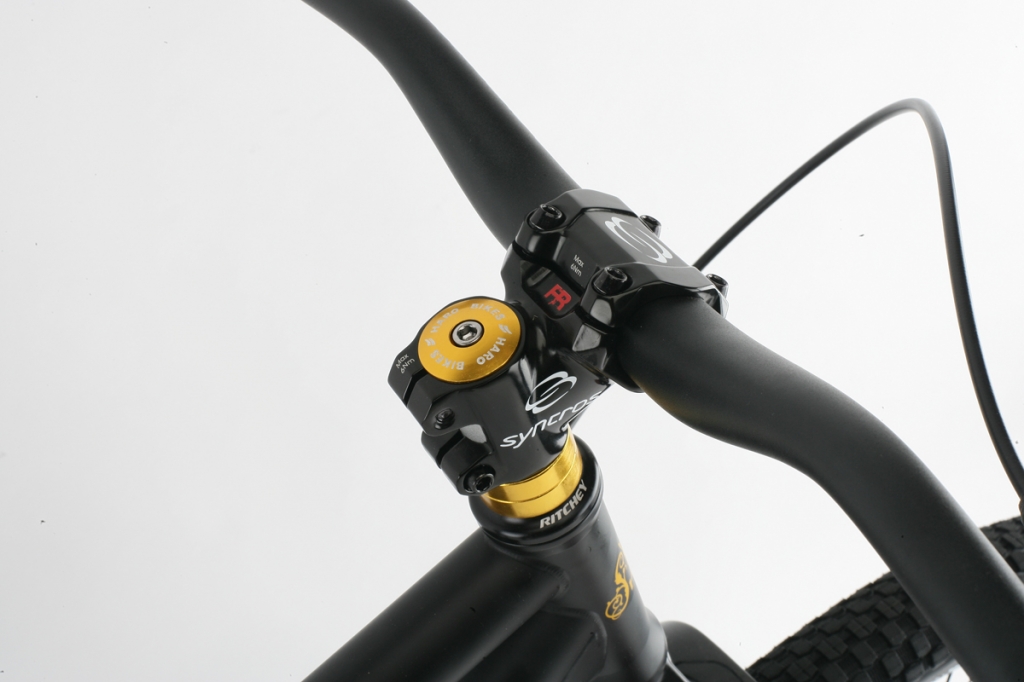

Handle Bar | Syncros FR 38 riser bar, 38mm rise, 700mm width, 31.8mm clamp |
Stem | Syncros FR 50 V2 OS; 50mm extension; 31.8 bar clamp |

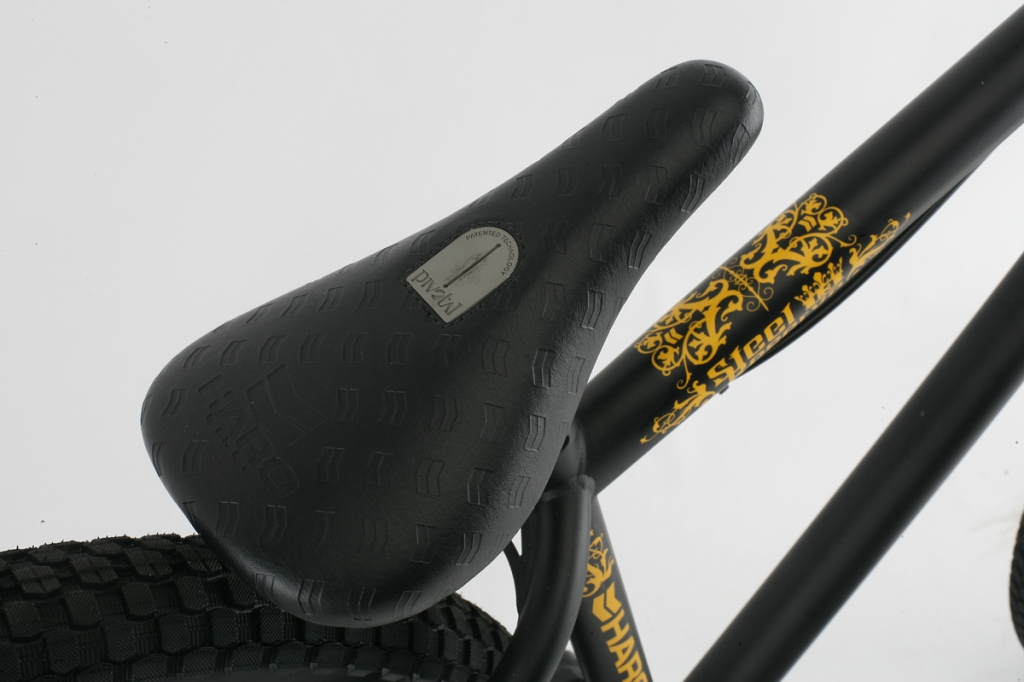

Seat | Haro slim padded Pivotal |
Seat Post | Pivotal 25.4 |
Seat Clamp | Welded integrated clamp on frame |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
