Objekt
- Year: 2012
- MSRP: $460.00 *
- Sizes: 49cm, 53cm, 57cm
- Colors: Matte Black, SG Bad Apple
- Weight:
- NO LONGER AVAILABLE
FEATURES
- Haro fixed gear frame featuring classic steel construction
- Weinmann double wall rims laced to flip flop alloy hubs
- 3 pc. tubular crmo cranks w/ 44T sprocket
- Alloy riser bar 70mm
Frame Components | |
---|---|
Frame | 700c fixed gear w/ horizontal dropouts |
Fork | 700c full crmo, designed to accommodate bigger tires |
Headset | 1 1/8" threadless loose ball |
Drivetrain | |
Cranks | 4130 3 pc. tubular crmo w/ 44T sprocket |
Bottom Bracket | European sealed cartridge |
Chain | KMC Z410 |
Front Derailleur | N/A |
Rear Deralleur | N/A |
Derailleur Shifter | N/A |

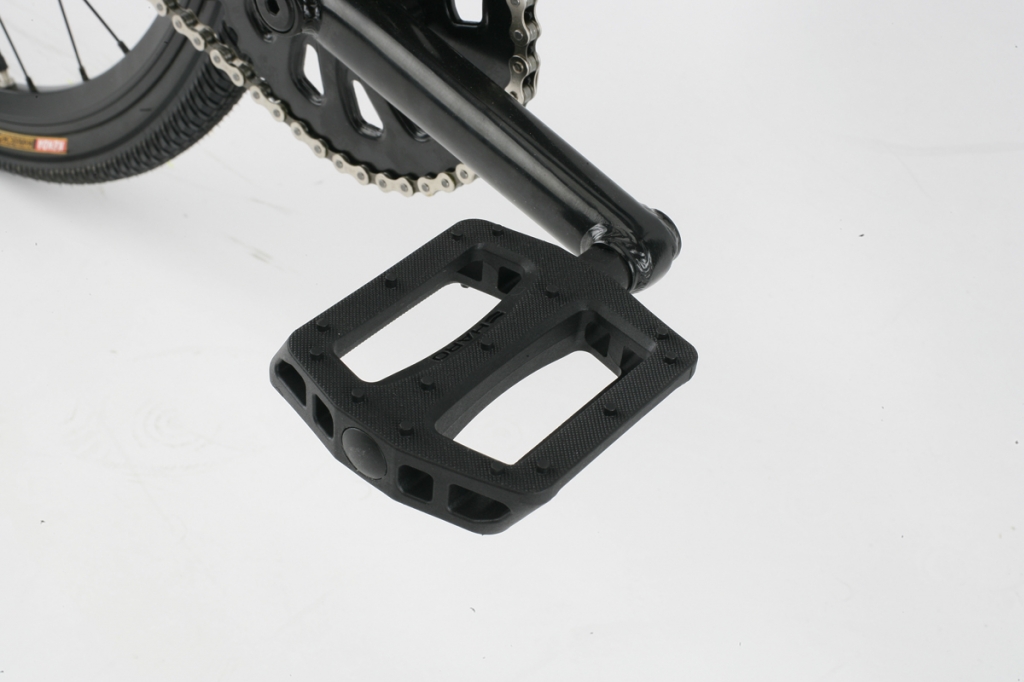

Pedals | Haro "Recycled" plastic BMX platform |
Wheels | |
Tires | Kenda Kwick Trax 700 x 38c |
Wheels/Rims | 32H Weinmann XP26 alloy double wall rims, 32H alloy shell hubs |
Hubs | 32H alloy shell high flange nutted loose ball; flip-flop rear |
Freewheel/Cassette | 16t cog w/ lock ring |
Braking System | |
Brakes | Tektro Dual Pivot Caliper |
Brake Levers | Tektro alloy |
Other Components | |
Grips | Counterfeit BMX w/ flange; 147mm |
Handle Bar | Alloy riser bar; 70mm rise; 600mm width; 22.2 clamp |
Stem | BMX alloy front load stem; 55mm extension; 22.2mm bar clamp |

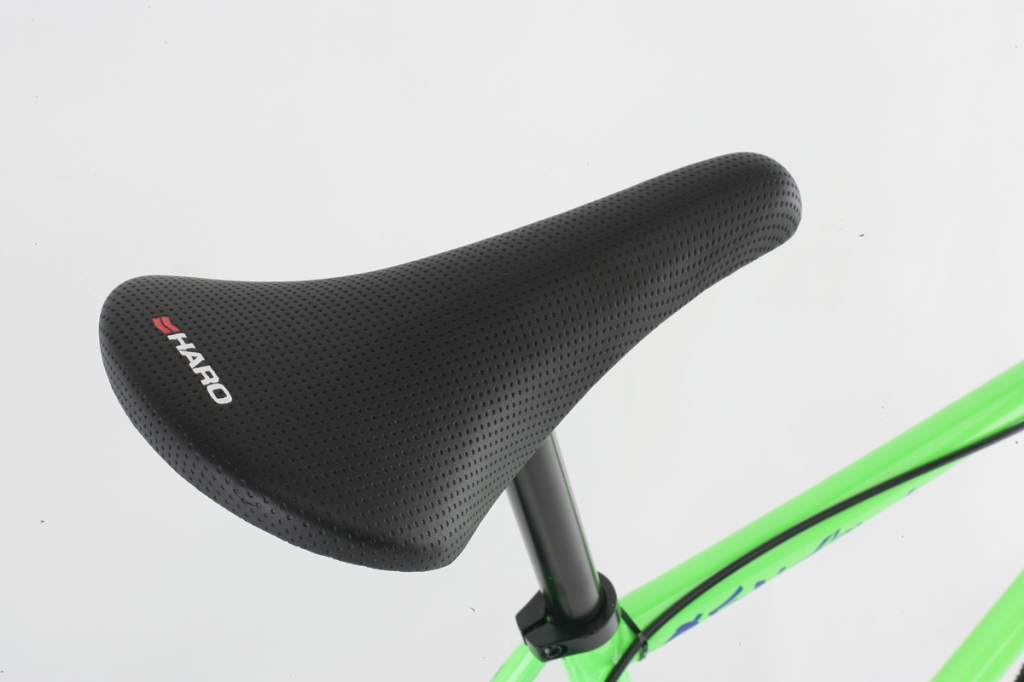

Seat | Haro slim padded w/ embossed cover |
Seat Post | Steel 25.4mm |
Seat Clamp | Alloy 28.6 |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
