Steel Reserve 1.2
| Year | 2012 |
|---|---|
| MSRP | $765.00 * |
| Sizes | 21.8", 22.3" |
| Colors | SG Acid Bath |
| Weight |
Flowing sets at the trails, carving lines at the park, or even sessioning a mini ramp or two, the biggest difference between our 1.2 and our 1.1 is the addition of an 80mm travel Suntour Duro DJ suspension fork. You will also find a pivotal seat and post, as well as Alienation rims, front and back.
FEATURES
- Full 4130 chromoly frame w/ internal head tube, Euro BB shell, and horizontal dropouts
- SR Suntour Duro DJ-D 80mm travel fork with adjustable preload and rebound
- Available in two sizes: Short (21.8" TT) and Long (22.3" TT)
- Three-piece chromoly 175mm 8-spline cranks w/ 25t sprocket
- Alienation PBR front and Black Sheep rear rims
- Tektro IO mechanical disc brake with 6" rotor
- Pivotal seat and post
- Ritchey Logic Zero Comp internal headset
- Kenda K-Rad 2.3" tires
| Frame Components | |
|---|---|
| Frame | 4130 full Crmo w/ double butted DT; BMX inspired horizontal dropouts and integrated HT |
| Fork | SR Suntour Duro DJD 80mm travel |
| Headset | Ritchey Logic Comp drop in internal |
| Drivetrain | |
| Cranks | 4130 3 pc. tubular crmo w/ Haro alloy 25T sprocket |
| Bottom Bracket | European sealed bearing cartridge |
| Chain | KMC Z410 |
| Front Derailleur | N/A |
| Rear Deralleur | N/A |
| Derailleur Shifter | N/A |
| Pedals | Alloy platform w/ replaceable pins |
| Wheels | |
| Tires | Kenda K-Rad 26"x2.3" |
| Wheels/Rims | 36H Alienation PBR front / Black Sheep rear, 36H alloy shell hubs - sealed bearing cassette single speed rear |
| Hubs | 36H alloy shell disc nutted; single speed sealed bearing cassette rear |
| Freewheel/Cassette | 12t cog |
| Braking System | |

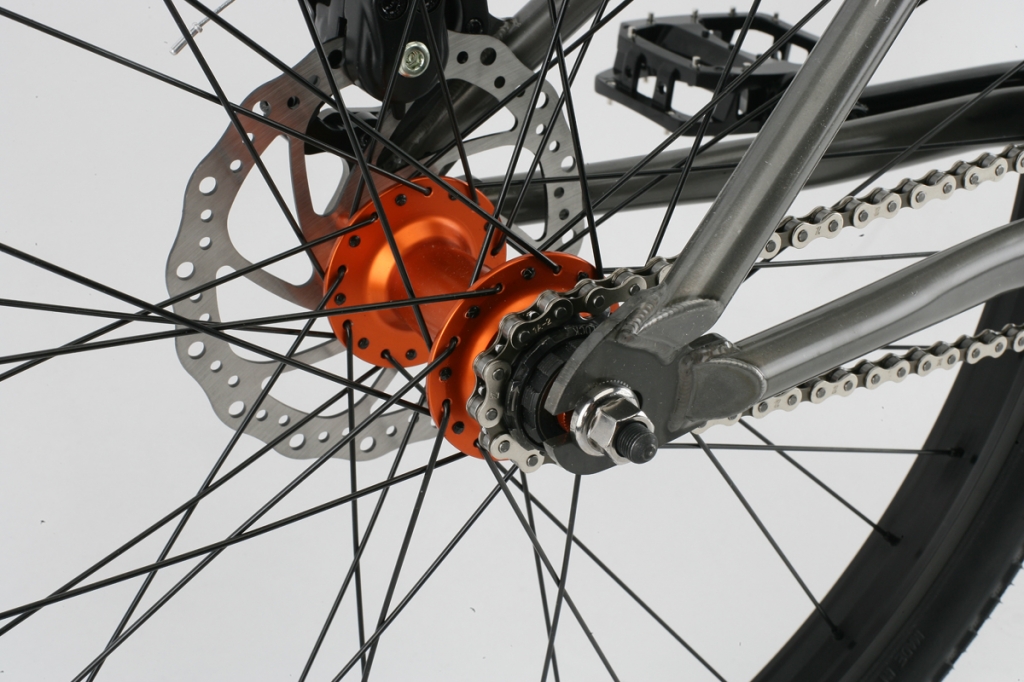

| Brakes | Tektro IO Mechanical disc w/ 6" Rotor (rear only) |
| Brake Levers | Tektro alloy |
| Other Components | |
| Grips | Counterfeit BMX w/ flange; 147mm |
| Handle Bar | Alloy riser bar, 30mm rise, 680mm width, 31.8mm clamp |
| Stem | Alloy clamp on stem; 50mm extension; 10 degree rise; 31.8 bar clamp |
| Seat | Haro slim padded Pivotal |
| Seat Post | Pivotal 25.4 |
| Seat Clamp | Alloy 28.6 |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
