FEATURES
- Lightweight oversized 6061 aluminum frame w/ integrated headtube
- Suntour XCR-LO 80mm travel fork w/ preload adjust and lockout
- Shimano 9 speed shifting package
- Tektro Draco hydraulic disc brakes
| Frame Components | |
|---|---|
| Frame | Flightline 29" 6061 T6 oversized aluminum w/ integrated headset |
| Fork | SR Suntour XCR, 80mm travel w/ mechanical lock out |
| Headset | Ritchey Zero Press Fit |
| Drivetrain | |

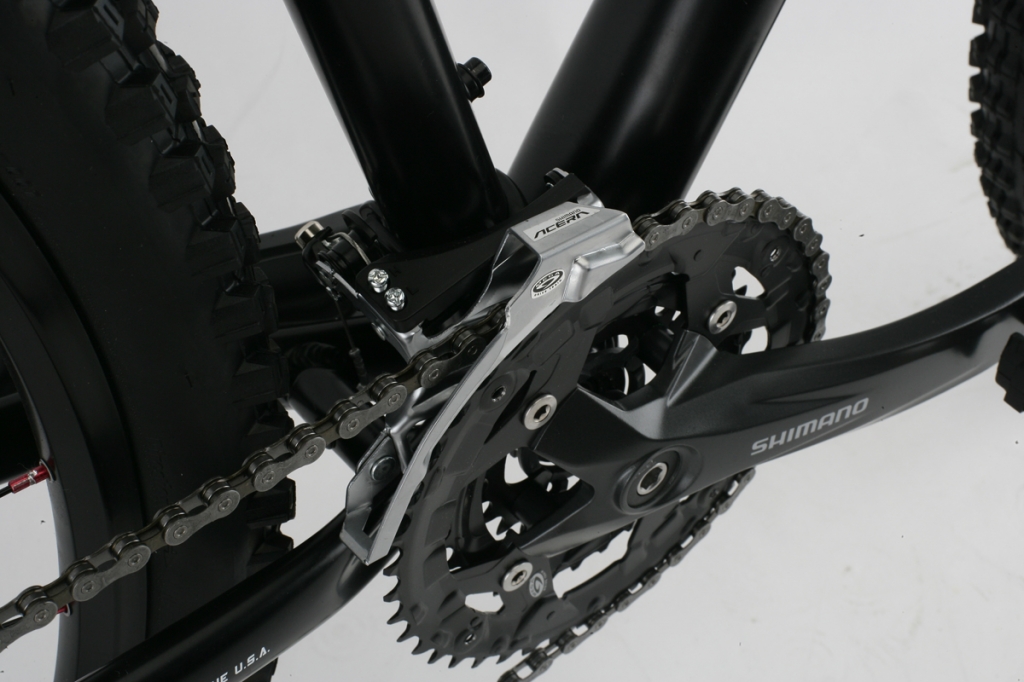

| Cranks | Shimano Acera, 22/32/44 |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC HG-53 |
| Front Derailleur | Shimano Acera |
| Rear Deralleur | Shimano Alivio |
| Derailleur Shifter | Shimano Acera, 9 speed |
| Pedals | Nylon ATB |
| Wheels | |
| Tires | Kenda Nevegal, 29 x 2.2" |
| Wheels/Rims | Weinmann XM-280 doublewall, 32h |
| Hubs | Pivit disc alloy cassette w/ quick release |
| Freewheel/Cassette | Shimano HG-20, 9 speed cassette, 11-34 |
| Braking System | |

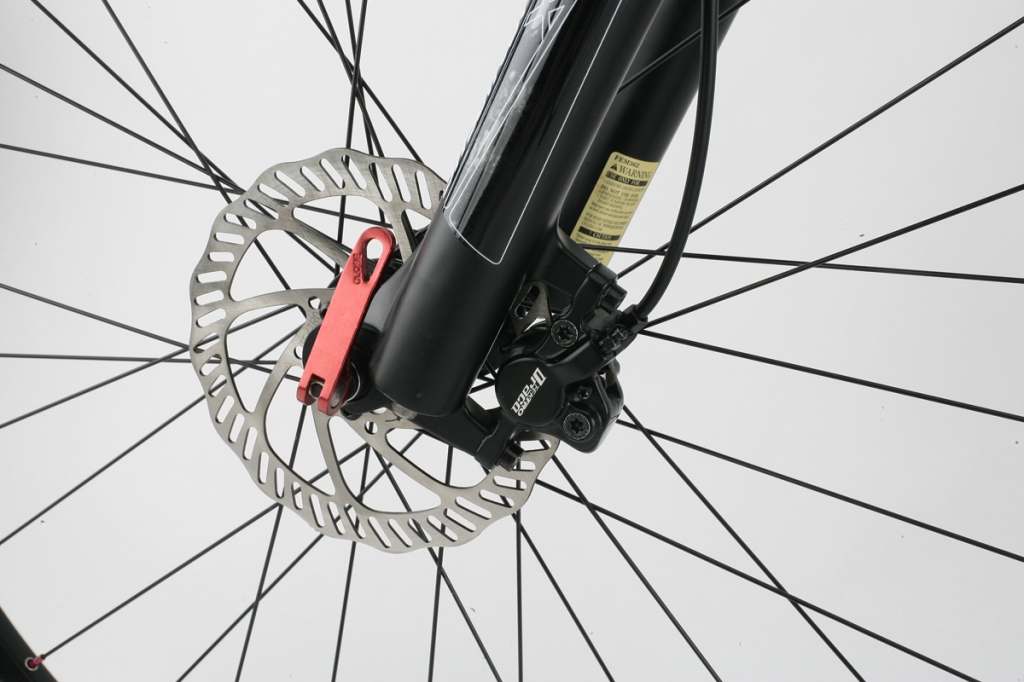

| Brakes | Tektro Draco hydraulic disc w/ 6" rotors |
| Brake Levers | Tektro Draco |
| Other Components | |
| Grips | WTB Moto |
| Handle Bar | Pivit riser bar, 30mm rise, 680mm width, 31.8mm clamp |
| Stem | Pivit alloy, 10 degree rise |
| Seat | WTB Rocket V Comp |
| Seat Post | Pivit alloy micro adjust, 30.9mm |
| Seat Clamp | Pivit alloy quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
