FEATURES

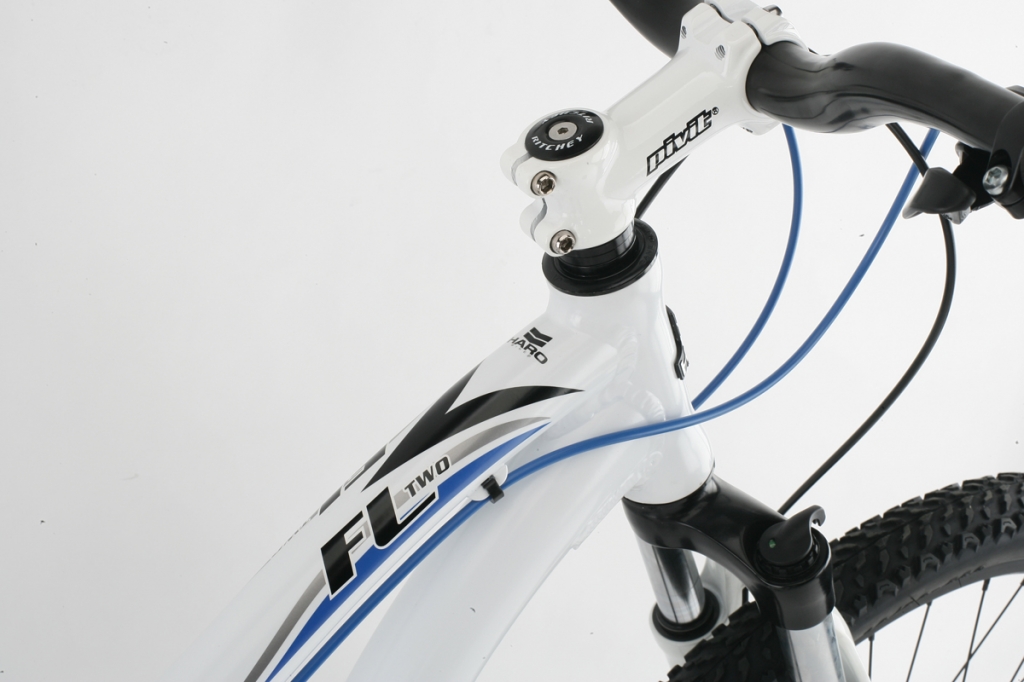

- Lightweight oversized 6061 aluminum frame w/ integrated headtube
- SR Suntour XCT V-4 80mm travel fork with alloy lower legs
- Full Shimano shifting package
- Tektro IO disc brakes
| Frame Components | |
|---|---|
| Frame | Flightline 6061 T6 oversized aluminum w/ integrated headset |
| Fork | SR Suntour XCT, 80mm travel w/ preload adjust |
| Headset | Ritchey Zero Press Fit |
| Drivetrain | |

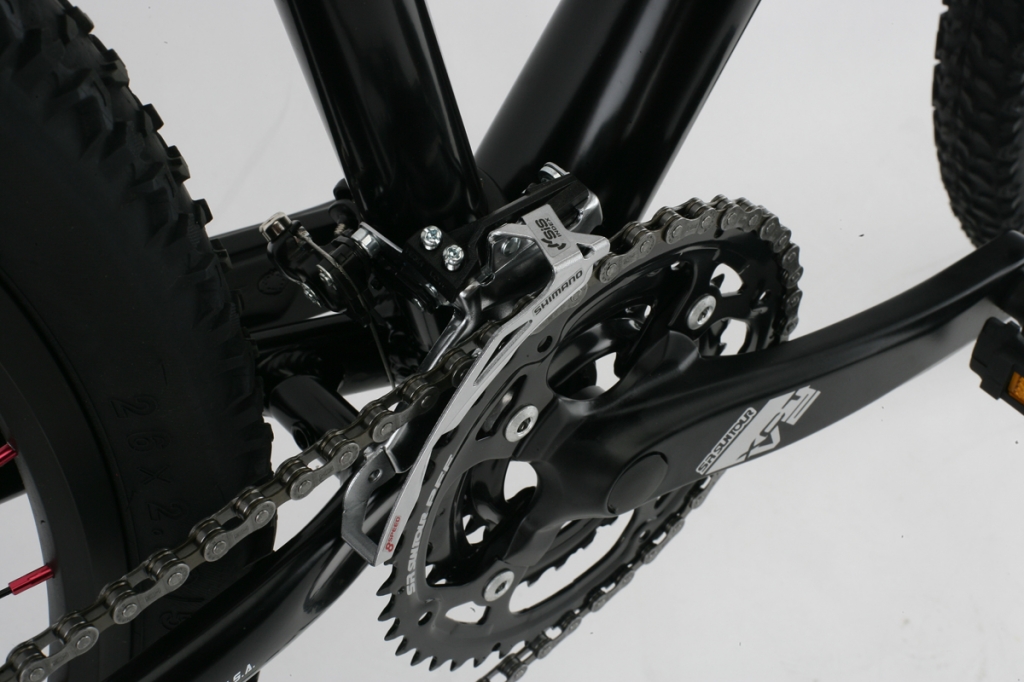

| Cranks | SR Suntour XCT, 22/32/42 |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC HG-40 |
| Front Derailleur | Shimano Altus |

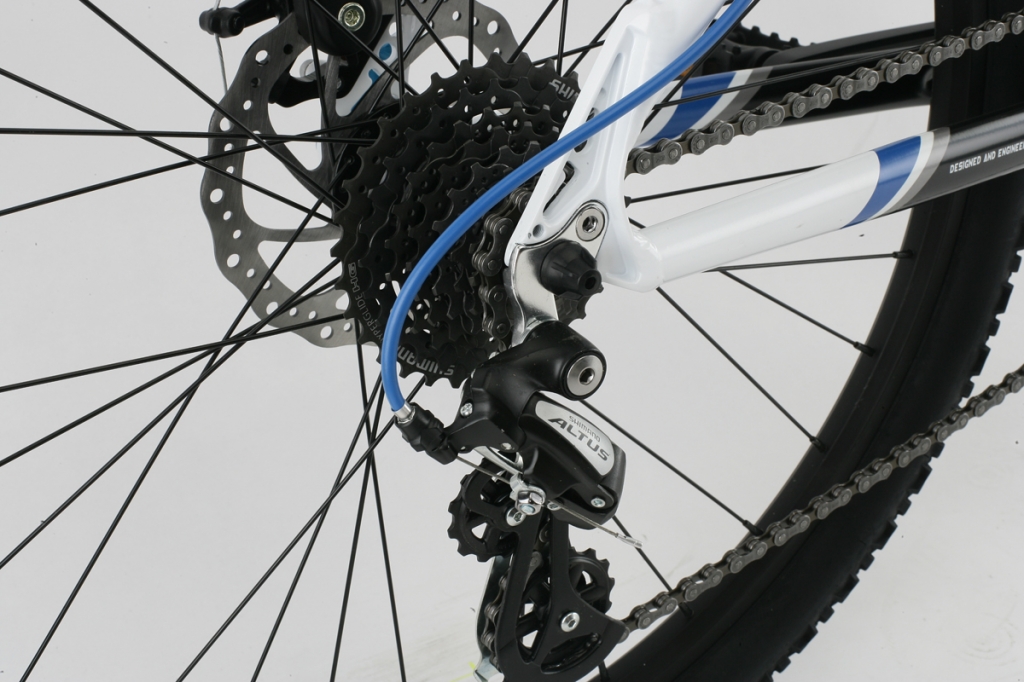

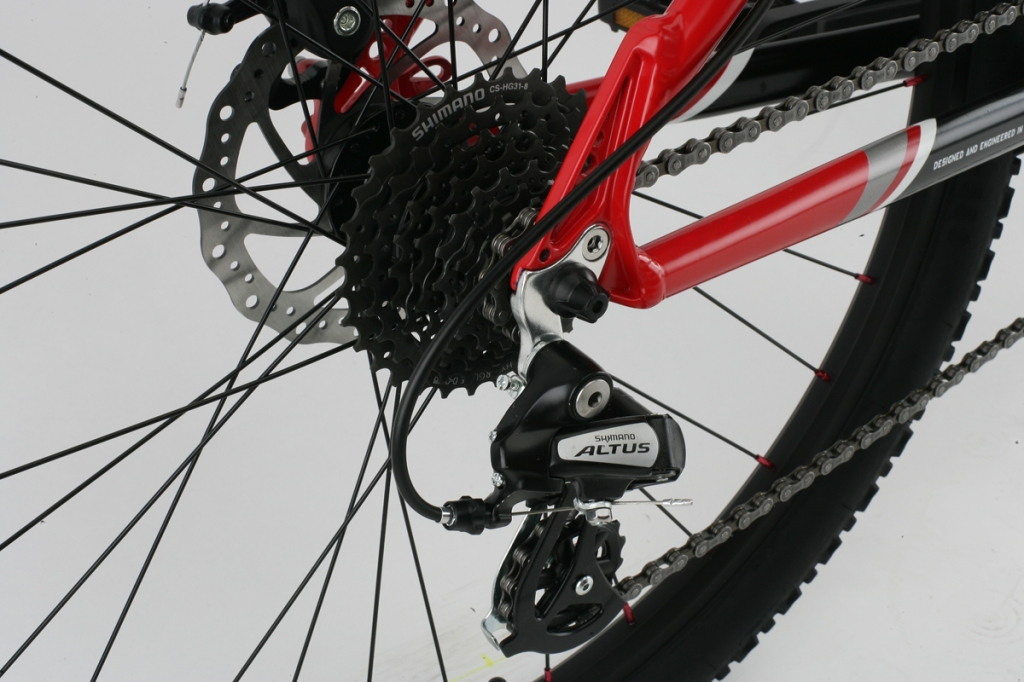

| Rear Deralleur | Shimano Altus |

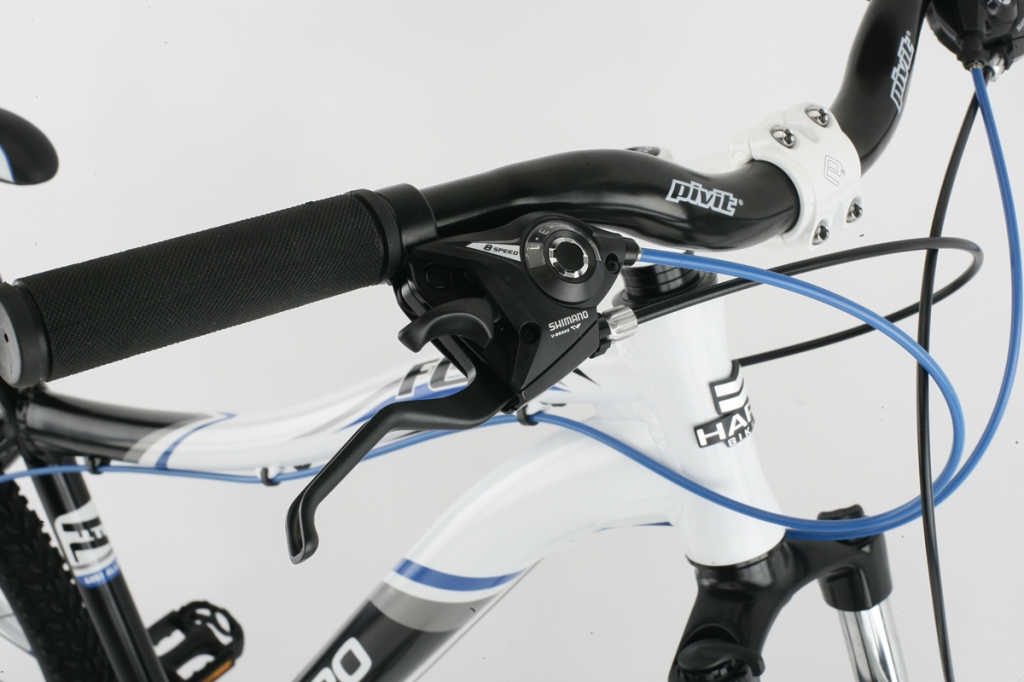

| Derailleur Shifter | Shimano EF-51 EZ Fire, 8 speed |
| Pedals | Nylon ATB |
| Wheels | |
| Tires | H-5120, 26 x 2.1" |
| Wheels/Rims | DH-18 doublewall, 32h |
| Hubs | Pivit disc alloy cassette w/ quick release |
| Freewheel/Cassette | Shimano HG-31, 8 speed cassette, 11-32 |
| Braking System | |

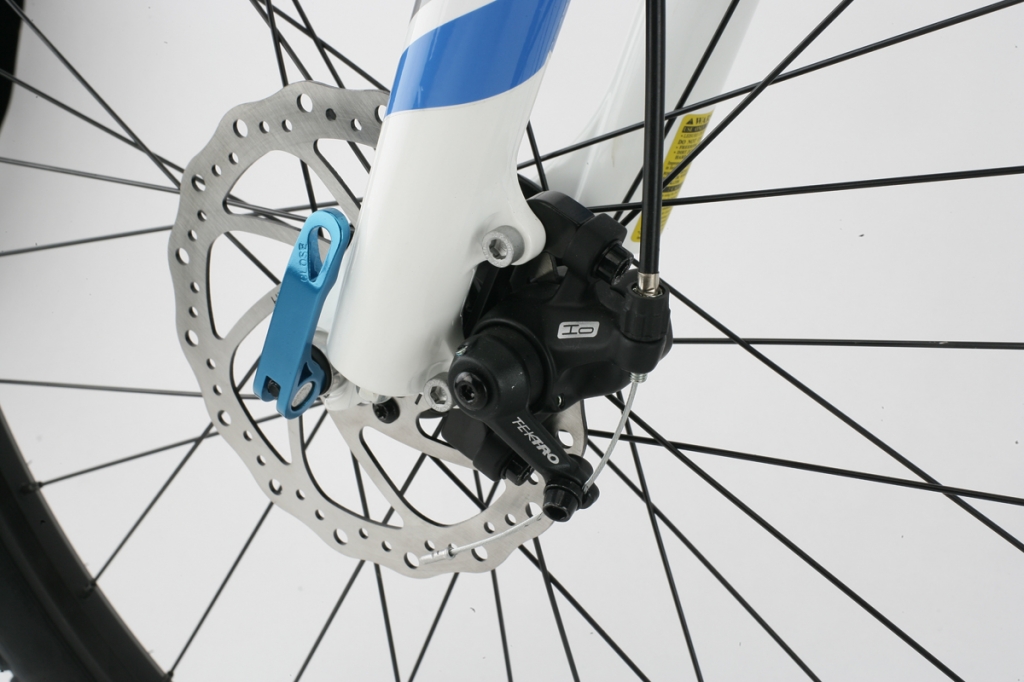

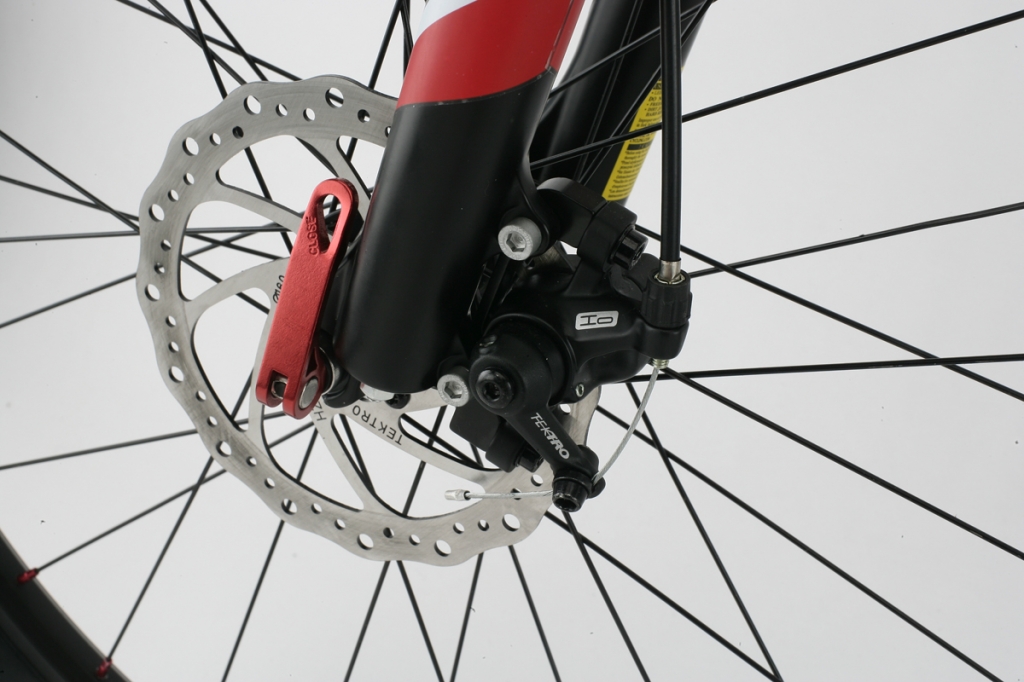

| Brakes | Tektro IO mechanical disc w/ 6" rotors |
| Brake Levers | Shimano EF-51 |
| Other Components | |
| Grips | Dual density |
| Handle Bar | Pivit riser bar, 30mm rise, 640mm width, 31.8mm clamp |
| Stem | Pivit alloy, 7 degree rise |

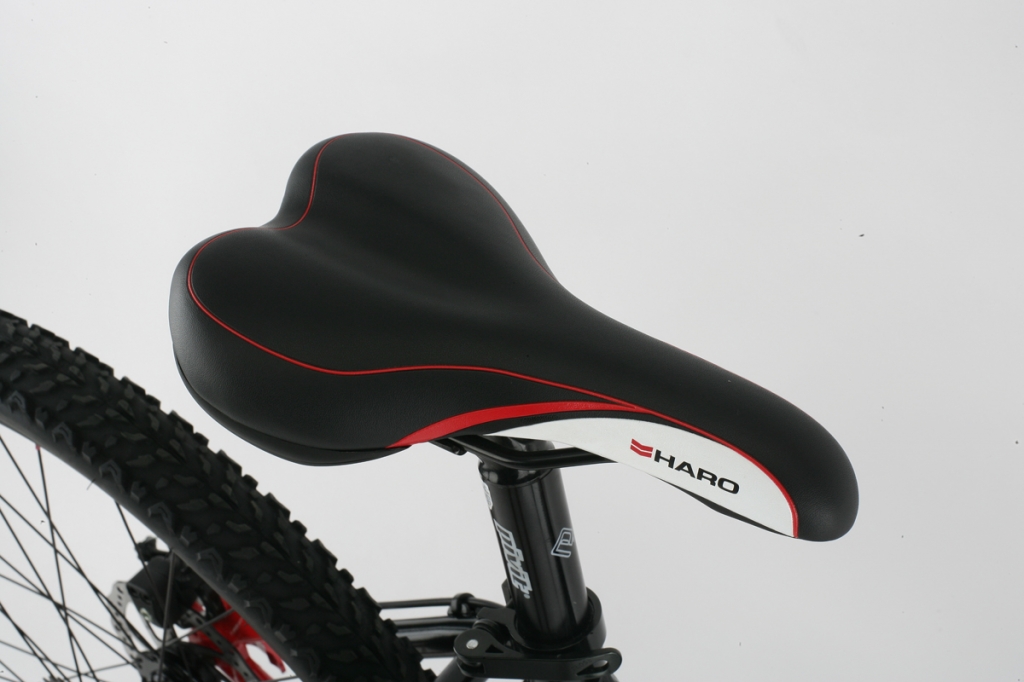

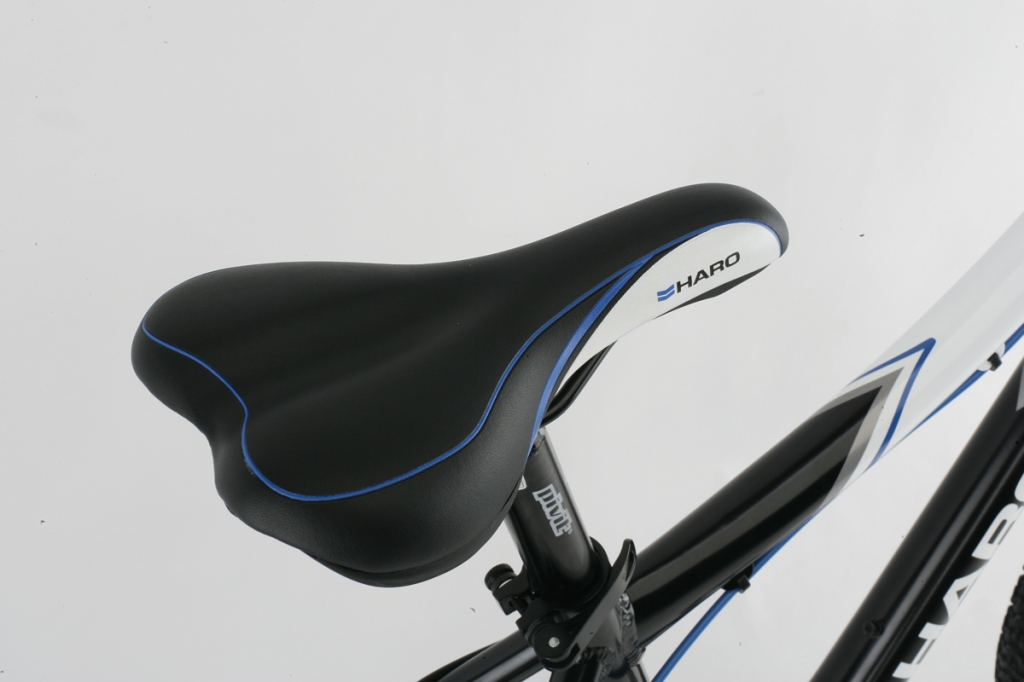

| Seat | Haro Sport |
| Seat Post | Pivit alloy micro adjust, 30.9mm |
| Seat Clamp | Pivit alloy quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
