FEATURES
- Lightweight oversized 6061 aluminum frame
- Haro 410E 50mm travel suspension fork
- Shimano EZ Fire shifters and derailleurs
- Pivit alloy front and rear hubs with quick release skewers
- 14" & 17" Step-thru available
| Frame Components | |
|---|---|
| Frame | Flightline 6061 T6 oversized aluminum |
| Fork | Haro 420-E, 50mm travel |
| Headset | Ritchey Logic LB |
| Drivetrain | |
| Cranks | SR Suntour XR 172, 22/32/42 |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC Z51 |

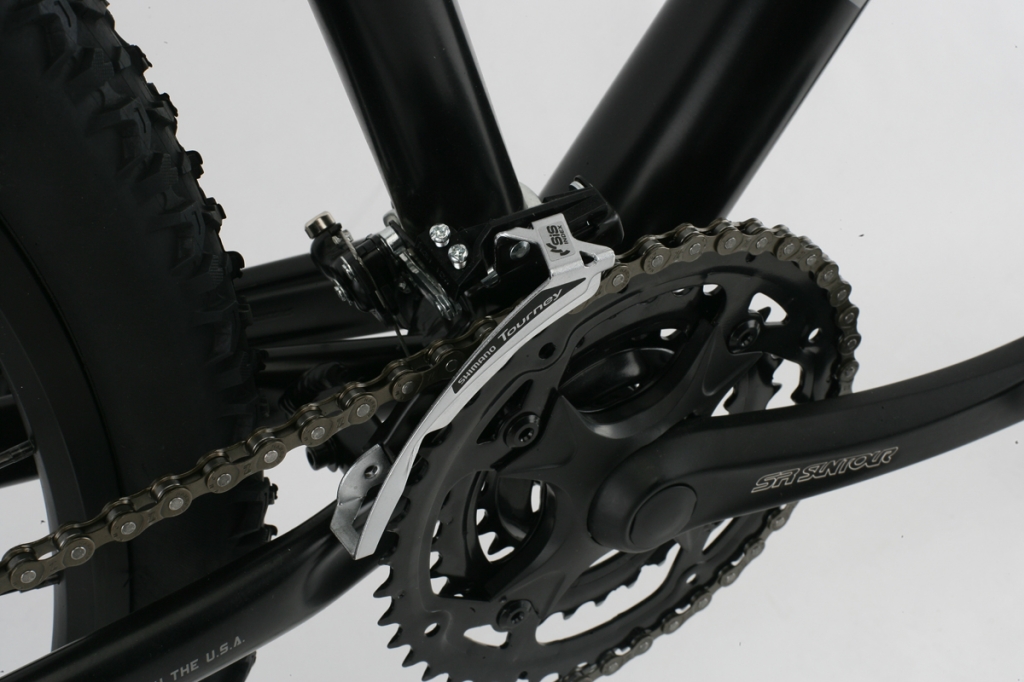

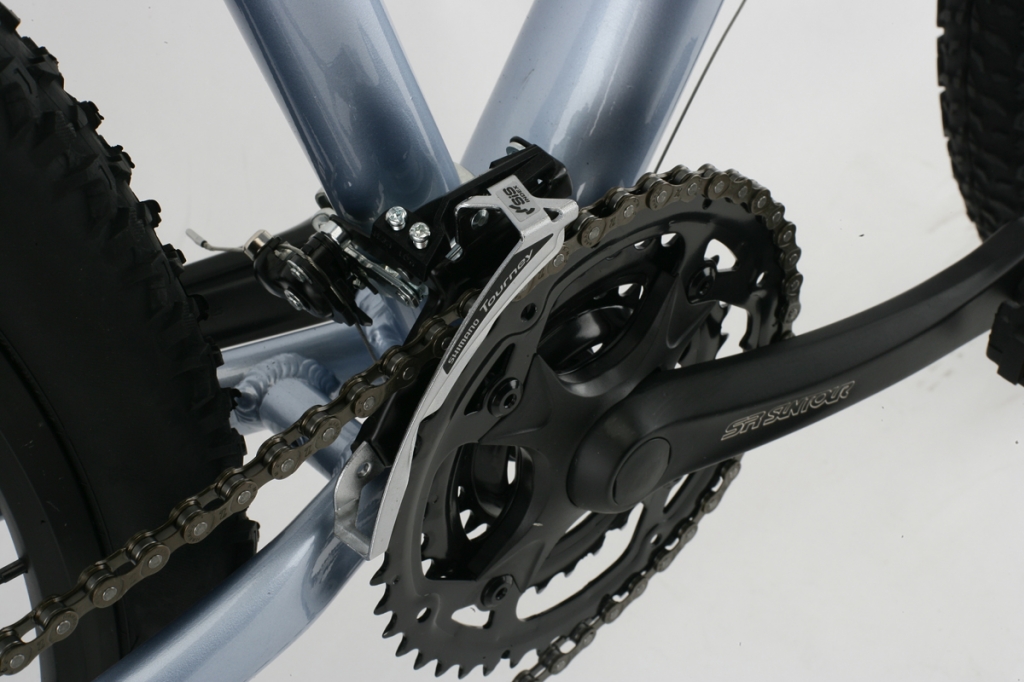

| Front Derailleur | Shimano TX-50 |

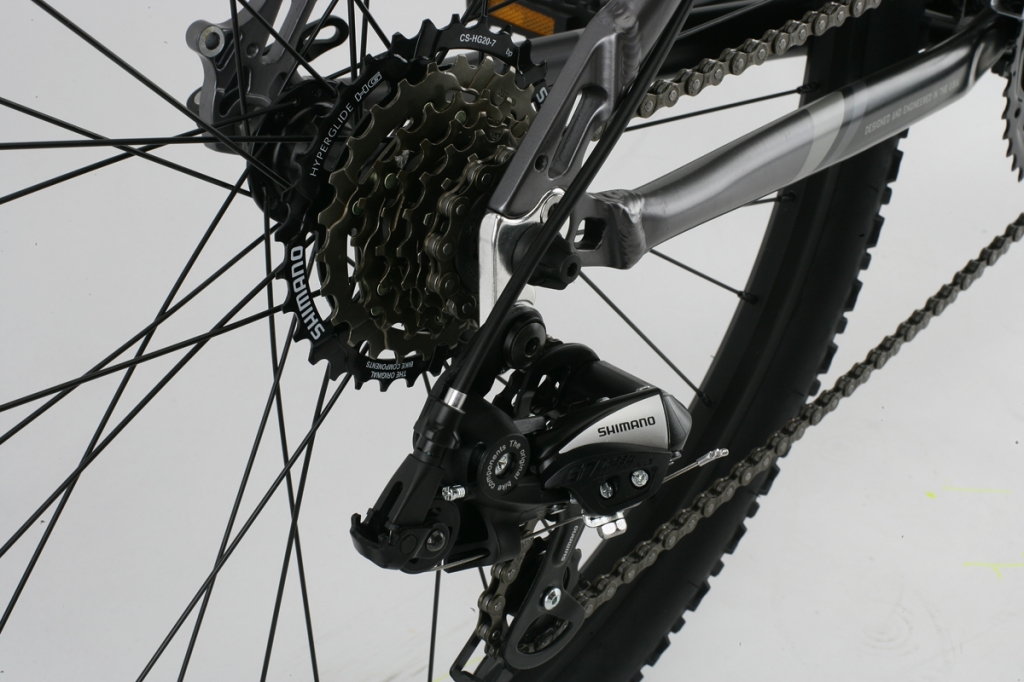

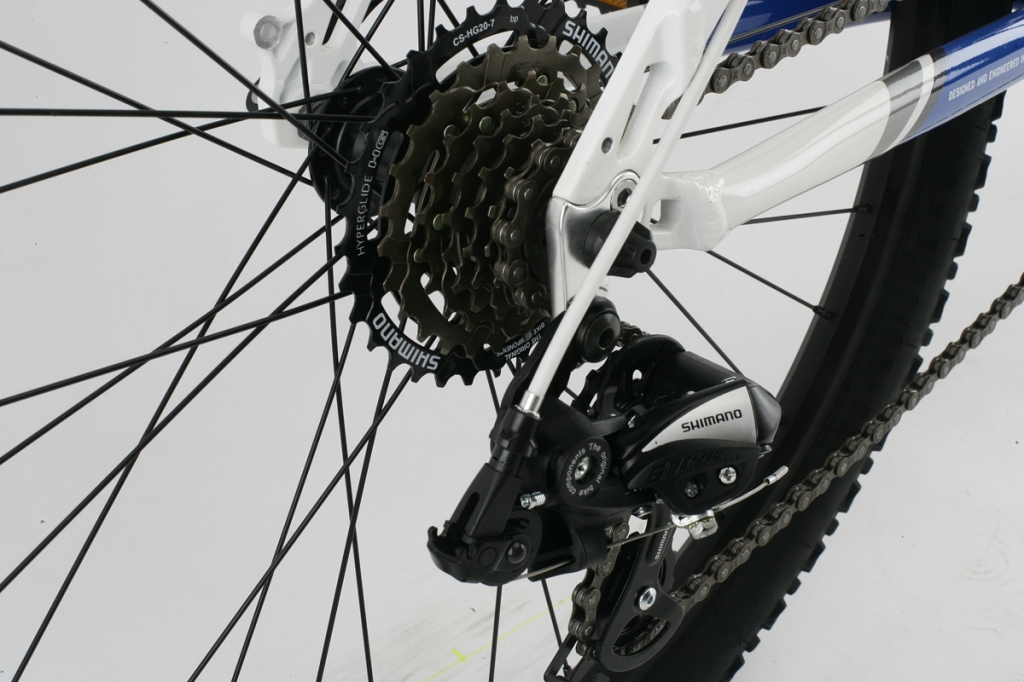

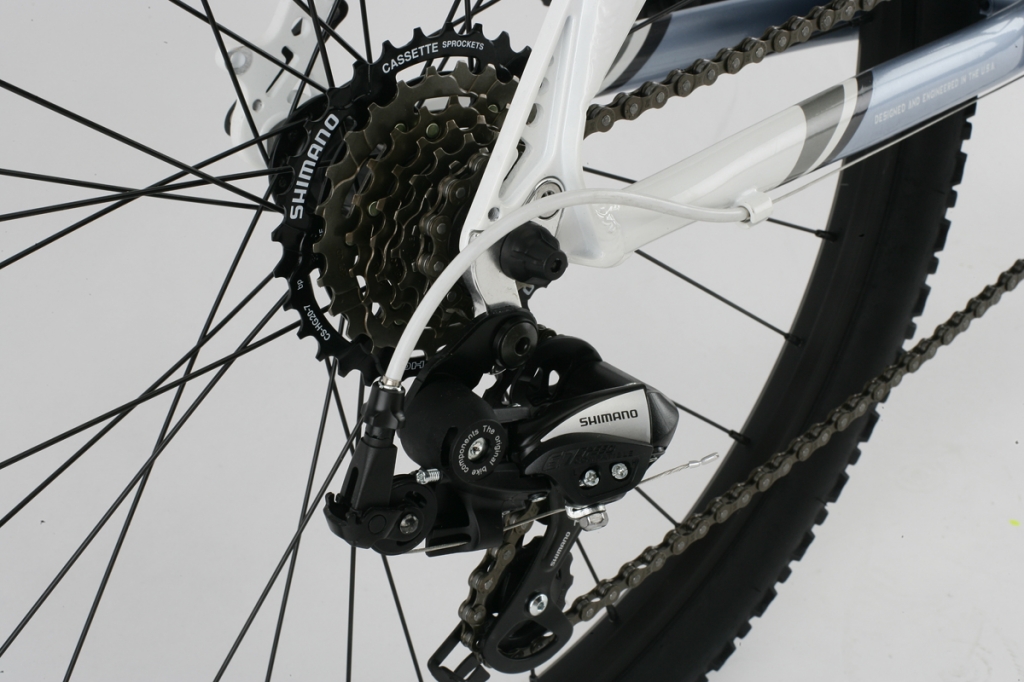

| Rear Deralleur | Shimano TX-55 |

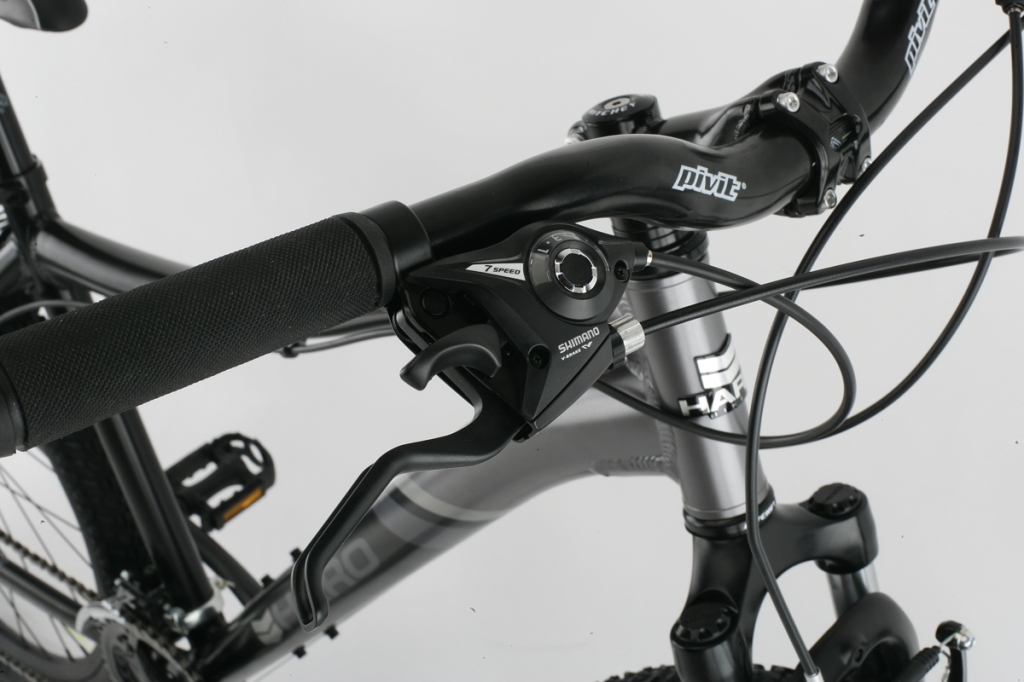

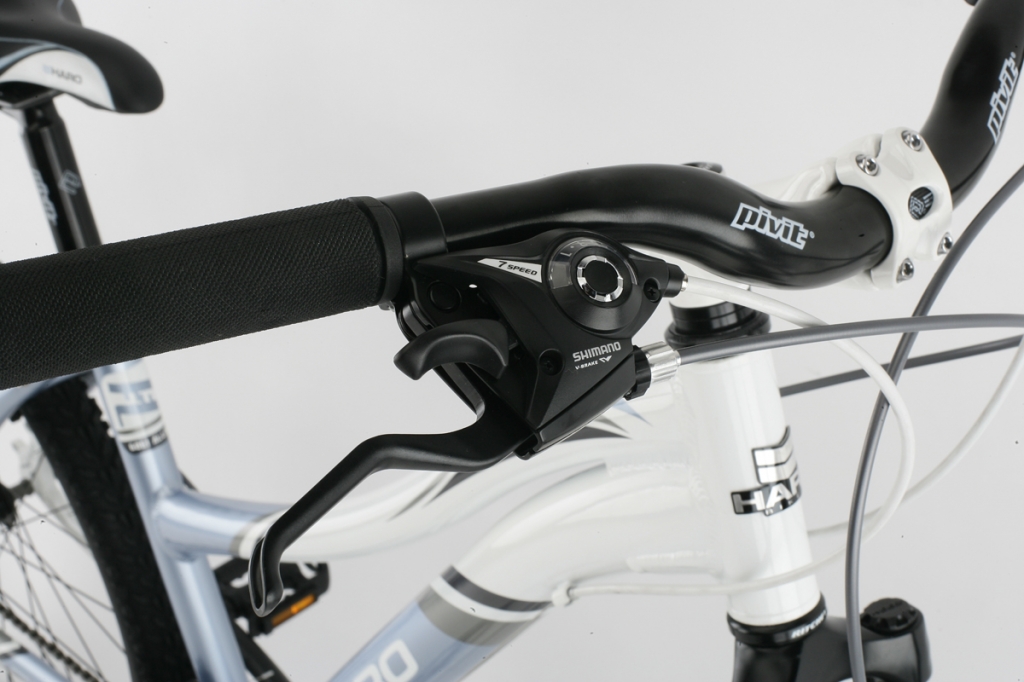

| Derailleur Shifter | Shimano EF-51 EZ Fire, 7 speed |
| Pedals | Nylon ATB |
| Wheels | |
| Tires | H-5120, 26 x 2.1" |
| Wheels/Rims | DH-18 doublewall, 32h |
| Hubs | Pivit alloy cassette w/ quick release |
| Freewheel/Cassette | Shimano HG-20, 7 speed cassette, 12-32 |
| Braking System | |

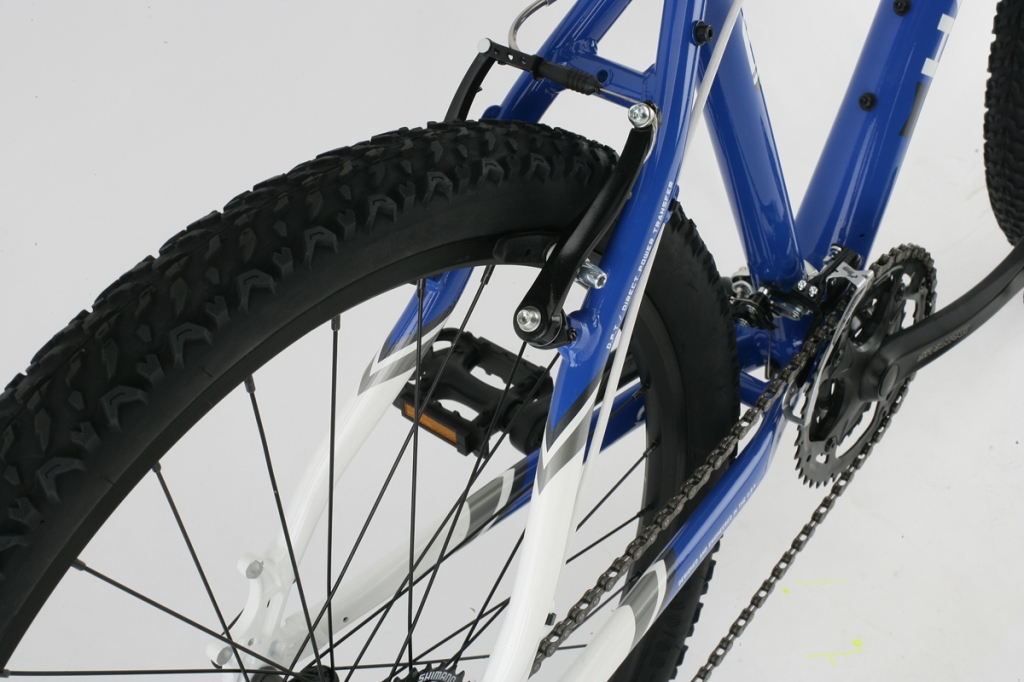

| Brakes | Alloy direct pull w/ linear spring |
| Brake Levers | Shimano EF-51 |
| Other Components | |
| Grips | Dual density |
| Handle Bar | Pivit riser bar, 30mm rise, 640mm width, 31.8mm clamp |
| Stem | Pivit steel, 10 degree rise |

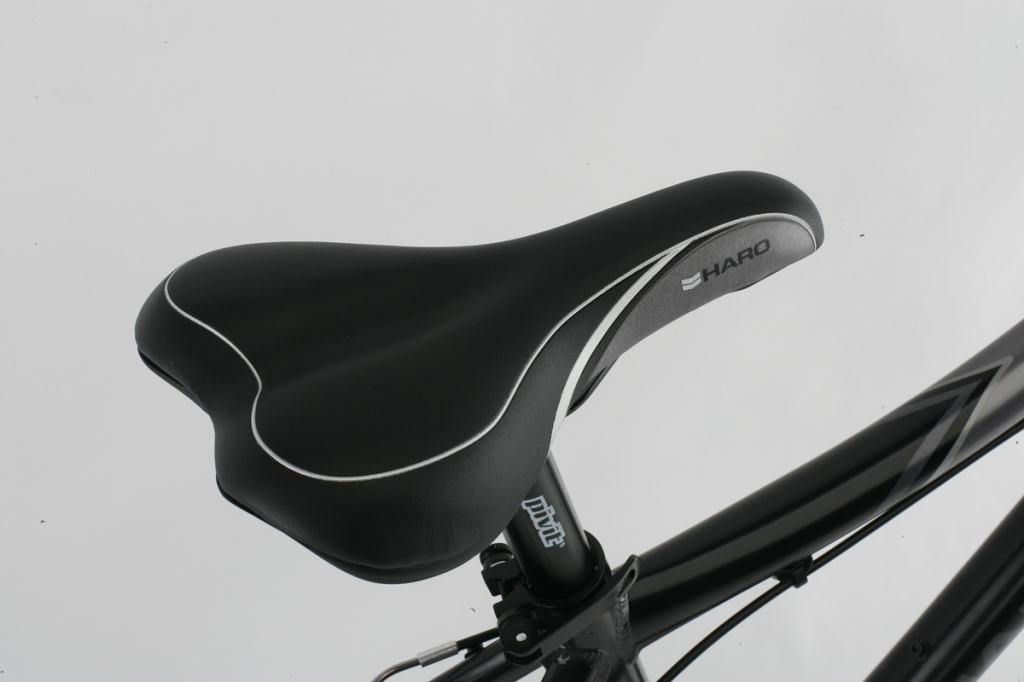

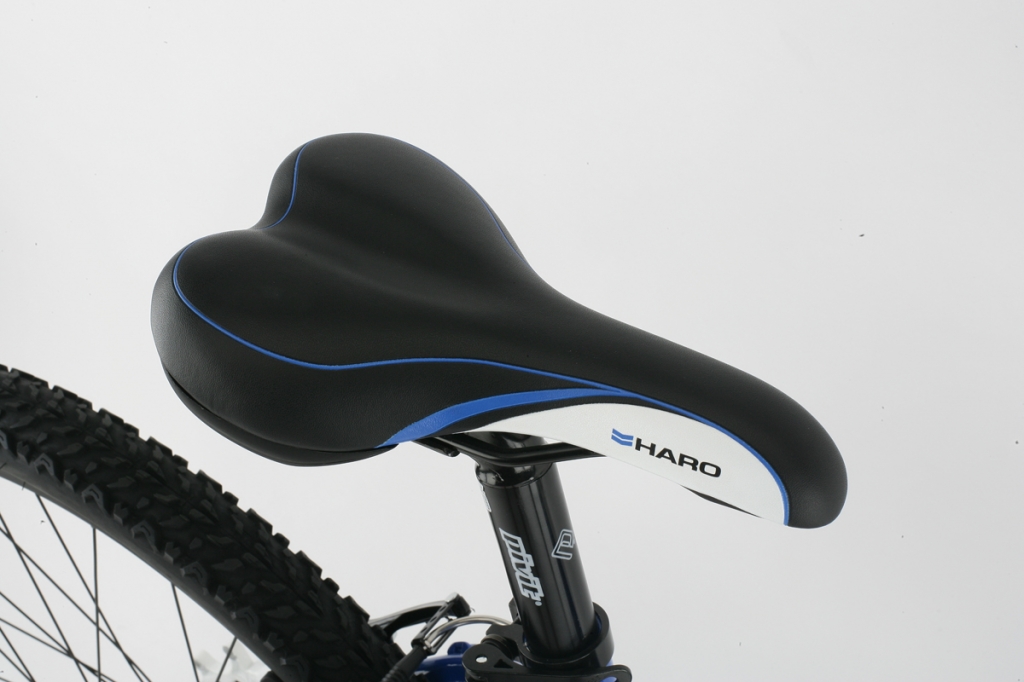

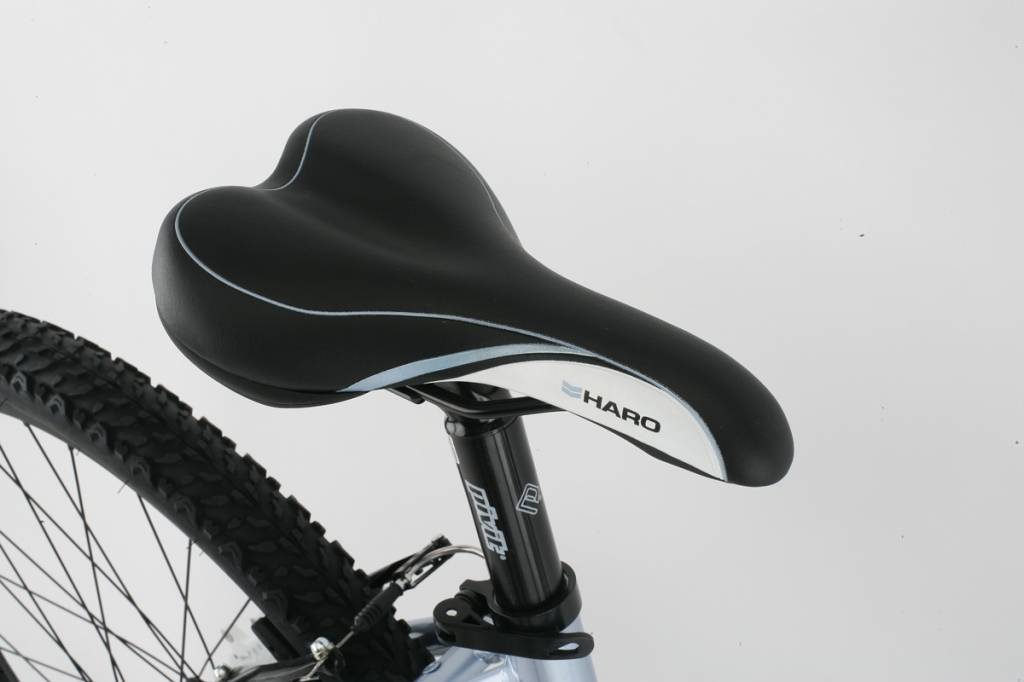

| Seat | Haro Sport |
| Seat Post | Pivit alloy micro adjust, 30.9mm |
| Seat Clamp | Pivit alloy quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
