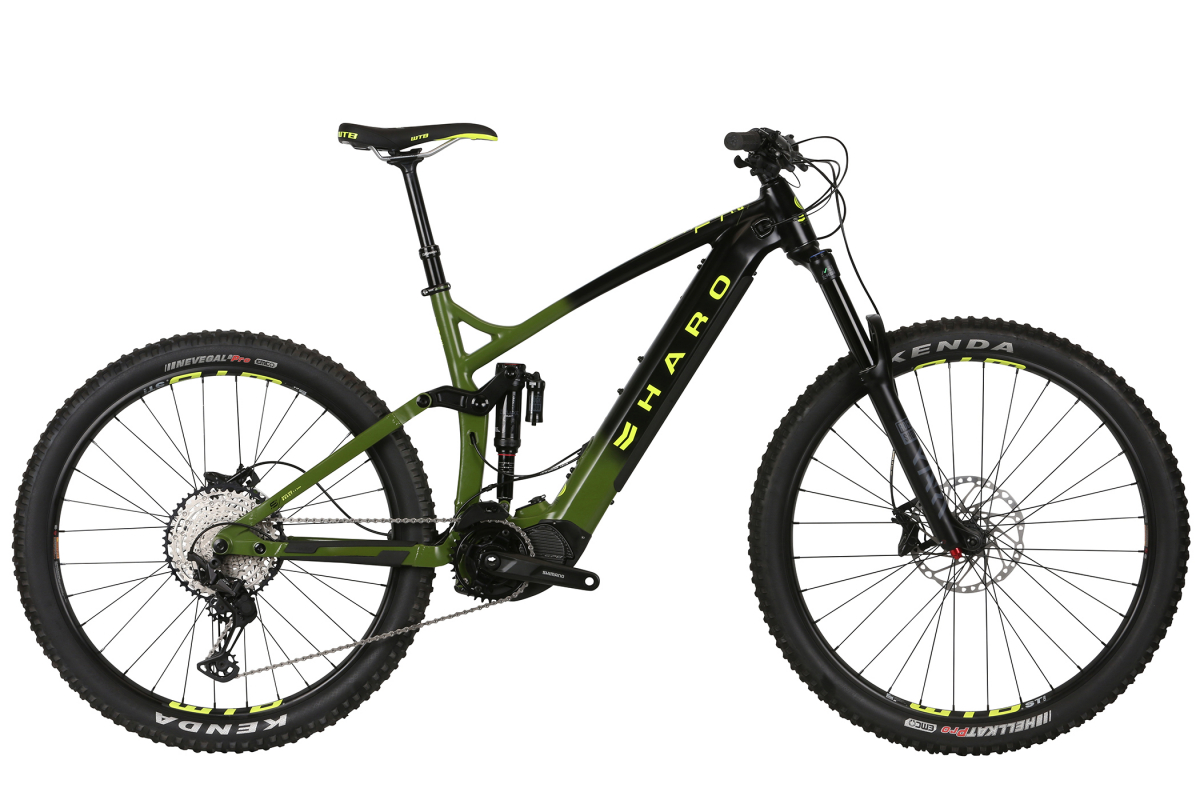

Shift IO 7
- Year: 2021
- MSRP: $5,799.99 *
- Sizes: S, M, L, XL
- Colors: Matte Black / Army Green Fade
- Weight: 52 lbs
- NO LONGER AVAILABLE
The Shift I/O 7 features our new 160mm travel 4-Bar linkage frame, with its up-to-date geometry, coupled with a Rockshox suspension package including a Yari RC 29" Boost fork and a Super Deluxe Select R Trunnion air shock for solid Enduro-type 160mm front and rear suspension. Its internal 630Wh down tube battery supplies power to the new Shimano EP-800 motor, which features increased torque (85Nm) at lower RPMs, a smaller size and a quieter function. The Shift I/O 7 features two different wheel sizes (for M to XL-sized frames) with a 29" front wheel and a 27.5" rear wheel to get the best of both worlds for an unmatched riding feel. With its new Shimano XT and SLX 12-speed components, the Shift I/O 7 allows for smooth, powerful rides up or down the hills with a wide-range gear ratio to save battery life when needed and precise, crisp shifting.
FEATURES
- Shift I/O X6 Aluminum frame for Shimano STePS EP-800 motor, 160mm travel
- Rockshox Super Deluxe Select R Trunnion air shock
- Rockshox Yari RC 29" Boost, 160mm Debonair fork
- New Shimano EP-800, 250W. / 85Nm Torque motor
- Darfon 630Wh internal battery
- Shimano SW-EM800 Mode switch, Integrated speed sensor
- Shimano XT M8100 12-spd, Shadow Plus rear derailleur
- Shimano SLX M7100 12-spd 10-51T cassette
- Shimano FC-EM600 crankset, 34T 12-Spd Chainring
- Shimano MT-520 hydraulic 4-piston disc brakes, 203mm rotors
- X-Fusion Manic dropper post w/ 100/125mm travel
- Kenda Nevegal 2 29"/27.5" 2.6" TCS folding tires
Frame Components | |
---|---|
Frame | Shift Plus I/O X6 Aluminum frame for Shimano STePS EP-800 | 4-Bar linkage | Vertical shock | 160mm travel | Internal battery | Enduro bearings |
Fork | Rockshox Yari Motion Control RC 29" Boost | 160mm | E-MTB | 15x110 MXL Stealth | Debonair | Lockout |
Headset | FSA Orbit 1.5E ZS No.57E | Internal Aluminum cups 1-1/8"-1.5" | Bottom AC Bearing | 6mm top cone |
Frame Shock | Rockshox Super Deluxe Select R 225x75mm | Trunnion Type | Debonair | 2 Tokens | MM Tune |
Drivetrain | |
Cranks | Shimano FC-EM600 forged | 34T 12-Spd Chainring | 165mm all sizes |
Chain | KMC e12T | 12-spd | Turbo High Durability |
Front Derailleur | Shimano SM-CDE70 Chain-guide |
Rear Deralleur | Shimano XT M8100 12-spd | Shadow Plus |
Derailleur Shifter | Shimano SLX M7100 12-spd |
Drive Unit | New Shimano STePS EP-800 | 250W. | 85Nm Torque |
Battery | New Darfon internal 630Wh | Shimano STePS Compatible |
Pedals | N/A |
Wheels | |
Tires | Kenda NEVEGAL 2 29x2.6" Front | 27.5x2.6" Rear | EMC 60tpi | Aramid beads | Tubeless Compatible |
Wheels/Rims | WTB ST i35 TCS 2.0 | Tubeless Ready | 29" Front | 27.5" Rear | 40mm wide | Double Wall |
Hubs | Front: Pivit Aluminum disc Boost SB | Rear: Pivit Micro-Drive | 12-spd | E-Bike specific | 32h | Sealed Bearings | Front & Rear Thru-Axles |
Freewheel/Cassette | Shimano SLX M7100 | 12-spd | 10-51T |
Spokes | Stainless 14g |
Braking System | |
Brakes | Shimano BR-MT520 Hydraulic Disc | 4-Piston | 203mm Rotors w/ Integrated Speed-Sensor Magnet |
Brake Levers | Shimano BL-MT501 Hydraulic |
Other Components | |
Grips | WTB Waffel Single Clamp |
Handle Bar | Haro Pivit Aluminum riser bar | 35mm O.D. | 780mm wide | 20mm rise |
Stem | Haro Pivit 3D Forged alloy 35mm | Ext. 35mm |
Seat | WTB Volt Comp 150mm Wide |
Seat Post | X-Fusion Manic 100/125/150mm Dropper post | Horizontal remote | Aluminum 31.6mm |
Extras | Custom motor covers | Tubeless Valves | Darfon Battery charger | Battery Lock |
Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
S | 65° | 76.5° | 565mm (22.2") | 394mm (15.5") | 450mm (17.7") | 20mm (0.8") | 1193mm (47") | 767mm (30.2") | 594mm (23.4") | 425mm (16.7") | 556mm (21.9") | 46mm (1.8") | 35mm | 780mm | 165mm |
M | 65° | 76.5° | 599mm (23.6") | 432mm (17") | 450mm (17.7") | 20mm (0.8") | 1229mm (48.4") | 786mm (30.9") | 631mm (24.8") | 450mm (17.7") | 568mm (22.4") | 51mm (2") | 35mm | 780mm | 165mm |
L | 65° | 76.5° | 627mm (24.7") | 470mm (18.5") | 450mm (17.7") | 20mm (0.8") | 1259mm (49.6") | 789mm (31.1") | 640mm (25.2") | 475mm (18.7") | 568mm (22.4") | 51mm (2") | 35mm | 780mm | 165mm |
XL | 65° | 76.5° | 655mm (25.8") | 495mm (19.5") | 450mm (17.7") | 20mm (0.8") | 1288mm (50.7") | 790mm (31.1") | 649mm (25.6") | 500mm (19.7") | 568mm (22.4") | 51mm (2") | 35mm | 780mm | 165mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
