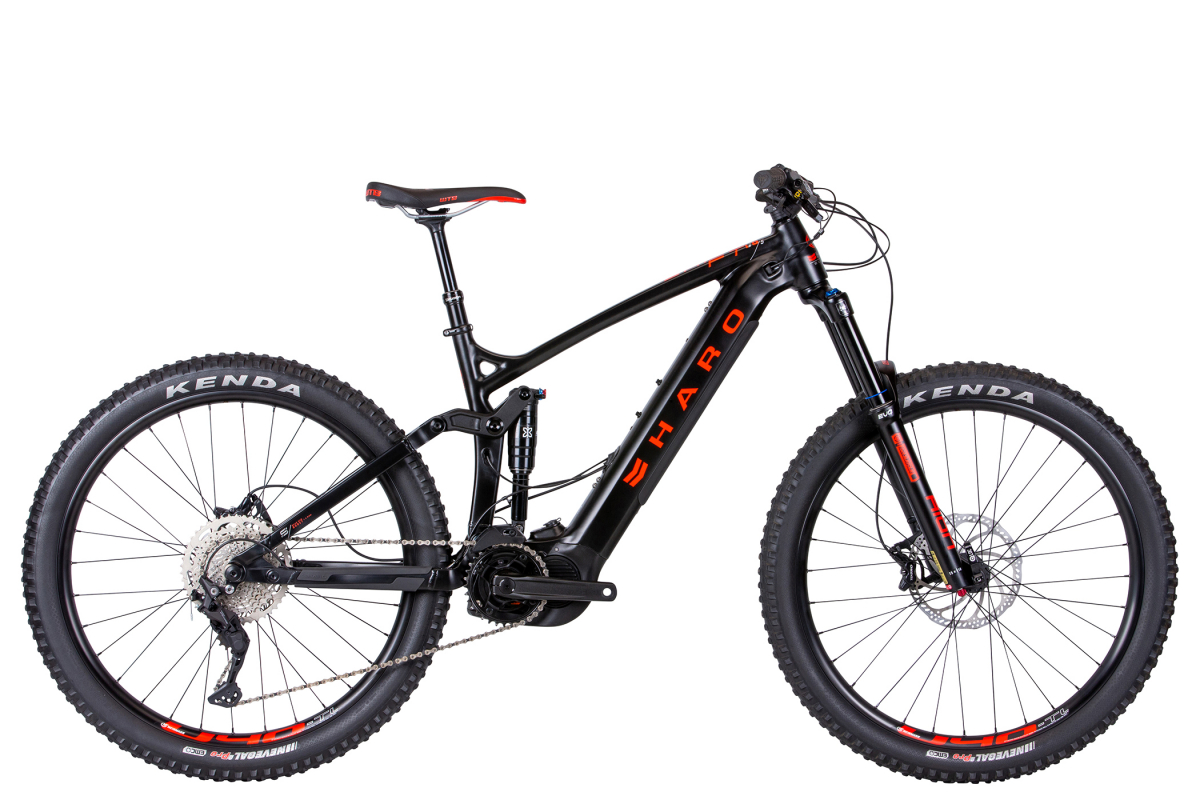

The Shift i/O 5 is a powerful All-Mountain / Enduro contender. Built upon our new 4-bar linkage frame with 160mm of rear travel and a Suntour Aion 35mm EVO Boost fork, it features the new Shimano EP-800 MTB-specific mid-motor system, which delivers 250 watts of power, 85 Nm of user-friendly torque, and an internal 504Wh battery for an outstanding integrated look. A Shimano Deore 10-speed 1x transmission keeps things simple while the Kenda Nevegal 2 27.5" x 2.6" tires with U-40 double wall rims make you feel like you are on rails around even the loosest terrain. The Tektro 745 4-piston hydraulic brakes, with their powerful braking, will bring it all to a quick stop when needed. The Shift i/O 5 remains one of the most versatile, yet affordable dual-suspension e-MTBs on the market today.
FEATURES
- Shift I/O X6 Aluminum frame for Shimano STePS E8000 motor, 160mm travel
- Suntour Aion 35mm EVO 27.5"x160mm Boost fork
- X-Fusion 02 Pro RL, Trunnion, 225x75mm, Trunnion rear shock
- New Shimano STePS EP-800, 250 Watts, 85Nm Torque
- Darfon 504Wh internal battery on all frame sizes
- Integrated speed sensor
- Deore M5120, 10-spd, Shadow Plus rear derailleur
- Deore M4100 10-spd 11-46T cassette & shifter
- Samox forged crankarms, Shimano E7000 34T chainring
- Tektro HD-M745 4-piston brakes, 203mm rotors
| Frame Components | |
|---|---|
| Frame | Shift Plus I/O X6 Aluminum frame for Shimano STePS EP-800 | 4-Bar linkage | vertical shock | 160mm travel | Internal Battery | Enduro Bearings |
| Fork | Suntour AION-35 EVO | Boost RC-PCS 27.5" | 160mm travel | 15x110mm Thru-Axle | Hydraulic Lockout |
| Headset | FPD Dozer 1-1/8"-1.5" | Bottom AC Bearing | 8mm Cone |
| Frame Shock | X-Fusion 02 Pro RL | Trunnion | 225x75mm | Rebound adjuster & hydraulic lockout |
| Drivetrain | |
| Cranks | Samox crankarms | Shimano 34T Chainring | 165mm all sizes |
| Chain | KMC e10S Sport |
| Front Derailleur | Shimano E-7000 chain guide |
| Rear Deralleur | Shimano Deore RD-M5120 | 10-spd | Shadow Plus |
| Derailleur Shifter | Shimano Deore SL-M4100-R 10-spd |
| Drive Unit | New Shimano STePS EP-800 | 85Nm Torque |
| Battery | New Darfon internal 504Wh | Shimano STePS compatible |
| Pedals | N/A |
| Wheels | |
| Tires | Kenda NEVEGAL 2 27.5x2.6" | EMC 60tpi | Aramid beads | Tubeless Compatible |
| Wheels/Rims | Weinmann U-40 TL | Tubeless Ready | 27.5"x40mm | Double Wall |
| Hubs | Pivit Aluminum disc Boost | 32h | Cassette | Sealed bearings | Front & rear Thru-Axles |
| Freewheel/Cassette | Shimano Deore M4100-10 | 10-spd | 11-46T |
| Spokes | Stainless 14g |
| Braking System | |
| Brakes | Tektro HD-M745 hydraulic | 4-Piston Calipers | 203 / 180mm rotors |
| Brake Levers | Tektro HD-M745 |
| Other Components | |
| Grips | WTB Waffel Single Clamp |
| Handle Bar | Haro Pivit Alloy riser bar | 31.8mm O.D.| 780mm wide | 20mm rise |
| Stem | Haro Pivit 3D Forged alloy 50mm |
| Seat | WTB Volt Sport 150mm Wide |
| Seat Post | X-Fusion Manic 100/125/150mm Dropper post | Horizontal remote | Aluminum 31.6mm |
| Extras | Custom motor covers | Tubeless Valves | Darfon Battery charger | Battery Lock |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 65° | 77° | 565mm (22.2") | 394mm (15.5") | 450mm (17.7") | 20mm (0.8") | 1203mm (47.4") | 773mm (30.4") | 604mm (23.8") | 425mm (16.7") | 565mm (22.2") | 51mm (2") | 40mm | 780mm | 165mm |
| M | 65° | 77° | 593mm (23.3") | 432mm (17") | 450mm (17.7") | 20mm (0.8") | 1232mm (48.5") | 780mm (30.7") | 613mm (24.1") | 450mm (17.7") | 565mm (22.2") | 51mm (2") | 40mm | 780mm | 165mm |
| L | 65° | 77° | 622mm (24.5") | 470mm (18.5") | 450mm (17.7") | 20mm (0.8") | 1262mm (49.7") | 783mm (30.8") | 622mm (24.5") | 475mm (18.7") | 565mm (22.2") | 51mm (2") | 40mm | 780mm | 165mm |
| XL | 65° | 77° | 650mm (25.6") | 495mm (19.5") | 450mm (17.7") | 20mm (0.8") | 1291mm (50.8") | 788mm (31") | 631mm (24.8") | 500mm (19.7") | 565mm (22.2") | 51mm (2") | 40mm | 780mm | 165mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
