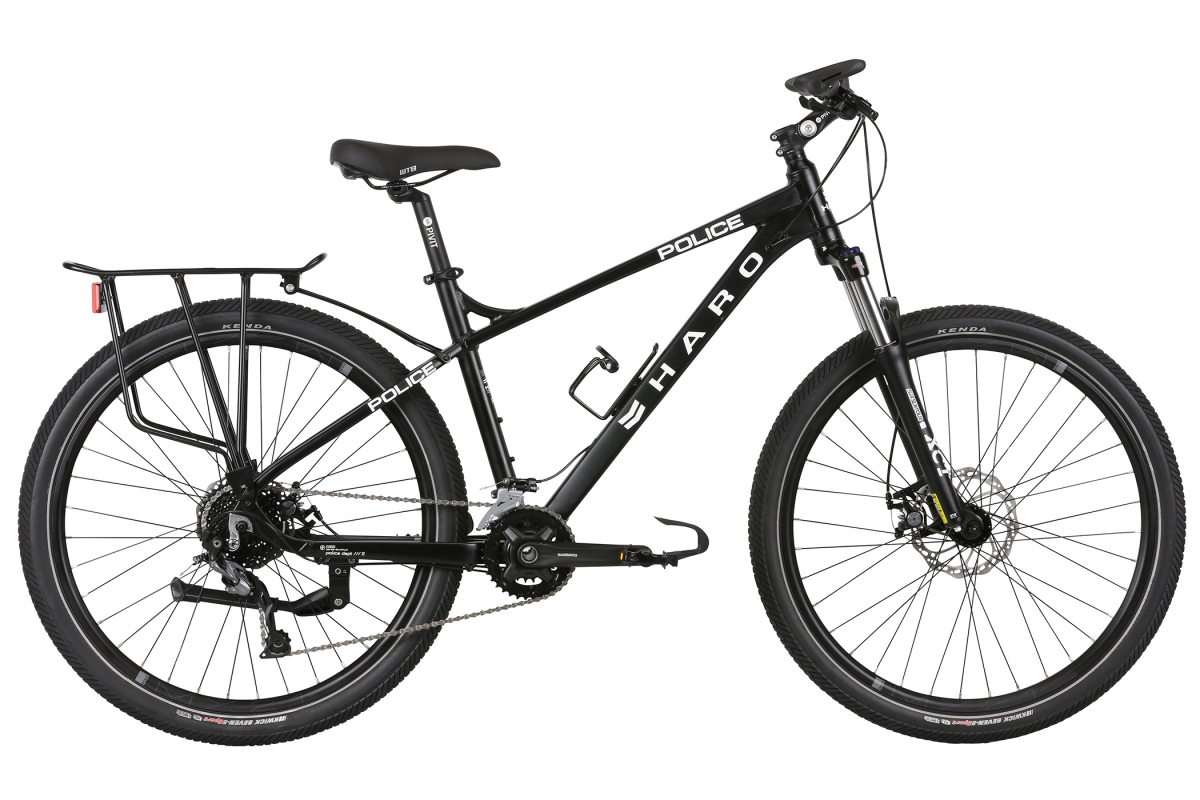

With its newly re-designed frame, the PD 2 features a low stand-over height for easier climbing in & out of the saddle. Its lightweight aluminum frame features an internal head tube, internal cable routing and an improved kickstand position. It comes standard with a 2x9 drive train, versatile and capable of handling a wide variety of terrain. It rolls along on strong double-wall rims, stainless spokes and Kenda Kwick Seven.5 tires with reflective sidewalls for increased safety. The PD2 model features a Suntour XCT-30 100mm travel fork with a hydraulic lockout, which deactivates the up and down motion associated with suspension. The PD2 model is your trusted partner for community and outreach patrols.
FEATURES
- New Haro PD2 27.5" X6 frame, updated kickstand position
- Suntour XCT-30 HLO fork, 100mm
- Altus MT210-2 36/22T crankset
- Alivio M4000 2x9 derailleurs
- Pivit Adjustable-rise stem, ext.: 105mm
- Comfort grips w/ integrated Bar-Ends
- WTB Comfort Sport saddle
- MX-21 27.5" Aluminum DW rims w/ Stainless spokes
- Kenda Kwick Seven 2.0" tires w/ reflective stripes
- Promax disc brakes w/ 160mm rotors
- Rear rack, water-bottle cage & kickstand
| Frame Components | |
|---|---|
| Frame | New 2021 Haro PD2 27.5" X6 series Aluminum | Tapered Head Tube | Internal housing routing | chainstay disc brake mount | 68mm Threaded BSA |
| Fork | Suntour XCT-30 27.5"x100mm travel | Hydraulic lockout |
| Headset | 1-1/8" Threadless for 50mm OD headtube | w/ 13mm top cover |
| Drivetrain | |
| Cranks | Shimano Altus MT210-2 36/22T | 2-pc BB set |
| Bottom Bracket | Shimano external sealed cartridge 2-pc |
| Chain | KMC Z9 9-spd |
| Front Derailleur | Shimano Alivio M4020-M, 2x9 | Side-Swing | Front pull |
| Rear Deralleur | Shimano Alivio M4000 | 9-spd | Shadow Design |
| Derailleur Shifter | Shimano Acera SL-M3000 Rapidfire 2x9-spd |
| Pedals | VP steel cages | Short toe clips |
| Wheels | |
| Tires | Kwick Seven.5 27.5x2.0" | 60TPI | K-Shield | Reflective Stripes |
| Wheels/Rims | MX-21 27.5"x27mm Aluminum double wall |
| Hubs | Formula DC-20 | DC-22 | cassette 36h QR |
| Freewheel/Cassette | Shimano CS-HG200-9 | 9-spd | 11-36T |
| Spokes | Stainless steel |
| Braking System | |
| Brakes | Promax DSK-300 Mechanical | 160mm Rotors |
| Brake Levers | Tektro ML-520 Alloy | 2-Finger |
| Other Components | |
| Grips | Velo Triple Density | Integrated Bar-Ends |
| Handle Bar | Pivit alloy 25mm riser 31.8mm |
| Stem | Pivit Adjustable | 31.8x105mm |
| Seat | WTB Comfort Sport |
| Seat Post | Pivit aluminum micro adjust 31.6mm |
| Seat Clamp | Pivit aluminum 34.9mm quick release |
| Extras | Rear rack | Water-Bottle cage | Kickstand |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 68° | 73° | 589mm (23.2") | 406mm (16") | 445mm (17.5") | 45mm (1.8") | 1116mm (43.9") | 692mm (27.2") | 585mm (23") | 396mm (15.6") | 496mm (19.5") | 42mm (1.65") | 105mm | 700mm | 170mm |
| M | 68° | 73° | 613mm (24.1") | 457mm (18") | 445mm (17.5") | 45mm (1.8") | 1142mm (44.4") | 731mm (28.8") | 599mm (23.7") | 421mm (16.6") | 496mm (19.5") | 42mm (1.65") | 105mm | 700mm | 170mm |
| L | 68° | 73° | 624mm (24.6") | 508mm (20") | 445mm (17.5") | 45mm (1.8") | 1153mm (45.4") | 755mm (29.7") | 603mm (23.9") | 439mm (17.3") | 496mm (19.5") | 42mm (1.65") | 105mm | 700mm | 175mm |
| XL | 68° | 73° | 637mm (25.1") | 559mm (22") | 445mm (17.5") | 45mm (1.8") | 1167mm (45.6") | 787mm (31") | 615mm (24.2") | 446mm (17.6") | 496mm (19.5") | 42mm (1.65") | 105mm | 700mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
