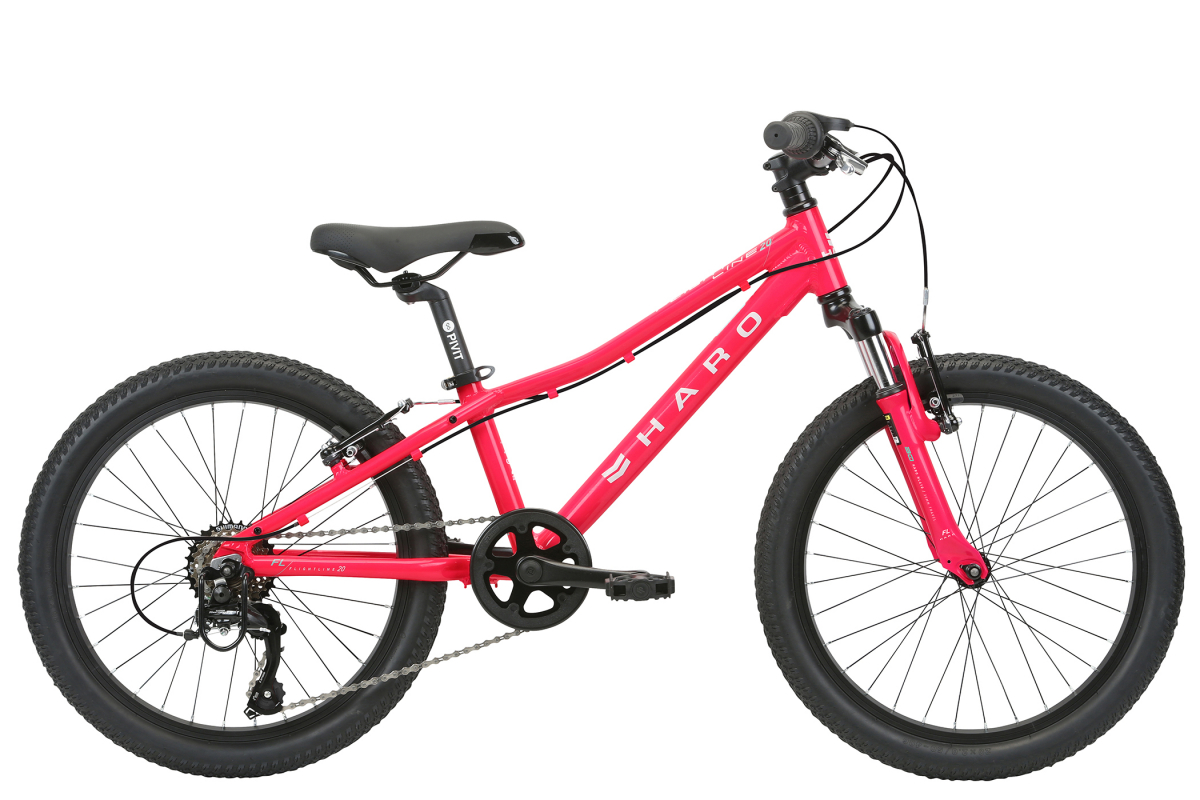

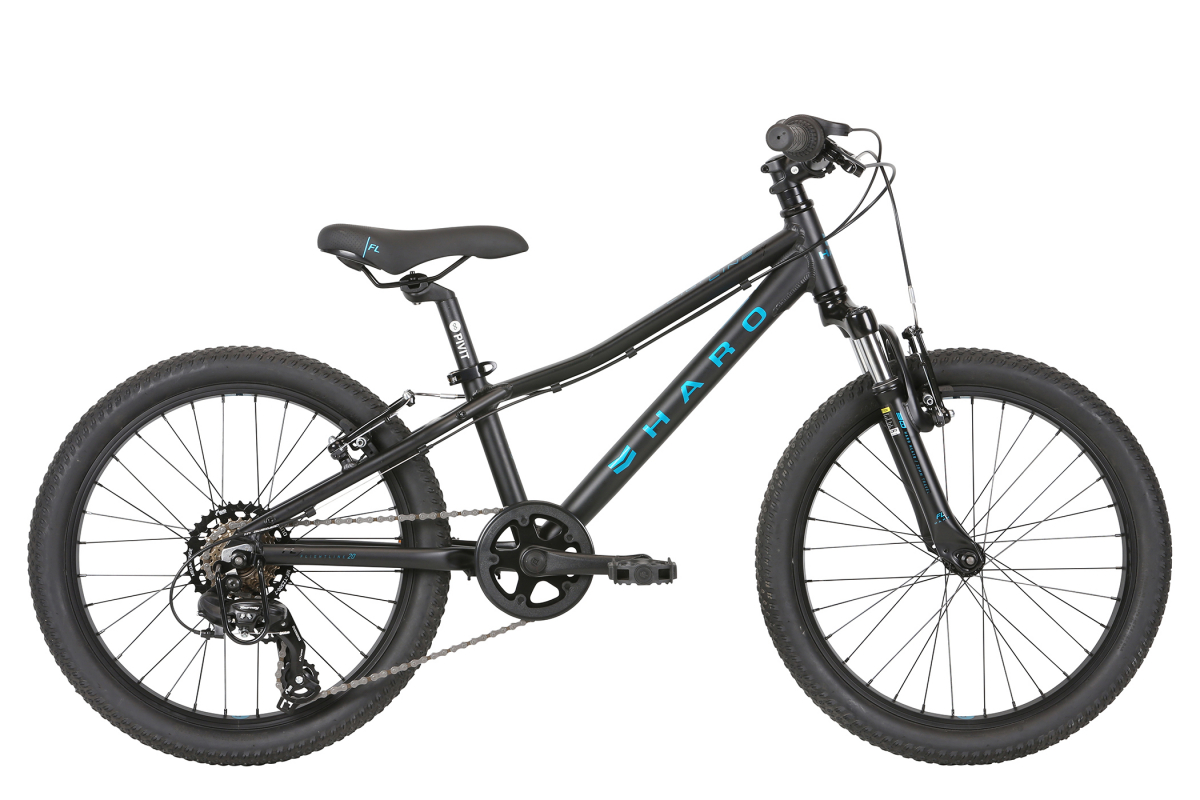

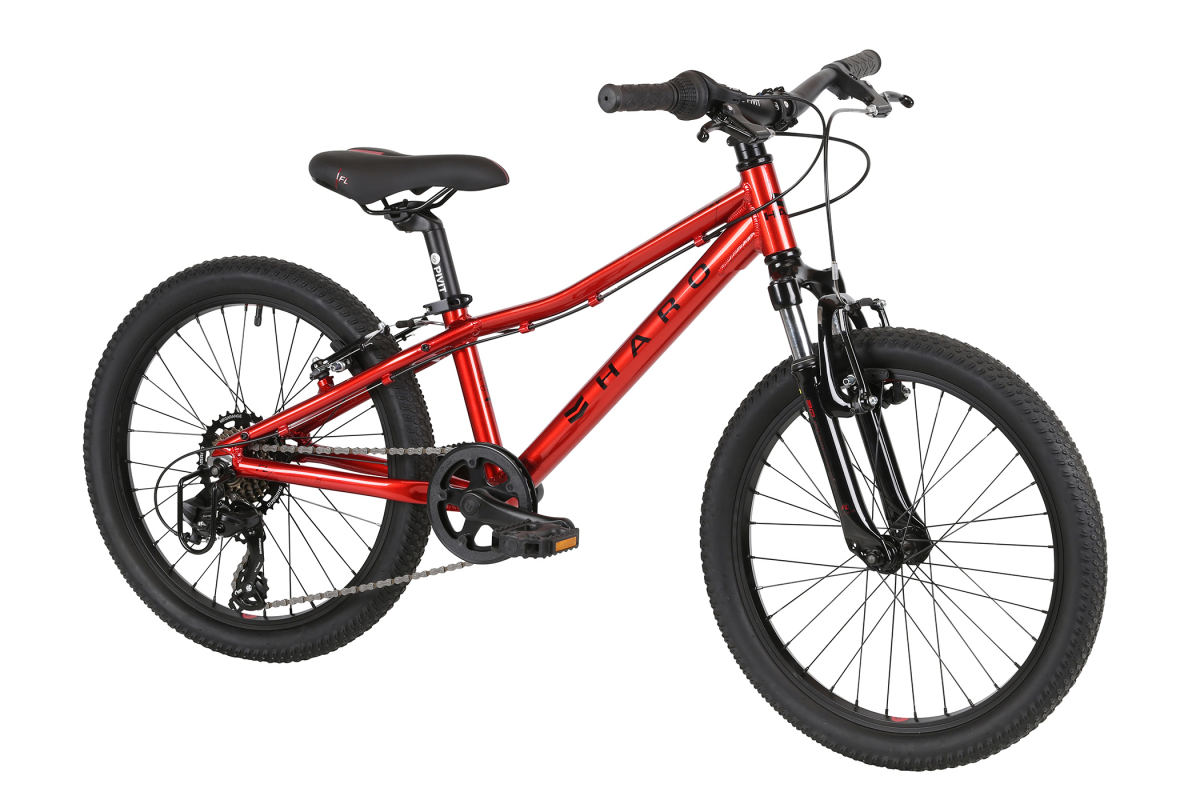

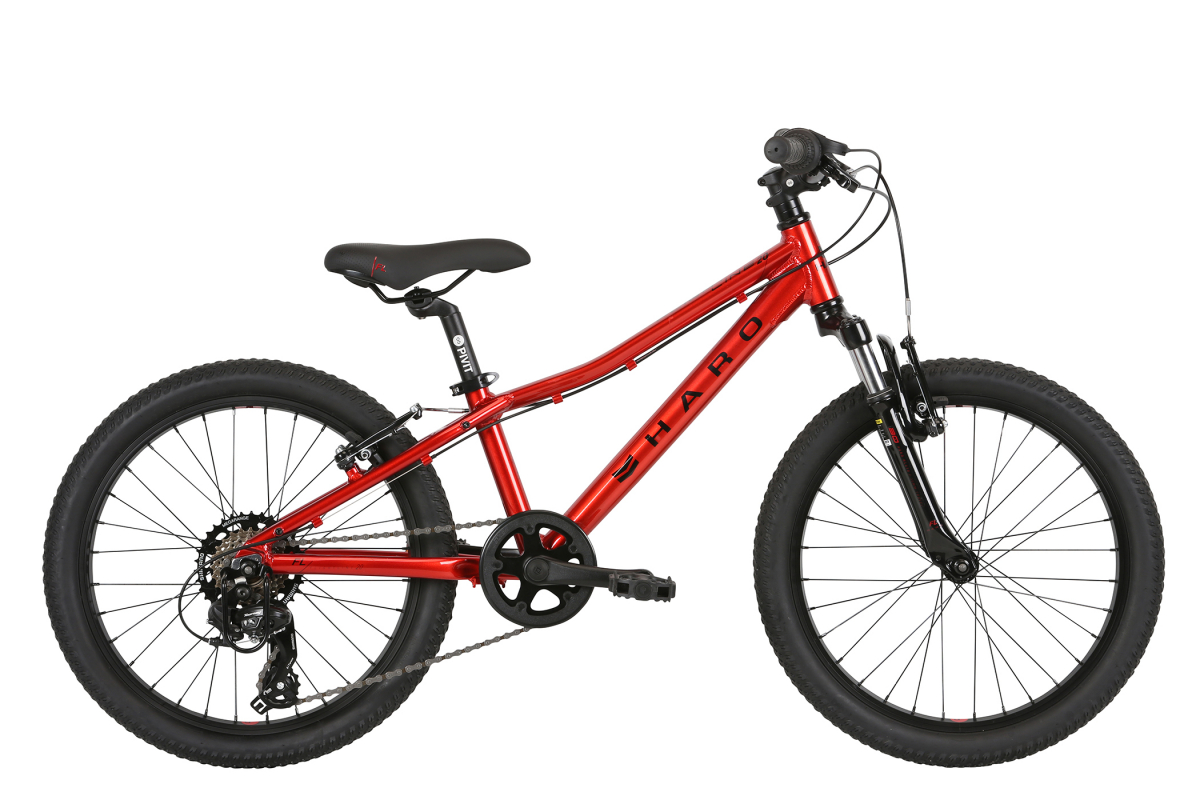

Thanks to its lower stand-over height frame and 20" wheelset, the Flightline 20 is perfect for adventurous youngsters who love to ride but aren't quite ready for the larger 24" or 26" wheel-sizes yet. The FL 20 features Haro's low profile X6 alloy frame with a ton of stand-over clearance. Bumps don't stand a chance thanks to its suspension fork with 35mm of travel. The FL 20 features a new 1x7-speed drive-train with a single chainring and Revo shifter to make it easier to switch gears.
FEATURES
- Flightline X6 Series aluminum frame
- HL 410E suspension fork w/ 30mm travel
- 1-1/8" Threadless headset
- Alloy 32T crankset w/ double chainguard
- Sealed cartridge BB set
- New Shimano Tourney TY-200 rear derailleur
- New Revo 7-spd shifter
- New Tourney TZ510 7-spd 14-34T freewheel
- Aluminum single wall 20" rims w/ 32h hubs
| Frame Components | |
|---|---|
| Frame | Haro Flightline FL3G 6000 series Aluminum | Low stand-over height | V-Brake bosses |
| Fork | HL 410E 30mm travel |
| Headset | 1-1/8" threadless steel cups | loose ball | Nylon Top |
| Frame Shock | N/A |
| Drivetrain | |
| Cranks | Aluminum 32T double chain guard | 5" / 127mm |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC Z7 1/2"*3/32" |
| Front Derailleur | N/A |
| Rear Deralleur | New Shimano Tourney TY-200 |
| Derailleur Shifter | Shimano Revo 7-spd |
| Pedals | MTB nylon body |
| Wheels | |
| Tires | H-5129 | 20" X2.0" |
| Wheels/Rims | Aluminum single wall 20" |
| Hubs | Pivit steel 32h nuts |
| Freewheel/Cassette | New Shimano Tourney MF-TZ510 7-spd freewheel 14-34T |
| Spokes | Steel BED |
| Braking System | |
| Brakes | Promax TX-121 V-Brakes |
| Brake Levers | Promax BL-81G | Short reach |
| Other Components | |
| Grips | Haro MTB |
| Handle Bar | Pivit Aluminum 25mm riser bar | 31.8mm O.D. |
| Stem | Pivit melt forged stem 4 bolts | 31.8mm bar bore |
| Seat | Haro Flightline Jr |
| Seat Post | Pivit Aluminum micro adjust 27.2mm |
| Seat Clamp | Pivit Aluminum 31.8mm quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 69° | 71° | 469mm (18.5") | 244mm (9.6") | 355mm (14") | 0mm (0") | 878mm (34.6") | 523mm (20.6") | 422mm (16.6") | 324mm (12.8") | 355mm (14") | 35mm (1.4") | 45mm | 620mm | 127mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
