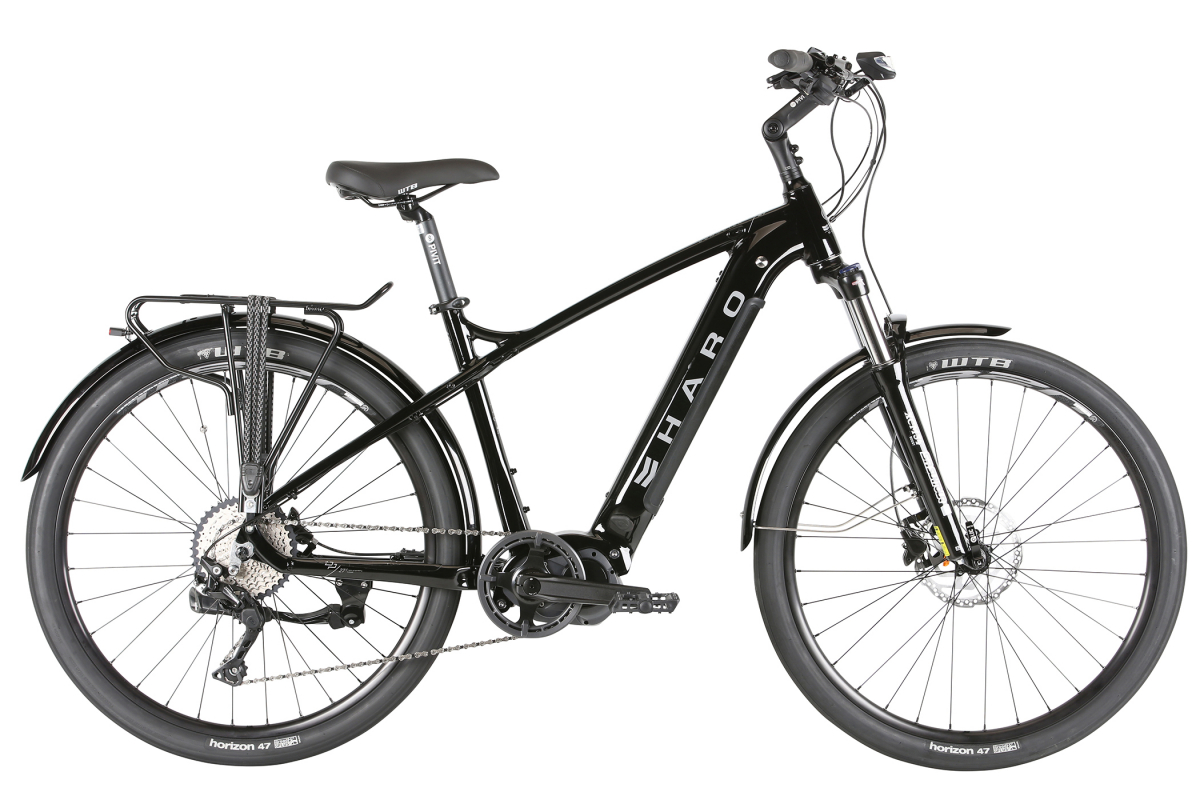

The Double Peak I/O Commuter, designed for an urban environment, relies on the same frame platform as the original MTB version, with additional city-friendly features such as adjustable-rise stem, fenders, rear rack, front / rear lights and narrower WTB Horizon tires with reflective patches for increased safety. The Double Peak frame with its slick internal down-tube hides the battery away for a streamlined look. The Commuter's features include a new Deore 10-speed 1-by drive-train and a Shimano STePS 6100 compact mid-motor drive (with its components), programmed for on-road use. The Commuter is your perfect companion for work commutes or adventures around town.
FEATURES
- Double Peak i/O X6 series frame, internal battery, tapered head tube
- Suntour XCM-34 Boost fork, 100mm travel w/ 15mm thru-axle
- Shimano STePS E6100 Drive unit & components
- 250 Watts, 60Nm motor w/ Darfon internal 504wh battery
- New Deore M5120 10-spd Shadow Plus rear derailleur
- New Deore M4100 10-spd 11-46T cassette
- Samox crankarms w/ Shimano 38T chainring
- Shimano MT-201 hydraulic disc brakes, 180mm/160mm rotors
- Front & rear lights, rear rack, fenders & kickstand
| Frame Components | |
|---|---|
| Frame | Double Peak I/O X6 Aluminum frame for Shimano STePS Tapered Head Tube | Internal battery Down Tube |
| Fork | SR Suntour XCM34 Boost LO DS T/A | 100mm travel | Tapered | Lockout |
| Headset | FPD Dozer 1-1/8"-1.5" | AC Bearing bottom |
| Drivetrain | |
| Cranks | Samox TEC39-SHE80 | Shimano 38T Chainring |
| Bottom Bracket | N/A |
| Chain | KMC e10S Sport |
| Front Derailleur | N/A |
| Rear Deralleur | New Shimano Deore RD-M5120 | 10-spd | Shadow Plus |
| Derailleur Shifter | Shimano Deore RapidFire+ 10-spd |
| Drive Unit | Shimano STePS E6100 | 250 W. | 60 Nm Torque |
| Battery | Darfon Internal for ShimanoSTePS | 504Wh |
| Pedals | FPD Nylon | 9/16" Chromoly axles |
| Wheels | |
| Tires | WTB Horizon Comp 650Bx47mm | Black Reflective patches | 30Tpi | Wire Beads |
| Wheels/Rims | Weinmann U-28 TL | Sleeved | Tubeless Ready | 27.5"x32mm | Double Wall w/ eyelets |
| Hubs | Shimano MT-400 Front Thru-Axle | M-4050 Rear Quick Release | 32h | Cassette Body |
| Freewheel/Cassette | New Shimano Deore CS-M4100-10 | 10-spd | 11-46T |
| Spokes | Stainless 14g |
| Braking System | |
| Brakes | Shimano BR-MT200 Hydraulic Disc | 180mm / 160mm Center Lock Rotors |
| Brake Levers | Shimano BL-MT201 Hydraulic |
| Other Components | |
| Grips | Velo Ergonomic |
| Handle Bar | Aluminum riser bar | 25mm Rise |
| Stem | Pivit 3D Forged | Adjustable | Intergrated front light mount |
| Seat | WTB Comfort Sport |
| Seat Post | Pivit Alloy Microadjust 31.6 x 350mm |
| Extras | Front & Rear lights | Rear rack | Fenders | Kickstand | Darfon Battery charger | Battery Lock |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 68° | 72.5° | 600mm (23.6") | 406mm (16") | 450mm (17.7") | 45mm (1.8") | 1137mm (44.8") | 711mm (28") | 617mm (24.3") | 407mm (16") | 518mm (20.4") | 47mm (1.9") | 90mm | 700mm | 170mm |
| M | 68° | 72.5° | 600mm (23.6") | 457mm (18") | 450mm (17.7") | 45mm (1.8") | 1137mm (44.8") | 741mm (29.2") | 617mm (24.3") | 407mm (16") | 518mm (20.4") | 47mm (1.9") | 90mm | 700mm | 170mm |
| L | 68° | 72.5° | 616mm (24.3") | 508mm (20") | 450mm (17.7") | 45mm (1.8") | 1152mm (45.4") | 761mm (30") | 622mm (24.5") | 422mm (16.6") | 518mm (20.4") | 47mm (1.9") | 110mm | 700mm | 170mm |
| XL | 68° | 72.5° | 630mm (24.8") | 559mm (22") | 450mm (17.7") | 45mm (1.8") | 1168mm (46") | 795mm (31.3") | 626mm (24.6") | 435mm (17.1") | 518mm (20.4") | 47mm (1.9") | 110mm | 700mm | 170mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
