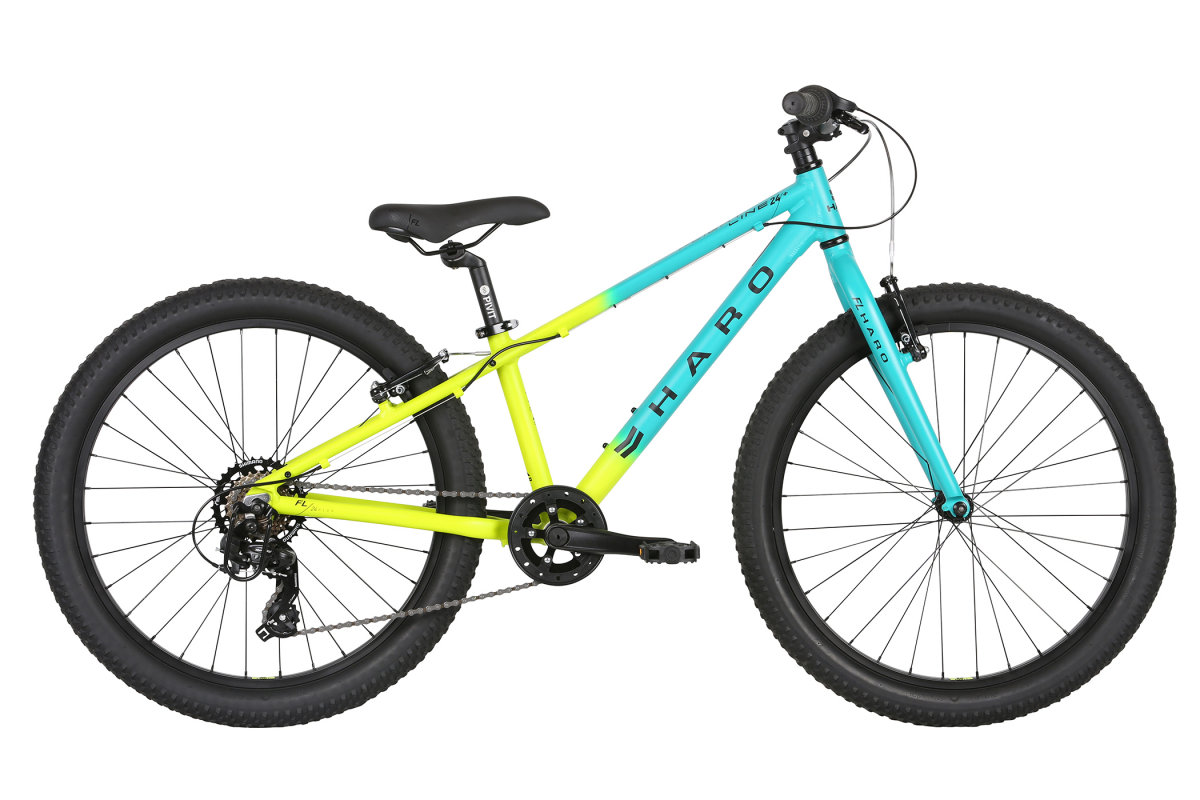

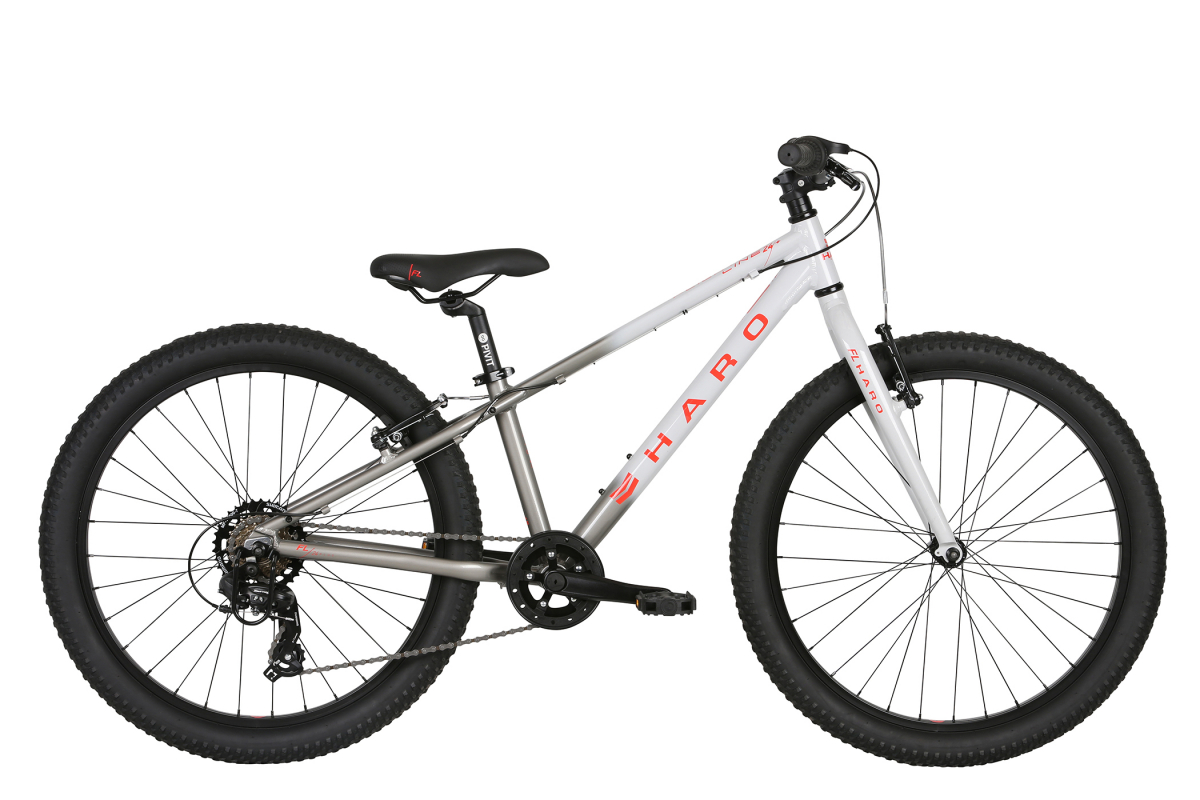

The Flightline 24 Plus is your take-anywhere, do-anything gateway to pure fun. Don't let its price fool you, the FL 24 Plus has features found on serious off-road machines. At its heart are a low profile lightweight, rust-free aluminum frame and rigid fork featuring a 1x drive train with Shimano Revo 7-speed twist-shifter and Tourney rear derailleur. Bumps are neutralized thanks to its Plus-size 2.6" MTB tires mounted to wide alloy rims. The FL 24 Plus is designed to keep things light and simple for young Trails-riding enthusiasts.
FEATURES
- Haro FL 24" Plus X6 Series frame, new chainstays
- 1-1/8" Threadless headset
- 6000 Series aluminum 1-1/8" fork
- Aluminum 3-pc 28T crankset w/ double-chainguard
- New Tourney TY-200 rear derailleur
- Shimano Tourney 7-spd Revo shifter
- New Tourney TZ510 7-spd 14-34T freewheel
- 31mm wide rims w/ alloy 32h hubs
- 24"x2.60" tires
| Frame Components | |
|---|---|
| Frame | Haro Flightline 24" Plus FL3G 6000 series alloy, w/ V-Brake bosses |
| Fork | 24" Rigid Aluminum Legs w/ Chromoly Steerer Tube, w/ V-Brake bosses |
| Headset | 1-1/8" threadless steel cups, loose ball, Nylon Top |
| Drivetrain | |
| Cranks | Alloy 28t, Narrow-Wide chainring w/ Single chain guard, 6"/152mm |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC Z7 1/2"x3/32" |
| Rear Deralleur | Shimano Tourney RD-TY300, 7-spd |
| Derailleur Shifter | Shimano Revo 7-spd |
| Pedals | MTB nylon body |
| Wheels | |
| Tires | H-5183, 24"x2.60" |
| Wheels/Rims | Alloy single wall 24" 31mm Wide |
| Hubs | Pivit steel 32h w/ nuts |
| Freewheel/Cassette | Shimano Tourney 7-spd freewheel 14-34T |
| Spokes | Steel BED |
| Braking System | |
| Brakes | Promax TX-121 V-Brakes |
| Brake Levers | Promax BL-42G |
| Other Components | |
| Grips | Haro MTB |
| Handle Bar | Pivit alloy 25mm riser bar, 31.8mm O.D. |
| Stem | Pivit melt forged stem w/ 4 bolts, 31.8mm bar bore |
| Seat | Haro Flightline Jr |
| Seat Post | Pivit alloy micro adjust 27.2mm |
| Seat Clamp | Pivit alloy 31.8mm quick release |
| Extras | Chain-Drop Protector |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 69° | 73° | 512mm (20.2") | 305mm (12") | 420mm (16.5") | 45mm (1.8") | 992mm (39.1") | 621mm (24.4") | 514mm (20.2") | 355mm (14") | 407mm (16") | 35mm (1.4") | 45mm | 620mm | 152mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
*Actual retail price may vary based on any added dealer freight, tax, and assembly fees
