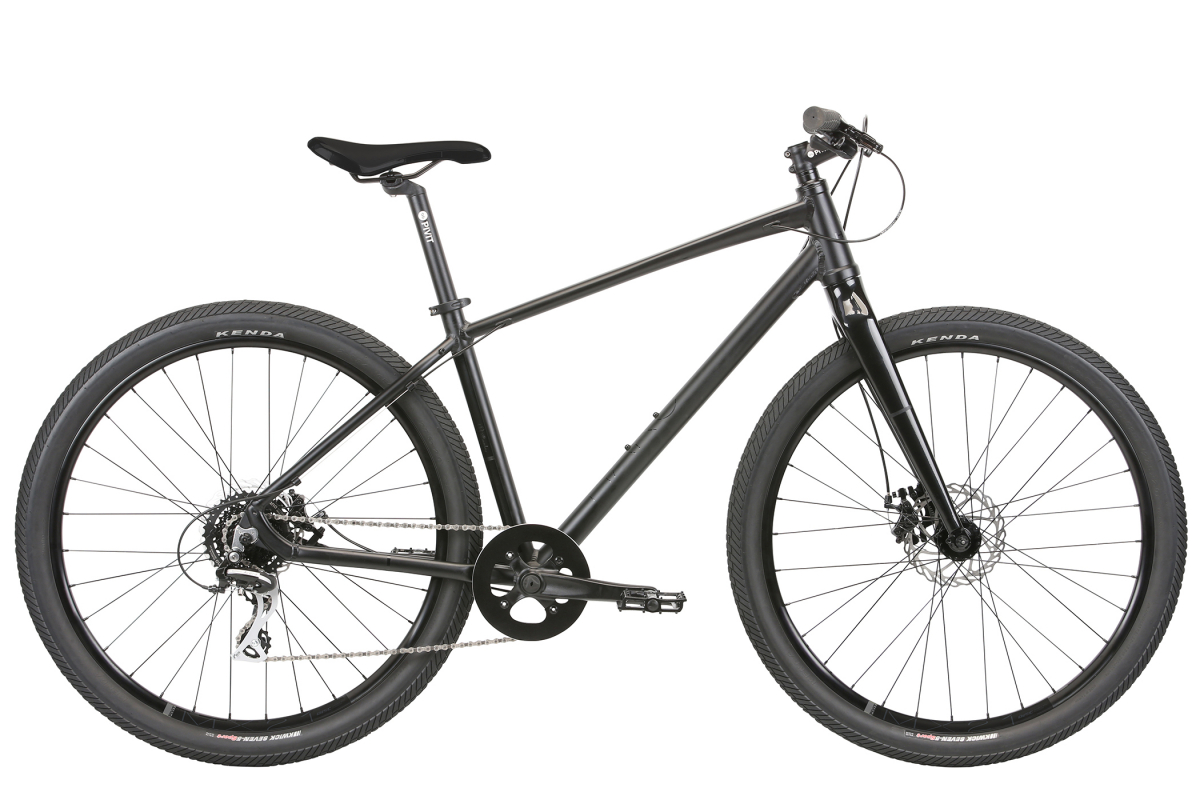

Do you want a bike to ride everything urban? From quick trips to the local store and nearby parks, to rides to work, and all the places in between, the Beasley 27.5" offers a sharp and sophisticated feel for amazing rides in any urban environment. Features include a 1x drive-train that makes shifting a breeze and Kenda Kwick 2.0 tires that ensure that harsh pavement is little more than an eyesore. Perhaps best of all, with its all-blacked-out aesthetic, it's as stealth as they come.
FEATURES
- Haro Beasley 27.5" X6 series aluminum, tapered head tube
- Internal Threadless tapered headset
- Rigid 27.5" 6000 Series tapered aluminum fork
- Aluminum, 38T chainring, Double chainguard
- Shimano Acera 8-spd rear derailleur
- Shimano Altus SL-M310 shifter
- Shimano HG-31 8-spd 11-34t cassette
- MX-21 27mm Aluminum double wall rims
- Pivit aluminum cassette 32h hubs
- Kenda Kwick Seven.5 27.5x2.0" tires
- Jak-7 Mechanical disc brakeset w/ 160mm Rotors
| Frame Components | |
|---|---|
| Frame | Haro Beasley 27.5" | X6 Aluminum series | New Chainstay design | Post disc mount |
| Fork | Rigid 27.5" 6061-T6 Aluminum Aluminum Tapered steer tube | IS Disc Mount | for integrated headset |
| Headset | 1-1/8"-1.5" Tapered threadless Internal | Aluminum Top cone |
| Drivetrain | |
| Cranks | Samox Aluminum | 38T chainring Double-Aluminum chainguard | 170 / 175mm |
| Bottom Bracket | Sealed cartridge |
| Chain | KMC X8 HG | 8-spd | 1/2"*3/32" |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Acera RD-M360-L | 8-spd |
| Derailleur Shifter | Shimano Altus SL-M310 | Right | 8-spd |
| Pedals | FPD aluminum Platform | Chromoly axles | SBB Ball-Bearings |
| Wheels | |
| Tires | Kenda Kwick Seven.5 | 27.5x2.0" |
| Wheels/Rims | MX-21 27mm aluminum double wall rims |
| Hubs | Pivit aluminum cassette 32h |
| Freewheel/Cassette | Shimano CS-HG31 | 8-spd | 11-34T |
| Spokes | Stainless BED |
| Braking System | |
| Brakes | Jak-7 Mechanical disc brakes | 160mm Rotors |
| Brake Levers | Tektro ML-520-RS Aluminum | 2-Finger |
| Other Components | |
| Grips | Haro MTB |
| Handle Bar | Pivit aluminum 25mm riser bar 31.8mm |
| Stem | Pivit Aluminum | 3D Forged | 31.8mm |
| Seat | Haro Flightline |
| Seat Post | Pivit Aluminum | 2 Bolts | micro adjust 30.9x350mm |
| Seat Clamp | Pivit alloy 34.9mm | quick release |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S / 15 | 71.5° | 73° | 570mm (22.4") | 381mm (15") | 445mm (17.5") | 65mm (2.6") | 1051mm (41.4") | 703mm (27.7") | 566mm (22.3") | 396mm (15.6") | 424mm (16.7") | 45mm (1.8") | 70 or 80mm | 680mm | 170mm |
| M / 17 | 72° | 73° | 600mm (23.6") | 432mm (17") | 445mm (17.5") | 65mm (2.6") | 1077mm (42.4") | 736mm (29") | 592mm (23.3") | 418mm (16.5") | 424mm (16.7") | 45mm (1.8") | 70 or 80mm | 680mm | 175mm |
| L / 19 | 72.5° | 73° | 610mm (24") | 483mm (19") | 445mm (17.5") | 65mm (2.6") | 1087mm (42.9") | 775mm (30.5") | 616mm (24.3") | 421mm (16.6") | 424mm (16.7") | 45mm (1.8") | 80mm | 700mm | 175mm |
| XL / 21 | 72.5° | 73° | 625mm (24.6") | 533mm (21") | 445mm (17.5") | 65mm (2.6") | 1103mm (43.4") | 813mm (32") | 640mm (25.2") | 428mm (16.9") | 424mm (16.7") | 45mm (1.8") | 80mm | 700mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
