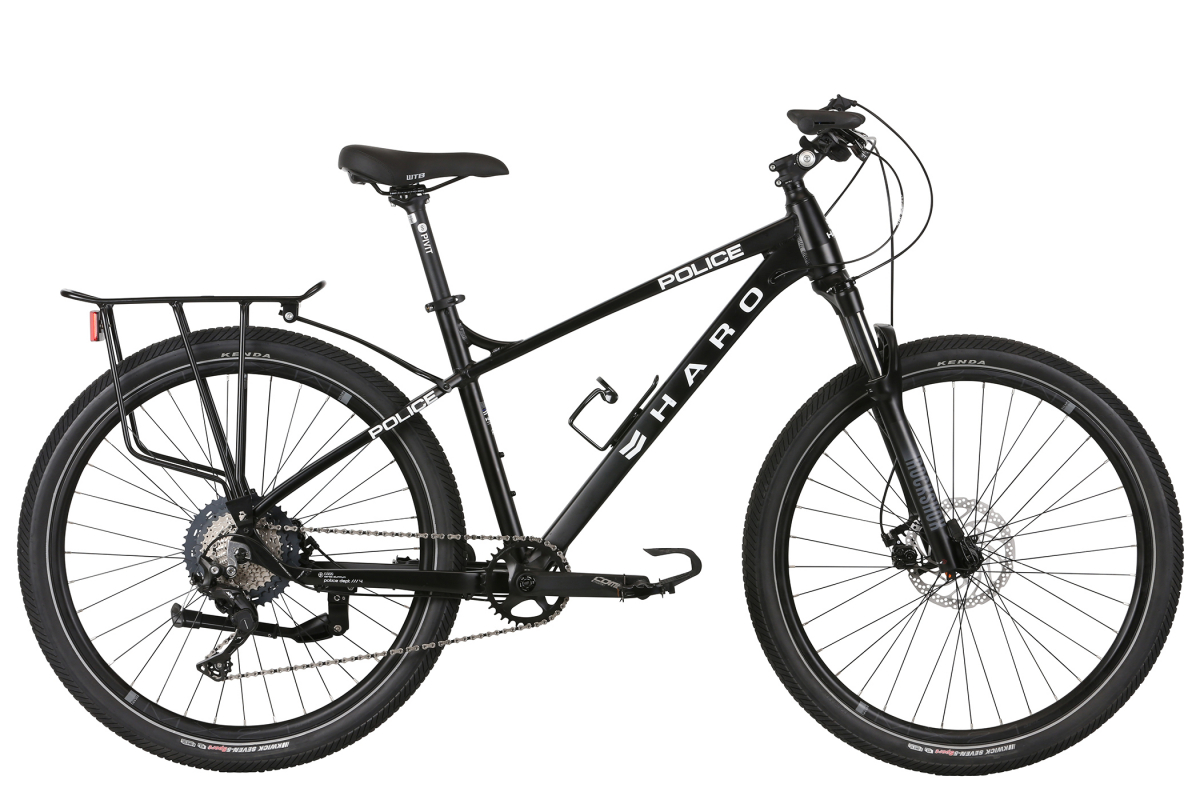

With its newly re-designed frame, the PD 4 features a low stand-over height for easier climbing in & out of the saddle. Its lightweight aluminum frame features a tapered head tube, internal cable routing and an improved kickstand position. It comes standard with an easy-to-use 1x11 Shimano XT/SLX drive train, versatile and capable of handling a wide variety of terrain. It rolls along on strong double-wall rims, stainless spokes and Kenda Kwick Seven.5 tires with reflective sidewalls for increased safety. The PD4 features a Rockshox Judy Silver Boost / 100mm travel fork with a remote hydraulic lockout at the handlebar, which deactivates the up and down motion associated with suspension. For easier maintenance overtime, the PD4 features quality Shimano mechanical disc brakes and levers. The PD4 is your trusted partner for community and outreach patrols.
FEATURES
- Haro PD4 27.5" X6 frame, updated kickstand position
- Rockshox Judy Silver, 27.5" Boost fork, 100mm, remote Lockout
- FSA Comet Modular 34T crankset
- XT 11-spd Shadow rear derailleur
- SLX M7000 11-spd shifter & 11-46T cassette
- WTB Comfort Sport saddle
- MX-21 27.5" Aluminum DW rims
- Alivio / Altus, Front T/A, 36H hubs
- Shimano Mechanical BR-M375 disc brakes
- Shimano Deore BL-T4000 brake levers
| Frame Components | |
|---|---|
| Frame | New 2021 Haro PD2-type 27.5" X6 / 6000 series Aluminum | Tapered Head Tube | Internal housing routing | chainstay disc brake mount | 68mm Threaded BSA |
| Fork | Judy Silver TK | 27.5" Boost | 15x110mm axle | Solo Air | 100mm travel | Poploc Remote Lockout |
| Headset | FPD DOZER-1160A-2 | 1.5" ACB bottom | For 44/56mm Head Tube | w/ 15mm top cap |
| Drivetrain | |
| Cranks | FSA Comet Modular MegaExo | 34T | Megatooth Chromoly Chainring |
| Bottom Bracket | FSA MegaExo 73mm |
| Chain | KMC X11 11-spd |
| Front Derailleur | N/A |
| Rear Deralleur | Shimano Deore XT | 11-spd Shadow Plus |
| Derailleur Shifter | Shimano SLX M7000 | 11-spd |
| Pedals | VP Steel cage | Short Toe clips |
| Wheels | |
| Tires | Kwick Seven.5 27.5x2.0" | 60TPI | Reflective Stripes |
| Wheels/Rims | Weinmann U-28 Disc 27.5" | Aluminum double wall |
| Hubs | Shimano Alivio / Altus | thru-Axle front | Center Lock Disc | cassette 36h |
| Freewheel/Cassette | Shimano SLX M7000 | 11-spd | 11-46T |
| Spokes | Stainless steel | Black E.D. |
| Braking System | |
| Brakes | Shimano BR-M375 mechanical | 180/160mm Center Lock Rotors |
| Brake Levers | Shimano BL-T4000 | Deore, cable type | 2-finger |
| Other Components | |
| Grips | Velo Triple Density | Integrated Bar-Ends |
| Handle Bar | Pivit alloy 25mm riser 31.8mm |
| Stem | Pivit Adjustable stem | 31.8x105mm |
| Seat | WTB Comfort Sport |
| Seat Post | Pivit alloy | 2 Bolts | micro adjust 30.9mm |
| Seat Clamp | Pivit alloy 34.9mm quick release |
| Extras | Rear rack | Water-Bottle cage | Kickstand |
| Size | Head Angle | Seat Angle | Top Tube (Effective) | Seat Tube (C-T) | Chainstay Length | BB Drop | Wheel Base | Stand Over | Stack Height | Reach | Fork Height | Fork Offset | Stem Length | Bar Width | Crank Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 68° | 73° | 593mm (23.3") | 406mm (16") | 445mm (17.5") | 45mm (1.8") | 1109mm (43.7") | 706mm (27.8") | 593mm (23.3") | 410mm (16.1") | 490mm (19.3") | 42mm (1.65") | 105mm | 700mm | 170mm |
| M | 68° | 73° | 613mm (24.1") | 457mm (18") | 445mm (17.5") | 45mm (1.8") | 1131mm (44.5") | 721mm (28.4") | 597mm (23.5") | 430mm (16.9") | 490mm (19.3") | 42mm (1.65") | 105mm | 700mm | 170mm |
| L | 68° | 73° | 625mm (24.6") | 508mm (20") | 445mm (17.5") | 45mm (1.8") | 1145mm (45.1") | 753mm (29.6") | 606mm (23.9") | 440mm (17.3") | 490mm (19.3") | 42mm (1.65") | 105mm | 700mm | 175mm |
| XL | 68° | 73° | 635mm (25") | 559mm (22") | 445mm (17.5") | 45mm (1.8") | 1155mm (45.5") | 770mm (30.3") | 606mm (23.9") | 450mm (17.7") | 490mm (19.3") | 42mm (1.65") | 105mm | 700mm | 175mm |
RESOURCES
Owner's manual: Bike Manual PDF (Opens in a new window)
